1981 XR200R'81
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- It was sold alongside the XR200'81
- Color: just one color: Tahitian Red
- The black "XR" decal was located just forward of the black number plate panel
- The headlight cowl was black
- The frame was red, but the engine was black
- The seat was black with a white "200R" graphic and a black tool bag on the back
- The fuel tank was plastic
- The serial number began JH2ME0405BK000037.

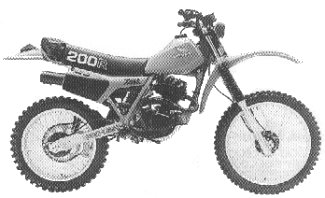

1981 XR200R
1982 XR200R'82
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- It was sold alongside the XR200'82 and came in just one color: Tahitian Red
- The white "XR" decal was located just forward of the white number plate panel
- The front number panel was also white
- The headlight cowl was black
- The frame was red, but the engine was black with polished fins
- The seat was black with a white "200R" graphic and a black tool bag on the back
- The fuel tank was plastic
- It featured a pro-link rear suspension
- The serial number began JH2ME0400CK100001.

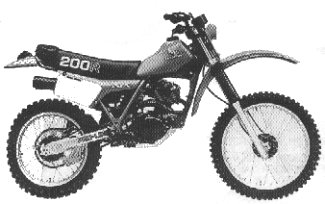

1982 XR200R
1983 XR200R'83
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- It was sold alongside the XR200'83
- Color: just one color: Flash Red
- The front number panel and side panels were yellow
- The frame was red, but the engine was black with polished fins
- The seat and the rear tool bag were blue
- The "XR" graphic on the seat was white
- The swingarm decal "200R" was black
- The fuel tank was plastic
- The serial number began JH2ME0405DK200001.
1983 XR200R
1984 XR200R'84
- ENGINE
- Engine Type: OHC, radial valve, RFVC single cylinder
- Displacement: 199cc
- Fuel delivery: Twin carburetors and twin head pipes
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- Brake: Disc front brake
- Front wheel travel: 229mm (9 in.)
- Rear wheel travel: 203mm (8 in.)
- DIMENSION
- Wheelbase: 1420mm (55.9 in.)
- Dry weight: 134 kg (295.3 lb)
- Seat height: 860mm (33.8 in.)
- OTHER
- It was sold alongside the XR200'84
- Color: just one color: Flash Red
- The front number panel and side panels were yellow
- The frame was red, but the engine was black with polished fins
- The seat and the rear tool bag were blue
- The "XR" graphic on the seat was white
- The swingarm decal "200R" was red and white
- The "PRO-LINK" swingarm decal was red
- The fork boots were black
- The fuel tank was plastic
- The serial number began JH2ME0501EK000006.

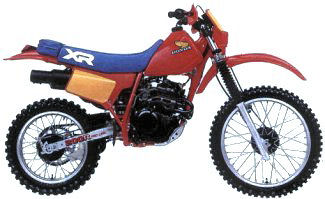

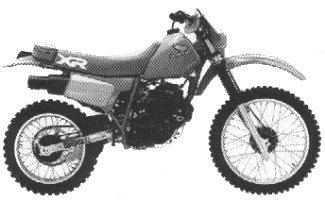

1984 XR200R
1984 XR200R
1985 XR200R'85
- ENGINE
- Engine Type: OHC, radial valve, RFVC single cylinder
- Displacement: 199cc
- Fuel delivery: Twin carburetors and twin head pipes
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: just one color: Flash Red
- The "200R" tank decal was white and blue
- The wing decal on the tank was red, white, and blue
- The front number panel and side panels were yellow
- The frame was red, but the engine was black with polished fins
- The seat and the rear tool bag were blue
- The "XR" graphic on the seat was white
- The "PRO-LINK" swingarm decal was blue
- The fork boots were blue
- The fuel tank was plastic
- The serial number began JH2ME0507FK100001.
1985 XR200R
1986 XR200R'86
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: just one color: Flash Red with Shasta White
- The "XR HONDA" tank decal was white and blue
- The tank, side and front number plate panels were red
- The frame was white, but the engine was black with polished fins
- The seat and the rear tool bag were blue
- The "200R" graphic on the seat was white
- The "PRO-LINK" swingarm decal was blue
- The fork boots were blue
- The fuel tank was plastic
- The serial number began JH2ME0501GK200001.

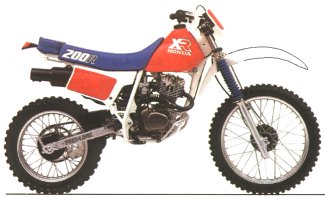

1986 XR200R
1987 XR200R'87
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: just one color: Flash Red with Shasta White
- The "XR HONDA" tank decal was white and blue
- The tank, side and front number plate panels were red
- The frame was white, but the engine was black with polished fins
- The seat and the rear tool bag were blue
- The "200R" graphic on the seat was white
- The "PRO-LINK" swingarm decal was blue
- The fork boots were blue
- The fuel tank was plastic
- The serial number began JH2ME0506HK300001.

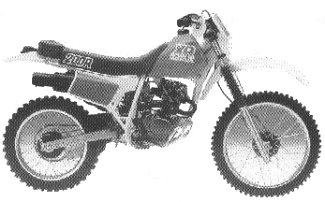

1987 XR200R
1988 XR200R'88
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: just one color: Flash Red with Shasta White
- The "XR200R" tank decal was white
- The tank, fork boots, and rear fender were red
- The side and front number plate panels were black
- The frame was white, but the engine was black with polished fins
- The seat and the rear tool bag were blue
- The "HONDA" graphic on the seat was white
- The front fender was white
- The "PRO-LINK" swingarm decal was white
- The fuel tank was plastic
- The serial number began JH2ME0505JK400001.

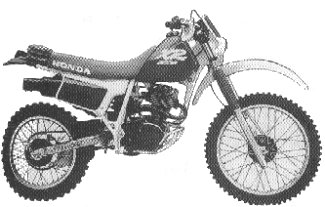

1988 XR200R
1990 XR200R'90
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: just one color: Flash Red with Shasta White
- The "XR200R" tank decal was white
- The tank, fork boots, and rear fender were red
- The side and front number plate panels were black
- The frame was white, but the engine was black with polished fins
- The seat and the rear tool bag were blue
- The "HONDA" graphic on the seat was white
- The front fender was white
- The "PRO-LINK" swingarm decal was white
- The fuel tank was plastic
- The lighting equipment was optional
- The serial number began JH2ME0505JK400001.

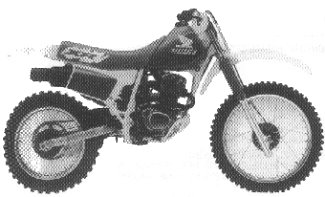

1990 XR200R
1991 XR200R'91
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: Shasta White with Rainbow Blue
- The seat was red while the fork boots and side cover panels were blue
- The "XR" tank logo was red and blue
- The lighting equipment was optional
- The serial number began JH2ME050*MK600001.

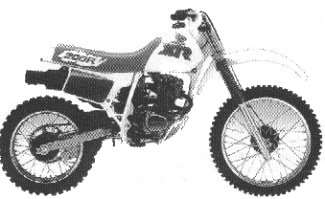

1991 XR200R
1993 XR200R'93
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: Shasta White with Rainbow Blue
- The seat height was reduced from the 1991 model
- The gas tank wing logo was deleted
- The "200R" seat logo was white
- The serial number began JH2ME050*PK700001.

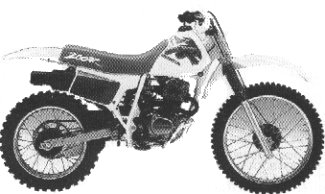

1993 XR200R
1994 XR200R'94
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: Shasta White with Real Blue
- The gas tank had redesigned "XR" graphics
- The "XR" was blue outlined in Red
- The "HONDA" was red
- The "200R" graphic on the seat was redesigned
- The serial number began JH2ME050*RK800001.
1994 XR200R
1995 XR200R'95
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: Shasta White with Uranus Violet
- The gas tank had a redesigned d"XR" graphic
- The "XR" was red outlined in blue
- The "HONDA" decal was blue
- The "200R" graphic on the seat was redesigned
- The serial number began JH2ME050*SK900001.

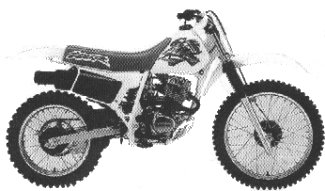

1995 XR200R
1996 XR200R'96
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: Shasta White with Uranus Violet
- The gas tank logo was redesigned again
- The "XR" was white outlined in red on a purple background
- The "HONDA" decal was white
- The serial number began JH2ME050*TK000001

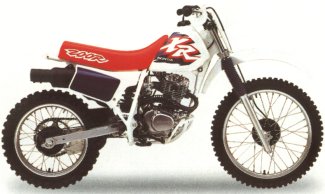

1996 XR200R
1997 XR200R'97
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: Shasta White
- the gas tank logo was redesigned and the number plates were now white
- The serial number began JH2ME050*VK100001

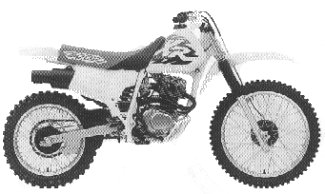

1997 XR200R
1998 XR200R'98
- ENGINE
- Engine Type: OHC, 2-valve, single cylinder
- Displacement: 195cc
- Fuel delivery: Single carburetor
- Exhaust: Single pipe
- Oil Filter: replaceable
- Sump: Dry
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Rear suspension: Pro-LinkTM
- DIMENSION
- OTHER
- Color: Shasta White
- The gas tank logo was redesigned to include a yellow Honda Wing logo
- The "200R" logo on the seat was black
- The serial number began JH2ME050*RK800001

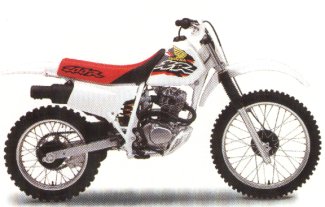

1998 XR200R

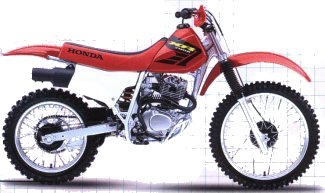

2002 XR200R'02
- ENGINE
- Engine: Air cooled, single cylinder four stroke
- Displacement: 195cc
- Bore and Stroke: 65.5mm x 57.8mm
- Compression Ratio: 10.0:1
- Valve system: SOHC 2-valve
- Fuel Delivery: Single, 24mm
- Ignition: CDI
- Starting system: Kick
- DRIVETRAIN
- Transmission: Close-ratio, 6-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 36 mm fork, 208 mm travel
- Rear Suspension: Pro-Link single shock with adj. preload, 211mm travel
- Front brake: Mechanical drum
- Rear Brake: Mechanical drum
- Front Tire: 80/100-21
- Rear Tire: 100/100-17
- DIMENSION
- Seat height: 850mm (33.5 in.)
- Wheelbase: 1360mm (53.5 in.)
- Dry weight: 101 kg (223 lb)
- Fuel capacity: 9.0 liters
- OTHER
2002 XR200R
