1973-74 CB200
- ENGINE
- Engine Type: 198 cc, air cooled, 2 - cylinders parallel, 4-stroke
- Bore and Stroke: 55.5 mm x 41 mm
- Compression Ratio: 9.0:1
- Valves: 2 valves/cylinder
- Horsepower: 17 hp (12.7 kW) @ 9000 rpm
- Torque: 13 Nm (9.6 ft. lbs) @ 7000 rpm
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: cable-operated single disc
- Rear Brakes: Drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- Main Fuel capacity: 9 litres (2.4 gal. US)
- Reserve fuel: 2 litres (0.5 gal. US)
- Dry weight: 132 kg (291 pounds)
- OTHER
- Colors:
- Tahitian Red
- Muscat Green Metallic
- The fuel tank had a black rubber insert on top
- It was also 2-tone red and green with black panels on each side
- The "CB200" side cover emblem was white
- The front disc brake was operated by a cable rather than hydraulic lines
- The serial number began CB200-1000001

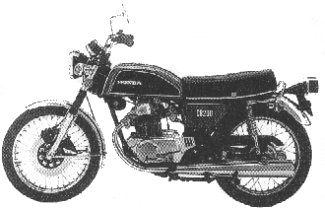

1973-74 Honda CB200K0

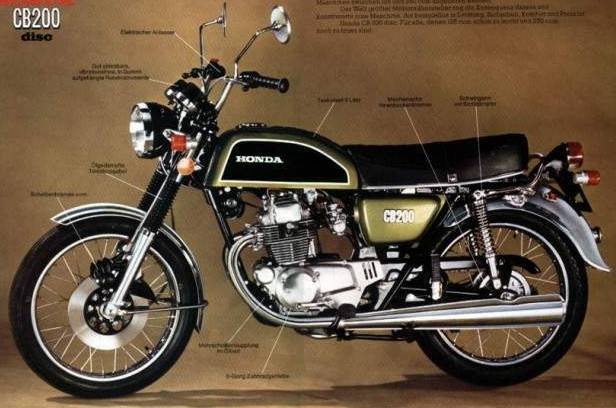

1974 Honda CB200K0
Click image to enlarge
1975 CB200T
- ENGINE
- Engine Type: 198 cc, air cooled, 2 - cylinders parallel, 4-stroke
- Bore and Stroke: 55.5 mm x 41 mm
- Valves: 2 valves/cylinder
- Horsepower: 17 hp (12.7 kW) @ 9000 rpm
- Torque: 13 Nm (9.6 ft. lbs) @ 7000 rpm
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- Front Brakes: cable-operated single disc
- DIMENSION
- Fuel capacity: - reserve 9 litre (2.4 gal. US)
- Dry weight: 132 kg (291 pounds)
- OTHER
- Also referred to as CB200T0
- It was a replacement for the CB200K0
- Colors:
- Candy Gold Metallic
- Custom Silver Metallic
- The fuel tank and side covers are the basic color
- The "CB200T" side cover emblem was white and yellow
- The serial number began: CB200-2000001

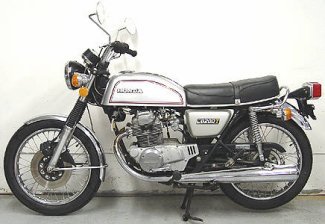

1975 CB200 picture donated by Don Inamasu
1976 CB200T'76
- ENGINE
- Engine Type: 198 cc, air cooled, 2 - cylinders parallel, 4-stroke
- Bore and Stroke: 55.5 mm x 41 mm
- Valves: 2 valves/cylinder
- Horsepower: 17 hp (12.7 kW) @ 9000 rpm
- Torque: 13 Nm (9.6 ft. lbs) @ 7000 rpm
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- Front Brakes: cable-operated single disc
- DIMENSION
- Fuel capacity: - reserve 9 litre (2.4 gal. US)
- Dry weight: 132 kg (291 pounds)
- OTHER
- Colors:
- Parakeet Yellow with Black
- Shiny Orange with Black
- The fuel tank was the basic color while the side covers were black
- The "CB200T" side cover emblem was white and yellow
- The front disc brake was cable operated
- The serial number began: CB200-2100001.

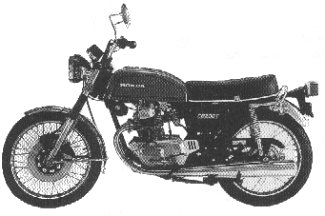

1976 CB200T
