1969 CB175K3 Early model Super Sport 175
- ENGINE
- Engine Type: OHC parallel twin cylinders
- Displacement: 174cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- Candy Blue with White
- Candy Orange with White
- The gas tank was a two-tone with a black rubber pad
- The "HONDA" tank emblem was in the white section
- The side cover was white
- The "175" emblem was white and the basic color (blue or orange)
- The seat surface was not pleated
- The electrical system was 12-volt
- The serial number began CB175-4000001.

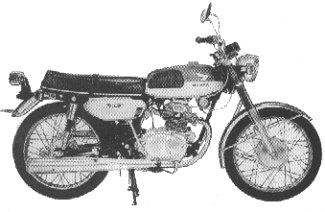

CB175K3 Early
1969 CB175K3 Late model Super Sport 175
- ENGINE
- Engine Type: OHC parallel twin cylinders
- Displacement: 174cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- Candy Blue with white
- Candy Orange with white
- The "HONDA" tank emblem was in the color section
- The seat surface was pleated
- The rear shock springs were concealed
- The electrical system was 12-volt
- The serial number began CB175-4000001.

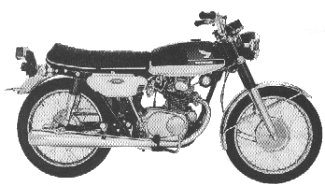

CB175K3 Late
1970 CB175K4 Super Sport 175
- ENGINE
- Engine Type: OHC parallel twin cylinders
- Displacement: 174cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- Candy Blue Green with White
- Candy Gold with White
- Candy Ruby Red with White
- The gas tank was two-tone with a black "HONDA" emblem
- The "175" emblem was black with a white base
- The electrical system was 12-volt
- The serial number began CB175-5000001.

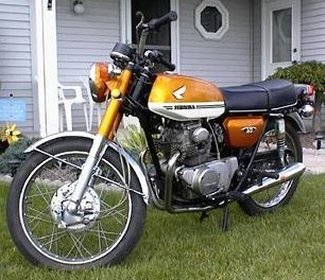

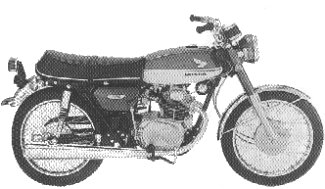

CB175K4
1971 CB175K5 Super Sport 175
- ENGINE
- Engine Type: OHC parallel twin cylinders
- Displacement: 174cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Dual pin stripes were added to the white section of the tank
- The "175" side cover emblem was white with a black and chrome base
- The electrical system was 12-volt
- The serial number begins CB175-6000001.

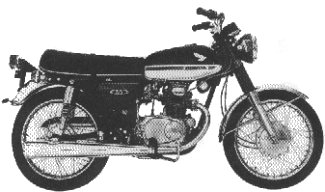

CB175K5
CB175K5
1972 CB175K6 Super Sport 175
- ENGINE
- Engine Type: OHC parallel twin cylinders
- Displacement: 174cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- Light Ruby Red
- Candy Gold
- The gas tank stripe was black with a white "HONDA" emblem
- The side cover wing emblem had a red triangular base
- The "175" side cover emblem was black with white lettering
- The headlight shell was black
- The electrical system was 12-volt
- The serial number began CB175-7000001.

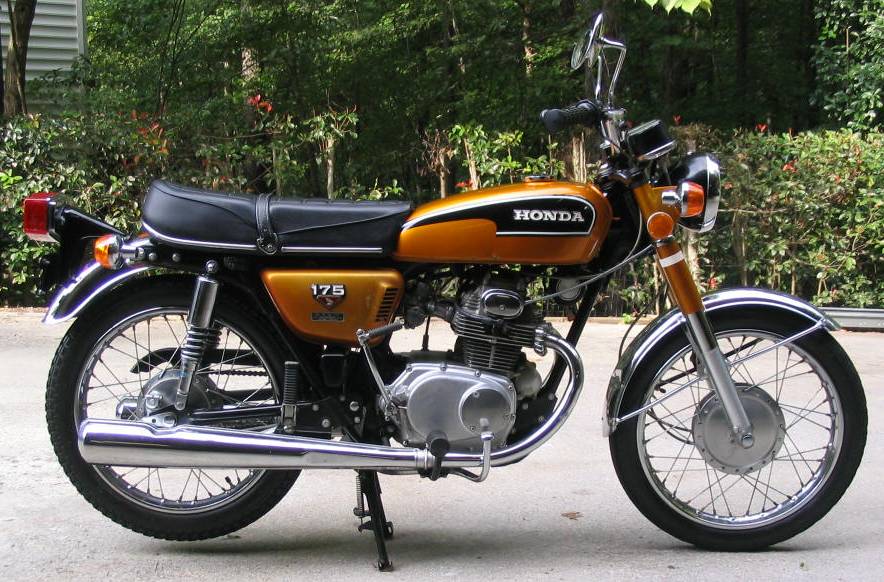

1972 CB175K6
Click image to enlarge
1973 CB175K7 Super Sport 175
- ENGINE
- Engine Type: OHC parallel twin cylinders
- Displacement: 174cc
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- Hawaiian Blue Metallic
- Candy Orange
- The white and black fuel tank stripe had a white "HONDA" emblem
- The side cover wing emblem had a red triangular base
- The "175" side cover emblem was white with black lettering
- The headlight shell was black
- There is a chrome grip pipe behind the seat
- The instrumentation is tilted toward the rider
- The electrical system was 12-volt
- The serial number began CB175-8000001.

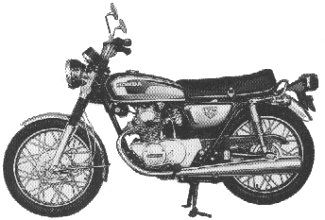

CB175K7
