2013 Honda PCX150
- ENGINE
- Engine Type: 153cc liquid-cooled single-cylinder four-stroke
- Bore And Stroke: 58.0mm x 57.9mm
- Compression Ratio: 10.6:1
- Valve Train: SOHC; two-valve
- Fuel Delivery: PGM-FI with automatic enrichment
- Ignition: Digital with electronic advance
- DRIVETRAIN
- Transmission: Honda V-Matic belt-converter automatic transmission
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm hydraulic fork; 3.5 inches of travel
- Rear Suspension: Unit swingarm, 3.1 inches of travel
- Front Brake: Single 220mm disc with three-piston caliper and CBS
- Rear Brake: Drum with CBS
- Front Tire: 90/90-14
- Rear Tire: 100/90-14
- DIMENSION
- Rake: 27.0 degrees
- Trail: 86mm (3.4 inches)
- Wheelbase: 51.8 inches
- Seat Height: 29.9 inches
- Curb Weight: 286 pounds (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
- Fuel Capacity: 1.6 gallons
- OTHER
- Model Id: PCX150
- Emissions: Meets current California Air Resources Board (CARB) and EPA off-road emissions standards
- Colors:
- FACTORY WARRANTY INFORMATION: One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

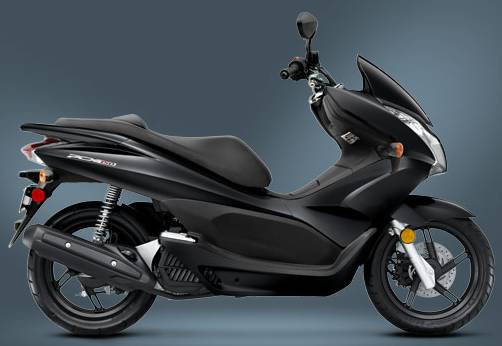

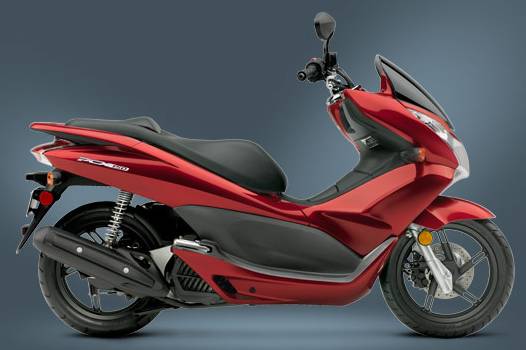

2013 PCX150
