1985 Elite 150 (CH150)
- ENGINE
- Engine Type: Liquid-cooled, SOHC, Four-stroke
- Displacement: 152.7cc
- Bore & Stroke: 58 x 57.8mm
- Compression Ratio: 10:1
- Fuel Delivery: 22mm, CV type
- Ignition: system: CDI
- Starting system: Electric
- DRIVETRAIN
- Transmission: Variable Ratio, V-MaticTM
- Drive line: Belt
- Clutch: Centrifugal, Automatic
- Wheels: Pressed steel
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Trailing-link type
- Rear Suspension: Twin hydraulic shocks
- Brakes: Drum (front and rear)
- Tire size: 3.50-10 (front and rear)
- DIMENSION
- Wheelbase: 1200mm (47.2 in.)
- Dry weight: 105 kg (231.4 lb)
- Overall length: 1940mm (76.4 in.)
- Overall width: 655mm (25.8 in.)
- Seat height: 760mm (29.9 in.)
- Fuel capacity: 8.3 liters (2.2 US gal) (1.8 Imp. gal)
- OTHER
- Headlight on handlebar cowling
- Analog speedometer
- Colors:
- Pleiades Silver Metallic
- Candy Ruby Red
- V.I.N.: JH2KF010_FK000001
- Engine: KF01E-5000001

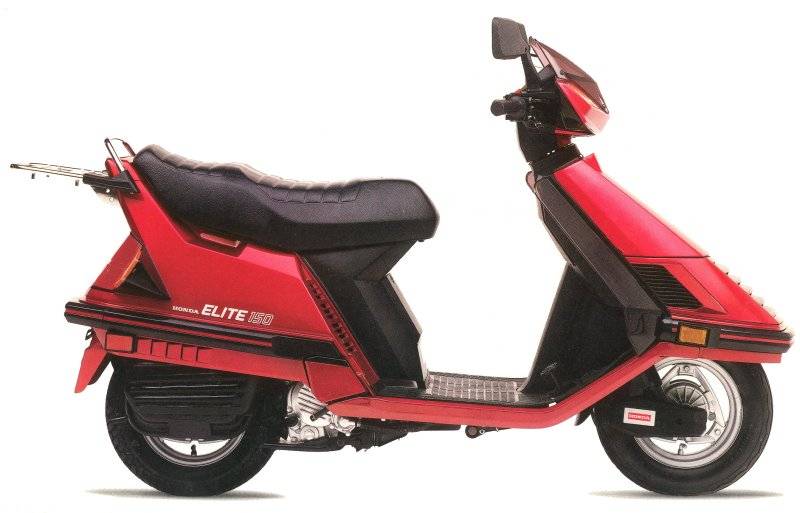

1985 Honda Elite 150 (CH150)

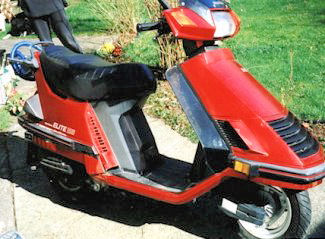

1985 Honda Elite 150 (CH150)
Click image to enlarge

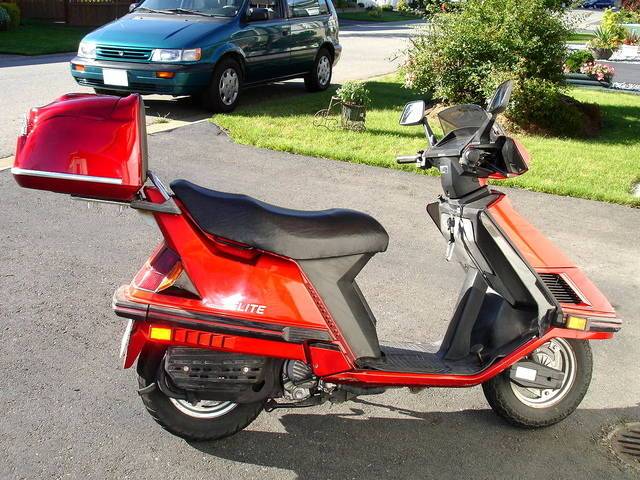

1985 Honda Elite 150 (CH150)
Click image to enlarge

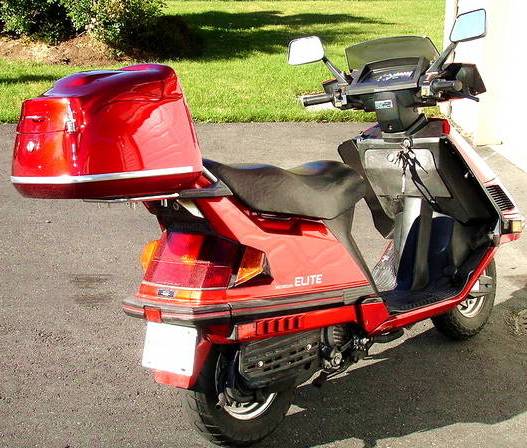

1985 Honda Elite 150 (CH150)
Click image to enlarge
1985 Honda Elite 150 (CH150)
Click image to enlarge
1987 CH150 Elite 150
- ENGINE
- Engine Type: Liquid-cooled, SOHC, Four-stroke
- Displacement: 152.7cc
- Bore & Stroke: 58 x 57.8mm
- Compression Ratio: 10:1
- Fuel Delivery: 22mm, CV type
- Ignition: system: CDI
- Starting system: Electric
- DRIVETRAIN
- Transmission: Variable Ratio, V-MaticTM
- Drive line: Belt
- Clutch: Centrifugal, Automatic
- Wheels: Pressed steel
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Trailing-link type
- Rear Suspension: Twin hydraulic shocks
- Brakes: Drum (front and rear)
- Tire size: 3.50-10 (front and rear)
- DIMENSION
- Wheelbase: 1200mm (47.2 in.)
- Dry weight: 105 kg (231.4 lb)
- Overall length: 1940mm (76.4 in.)
- Overall width: 655mm (25.8 in.)
- Seat height: 760mm (29.9 in.)
- Fuel capacity: 8.3 liters (2.2 US gal) (1.8 Imp. gal)
- OTHER
- Headlight on front body cowling
- Analog speedometer
- Colors:
- Pearl Gleam Red
- Pearl Seashell White
- V.I.N.: JH2KF010_HK000001
- Engine: KF01E-5200001

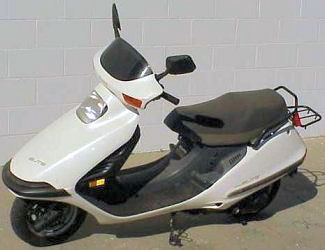

1987 Honda Elite 150 (CH150)
