2007 CRF150RB Expert
OVERVIEW
When it comes to dominating the MX Mini class, great things come in small packages -- like the new CRF150R. But some racers are bigger than others, so we also offer the CRF150R (Expert). Same bike, but with bigger wheels, a slightly higher seat and longer swingarm designed to accommodate taller young riders. Call it a step up in the right direction: the podium.
ENGINE
Engine Type: 149cc liquid-cooled single-cylinder four stroke
Bore and Stroke: 66mm x 43.7mm
Compression Ratio: 11.7:1
Valve Train: SOHC; four-valve
Fuel Delivery: Keihin 32mm flat slide with throttle position sensor (TPS)
Ignition: Solid-state CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five speed
Final Drive: #420 chain; 15T/56T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel
Rear Suspension: Pro-Link fully adjustable Showa single shock; 11.5 inches travel
Front Brake: Single 220mm disc
Rear Brake: Single 190mm disc
Front Tire: 70/100-19
Rear Tire: 90/100-16
DIMENSION
Rake: 27 48'
Trail: 96mm (3.85 inches)
Wheelbase: 50.6 inches
Seat Height: 34.1 inches
Ground Clearance: 13.2 inches
Dry Weight: 169.7 pounds
Fuel Capacity: 1.14 gallons
OTHER
Colors: Red
Model ID: CRF150RB

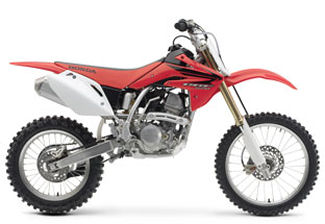

2007 CRF150RB Expert
2008 CRF150RB Expert
OVERVIEW
Overview: Not all Mini racers are created alike, so for taller riders we offer the CRF150R Expert. Same great MX package as the standard CRF150R -- potent Unicam® four-valve engine, fully adjustable Showa® suspension -- but with bigger wheels, a touch higher seat, and longer swingarm to accommodate those young pilots who might have slightly longer inseams. Either way, big or small, the CRF150R's goal remains the same: dominate the Mini class.
ENGINE
Engine Type: 149cc liquid-cooled single-cylinder four stroke
Bore and Stroke: 66mm x 43.7mm
Compression Ratio: 11.7:1
Valve Train: SOHC; four-valve
Fuel Delivery: Keihin 32mm flat slide with throttle position sensor (TPS) carburetor
Ignition: Solid-state CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five speed
Final Drive: #420 chain; 15T/56T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel
Rear Suspension: Pro-Link fully adjustable Showa single shock; 11.5 inches travel
Front Brakes: ingle 220mm disc
Rear Brake: Single 190mm disc
Front Tire: 70/100-19
Rear Tire: 90/100-16
DIMENSION
Rake: 27°48'
Trail: 96mm (3.85 inches)
Wheelbase: 50.6 inches
Seat Height: 34.1 inches
Ground Clearance: 13.2 inches
Curb Weight: TBD
Fuel Capacity: 1.14 gallons
OTHER
Emissions: Consult owners manual for optional racing parts.
Colors: Red
Price: $4299
Model ID: CRF150RB

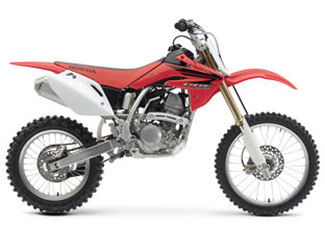

2008 CRF150RB Click image to enlarge
2009 CRF150RB Expert
ENGINE
Engine Size: 149cc
Engine Detail: liquid-cooled single-cylinder four stroke
Bore Stroke: 66mm x 43.7mm
Compression Ratio: 11.7:1
Fuel System: Keihin 32mm flat slide with throttle position sensor (TPS) carburetor
Ignition: Solid-state CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five speed
Final Drive: #420 chain; 15T/56T
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel
Suspension Rear: Pro-Link fully adjustable Showa single shock; 11.5 inches travel
Brakes Front: Single 220mm disc
Brakes Rear: Single 190mm disc
Tire Front: 70/100-19
Tire Rear: 90/100-16
DIMENSION
Wheelbase: 50.6 in.
Seat Height: 34.1 in.
Curb Weight: 187 lbs.
Fuel Capacity: 1.14 gal.
OTHER
Colors: Red, Black
Price: $4399
Warranty: N/A

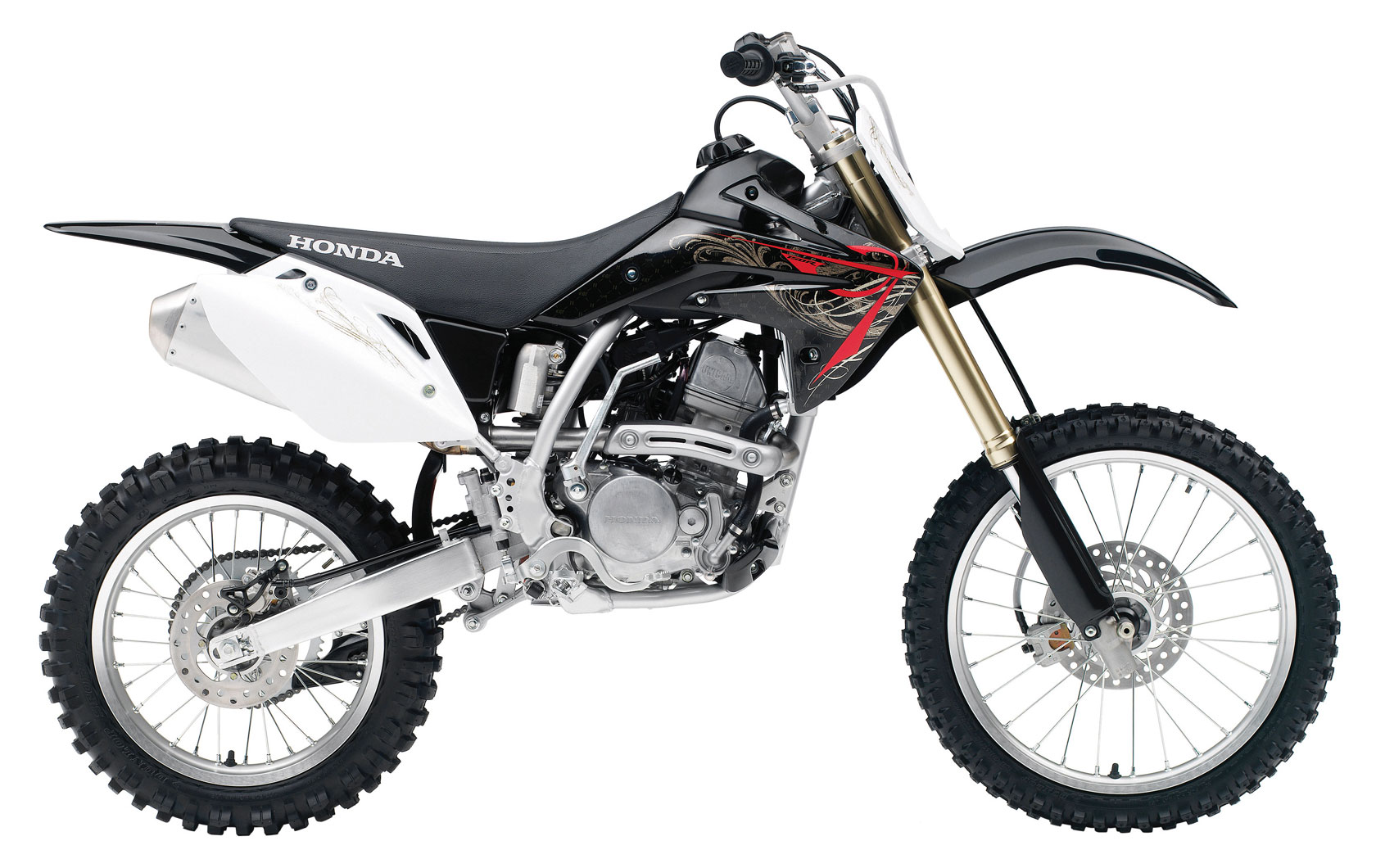

2009 CRF150RB
2012 CRF150RB Expert
ENGINE
Engine Type: Liquid-cooled 4-stroke 4-valve SOHC single
Engine Displacement: 149.7cc
Bore and Stroke: 66 x 43.8mm
Starter: Primary kick
Compression Ratio: 11.7:1
Fuel Delivery: 32mm Keihin FCR flat slide carburetor with throttle position sensor (TPS)
Max. Power Output: 17.5kW/12,500min-1
Max. Torque: 14.1Nm/11,000min-1
Ignition: Solid-state Capacitor Discharge (CDI) with electronic advance
DRIVETRAIN
Final Reduction: 3.733 (56/15)
Transmission Type: 5-speed
Final Drive: #420 roller chain
Front Wheels: 19 x 1.4 Aluminium rim/wire spoke
Rear Wheels: 16 x 1.85 Aluminium rim/wire spoke
CHASSIS / SUSPENSION / BRAKES
Frame type: Semi-double cradle; steel tube
Front Suspension: 37mm inverted Showa leading-axle telescopic fork with adjustable compression and rebound damping; 275mm axle travel
Rear Suspension: Pro-Link with single Showa damper, adjustable compression and rebound damping; 282mm axle travel
Front Brakes: 220 x 3mm hydraulic disc with single-piston caliper and sintered metal pads
Rear Brakes: 190 x 3.5mm hydraulic disc with single-piston caliper and sintered metal pads
Front Tire Size: 70/100-19 (42M)
Rear Tire Size: 90/100-16 (52M)
DIMENSION
Wheelbase: 1285mm (50.6 inches)
Overall Length: 1900mm (74.8 inches)
Overall Width: 770mm (30.3 inches)
Overall Height 1171mm (46.1 inches)
Seat Height: 866mm (34.1 inches)
Ground Clearance: 336mm (13.2 inches)
Curb Weight: 84.4 kg (186 lb)
Fuel Capacity: 4.3 Litres (1.1 GalUS)
OTHER

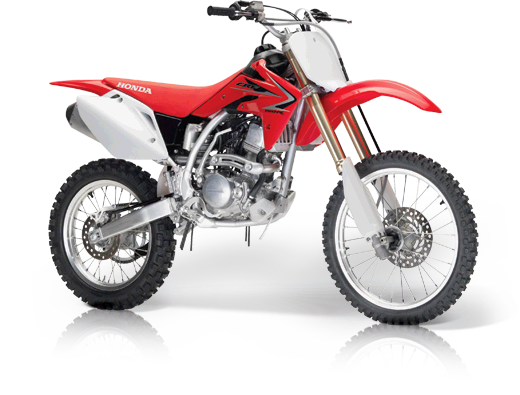

2012 CRF150RB

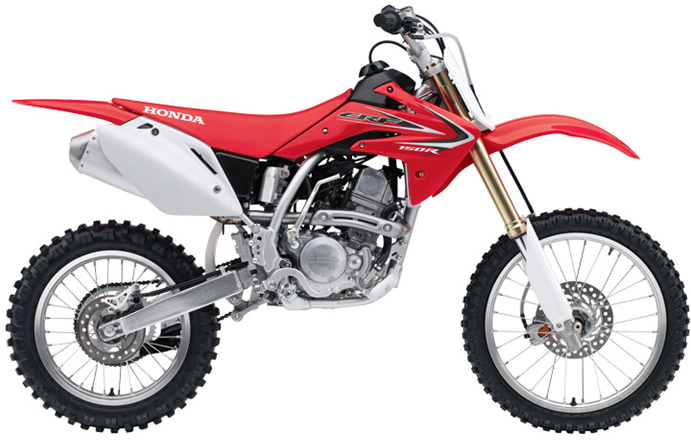

2012 CRF150RB Click image to enlarge
