2007 CRF150R
OVERVIEW
Overview: First came the CRF450R. Then the CRF250R. For 2007,
Honda is unleashing its might on the Mini class. Meet the
all-new, ready-to-dominate CRF150R. Featuring our revolutionary
Unicam® four-valve engine and fully adjustable Showa
suspension, this latest Honda MX missile is coming soon to a
podium near you.
ENGINE
Engine Type: 149cc liquid-cooled single-cylinder four stroke
Bore and Stroke: 66mm x 43.7mm
Compression Ratio: 11.7:1
Fuel Delivery: Keihin 32mm flat slide with throttle position sensor (TPS)
Ignition: Solid-state CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five speed
Final Drive: #420 chain; 15T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel
Rear Suspension: Pro-Link fully adjustable Showa single shock; 10.8 inches travel
Front Brake: Single 220mm disc
Rear Brake: Single 190mm disc
Front Tire: 70/100-17
Rear Tire: 90/100-14
DIMENSION
Rake: 27 02'
Trail: 78mm (3.07 inches)
Wheelbase: 49.6 inches
Seat Height: 32.8 inches
Ground Clearance: 11.9 inches
Dry Weight: 165.3 pounds
Fuel Capacity: 1.14 gallons
OTHER
Colors: Red
Model ID: CRF150R

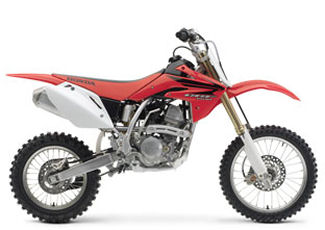

2007 CRF150R
2008 CRF150R
OVERVIEW
Overview: Transworld Motocross called it arguably one of the trickiest stock Mini bikes out there. No surprise considering its role models: Honda's championship-winning CRF450R and CRF250R. With its revolutionary Unicam four-valve engine and fully adjustable Showa suspension, the CRF150R was bred for domination. Which, of course, is in perfect keeping with what's become the Honda four-stroke MX family tradition.
ENGINE
Engine Type: 149cc liquid-cooled single-cylinder four stroke
Bore and Stroke: 66mm x 43.7mm
Compression Ratio: 11.7:1
Valve Train: Unicam, four-valve; steel 26mm intake, 22.5mm exhaust
Fuel Delivery: Keihin 32mm flat slide with throttle position sensor (TPS)
Ignition: Solid-state CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five speed
Final Drive: #420 chain; 15T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel
Rear Suspension: Pro-Link fully adjustable Showa single shock; 10.8 inches travel
Front Brakes: Single 220mm disc
Rear Brake: Single 190mm disc
Front Tire: 70/100-17
Rear Tire: 90/100-14
DIMENSION
Rake: 27°02'
Trail: 78mm (3.07 inches)
Wheelbase: 49.6 inches
Seat Height: 32.8 inches
Ground Clearance: 11.9 inches
Curb Weight: N/A
Fuel Capacity: 1.14 gallons
OTHER
Emissions: Consult owners manual for optional racing parts.
Colors: Red
Price: $4199

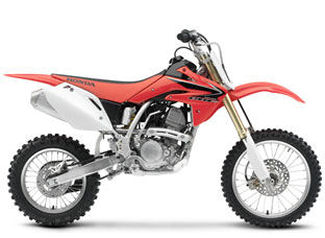

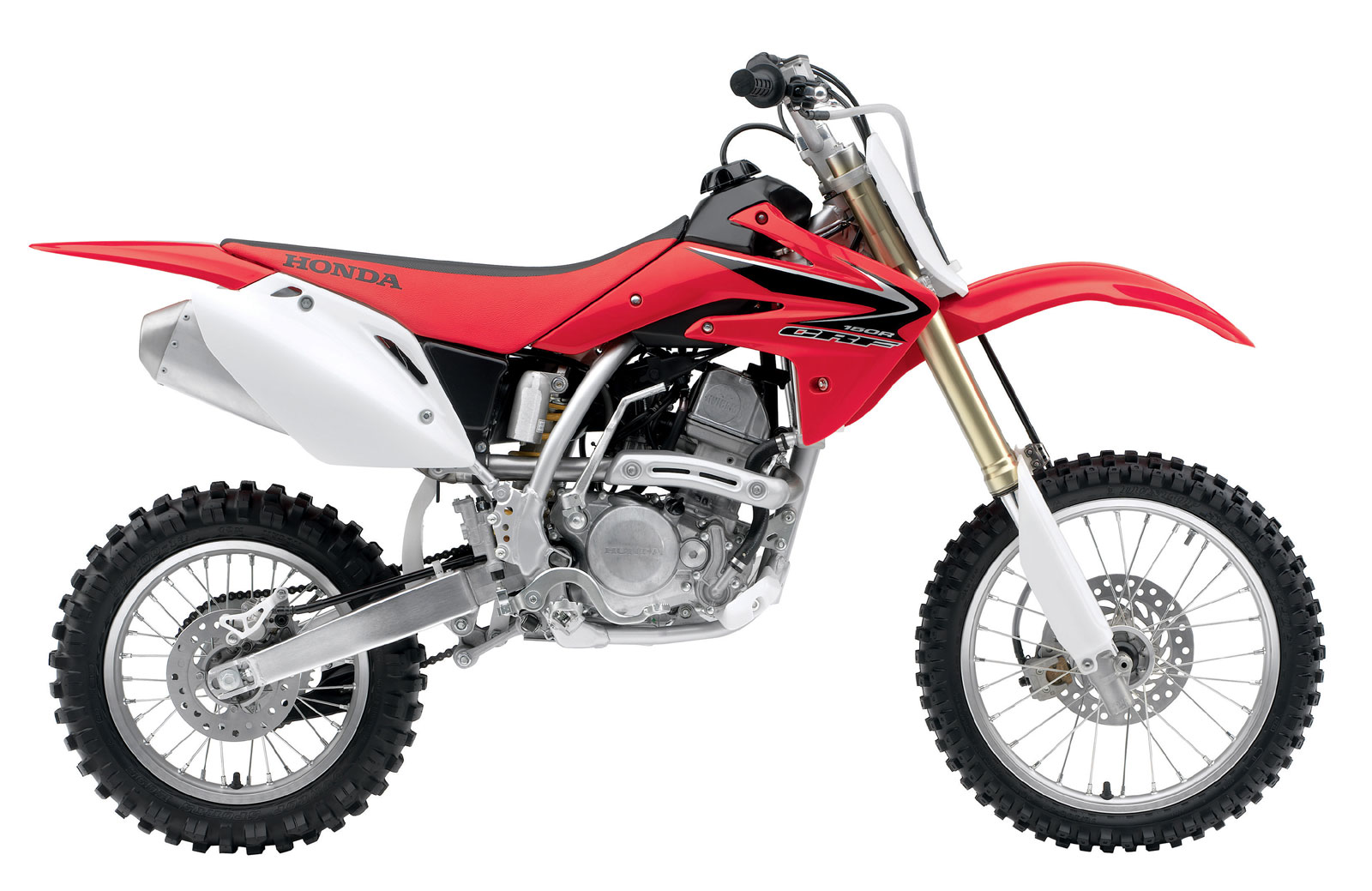

2008 CRF150R
2009 CRF150R
ENGINE
Engine Type: 149cc liquid-cooled single-cylinder Unicam four stroke
Bore And Stroke: 66mm x 43.7mm
Compression Ratio: 11.7:1
Valve Train: Unicam, four-valve; 26mm intake, steel; 22.5mm exhaust, steel
Fuel Delivery: Keihin 32mm flat slide with throttle position sensor (TPS)
Ignition: Solid-state CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five speed
Final Drive: #420 chain; 15T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel
Rear Suspension: Pro-Link fully adjustable Showa single shock; 10.7 inches travel
Front Brake: Single 220mm disc
Rear Brake: Single 190mm disc
Front Tire: 70/100-17
Rear Tire: 90/100-14
DIMENSION
Rake: 27°02' (Caster Angle)
Trail: 78mm (3.07 inches)
Wheelbase: 49.6 inches
Seat Height: 32.8 inches
Ground Clearance: 11.9 inches
Curb Weight: 183 pounds
Fuel Capacity: 1.14 gallons
OTHER
Emissions: Consult owners manual for optional racing parts.
Available Colors: Red, Black
Model Id: CRF150R

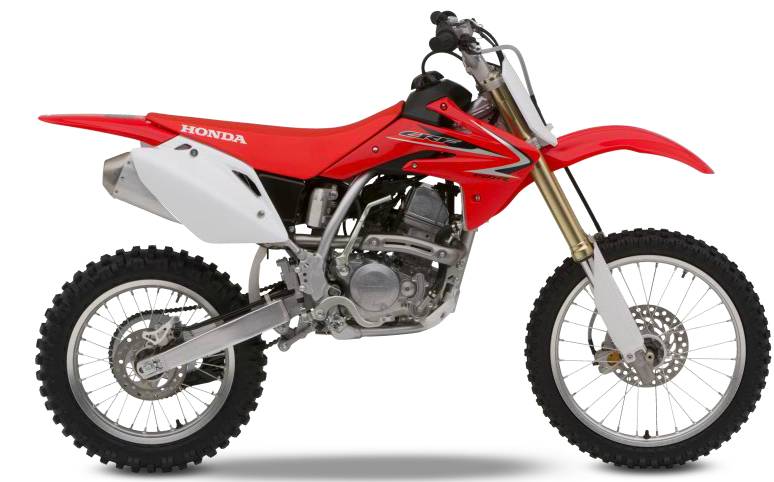

2009 CRF150R Click image to enlarge

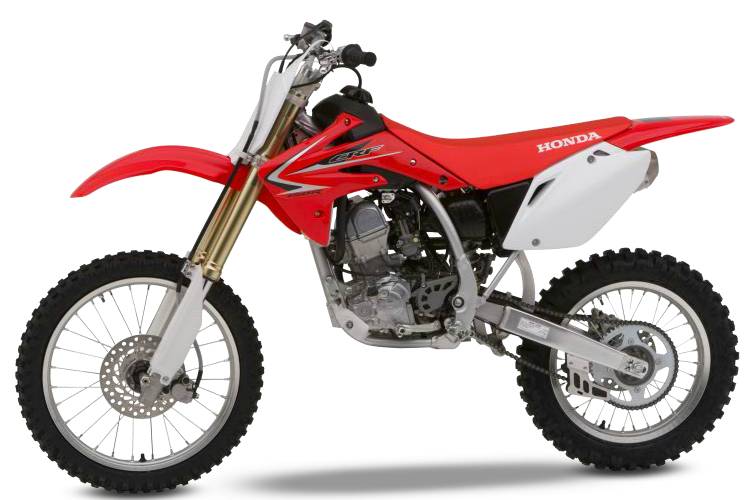

2009 CRF150R Click image to enlarge
2012 CRF150R
ENGINE
Engine Type: 149cc liquid-cooled single-cylinder Unicam four stroke
Bore And Stroke: 66mm x 43.7mm
Compression Ratio: 11.7:1
Valve Train: Unicam, four-valve; 26mm intake, steel; 22.5mm exhaust, steel
Fuel Delivery: Keihin 32mm flat slide with throttle position sensor (TPS)
Ignition: Solid-state CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five speed
Final Drive: #420 chain
Front sprocket: 15T
Rear sprocket: 50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel
Rear Suspension: Pro-Link fully adjustable Showa single shock; 10.7 inches travel
Front Brake: Single 220mm disc
Rear Brake: Single 190mm disc
Front Tire: 70/100-17
Rear Tire: 90/100-14
DIMENSION
Rake: 27°02' (Caster Angle)
Trail: 78mm (3.07 inches)
Wheelbase: 49.6 inches
Seat Height: 32.8 inches
Ground Clearance: 11.9 inches
Curb Weight: 183 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride.)
Fuel Capacity: 1.14 gallons
OTHER
Emissions: Consult owners manual for optional racing parts.
Colors: Red
Model Id: CRF150R

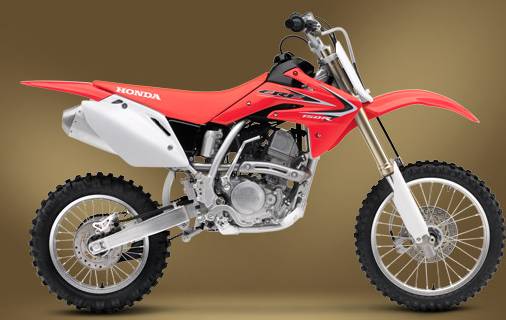

2012 CRF150R
