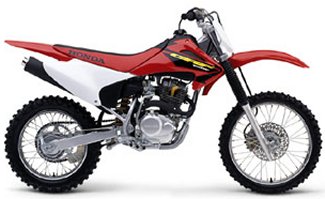

2003 CRF150F

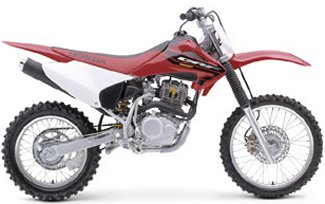

2004 CRF150F
Engine Type: 156.8cc air-cooled single-cylinder four-stroke
Bore and Stroke: 63.5mm x 49.5mm
Compression Ratio: 9.0:1
Valve Train: SOHC; two-valve
Fuel Delivery: 24mm piston-valve
Ignition: CDI
Transmission: Five-speed
Final Drive: #520 O-ring-sealed chain; 13T/48T
Front Suspension: 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension: Pro-Link Showa single-shock; 8.8-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 70/100-19
Rear Tire: 90/100-16
Rake: 26.7 degrees
Trail: 87.0mm (3.4 inches)
Wheelbase: 52.2 inches
Seat Height: 32.5 inches
Ground Clearance: 10.0 inches
Dry Weight: 216.0 pounds
Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
Colors: Red
Warranty: 6 months

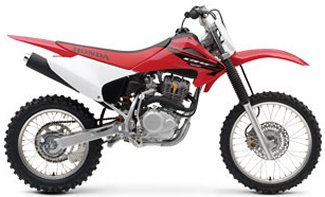

2005 CRF150F
Engine Type: 156.8cc air-cooled single-cylinder four-stroke
Bore and Stroke: 63.5mm x 49.5mm
Compression Ratio: 9.0:1
Valve Train: SOHC; two-valve
Fuel Delivery: 24mm piston-valve
Ignition: CDI
Transmission: Five-speed
Final Drive: #520 O-ring-sealed chain; 13T/48T
Front Suspension: 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension: Pro-Link Showa single-shock; 8.8-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 70/100-19
Rear Tire: 90/100-16
Rake: 26.7 degrees
Trail: 87.0mm (3.4 inches)
Wheelbase: 52.2 inches
Seat Height: 32.5 inches
Ground Clearance: 10.0 inches
Dry Weight: 216.0 pounds
Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
Colors: Red
Warranty: 6 months

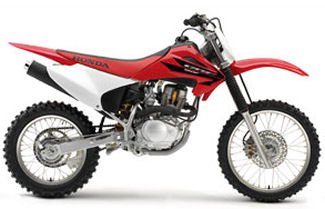

2006 CRF150F
Engine Type: 149.0cc air-cooled single-cylinder four-stroke
Bore and Stroke: 57.3mm x 57.8mm
Compression Ratio: 9.5:1
Valve Train: SOHC; two-valve
Fuel Delivery: 24mm piston-valve
Ignition: CDI
Transmission: Five-speed
Final Drive: #520 O-ring-sealed chain; 13T/48T
Front Suspension: 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension: Pro-Link Showa single-shock; 8.9-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 70/100-19
Rear Tire: 90/100-16
Rake: 26.7 degrees
Trail: 87.0mm (3.4 inches)
Wheelbase: 52.2 inches
Seat Height: 32.5 inches
Ground Clearance: 10.0 inches
Dry Weight: 223.0 pounds
Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
Colors: Red
Model ID: CRF150F

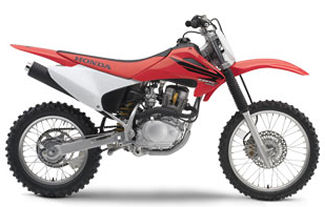

2007 CRF150F
Overview: This is the bike that's a perfect fit for countless riders looking for full-sized fun in a mid-size machine. From its five-speed, manual-shift transmission and strong 149cc four-stroke engine to its adjustable rear shock, the electric-start CRF150F is just the ticket for beginner or veteran riders who want to step up their fun factor.
Engine Type: 149.0cc air-cooled single-cylinder four-stroke
Bore and Stroke: 57.3mm x 57.8mm
Compression Ratio: 9.5:1
Valve Train: SOHC; two-valve
Fuel Delivery: 24mm piston-valve
Ignition: CDI
Transmission: Five-speed
Final Drive: #520 O-ring-sealed chain; 13T/48T
Front Suspension: 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension: Pro-Link Showa single-shock; 8.9-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 70/100-19
Rear Tire: 90/100-16
Rake: 26.7 degrees
Trail: 87.0mm (3.4 inches)
Wheelbase: 52.2 inches
Seat Height: 32.5 inches
Ground Clearance: 10.0 inches
Dry Weight: 223.0 pounds
Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
Colors: Red
Model ID: CRF150F

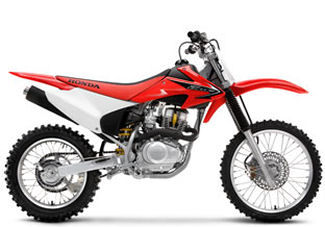

2008 CRF150F
Overview: Smooth, easy-to-use power, plush suspension and responsive handling make the CRF150F full-sized off-road fun in a mid-size package. With electric starting, a five-speed, manual-shift gearbox, new, narrower seat, fuel tank, and dependable 149cc four-stroke engine, it's the ideal machine for recreational riders, teen-size to grown-up.
Engine Type: 149.0cc air-cooled single-cylinder four-stroke
Bore and Stroke: 57.3mm x 57.8mm
Compression Ratio: 9.5:1
Valve TrainSOHC; two-valve
Fuel Delivery: 24mm piston-valve carburator
Ignition: CDI
Transmission: Five-speed
Final Drive: #520 O-ring-sealed chain; 13T/48T
Front Suspension: 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension: Pro-Link Showa single-shock; 8.9-inch travel
Front Brakes: ingle 240mm disc
Rear Brake: Drum
Front Tire: 70/100-19
Rear Tire: 90/100-16
Rake: 27.3 degrees
Trail: 87.0mm (3.4 inches)
Wheelbase: 52.2 inches
Seat Height: 32.5 inches
Ground Clearance: 10.0 inches
Curb Weight: TBD
Fuel Capacity: 1.9 gallons, including 0.4-gallon reserve
EmissionsMeets current CARB and EPA standards. California version differs slightly due to emissions equipment.
ColorsRed
Model ID: CRF150F
6 monthsTransferable, limited warranty
2009 CRF150F
ENGINE
Engine Type: 149.0cc air-cooled single-cylinder four-stroke
Bore And Stroke: 57.3mm x 57.8mm
Compression Ratio: 9.5:1
Valve Train: SOHC; two-valve
Fuel Delivery: 24mm piston-valve carburator
Ignition: CDI
DRIVETRAIN
Transmission: Five-speed
Final Drive: #520 O-ring-sealed chain; 13T/48T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension: Pro-Link Showa single-shock; 8.9-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 70/100-19
Rear Tire: 90/100-16
DIMENSION
Rake: 26.7 degrees
Trail: 87.0mm (3.4 inches)
Wheelbase: 52.2 inches
Seat Height: 32.5 inches
Ground Clearance: 10.0 inches
Curb Weight: 236 pounds
Fuel Capacity: 1.9 GalUS (includes 0.4 Gal reserve)
OTHER
Emissions: Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
Available Colors:
Red
Black (special order)
Model Id: CRF150F
FACTORY WARRANTY: 6 months; Transferable, limited warranty

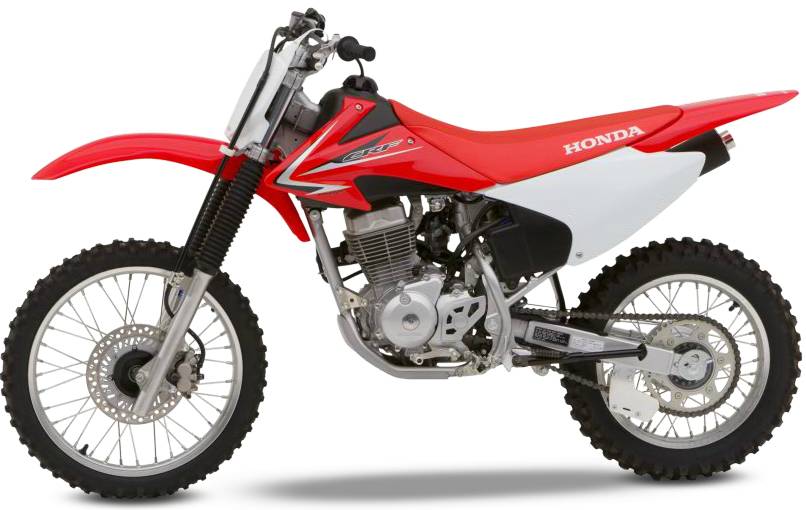

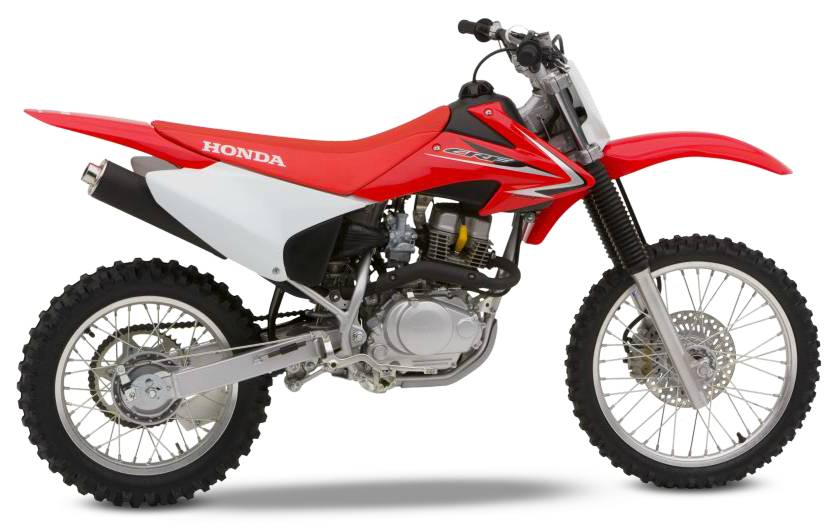

2009 CRF150F Click image to enlarge
2009 CRF150F Click image to enlarge
2009 CRF150F Click image to enlarge
2011 CRF150F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 149 cc
Bore and Stroke: 57.3 mm x 57.8 mm
Compression Ratio: 9.5:1
Valve Train: SOHC, 2 valves
Fuel Delivery: Single 22 mm piston-valve carb
DRIVETRAIN
Transmission: Five-speed with manual clutch
Final Drive: #520 O-ring-sealed chain, 13T/47T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 35 mm leading-axle Showa fork; 207 mm (8.1 in.) travel
Rear Suspension: Pro-Link Showa single shock; 227 mm (8.9 in.) travel
Tires: 70/100 - 19 front; 90/100 - 16 rear
Brakes: Front 240 mm disc with dual-piston caliper; rear drum
DIMENSION
Ground Clearance: 257 mm (10.1 in.)
Seat Height: 832 mm (32.8 in.)
Wheelbase: 1,328 mm (52.3 in.)
Curb Weight: 106 kg (234 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 7 litres, including 1.6-litre reserve
OTHER
Colour: Extreme Red
Warranty: 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP: $3,999

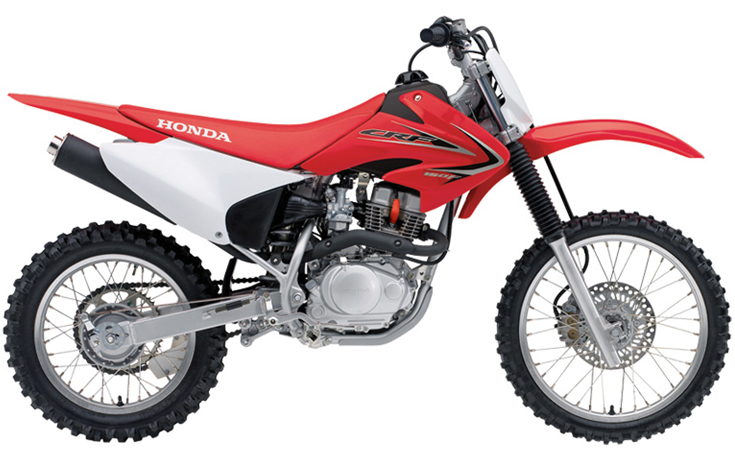

2011 CRF150F Click image to enlarge
2012 CRF150F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 149 cc
Bore and Stroke: 57.3 mm x 57.8 mm
Compression Ratio: 9.5:1
Valve Train: SOHC, 2 valves
Fuel Delivery:
Canada: Single 22 mm piston-valve carb
USA: 24mm piston-valve carburetor
Ignition: CDI
DRIVETRAIN
Transmission: Five-speed with manual clutch
Final Drive: #520 O-ring-sealed chain; 13T/47T
Front Sprocket: 13T
Rear Sprocket:
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 35 mm leading-axle Showa fork; 207 mm (8.1 in.) travel
Rear Suspension: Pro-Link Showa single shock; 227 mm (8.9 in.) travel
Front Brake: Single 240mm disc with dual-piston caliper
Rear Brake: Drum
Front Tire: 70/100-19
Rear Tire: 90/100-16
DIMENSION
Rake: 26.7° (Caster Angle)
Trail: 87mm (3.4 inches)
Ground Clearance: 257 mm (10.1 in.)
Seat Height: 832 mm (32.8 in.)
Wheelbase: 1,328 mm (52.3 in.)
Curb Weight: 106 kg (234 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 7 litres (1.9 GalUS), including 1.6-litre (0.4 Gal) reserve
OTHER
Emissions: Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Color: Extreme Red
Warranty: 6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
Model Id: CRF150F
MSRP: $4,149

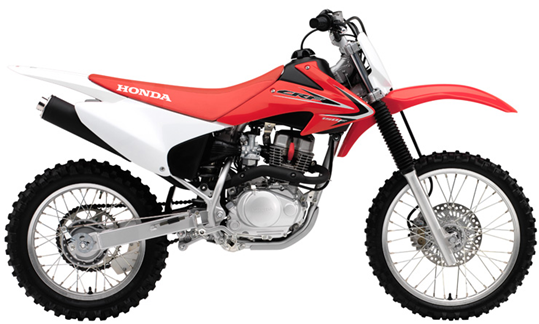

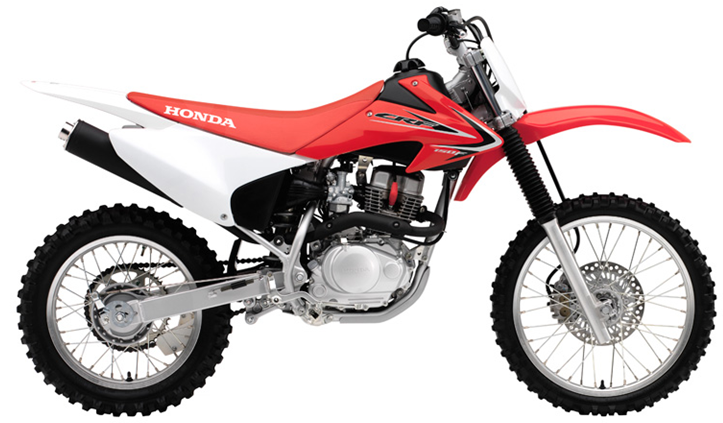

2012 CRF150F Click image to enlarge
