1967 CB125 Benly
- ENGINE
- Engine type: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 X 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 2.50-18
- Rear Tire: 2.75-18
- DIMENSION
- Dry-Weight: 133 kg (293 lb)
- Fuel Capacity: 9 Litres (2.4 Gal.)
- OTHER

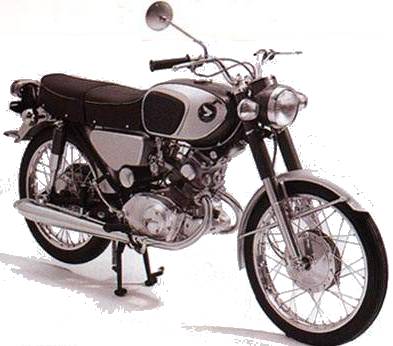

1967 CB125 Benli
1968 CB125
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Similar to the 1968 CB175
- Knee pads on the fuel tank
- Wing and "HONDA" are on the upper half of the tank
- Side cover is two-tone

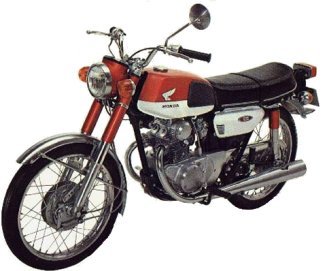

1968 CB125
1969 CB125
- ENGINE
- Engine Type: Air cooled, twin cylinder, SOHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: #428 Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescoping forks
- Rear Suspension: Adjustable shock absorbers
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 2.50-18
- Rear Tire: 2.75-18
- DIMENSION
- Dry-Weight: 133 kg (293 lb)
- Fuel Capacity: 9 Litres (2.4 Gal)
- OTHER
- Similar to the 1969 CB175
- Knee pads on the fuel tank
- Wing is on the upper half of the tank
- "HONDA" is on the lower half of the tank
- Side cover is monochrome and smaller than the previous year

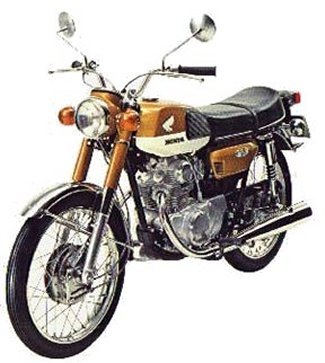

1969 CB125
1969 CB125
1969 CB125
1970 CB125
- ENGINE
- Engine Type: Air cooled, twin cylinder, SOHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: #428 Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescoping forks
- Rear Suspension: Adjustable shock absorbers
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 2.50-18
- Rear Tire: 2.75-18
- DIMENSION
- Dry-Weight: 133 kg (293 lb)
- Fuel Capacity: 9 Litres (2.4 Gal)
- OTHER
- Similar to the 1970 CB175
- No knee pads on the fuel tank
- Wing is on the upper half of the tank
- "HONDA" is on the lower half of the tank
- Side cover is monochrome
1970 CB125
Tank design only
1971 CB125
- ENGINE
- Engine Type: Air cooled, twin cylinder, SOHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: #428 Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescoping forks
- Rear Suspension: Adjustable shock absorbers
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 2.50-18
- Rear Tire: 2.75-18
- DIMENSION
- Dry-Weight: 133 kg (293 lb)
- Fuel Capacity: 9 Litres (2.4 Gal)
- OTHER
- Similar to the 1971 CB175
- No knee pads on the fuel tank
- Wing is on the upper half of the tank
- "HONDA" is on the lower half of the tank
- Pinstripe on the top of the lower half of the tank
- Side cover is monochrome
1971 CB125
Tank design only
1972 CB125
- ENGINE
- Engine Type: Air cooled, twin cylinder, SOHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: #428 Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescoping forks
- Rear Suspension: Adjustable shock absorbers
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 2.50-18
- Rear Tire: 2.75-18
- DIMENSION
- Dry-Weight: 133 kg (293 lb)
- Fuel Capacity: 9 Litres (2.4 Gal)
- OTHER
1972 CB125
Tank design only
1973 CB125
- ENGINE
- Engine Type: Air cooled, twin cylinder, SOHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: #428 Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescoping forks
- Rear Suspension: Adjustable shock absorbers
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 2.50-18
- Rear Tire: 2.75-18
- DIMENSION
- Dry-Weight: 133 kg (293 lb)
- Fuel Capacity: 9 Litres (2.4 Gal)
- OTHER
- Colors:
- Candy Topaz Orange
- Candy Peacock Green
- The gas tank decal stripe was white letters on black and white background
- The fenders were chrome
- The front brake was a drum brake
- The instrument was only a speedometer
- The ignition used breaker points
1973 Tank design
1978 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 56 x 49mm
- Max Power: 14 bhp @ 10000rpm
- Top Speed: 108 km/h (67mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- Dry-Weight: 114 kg (230 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal.)
- OTHER

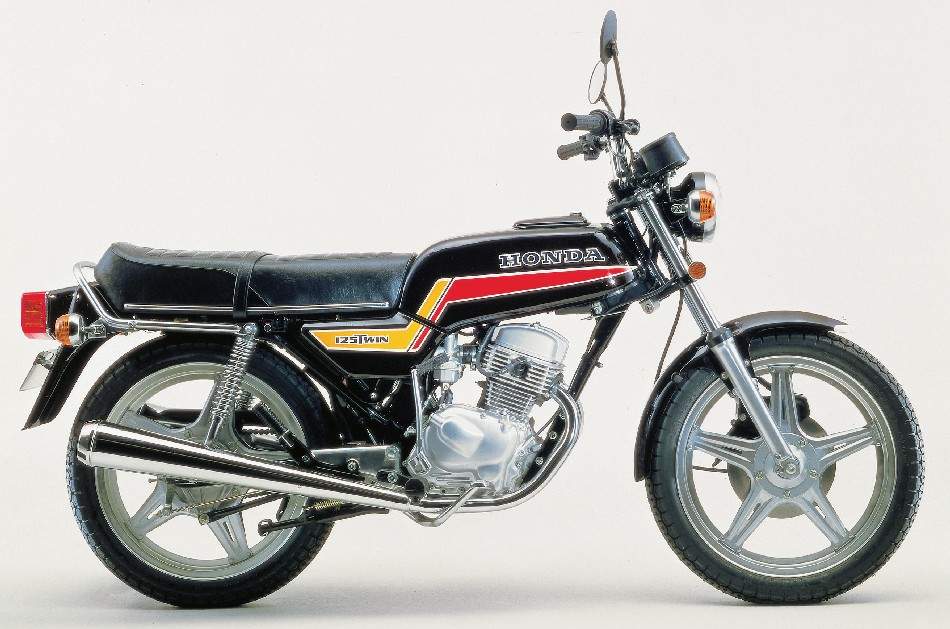

1978 CB125T
Click image to enlarge
1979 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 56 x 49mm
- Max Power: 14 bhp @ 10000rpm
- Top Speed: 108 km/h (67mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- Dry-Weight: 114 kg (230 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal.)
- OTHER

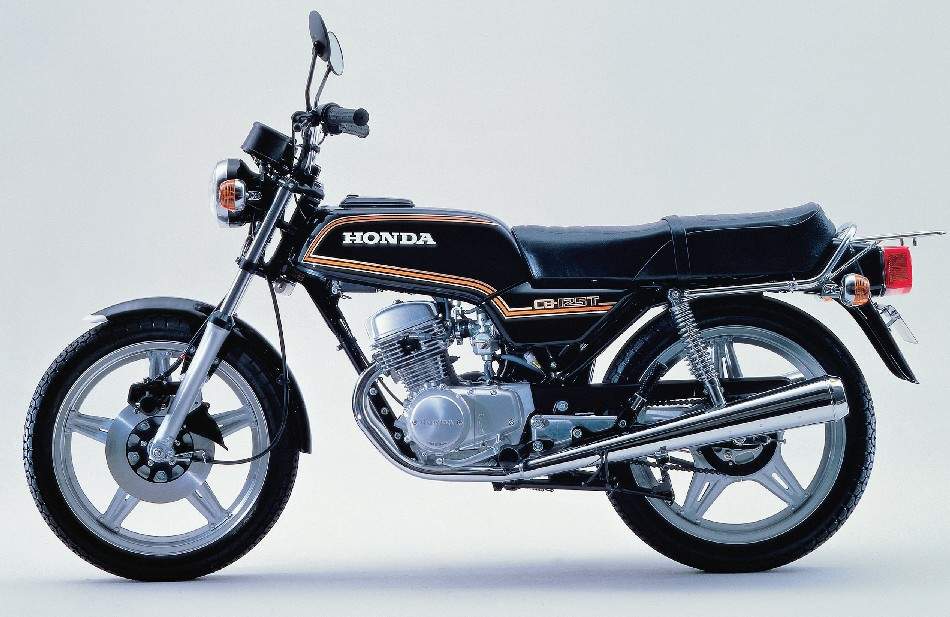

1979 CB125T
Click image to enlarge
1980 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- Max Power: 16.5 bhp @ 11,000rpm
- Max Torque: 12 Nm @ 9000 rpm
- Top Speed: 129 km/h (80 mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- Dry-Weight: 114 kg (251 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal)
- OTHER

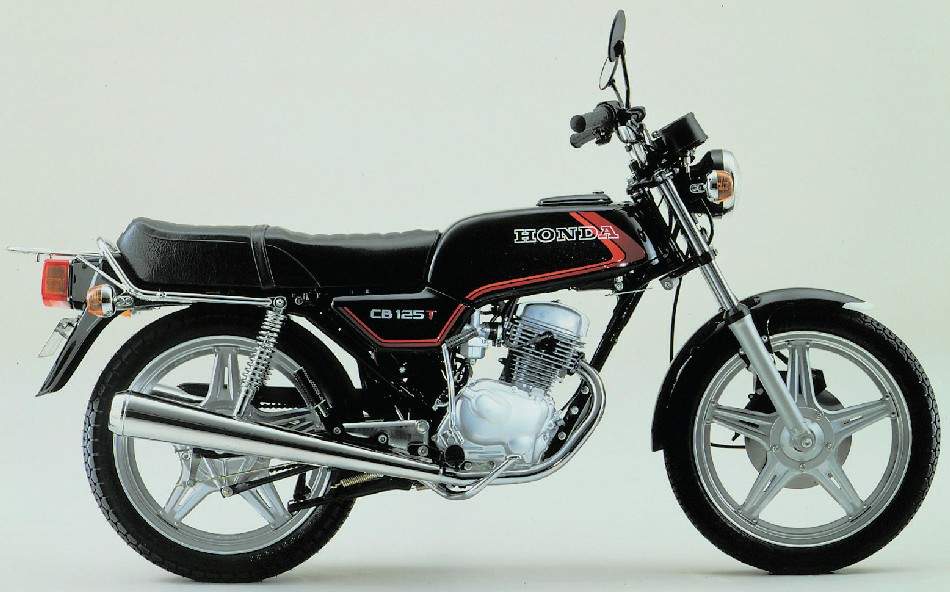

1980 CB125T
Click image to enlarge
1981 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- Max Power: 16.5 bhp @ 11,000rpm
- Max Torque: 12 Nm @ 9000 rpm
- Top Speed: 129 km/h (80 mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- Dry-Weight: 114 kg (251 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal)
- OTHER

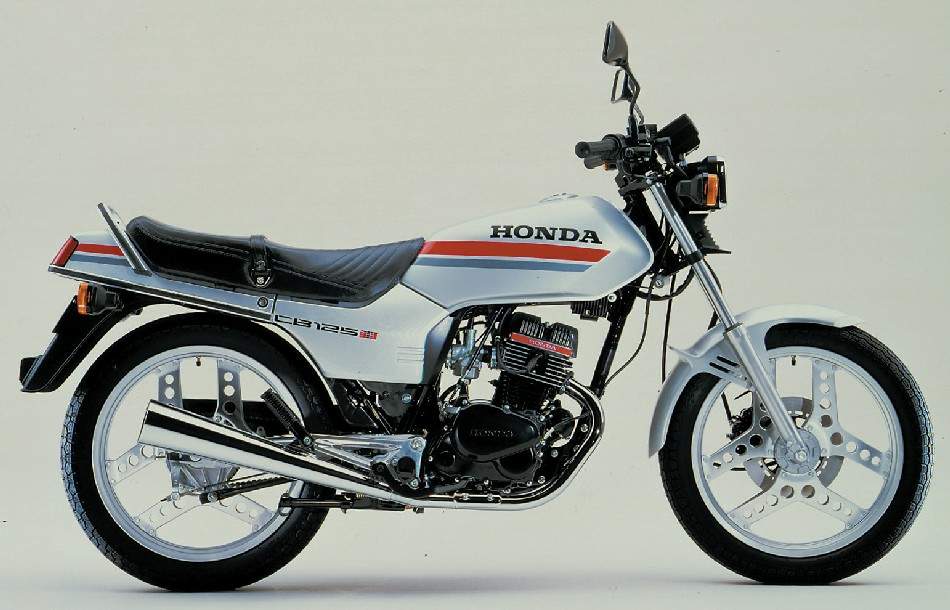

1981 CB125T
Click image to enlarge
1982 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- Max Power: 16.5bhp @ 11,000rpm
- Max Torque: 12 Nm @ 9000 rpm
- Top Speed: 129 km/h (80 mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- OTHER
- Dry-Weight: 114 kg (251 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal.)
1983 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- Max Power: 16.5bhp @ 11,000rpm
- Max Torque: 12 Nm @ 9000 rpm
- Top Speed: 129 km/h (80 mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- OTHER
- Dry-Weight: 114 kg (251 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal.)
1984 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- Ignition: CDI
- Starter: Electric
- Max Power: 16.5 bhp @ 11,000rpm
- Max Torque: 12 Nm @ 9000 rpm
- Top Speed: 129 km/h (80 mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- Dry-Weight: 114 kg (251 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal)
- OTHER
1985 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke
- Ignition: CDI
- Starter: Electric
- Max Power: 16.5 bhp @ 11,000rpm
- Max Torque: 12 Nm @ 9000 rpm
- Top Speed: 129 km/h (80 mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 2.75-18
- Rear Tire: 3.00-18
- DIMENSION
- Dry-Weight: 114 kg (251 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal)
- OTHER
1990 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke VE 26
- Max Power: 16.5bhp @ 11,000rpm
- Max Torque: 12 Nm @ 9000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 3.00-18
- Rear Tire: 3.25-18
- DIMENSION
- Dry-Weight: 114 kg (251 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal)
- OTHER
1991 CB125T
- ENGINE
- Engine: Air cooled, twin cylinder, OHC
- Displacement: 124cc
- Bore and Stroke: 44 x 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 26mm Keihin Carbs, manual choke VE 26
- Max Power: 16.5bhp @ 11,000rpm
- Max Torque: 12 Nm @ 9000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm oil-damped telescopic forks
- Rear Suspension: Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 3.00-18
- Rear Tire: 3.25-18
- DIMENSION
- Dry-Weight: 114 kg (251 lb)
- Fuel Capacity: 11.5 Litres (3.0 Gal)
- OTHER
