1968 CB125

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Similar to the 1968 CB175
    • Knee pads on the fuel tank
    • Wing and "HONDA" are on the upper half of the tank
    • Side cover is two-tone

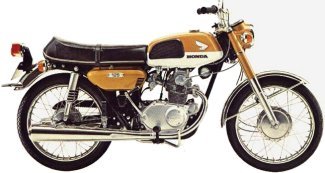

1968-70 CB125
1968 CB125

1969 CB125

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: #428 Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shock absorbers
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 2.50-18
    • Rear Tire: 2.75-18
  • DIMENSION
    • Dry-Weight: 133 kg (293 lb)
    • Fuel Capacity: 9 Litres (2.4 Gal)
  • OTHER
    • Similar to the 1969 CB175
    • Knee pads on the fuel tank
    • Wing is on the upper half of the tank
    • "HONDA" is on the lower half of the tank
    • Side cover is monochrome and smaller than the previous year
1968-70 CB125
1969 CB125

1970 CB125

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: #428 Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shock absorbers
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 2.50-18
    • Rear Tire: 2.75-18
  • DIMENSION
    • Dry-Weight: 133 kg (293 lb)
    • Fuel Capacity: 9 Litres (2.4 Gal)
  • OTHER
    • Similar to the 1970 CB175
    • No knee pads on the fuel tank
    • Wing is on the upper half of the tank
    • "HONDA" is on the lower half of the tank
    • Side cover is monochrome

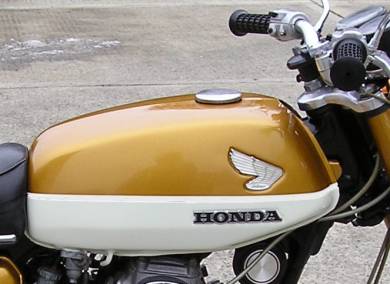

1970 CB125
1970 CB125
Tank design only

1971 CB125

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: #428 Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shock absorbers
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 2.50-18
    • Rear Tire: 2.75-18
  • DIMENSION
    • Dry-Weight: 133 kg (293 lb)
    • Fuel Capacity: 9 Litres (2.4 Gal)
  • OTHER
    • Similar to the 1971 CB175
    • No knee pads on the fuel tank
    • Wing is on the upper half of the tank
    • "HONDA" is on the lower half of the tank
    • Pinstripe on the top of the lower half of the tank
    • Side cover is monochrome
1971 CB125
1971 CB125
Tank design only

1972 CB125

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: #428 Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shock absorbers
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 2.50-18
    • Rear Tire: 2.75-18
  • DIMENSION
    • Dry-Weight: 133 kg (293 lb)
    • Fuel Capacity: 9 Litres (2.4 Gal)
  • OTHER

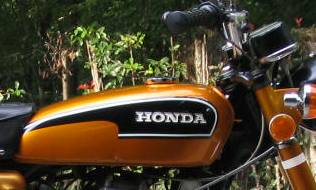

1972 CB125
1972 CB125
Tank design only

1973 CB125S0

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: #428 Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shock absorbers
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 2.50-18
    • Rear Tire: 2.75-18
  • DIMENSION
    • Dry-Weight: 133 kg (293 lb)
    • Fuel Capacity: 9 Litres (2.4 Gal)
  • OTHER
    • Colors:
      • Candy Topaz Orange
      • Candy Peacock Green
    • The gas tank decal stripe was white letters on black and white background
    • The fenders were chrome
    • The front brake was a drum brake
    • The instrument was only a speedometer
    • The ignition used breaker points
    • The serial number began CB125S-1021922.
1973 CB125

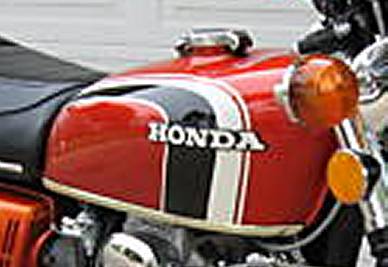

1973 Tank design

1974 CB125S1

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
  • OTHER
    • Color: just one color: Candy Topaz Orange
    • The gas tank had a black panel with white pinstripes
    • The diamond-shaped side cover wing emblem was red
    • The front brake was a mechanical actuated disc
    • The fenders were chrome
    • The instruments now had both a speedometer and a tachometer
    • The serial number began CB125S-1021922.

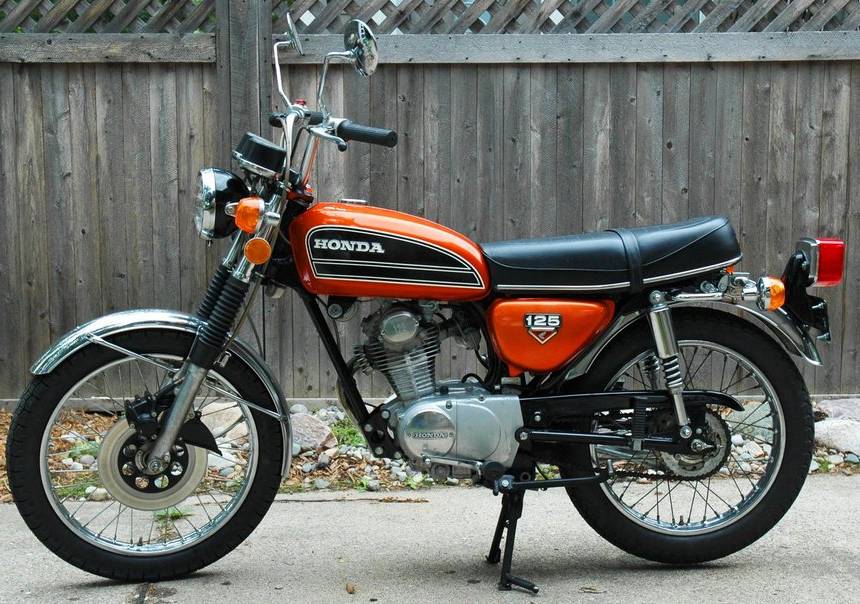

1974 CB125S1
1974 CB125S1
Click image to enlarge

1975 CB125S2

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
  • CHASSIS / SUSPENSION / BRAKES
    • The front brake was a mechanical actuated disc
  • DIMENSION
    • N/A
  • OTHER
    • Color: just one color: Candy Riviera Blue
    • The gas tank had a black panel with white pinstripes
    • The "CB125" side cover emblem was white and yellow
    • The chrome rear shock cover was deleted
    • The fenders were chrome
    • The instruments now had both a speedometer and a tachometer
    • The serial number began CB125S-1021922.

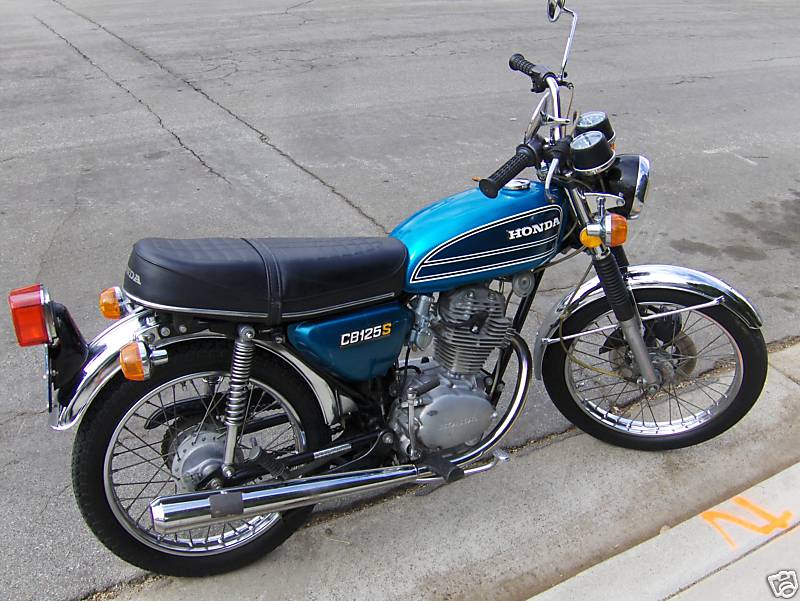

1975 CB125S2
1975 CB125S2
Click image to enlarge

1976 CB125S'76

  • ENGINE
    • Engine Type: Air cooled, single cylinder, OHC, with a 2-piece cylinder head
    • Valving: 2 valves per cylinder
    • Displacement: 124cc
    • Bore and Stroke: 56.5 x 49.5 mm
    • Compression Ratio: 9.4:1
    • Fuel Delivery: 22mm Keihin Slide Carburetor
    • Ignition: Breaker Points
    • Starter: Kickstart
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Oil-damped telescopic forks
    • Rear Suspension: Swinging arm
    • Front Brakes: mechanical actuated disc
    • Rear Brakes: Drum
    • Front Tire: 2.75-18
    • Rear Tire: 3.00-18
  • DIMENSION
    • Dry-Weight: 114 kg (251 lb)
    • Fuel Capacity: 9 Litres (2.4 Gal)
  • OTHER
    • Color: just one color: Aquarius Blue
    • The "HONDA" gas tank decal was red with a white outline
    • The "125S" side cover decal was white and red
    • The seat color was dark brown
    • The instruments had just a speedometer
    • The fenders were chrome
    • The serial number began CB125S-1300009.

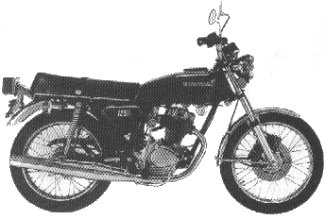

1976 CB125S
1976 CB125S

1977 CB125S

  • ENGINE
    • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
    • Ignition: breaker points
    • Battery: 6N6-3B
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final drive: chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front brake: mechanical actuated disc
  • DIMENSION
    • N/A
  • OTHER
    • Color:
      • Aquarius Blue
      • Orange
    • The "HONDA" gas tank decal was red with a white outline
    • The "125" side cover decal was yellow; the "S" was blue, outlined in yellow
    • The seat color was dark brown
    • The instruments had just a speedometer
    • The fenders were chrome
    • The serial number began CB125S-1400000.

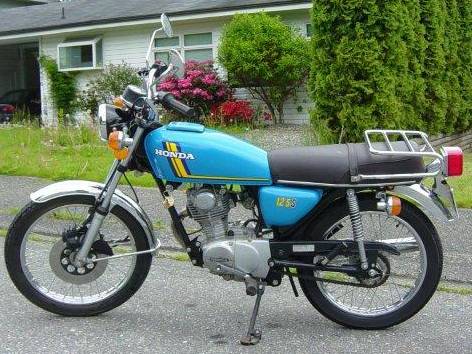

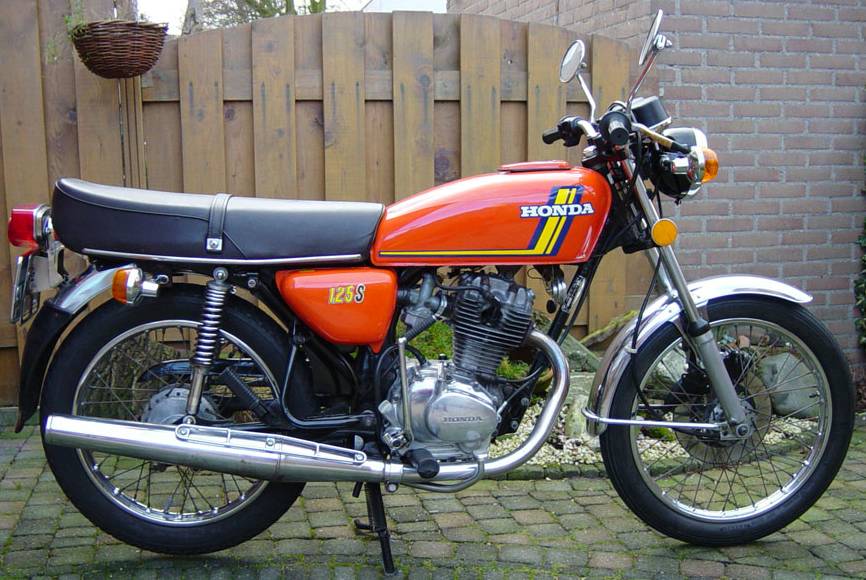

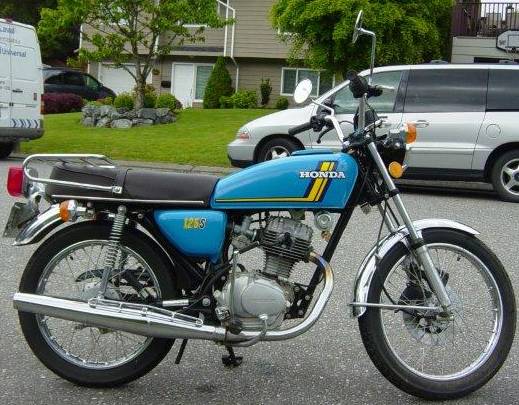

1977 CB125S owned by John Kaptein
1977 CB125S owned by John Kaptein
Click image to enlarge
1977 CB125S owned by John Kaptein
1977 CB125S owned by John Kaptein
Click image to enlarge

1978 CB125S'78

  • ENGINE
    • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
    • Ignition: breaker points
    • Battery: 6N6-3B
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final drive: chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front brake: mechanical actuated disc
  • DIMENSION
    • N/A
  • OTHER
    • Color:
      • Fire Red
      • Orange
    • The gas tank stripe was orange, yellow, white, and black
    • The "CB125" side cover decal was yellow; the "S" was blue outlined in white
    • The fenders were chrome
    • The front brake was a mechanical actuated disc
    • The instruments had just a speedometer
    • The serial number began CB125S-1500003.
1978 CB125S
1978 CB125S
Click image to enlarge

1979 CB125S'79

  • ENGINE
    • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
  • CHASSIS / SUSPENSION / BRAKES
    • Front brake: single leading shoe
  • DIMENSION
    • N/A
  • OTHER
    • Color: one color: Light Ruby Red
    • The gas tank stripe was red and black
    • The "CB125S" side cover decal was red and black
    • The fenders were chrome
    • The instruments had just a speedometer
    • The serial number began CB125S-5000001.

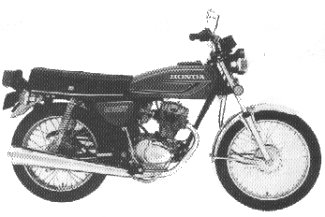

1979 CB125S
1979 CB125S

1980 CB125S'80

  • ENGINE
    • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • Transmission: 5-speed
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Color: one color: Light Ruby Red
    • The "HONDA" decal and stripe were gold with a black outline
    • The "CB125S" side cover decal was gold and red with a black outline
    • The fenders were also Red
    • The turn signal housings were black plastic
    • The instruments had just a speedometer
    • The serial number began JC04-5100001.

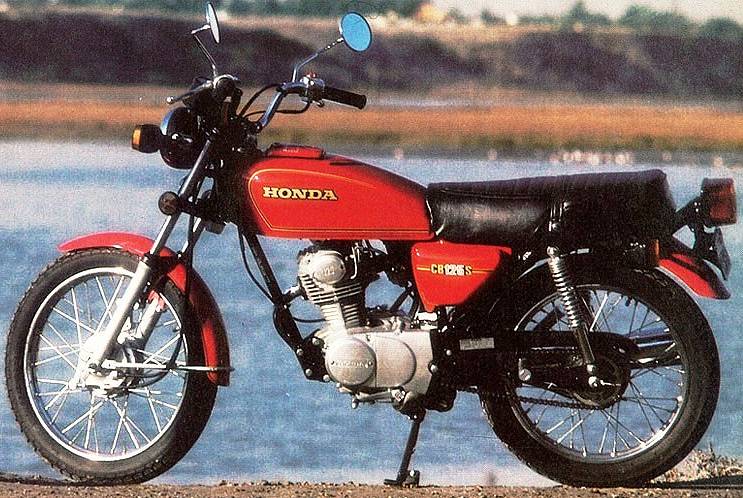

1980 CB125S
1980 CB125S
Click image to enlarge

1981 CB125S'81

  • ENGINE
    • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
    • The electrical system used a CD ignition
  • DRIVETRAIN
    • Transmission: 5-speed
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Color: just one color: Black
    • The gas tank stripes were red and gold
    • The "HONDA" and "CB125S" decals were solid red
    • The instruments had just a speedometer
    • The turn signal housings were black plastic
    • The serial number began JH2JC040*BK700005.

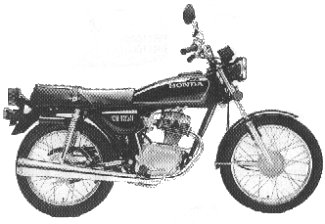

1981 CB125S
1981 CB125S

1982 CB125S'82

  • ENGINE
    • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
    • The electrical system used a CD ignition
  • DRIVETRAIN
    • Transmission: 5-speed
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Color: just one color: Candy Imperial Blue
    • The gas tank stripes were light blue and dark blue
    • The "HONDA" and "CB125S" decals were gold
    • The instruments had just a speedometer
    • The turn signal housings were black plastic
    • The serial number began JH2JC040*CK800002.

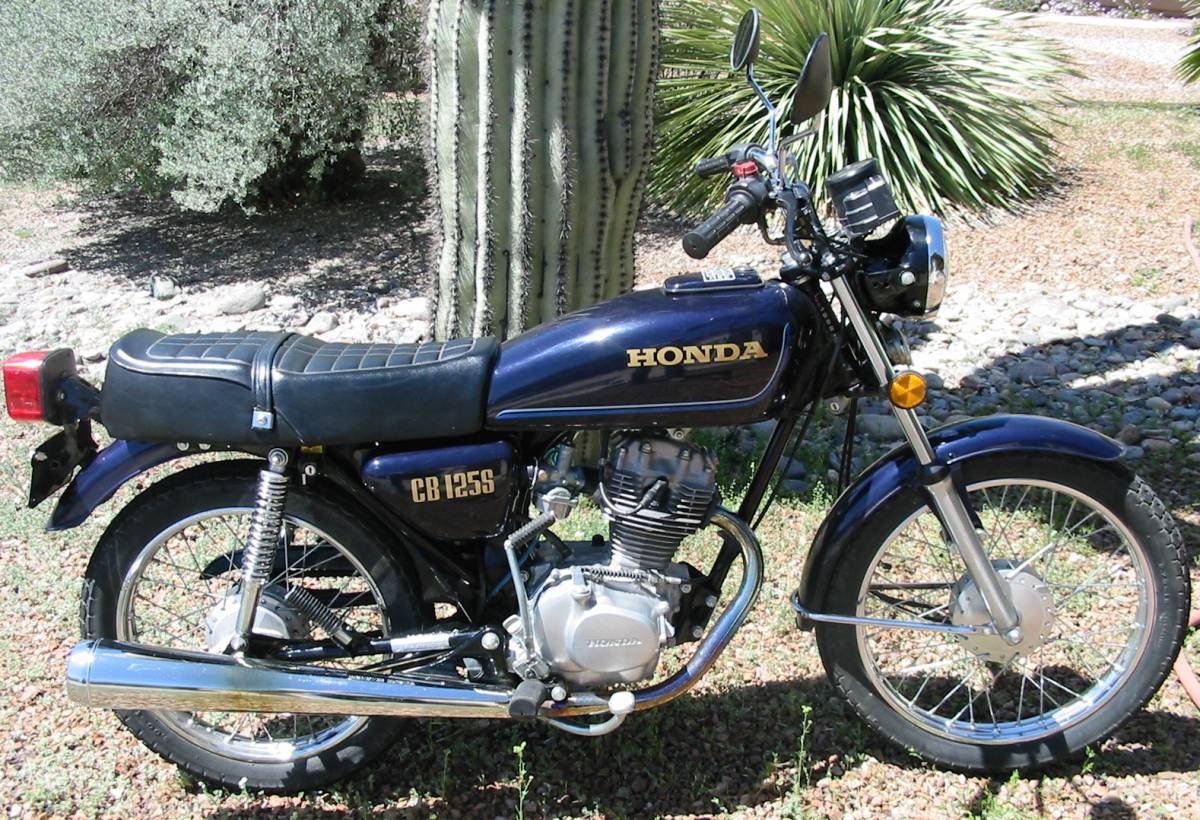

1982 CB125S
1982 CB125S
Click image to enlarge

1984 CB125S'84

  • ENGINE
    • Engine: 123cc single-cylinder, OHC four-stroke
    • Ignition: Solid state CD ignition
    • The electrical system was now a 12 volt.
  • DRIVETRAIN
    • Transmission: Wide-ratio five-speed
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • Wheelbase: 1270mm (50 in.)
    • Seat height: 760mm (29.9 in.)
    • Dry weight: 99 kg (218.2 lb)
  • OTHER
    • Color: Turuna Red
    • The fuel tank pinstripes were white and dark blue
    • The wing decal was gray and white
    • The headlight was round
    • The instruments had just a speedometer
    • The turn signal housings were black plastic
    • Seat: Long plush seat for two-up riding
    • The serial number began 9C2JC1303ER010001.

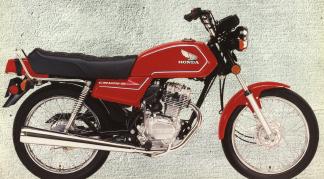

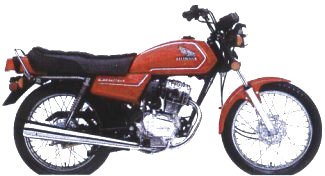

1984 CB125S
1984 CB125S
1984 CB125S
1984 CB125S

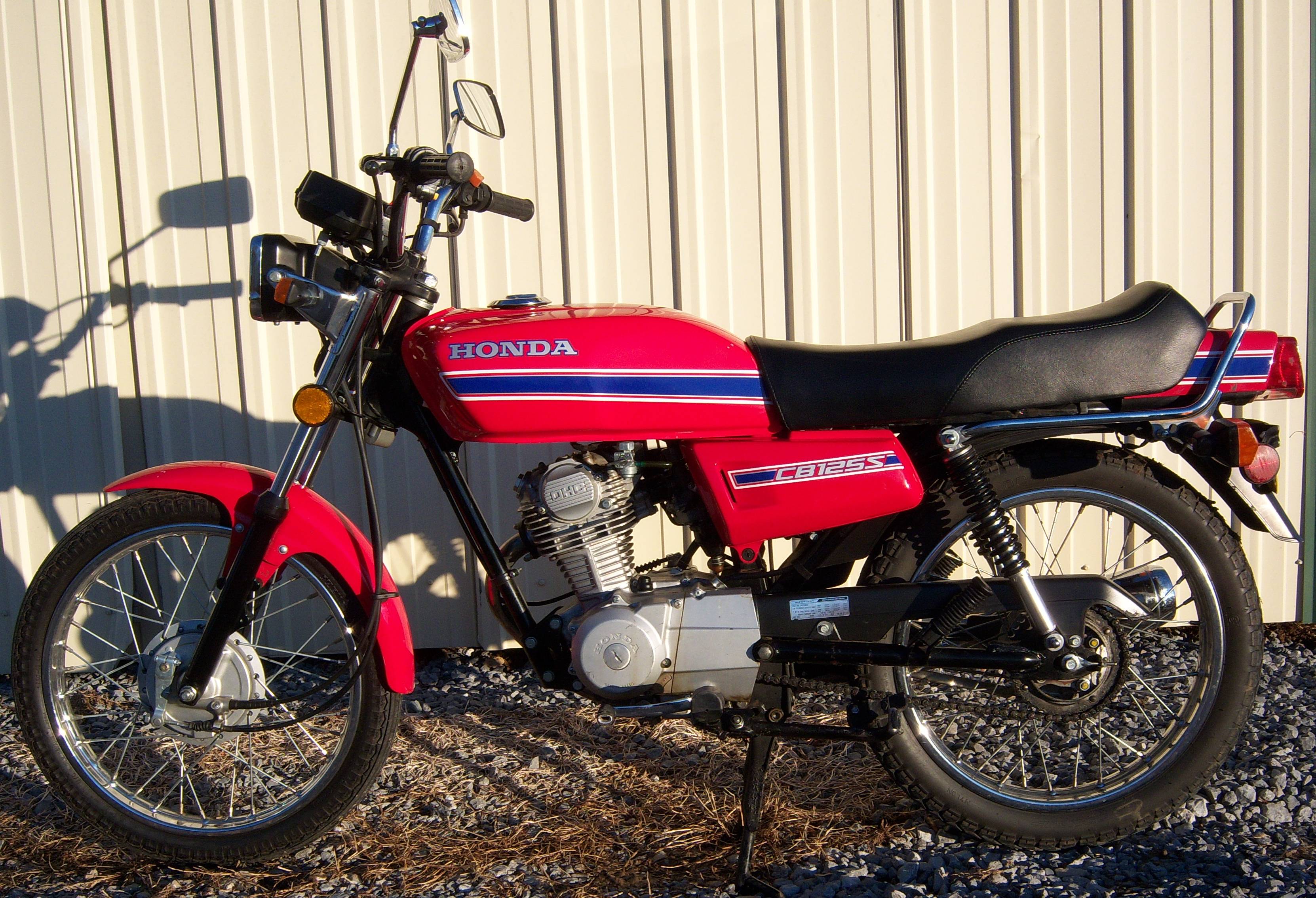

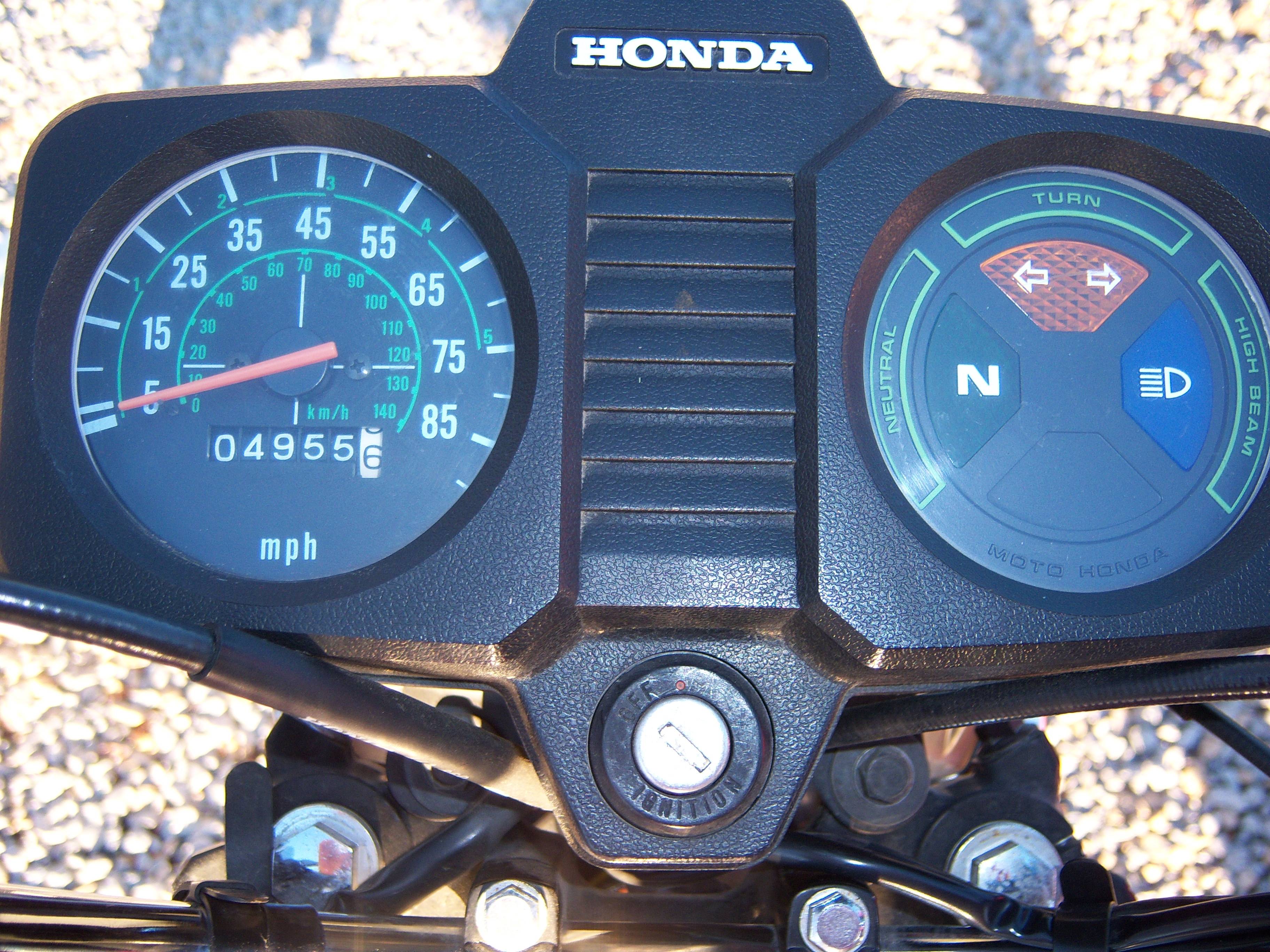

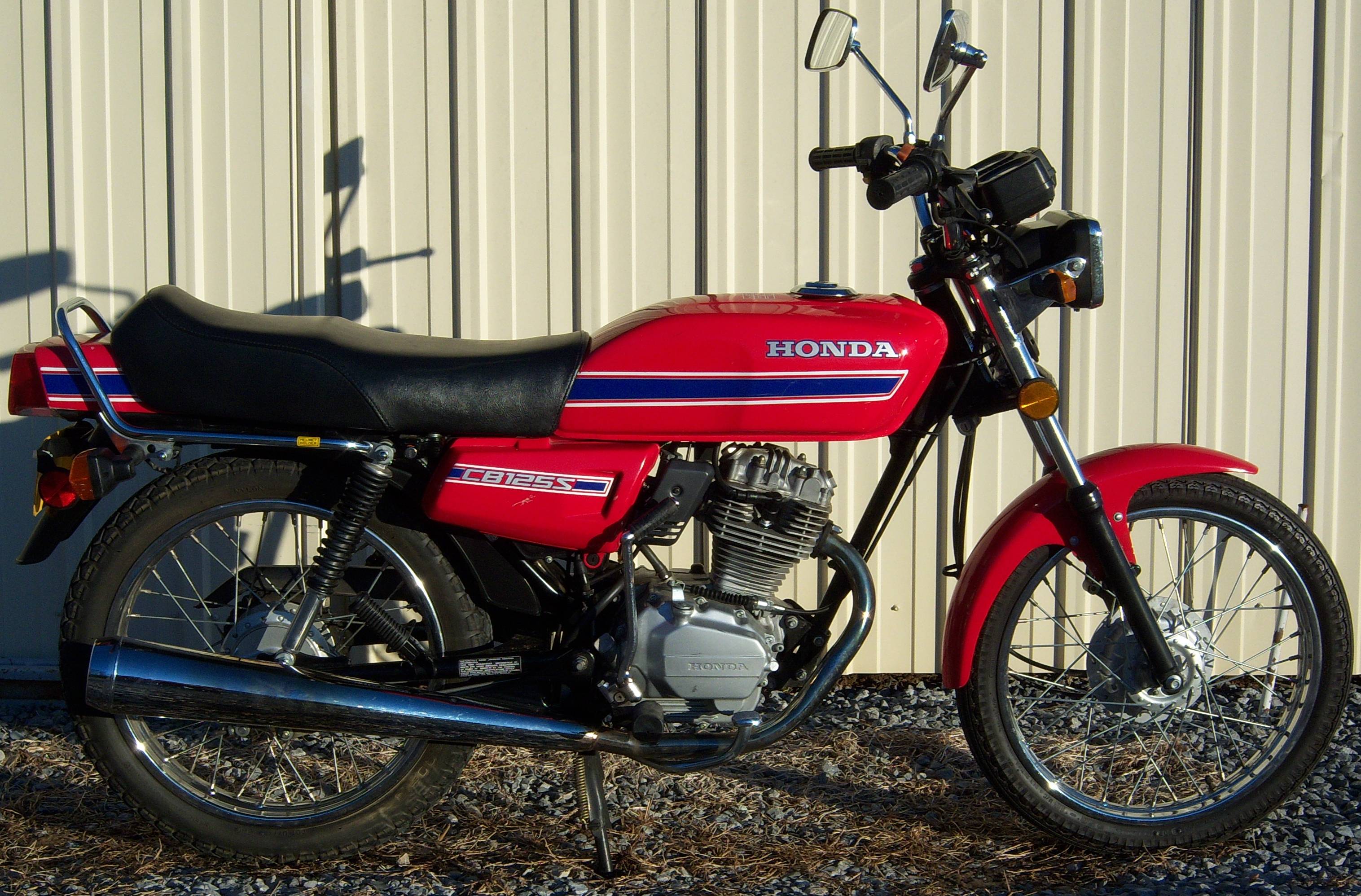

1985 CB125S'85

  • ENGINE
    • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
    • The high tension electrical system used a CD ignition
    • The electrical system was now a 12 volt
  • DRIVETRAIN
    • Transmission: 5-speed
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Color: one color: Turuna Red
    • The tank, side cover, and rear fender stripes were blue and white
    • The "HONDA" and "CB125S" decals were white
    • The headlight was rectangular
    • The instruments had just a speedometer
    • The turn signal housings were black plastic
    • The serial number began 9C2JC1308FR110001.
1985 Honda CB125S
1985 Honda CB125S
Owned by Pamela Mohesky - Ozark, Illinois
Click image to enlarge
1985 Honda CB125S
1985 Honda CB125S
Owned by Pamela Mohesky - Ozark, Illinois
Click image to enlarge
1985 Honda CB125S
1985 Honda CB125S
Owned by Pamela Mohesky - Ozark, Illinois
Click image to enlarge
1985 Honda CB125S
1985 Honda CB125S
Owned by Pamela Mohesky - Ozark, Illinois
Click image to enlarge
