2004 Shadow VT125C
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 4-valve SOHC 90° V-twin
- Engine Displacement: 125cc
- Bore & Stroke: 42 x 45mm
- Compression Ratio: 11.8:1
- Fuel Delivery: 22mm VP-type x 2
- Max. Power Output: 15 bhp at 11,000 rpm
- Max. Torque: 10.5Nm at 9,000 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Roller chain
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Length x Width x Height: 2,300 x 890 x 1,110mm
- Wheelbase: 1,530mm
- Seat Height: 680mm
- Ground Clearance: 145mm
- Fuel Capacity: 14 litres (including 2.1 litre reserve)
- Dry Weight: 145kg
- OTHER

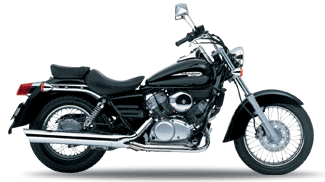

2004 Honda Shadow VT125C

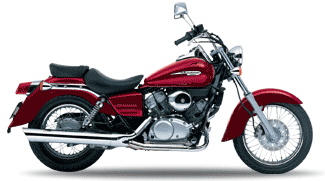

2004 Honda Shadow VT125C
2007 VT125C SHADOW
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 4-valve SOHC 90° V-twin
- Engine Displacement: 125cc
- Bore & Stroke: 42 x 45mm
- Compression Ratio: 11.8:1
- Carburation: 22mm VP-type x 2
- Max. Power Output: 15 bhp at 11,000 rpm
- Max. Torque: 10.5Nm at 9,000 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Roller chain
- Wheels Front: 17 x 2.15 steel rim/wire spoke
- Wheels Rear: 15M/C x MT2.75 steel rim/wire spoke
- CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 35mm telescopic fork, 110mm axle travel
- Suspension Rear: Dual dampers with adjustable preload, 80mm axle travel
- Brakes Front: 240mm hydraulic disc with dual-piston caliper
- Brakes Rear: 130mm leading/trailing drum
- Tires Front: 110/90-17 (55P)
- Tires Rear: 130/90-15M/C (66P)
- DIMENSION
- Length x Width x Height: 2,300 x 890 x 1,110mm
- Wheelbase: 1,530mm
- Seat Height: 680mm
- Ground Clearance: 145mm
- Fuel Capacity: 14 litres (including 2.1 litre reserve)
- Dry Weight: 145kg
- OTHER

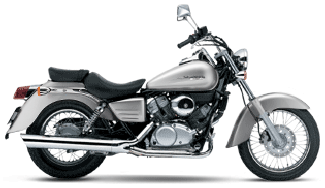

2007 VT125C Shadow

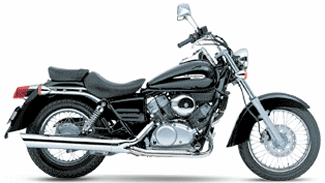

2007 VT125C Shadow
