Honda SH125 Motorcycles

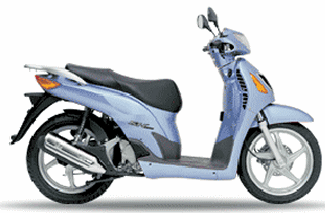

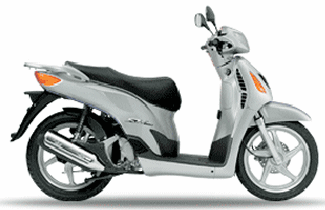

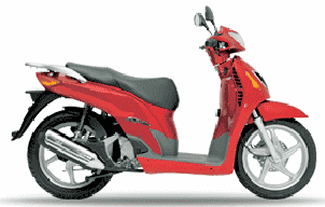

2004 SH125

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cc
- Bore & Stroke: 52.4 x 57.8mm
- Compression Ratio: 11.0 :1
- Fuel Delivery: 26mm VK-type
- Max. Power Output: 10.1kW/9000min-1 (95/1/EC)
- Max. Torque: 11.5Nm/7000min-1 (95/1/EC)
- Ignition: DC CDI
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: Belt drive
- Front Wheel: 16 x MT2.50 cast aluminum
- Rear Wheel: 16 x MT2.75 cast aluminum
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 33mm telescopic fork, 89mm axle travel
- Rear Suspension: Dual damper unit swingarm, 70mm axle travel
- Front Brakes: 220mm hydraulic disc with dual-piston caliper and resin mould pads
- Rear Brake: s: 130mm leading/trailing drum and resin mould pads
- Front Tire: 100/80-16 50L (tubeless)
- Rear Tire: 120/80-16 60L (tubeless)
DIMENSION
- Length x Width x Height: 2020 x 705 x 1145mm
- Wheelbase: 1335mm
- Seat Height: 790mm
- Ground Clearance: 148mm
- Fuel Capacity: 8.3 litres
- Dry Weight: 122kg
OTHER

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cc
- Bore & Stroke: 52.4 x 57.8mm
- Compression Ratio: 11:1
- Carburation: PGM-FI electronic fuel injection
- Max. Power Output: 13 bhp at 9,000 rpm
- Max. Torque: 11.5Nm at 7,000 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: Belt drive
- Wheels Front: U-section 5-spoke cast aluminium
- Wheels Rear: U-section 5-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 33mm telescopic fork, 90mm axle travel
- Suspension Rear: Dual damper unit swingarm, 82mm axle travel
- Brakes Front: 220mm hydraulic disc with dual-piston caliper and sintered metal pads
- Brakes Rear: 130 mm leading/trailing drum
- Tires Front: 100/80-16 50P
- Tires Rear: 120/80-16 60P
DIMENSION
- Length x Width x Height: 2,020 x 700 x 1,140mm
- Wheelbase: 1,335mm
- Seat Height: 790mm
- Ground Clearance: 149mm
- Fuel Capacity: 7.5 litres
- Dry Weight: 120 kg
OTHER

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cc
- Bore and Stroke: 52.4 x 57.8mm
- Compression Ratio: 11:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Ignition: Digital transistorised with electronic advance
- Max. Power Output: 13 bhp at 9,000 rpm
- Max. Torque: 11.5Nm at 7,000 rpm
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: Belt drive
- Front Wheels: U-section 5-spoke cast aluminium
- Rear Wheels: U-section 5-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
- Rear Tires: 120/80-16 60P
- Front Brakes: 240mm x 4mm hydraulic disc with Combined three-piston caliper, drilled rotor and resin mould pads
- Rear Suspension: Dual damper unit swingarm, 82mm axle travel
- Front Tires: 100/80-16 50P
- Front Suspension: 33mm telescopic fork, 90mm axle travel
- Rear Brakes: 240mm x 5mm hydraulic disc with single-piston caliper, Comb Brake and sintered metal pads
DIMENSION
- Wheelbase: 1335mm (52.6 inches)
- Overall Length: 2020mm (79.5 inches)
- Overall Width: 700mm (27.6 inches)
- Overall Height: 1140mm (44.9 inches)
- Seat Height: 790mm (31.1 inches)
- Ground Clearance: 149mm (5.9 inches)
- Weight: 120 kg (264 lb)
- Fuel Capacity: 7.5 Litres (2 GalUS)
OTHER
