Honda S-Wing 125 Motorcycles

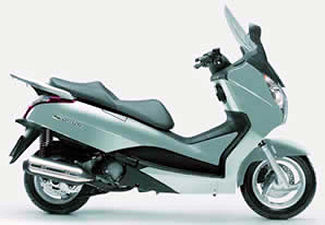

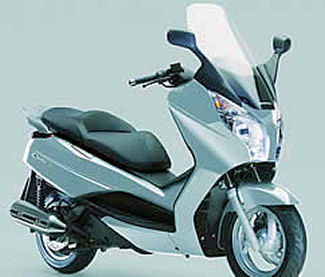

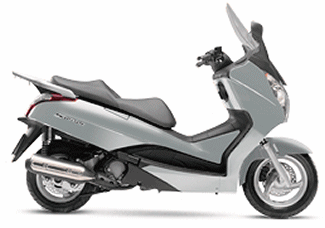

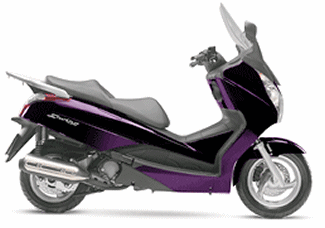

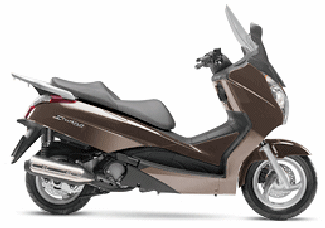

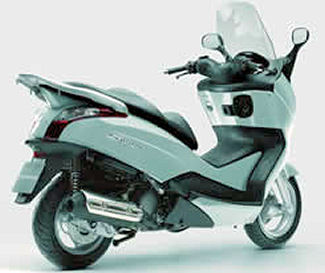

2007 S-Wing 125

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cm³
- Bore & Stroke: 52.4 x 57.8mm
- Compression Ratio: 11:1
- Carburation: PGM-FI electronic fuel injection
- Max. Power Output: 9.7kW/9,000min-1 (95/1/EC)
- Max. Torque: 11.1Nm/7,500min-1 (95/1/EC)
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: V-belt
- Wheels Front: Triple-spoke cast aluminium
- Wheels Rear: Triple-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 33mm telescopic fork, 85.7mm axle travel
- Suspension Rear: Dual-damper unit swingarm, 98.1mm axle travel
- Brakes Front: 240 x 4mm hydraulic disc with Combined three-piston caliper, drilled rotor and sintered metal pads
- Brakes Rear: 220 x 5mm hydraulic disc with single-piston caliper, Combined Brake system and resin mould pads
- Tires Front: 110/90-13M/C (56L)
- Tires Rear: 130/70-12M/C (62L)
DIMENSION
- Wheelbase: 1,490mm (58.7 inches)
- Overall Length: 2,090mm (82.3 inches)
- Overall Width: 745mm (29.3 inches)
- Overall Height: 1,435mm (56.5 inches)
- Seat Height: 776mm (30.5 inches)
- Ground Clearance: 134mm (5.3 inches)
- Fuel Capacity: 9.4 litres (2.5 GalUS)
- Dry Weight: 156kg (343 lb)
OTHER

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cc
- Bore and Stroke: 52.4 x 57.8mm
- Compression Ratio: 11:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Ignition: Digital transistorised with electronic advance
- Max. Power Output: 9.7kW/9,000min-1 (95/1/EC)
- Max. Torque: 11.1Nm/7,500min-1 (95/1/EC)
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: V-belt
- Front Wheels: Triple-spoke cast aluminium
- Rear Wheels: Triple-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 33mm telescopic fork, 85.7mm axle travel
- Rear Suspension: Dual-damper unit swingarm, 98.1mm axle travel
- Front Brakes: 240 x 4mm hydraulic disc with Combined three-piston caliper, drilled rotor and sintered metal pads
- Rear Brakes: 220 x 5mm hydraulic disc with single-piston caliper, Combined Brake system and resin mould pads
- Front Tires: 110/90-13M/C (56L)
- Rear Tires: 130/70-12M/C (62L)
DIMENSION
- Wheelbase: 1490mm (58.7 inches)
- Overall Length: 2090mm (82.3 inches)
- Overall Width: 745mm (29.3 inches)
- Overall Height: 1435mm (56.5 inches)
- Seat Height: 776mm (30.6 inches)
- Ground Clearance: 134mm (5.3 inches)
- Weight: 156 kg (343 lb)
- Fuel Capacity: 9.4 Litres (2.5 GalUS)
OTHER
