Honda PS125i Motorcycles

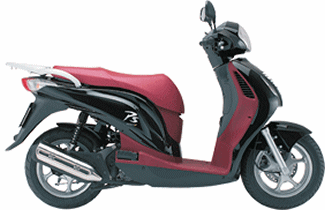

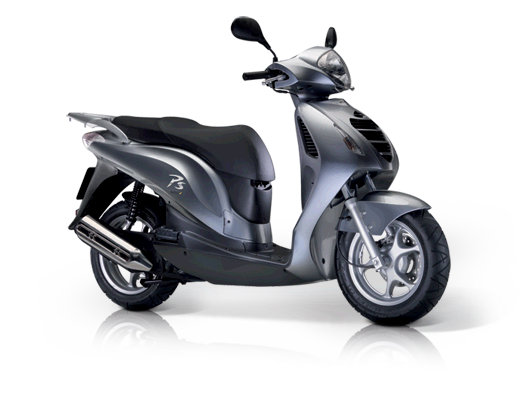

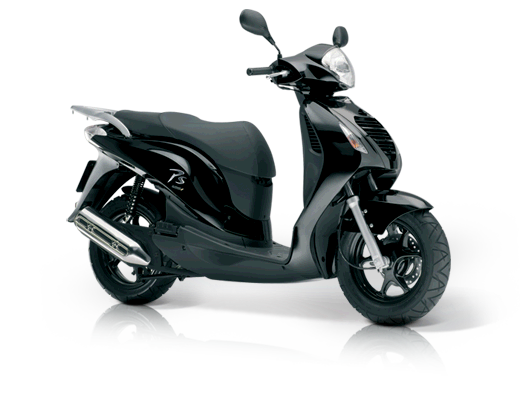

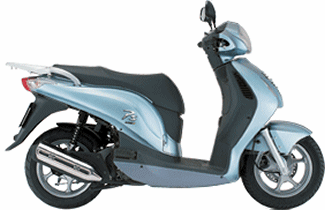

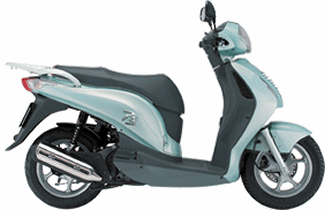

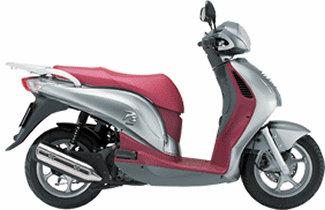

2007 PS125i

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cc
- Bore & Stroke: 52.4 x 57.8mm
- Compression Ratio: 11:1
- Carburation: PGM-FI electronic fuel injection
- Max. Power Output: N/A
- Max. Torque: N/A
- Ignition: Digital transistorised with electronic advanced
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: Belt drive
- Wheels Front: 13 M/C x MT2.75 U-section 6-spoke cast aluminium
- Wheels Rear: 13 M/C x MT3.50 U-section 6-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
- Suspension Front: N/A
- Suspension Rear: N/A
- Brakes Front: 220 x 4 mm hydraulic disc with dual-piston caliper and sintered metal pads
- Brakes Rear: 130 mm leading/trailing drum
- Tires Front: 110/90-13M/C 56L
- Tires Rear: 130/70-13M/C 57L
DIMENSION
- Length x Width x Height: N/A
- Wheelbase: N/A
- Seat Height: N/A
- Ground Clearance: N/A
- Fuel Capacity: N/A
- Dry Weight: N/A
OTHER

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cc
- Bore and Stroke: 52.4 x 57.8mm
- Compression Ratio: 11:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Ignition: Digital transistorised with electronic advanced
- Max. Power Output: 10.1kW/9,000min-1 (95/1/EC)
- Max. Torque: 11.5Nm/7,000min-1 (95/1/EC)
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: V-Belt
- Front Wheels: U-section 6-spoke cast aluminium
- Rear Wheels: U-section 6-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 33mm telescopic fork, 89mm axle travel
- Rear Suspension: Dual-damper unit swingarm, 83 mm axle travel
- Front Brakes: 220 x 4 mm hydraulic disc with dual-piston caliper and sintered metal pads
- Rear Brakes: 130 mm leading/trailing drum
- Front Tires: 110/90-13M/C 56L
- Rear Tires: 130/70-13M/C 57L
DIMENSION
- Wheelbase: 1340mm (52.8 inches)
- Overall Length: 1990mm (78.3 inches)
- Overall Width: 700mm (27.6 inches)
- Overall Height: 1150mm (45.3 inches)
- Seat Height: 800mm (31.5 inches)
- Ground Clearance: 125mm (4.9 inches)
- Weight: Curb Weight: 135 kg (297 lb)
  - Front: 54 kg (119 lb)
  - Rear: 81 kg (178 lb)
- Fuel Capacity: 8 Litres (2.1 GalUS)
OTHER
