Honda PCX125 Motorcycles

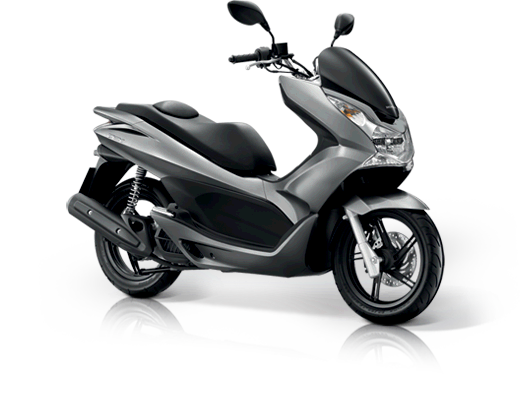

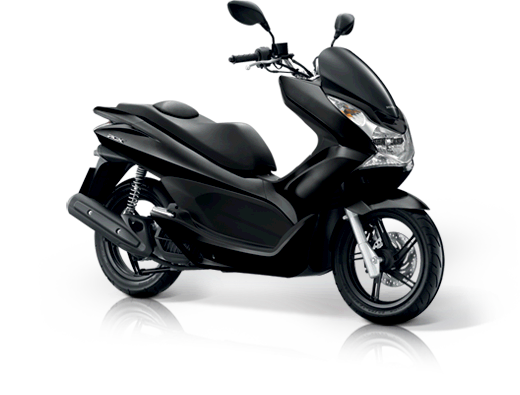

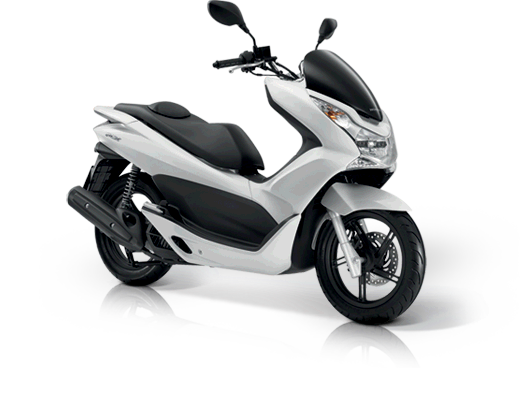

2012 Honda PCX125

ENGINE
- Engine Type: 4-stroke 2-valve SOHC with built-in liquid cooling
- Engine Displacement: 124.9cc
- Bore and Stroke: 52.4 x 57.9mm
- Compression Ratio: 11:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Ignition: Fully transistorised electric
- Max. Power Output: 8.33kW/8,000min-1 (95/1/EC)
- Max. Torque: 11.56Nm/6,000min-1 (95/1/EC)
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic - Centrifugal Automatic
- Final Drive: Belt
- Front Wheels: 5-spoke cast aluminium 14M/C x MT1.85
- Rear Wheels: 5-spoke cast aluminium 14M/C x MT2.15
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm telescopic fork, 100mm stroke
- Rear Suspension: Twin suspension aluminium swingarm, 75mm stroke
- Front Brakes: 220mm hydraulic disc with Combined 3-piston caliper
- Rear Brakes: 130mm Combined leading/trailing drum
- Front Tires: 90/90-14M/C (46P)
- Rear Tires: 100/90-14M/C (57P)
DIMENSION
- Wheelbase: 1305mm (51.4 inches)
- Overall Length: 1917mm (75.5 inches)
- Overall Width: 738mm (28.9 inches)
- Overall Height: 1094mm (43.1 inches)
- Seat Height: 761mm (30 inches)
- Ground Clearance: 135mm (5.3 inches)
- Weight: Curb Weight: 124.4 kg (274 lb)
  - Front: 52.2 kg (115 lb)
  - Rear: 72.2 kg (159 lb)
- Fuel Capacity: 6.2 Litres (1.6 GalUS)
OTHER
