2004 FES125 Pantheon
- ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 124.6cc
- Bore & Stroke: 52.4 x 57.8mm
- Compression Ratio: 11 :1
- Fuel Delivery: PGM-FI electronic fuel injection
- Max. Power Output: 13.5 bhp at 9000 rpm
- Max. Torque: 11.7Nm at 8500 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: Automatic centrifugal
- Final Drive: V-Matic
- Front Wheel: Cast aluminum
- Rear Wheel: Cast aluminum
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 33mm telescopic fork, 85.7mm axle travel
- Rear Suspension: Dual-damper unit swingarm, 98.1mm axle travel
- Front Brakes: 240mm x 4mm hydraulic disc with Combined three-piston caliper, drilled rotor and sintered metal pads
- Rear Brakes: 220mm x 5mm hydraulic disc with single-piston caliper, resin mould pads and Combined Brake system
- Front Tire: 110/90 13M/C 56L
- Rear Tire: 130/70 12 62L
- DIMENSION
- Length x Width x Height: 2090 x 735 x 1460mm
- Wheelbase: 1490mm
- Seat Height: 770mm
- Ground Clearance: 145mm
- Fuel Capacity: 9.4 litres
- Dry Weight: 139.9kg
- OTHER

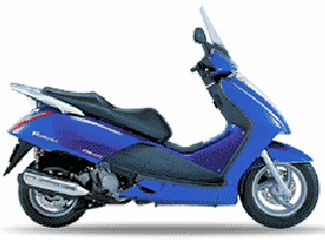

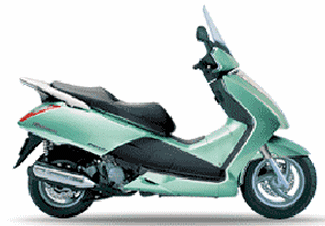

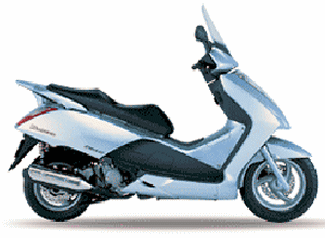

2004 Pantheon
2004 Pantheon
2004 Pantheon
2007 FES125 PANTHEON
- ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 124.6cm3
- Bore & Stroke: 52.4 x 57.8mm
- Compression Ratio: 11:1
- Carburation: PGM-FI electronic fuel injection
- Max. Power Output: 13.5 bhp at 9,000 rpm
- Max. Torque: 11.7Nm at 8,500 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: Automatic centrifugal
- Final Drive: V-Matic
- Wheels Front: Cast aluminium
- Wheels Rear: Cast aluminium
- CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 33mm telescopic fork, 85.7mm axle travel
- Suspension Rear: Dual-damper unit swingarm, 98.1mm axle travel
- Brakes Front: 240mm x 4mm hydraulic disc with Combined three-piston caliper, drilled rotor and sintered metal pads
- Brakes Rear: 220mm x 5mm hydraulic disc with single-piston caliper, resin mould pads and Combined Brake system
- Tires Front: 110/90 13M/C 56L
- Tires Rear: 130/70 12 62L
- DIMENSION
- Length x Width x Height: 2,090 x 735 x 1,460mm
- Wheelbase: 1,490mm
- Seat Height: 770mm
- Ground Clearance: 145mm
- Fuel Capacity: 9.4 litres
- Dry Weight: 139.9kg
- OTHER

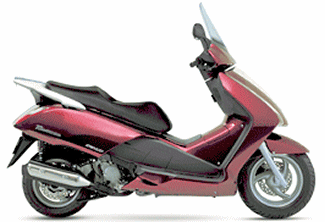

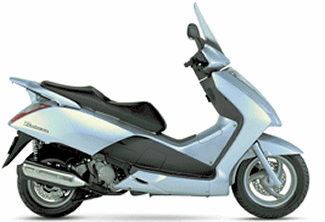

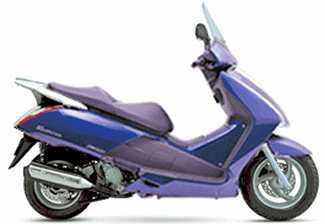

2007 FES125 Pantheon
2007 FES125 Pantheon
2007 FES125 Pantheon
