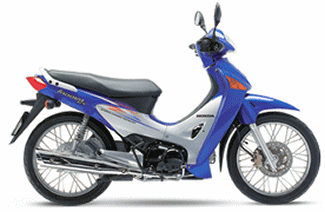

Honda Innova ANF125 Motorcycles

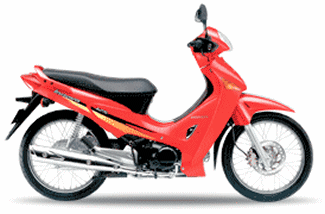

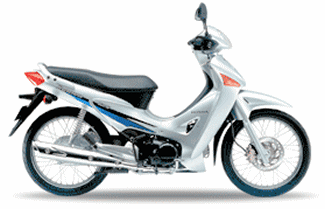

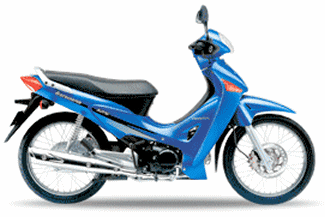

2004 ANF125 Innova

ENGINE
- Engine Type: Air-cooled 4-stroke SOHC single
- Engine Displacement: 124.9cc
- Bore & Stroke: 52.4 x 57.9mm
- Compression Ratio: 9.3 :1
- Fuel Delivery: 18mm APB-type carburetor
- Max. Power Output: 9 bhp at 7500 rpm
- Max. Torque: 10Nm at 5000 rpm
- Ignition: Capacitor Discharge (CDI) with electronic advance
- Starter: Electric and Neutral kick
DRIVETRAIN
- Transmission: Centrifugal clutch semi-automatic with 4 gears
- Final Drive: Enclosed roller chain
- Front Wheel: Steel rim/wire spoke
- Rear Wheel: Steel rim/wire spoke
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 26mm telescopic fork, 80.5mm axle travel
- Rear Suspension: Single damper unit swingarm, 81.6mm axle travel
- Front Brakes: 220mm hydraulic disc with dual-piston caliper
- Rear Brake: s: 110mm leading/trailing drum
- Front Tire: 70/100-17M/C 40P
- Rear Tire: 80/90-17M/C 50P
DIMENSION
- Wheelbase: 1240mm (48.8 inches)
- Overall Length: 1890mm (74.4 inches)
- Overall Width: 727mm (28.6 inches)
- Overall Height: 1083mm (42.6 inches)
- Seat Height: 768mm (30.2 inches)
- Ground Clearance: 145mm (5.7 inches)
- Fuel Capacity: 3.7 litres (1 GalUS)
- Dry Weight: 99.5kg (219 lb)
OTHER

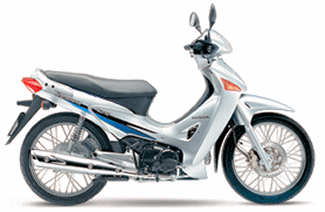

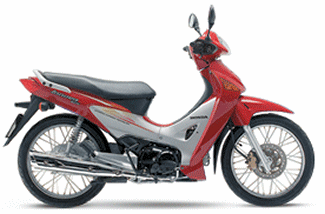

ENGINE
- Engine Type: Air-cooled 4-stroke SOHC single
- Engine Displacement: 124.9cm3
- Bore & Stroke: 52.4 x 57.9mm
- Compression Ratio: 9.3:1
- Carburation: 18mm APB-type carburetor
- Max. Power Output: 9 bhp at 7,500 rpm
- Max. Torque: 10Nm at 5,000 rpm
- Ignition: Capacitor Discharge (CDI) with electronic advance
- Starter: Electric and Neutral kick
DRIVETRAIN
- Transmission: Centrifugal clutch semi-automatic with 4 gears
- Final Drive: Enclosed roller chain
- Wheels Front: Steel rim/wire spoke
- Wheels Rear: Steel rim/wire spoke
CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 26mm telescopic fork, 80.5mm axle travel
- Suspension Rear: Single damper unit swingarm, 81.6mm axle travel
- Brakes Front: 220mm hydraulic disc with dual-piston caliper
- Brakes Rear: 110mm leading/trailing drum
- Tires Front: 70/100-17M/C 40P
- Tires Rear: 80/90-17M/C 50P
DIMENSION
- Wheelbase: 1,240mm (48.8 inches)
- Overall Length: 1890mm (74.4 inches)
- Overall Width: 727mm (28.6 inches)
- Overall Height: 1,083mm (42.6 inches)
- Seat Height: 768mm (30.2 inches)
- Ground Clearance: 145mm (5.7 inches)
- Fuel Capacity: 3.7 litres (1 GalUS)
- Dry Weight: 99.5kg (219 lb)
OTHER

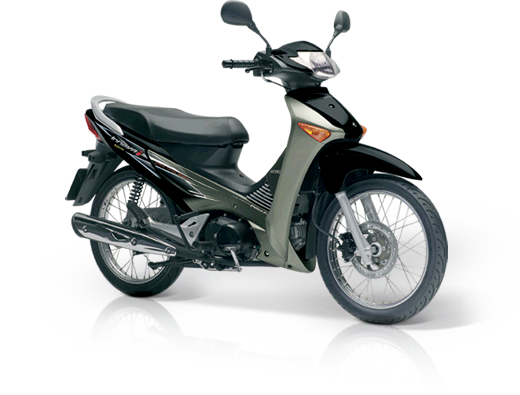

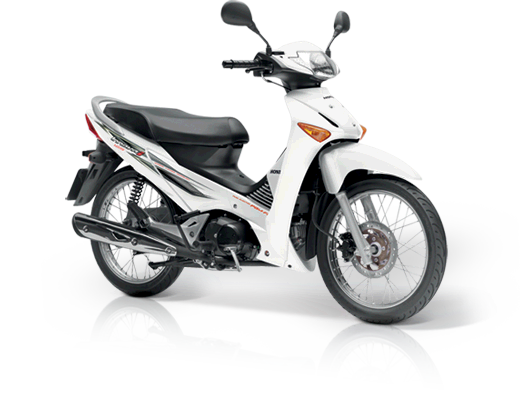

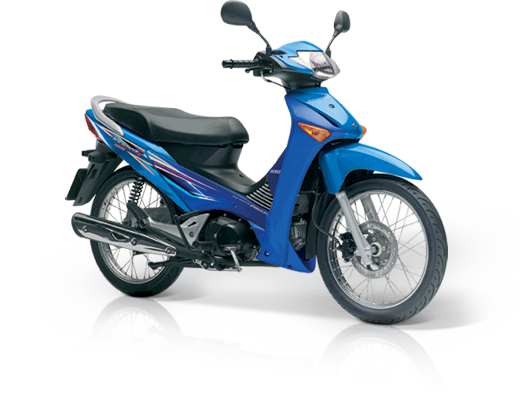

ENGINE
- Engine Type: Air-cooled 4-stroke SOHC single
- Engine Displacement: 124.8cc
- Bore and Stroke: 52.4 x 57.9mm
- Compression Ratio: 9.3:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Throttle Bore: 36mm ( inches)
- Ignition: Fully transistorised with electronic advance
- Max. Power Output: 6.84kW / 7,500min-1 (95/1/EC)
- Max. Torque: 10.1Nm / 3,000min-1 (95/1/EC)
- Starter: Electric and Neutral kick
DRIVETRAIN
- Final Drive: Enclosed roller chain
- Transmission: Centrifugal clutch semi-automatic with 4 gears
- Front Wheels: Steel rim/wire spoke 17M/C x 1.40
- Rear Wheels: Steel rim/wire spoke 17M/C x 1.60
CHASSIS / SUSPENSION / BRAKES
- Front Tires: 70/100-17M/C 40P
- Front Brakes: 220mm hydraulic disc with dual-piston caliper
- Front Suspension: 26mm telescopic fork, 80.5mm axle travel
- Rear Suspension: Dual damper unit swingarm, 81.6mm axle
- Rear Tires: 80/90-17M/C 50P
- Rear Brakes: 110mm leading/trailing drum
DIMENSION
- Wheelbase: 1240mm (48.8 inches)
- Overall Length: 1896mm (74.6 inches)
- Overall Width: 727mm (28.6 inches)
- Overall Height: 1079mm (42.5 inches)
- Seat Height: 778mm (30.6 inches)
- Ground Clearance: 139mm (5.5 inches)
- Weight: Curb Weight: 105.5 kg (232 lb)
  - Front: 43.4 kg (95 lb)
  - Rear: 62.1 kg (137 lb)
- Fuel Capacity: 3.7 Litres (1 GalUS)
OTHER
