1983 Elite
- ENGINE
- Engine: Liquid-cooled four-stroke 124cc
- DRIVETRAIN
- Transmission: V-maticTM
- Drive: Belt
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Wheelbase: 1200mm (47.2 in.)
- Dry weight: 102 kg (224.8 lb)
- Seat height: 760mm (29.9 in.)
- OTHER
- Seat: Dual
- Accessory: Rear carrier

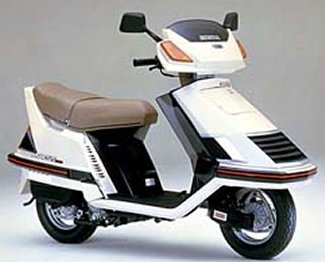

1983 Honda Elite CH125
1984 Elite
- ENGINE
- Engine: Liquid-cooled four-stroke 124cc
- Displacement: 124cc
- Bore & Stroke: 56.5 x 49.5mm
- Compression Ratio: 10.3:1
- Fuel Delivery: 22mm CV Type
- Ignition: system: CDI
- Starting system: Electric
- DRIVETRAIN
- Transmission: Variable Ratio V-maticTM
- Drive line: Belt
- Clutch: Automatic centrifugal
- Wheels: Pressed steel
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom-link type
- Rear Suspension: Twin hydraulic shocks
- Brakes: Front and rear drums
- Tire size: 3.50-10 (front and rear)
- DIMENSION
- Wheelbase: 1200mm (47.2 in.)
- Dry weight: 102 kg (224.8 lb)
- Overall length: 1940mm (76.4 in.)
- Overall width: 655mm (25.8 in.)
- Seat: Dual
- Seat height: 760mm (29.9 in.)
- Fuel capacity: 8.3 liters (2.2 US gal.) (1.8 Imp. gal.)
- OTHER
- Accessory: Rear carrier
- Colors:
- Light Copper Metallic
- Candy Ruby Red

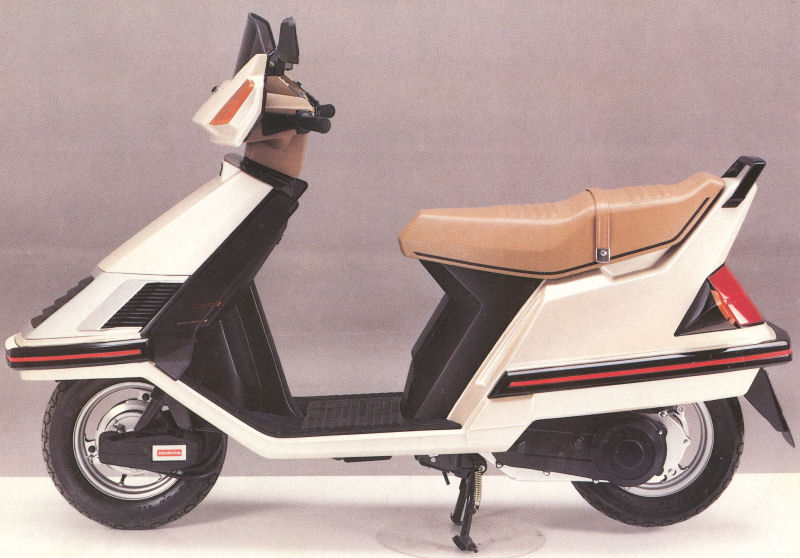

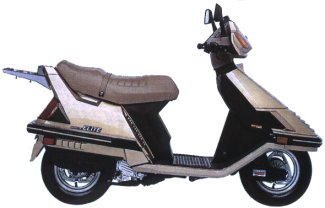

1984 Honda Elite CH125
1984 Honda Elite CH125
