Honda Dylan 125 Motorcycles

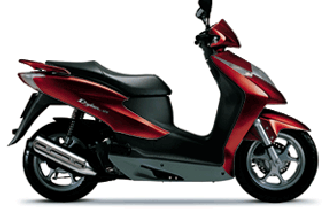

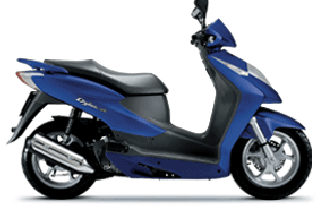

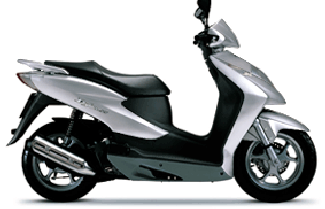

2004 Dylan 125

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cc
- Bore & Stroke: 52.4 x 57.8mm
- Compression Ratio: 11.0 :1
- Fuel Delivery: 26mm VK-type
- Max. Power Output: 14bhp at 9000 rpm
- Max. Torque: 11.3Nm at 7250 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: V-belt
- Front Wheel: 13 x MT2.75 cast aluminum alloy
- Rear Wheel: 13 x MT3.50 cast aluminum alloy
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 33mm hydraulic telescopic fork, 88mm axle travel
- Rear Suspension: Dual damper unit swingarm, 75mm axle travel
- Front Brakes: 220mm hydraulic disc with dual-piston caliper and sintered metal pads
- Rear Brakes: 130mm leading/trailing drum
- Front Tire: 110/90-13 56L (tubeless)
- Rear Tire: 130/70-13 57L (tubeless)
DIMENSION
- Length x Width x Height: 1940 x 700 x 1170mm
- Wheelbase: 1330mm
- Seat Height: 795mm
- Ground Clearance: 130mm
- Fuel Capacity: 9 litres (including 2.0 litre reserve)
- Dry Weight: 120kg
OTHER

ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC single
- Engine Displacement: 125cm3
- Bore & Stroke: 52.4 x 57.8mm
- Compression Ratio: 11.0:1
- Carburation: 26mm VK-type
- Max. Power Output: 14bhp at 9,000 rpm
- Max. Torque: 11.3Nm at 7,250 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
DRIVETRAIN
- Transmission: V-Matic
- Final Drive: V-belt
- Wheels Front: 13 x MT2.75 cast aluminium alloy
- Wheels Rear: 13 x MT3.50 cast aluminium alloy
CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 33mm hydraulic telescopic fork, 88mm axle travel
- Suspension Rear: Dual damper unit swingarm, 75mm axle travel
- Brakes Front: 220mm hydraulic disc with dual-piston caliper and sintered metal pads
- Brakes Rear: 130mm leading/trailing drum
- Tires Front: 110/90-13 56L (tubeless)
- Tires Rear: 130/70-13 57L (tubeless)
DIMENSION
- Length x Width x Height: 1,940 x 700 x 1,170mm
- Wheelbase: 1,330mm
- Seat Height: 795mm
- Ground Clearance: 130mm
- Fuel Capacity: 9 litres (including 2.0 litre reserve)
- Dry Weight: 120kg
OTHER
