The engine was red; but the shock springs were black
The fork boots were black
The serial number began JE01-2000010.

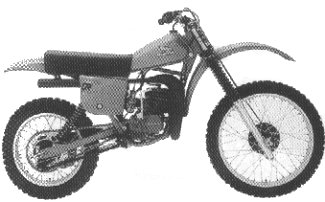

1979 CR125R
1980 CR125R'80 Elsinore
ENGINE
Engine Type: 2-stroke reed valve single cylinder
Displacement: 124cc
DRIVETRAIN
Transmission: 6-speed
Front wheel: 21 in.
Rear wheel: 18 in.
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Tahitian Red
The "CR125R" logo on the side of the seat was red
The shock springs were red
The gas tank was plastic
The fork boots were black
The serial number began JE01-2000010.

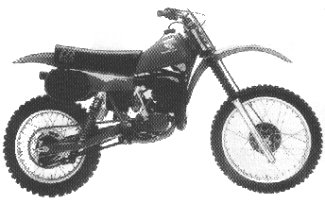

1980 CR125R
1981 CR125R'81 Elsinore
ENGINE
Engine Type: 2-stroke liquid-cooled reed valve single cylinder
Displacement: 123cc
DRIVETRAIN
Transmission: 6-speed
Front wheel: 21 in.
Rear wheel: 18 in.
CHASSIS / SUSPENSION / BRAKES
Suspension: Pro-LinkTM suspension
DIMENSION
N/A
OTHER
Color: Tahitian Red with White
The gas tank shrouds were white
The engine was red
The number plate panels were black
The seat was black with a white "125R" logo
The fork boots were black
The gas tank was plastic
The serial number began JH2JE010*BC2000032.

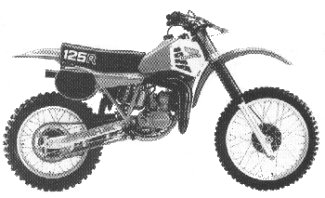

1981 CR125R
1982 CR125R'82
ENGINE
Engine Type: 2-stroke liquid-cooled reed valve single cylinder
Displacement: 123cc
DRIVETRAIN
Transmission: 6-speed
Front wheel: 21 in.
Rear wheel: 18 in.
CHASSIS / SUSPENSION / BRAKES
Suspension: Pro-LinkTM suspension
DIMENSION
N/A
OTHER
It was no longer called Elsinore
Color: Tahitian Red (the last year for this shade of red)
The seat was black with a white "125R" logo
The engine was black
The number plate panels were black
The fork boots were black
The front forks were 38mm
The bike also had a single leading shoe front brake
The gas tank was plastic
The serial number began JH2JE010*CC3000001.

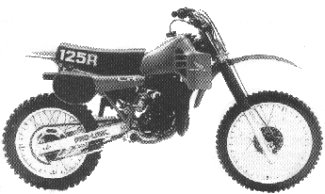

1982 CR125R
1983 CR125'83
ENGINE
Engine Type: 2-stroke liquid-cooled reed valve single cylinder
Displacement: 123cc
DRIVETRAIN
Transmission: 6-speed
Front wheel: 21 in.
Rear wheel: 18 in.
CHASSIS / SUSPENSION / BRAKES
Front forks: 38mm
Suspension: Pro-LinkTM suspension
DIMENSION
N/A
OTHER
It was available in one color: Flash Red
The number plate panels were black
The seat was blue with a white "CR" logo
The "125R" swingarm decal was black
The engine was black
The fork boots were black
The bike also had a single leading shoe front brake
The gas tank was plastic
The expansion chamber had an aluminum silencer
The serial number began JH2JE010*DC400014.

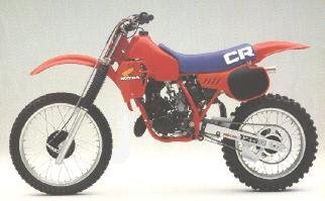

1983 Honda CR125R
1984 CR125R'84
ENGINE
Engine: Liquid-cooled two-stroke single cylinder with ATACTM
Displacement: 123cc
Power: 31 hp
DRIVETRAIN
Transmission: 6-speed
Front wheel: 21 in.
Rear wheel: 18 in.
CHASSIS / SUSPENSION / BRAKES
Suspension: Pro-LinkTM suspension
Front Brakes: Drilled front disc, hydraulic actuated
Front wheel travel: 290mm (11.4 in.)
Rear wheel travel: 310mm (12.2 in.)
DIMENSION
Wheelbase: 1430mm (56.3 in.)
Dry weight: 86.8 kg (191.3 lb)
Seat height: 930mm (36.6 in.)
OTHER
Color: Flash Red
The "125R" swingarm decal was red and white
The number plate panels were black
The seat was blue with a white "CR" logo
The fork boots were black
The engine was black
The gas tank was plastic
The expansion chamber had an aluminum silencer along with a new auto torque amplification chamber (ATAC)
The serial number began JH2JE010*EC5000001

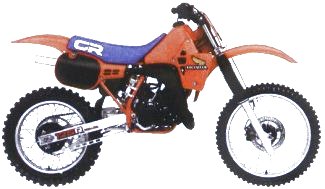

1984 CR125R1984 CR125R
1985 CR125R'85
ENGINE
Engine Type: 2-stroke liquid-cooled reed valve single cylinder
Displacement: 124cc
Carburetor: Flat-slide style
DRIVETRAIN
Transmission: 6-speed
Front wheel: 21 in.
Rear wheel: 18 in.
CHASSIS / SUSPENSION / BRAKES
Suspension: Pro-LinkTM suspension
Front brakes: Hydraulic disc front brake
DIMENSION
N/A
OTHER
Color: Flash Red
The "125" gas tank shroud decal was red and blue
The wing decal on the tank shroud was red, white, and blue
The "Pro-LinkTM" swingarm decal was solid blue
The seat was blue with a white "CR" logo
The number plate panels were black
The gas tank was plastic
The engine was black
The expansion chamber had an aluminum silencer along with an auto torque amplification chamber (ATAC)
The serial number began JH2JE010*FC6000001.

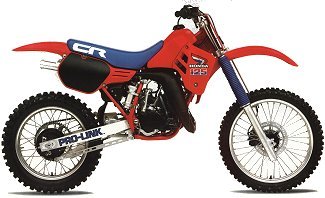

1985 CR125R
1986 CR125R'86
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Flash Red
The "125" decal on the tank shroud was red with a white outline
The wing decal on the tank shroud was red, white, and blue
The seat was blue with a white "CR" logo in outline
The "Pro-LinkTM" swingarm decal was a black outline
The engine was black
The number plate panels were black
The bike had a 21" front wheel and an 18" rear wheel
The wheel rims were gold anodized
The bike had a hydraulic disc front brake
The gas tank was plastic
The expansion chamber had an aluminum silencer along with an auto torque amplification chamber (ATAC)
The bike featured a Pro-LinkTM suspension
The carburetor was a flat-slide style
Engine Type: 2-stroke liquid-cooled reed valve single cylinder displacing 124cc linked to a 6-speed transmission
The serial number began JH2JE010*GC7000001.

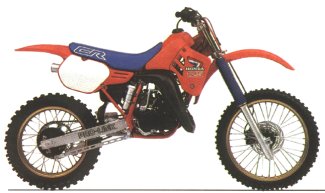

1986 CR125R
1987 CR125R'87
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Flash Red
The wing decal on the tank shroud was red, white, and blue
The "125" decal on the shroud was white
The seat was blue with a white "CR" logo
The "Pro-LinkTM" swingarm decal was a black outline
The engine was black
The number plate panels were black
The bike had a 21" front wheel and an 18" rear wheel
The wheel rims were gold anodized
The bike had a hydraulic disc front and rear brake
The gas tank was plastic
The expansion chamber had an aluminum silencer along with an auto torque amplification chamber (ATAC)
The bike featured a Pro-LinkTM suspension
The carburetor was a flat-slide style
The engine used case reed induction
Engine Type: 2-stroke liquid-cooled reed valve single cylinder displacing 124cc linked to a 6-speed transmission
The serial number began JH2JE010*HC8000001.

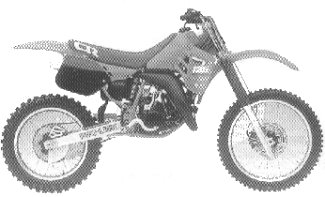

1987 CR125R
1988 CR125R'88
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Fighting Red
The number plate panels were white
The "CR125" and wing decals on the tank shroud were white
The seat and fork boots were red
The engine was black
The bike had a 21" front wheel and an 18" rear wheel
The wheel rims were silver
The bike had a hydraulic disc front and rear brake
The gas tank was plastic
The expansion chamber had an aluminum silencer along with an auto torque amplification chamber (ATAC)
The bike featured a Pro-LinkTM suspension
The "Pro-LinkTM" decal had a red outline
The carburetor was a flat-slide style
The engine used case reed induction
Engine Type: 2-stroke liquid-cooled reed valve single cylinder displacing 124cc linked to a 6-speed transmission
The serial number began JH2JE010*JM9000001.

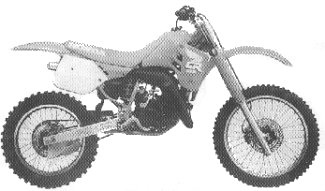

1988 CR125R
1989 CR125R'89
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Fighting Red
The new style wing logo appeared on the tank shroud
A "CR" appeared on the side of the seat
The engine was black
The bike had a 21" front wheel and an 18" rear wheel
The bike had a hydraulic disc front and rear brake
The gas tank was plastic
The low mount expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension
The engine had a Nikasil® plated cylinder
The serial number began JH2JE010*KM0000006.

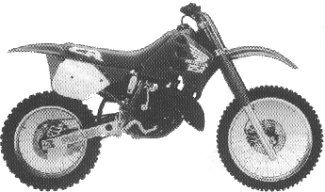

1989 CR125R
1990 CR125R'90
OVERVIEW
For 1990, the CR125R is going to lead the pack with more raw power than ever hefore. Honda's exclusive Power Port system (H.P.P.TM) and a newly designed expansion chamber give the CR125R a significantly wider powerband. Like the CR5OOR and CR250R, the CR125R comes armed with rigid 45 mm inverted cartridge type front forks. There's even a new graphics scheme. When it comes to a race-ready dirt bike, the CR125R is tough to beat.
ENGINE
Engine Type: Liquid-cooled two-stroke with HPPTM
Displacement: 124.8 cc
Bore & Stroke: 54x54.5 mm
Compression Ratio: 8.9: 1
Carburetion: 36 mm flat slide type
Ignition System: Solid State
Starting System: Kick
DRIVETRAIN
Transmission: Six-speed constant mesh
Drive Line: Chain
Clutch: Wet, multi-plate
Wheels: Straight-pull spoke
CHASSIS / SUSPENSION / BRAKES
Front Suspension: Leading axle air-assisted inverted 45 mm telescopic cartridge forks with 14 position compression damping; adjustment (305 mm travel)
Rear Suspension: Delta-shaped PRO-LINKTM progressive single shock with 20 setting compression and rebound damping adjustment (310 mm travel)
Front Brakes: Twin-piston caliper 240 mm disc
Rear Brakes: Single-piston caliper 221 mm disc
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Wheelbase: 1457 mm (57.4")
Dry Weight: 87.5 kg (192.5 lb)
Overall Length: 2142 mm (84.3")
Seat Height: 970 mm (38.2")
Fuel Capacity: 7.5 liters
OTHER
Color: Flash Red with Shasta White
The frame was Shasta White
The "CR" logo was blue with a white outline
The engine was black
The bike had a hydraulic disc front and rear brake
The gas tank was plastic
The expansion chamber had an aluminum silencer
The serial number began JH2JE010*LM1000013

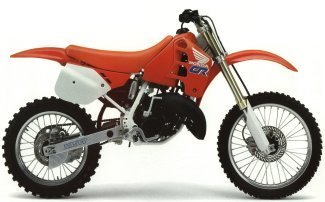

1990 CR125R
1991 CR125R'91
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Flash Red with Ross White
The frame was Ross White
The "CR" logo was white, yellow, and orange
The seat graphics were white
The "125R" logo on the swingarm was red
The side panels and rear fender had an integrated look
The engine was black
The forks were inverted
The bike had a 21" front wheel and an 18" rear wheel
The bike had a hydraulic disc front and rear brake
The gas tank was plastic
The expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension
The serial number began JH2JE010*MM2000008.

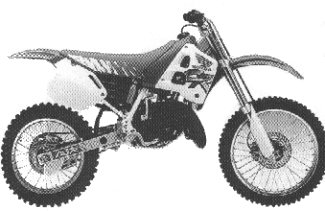

1991 CR125R
1992 CR125R'92
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Nuclear Red with Shasta White
The frame was Ross White
The gas tank and air box cover were Shasta White
The "CR" logo on the tank shroud was white with a blue outline
The bike had a 21" front wheel and an 18" rear wheel
The bike had a hydraulic disc front and rear brake
The forks were inverted
The gas tank was plastic
The expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension
The serial number began JH2JE010*NM3000006.

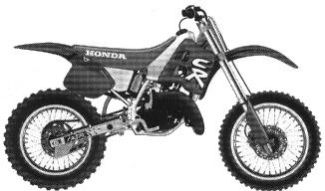

1992 CR125R
1993 CR125R'93
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Nuclear Red and Shasta White
The bodywork was similar to the CR250R'93
The frame is chalk white
The red is a deeper red
The "CR" logo on the tank shroud was blue with a white outline
The bike had a 21" front wheel and an 18" rear wheel
The bike had a hydraulic disc front and rear brake
The forks were inverted
The gas tank was plastic
The expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension
The serial number began JH2JE010*PM4000010.
1993 CR125R

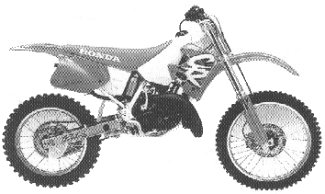

1994 CR125R'94
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Nuclear Red and Shasta White
The tank shroud had new fluorescent graphics
The frame was new with a different engine mounting location
The front suspension had inverted 43mm forks with new valving and seating
The handlebars were taller and wider
The bike had a 21" front wheel and an 18" rear wheel
The rear spokes were 4.5mm thick
The bike had a hydraulic disc front and rear brake
The gas tank was plastic
The expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension where the swingarm was longer
The drive chain was now a #520
The serial number began JH2JE010*RM5000008.
1994 CR125R
1995 CR125R'95
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Nuclear Red with Shasta White
The seat was blue
The radiator cowl was purple
The tank had new graphics
The suspension had Kayaba inverted forks
The gas tank was plastic
Rear wheel: 19"
The front wheel was stronger
The bike had a hydraulic disc front and rear brake
The front disc had a protective cover
The expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension
The engine had improved response
The serial number began JH2JE010*SM6000001.

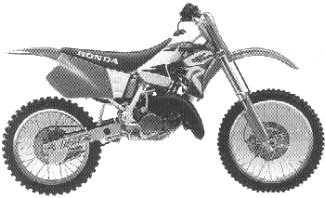

1995 CR125R
1996 CR125R'96
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Nuclear Red and Shasta White
The graphics were fluorescent
The suspension had 43mm inverted cartridge forks
The gas tank was plastic
The bike had a hydraulic disc front and rear brake
The expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension
The serial number began JH2JE010*TM7000001.

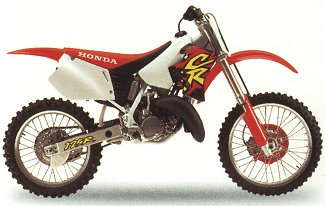

1996 CR125R
1997 CR125R'97
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Nuclear Red
The logo was redesigned
The lower fork guards were white
The "CR" logo on the seat was black
The gas tank was plastic
The bike had a hydraulic disc front and rear brake
The expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension
The serial number began JH2JE010*VM8000001.

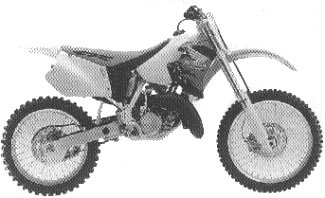

1997 CR125R
1998 CR125R'98
ENGINE
N/A
DRIVETRAIN
N/A
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
N/A
OTHER
Color: Nuclear Red with Ross White
The bike had a new twin spar aluminum frame
The logos were redesigned
The gas tank was plastic
The bike had a hydraulic disc front and rear brake
The expansion chamber had an aluminum silencer
The bike featured a Pro-LinkTM suspension
The transmission was now a 5-speed
The serial number began JH2JE010*EC5000001.
1998 CR125R
2003 CR125R'03
ENGINE
Engine: 125cc liquid-cooled single-cylinder two-stroke with RC valve
Bore and Stroke:54.0 x 54.5 mm
Fuel Delivery:38mm Mikunie® TMX-x
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 46mm inverted Kayaba fork with 20-position compression- and 18-position rebound-damping adjustability; 304mm (12.0 in.) travel
Rear Suspension: Pro-Link Kayaba single-shock with spring-preload, 18-position (low-speed) and 2-turn (high-speed) compression-damping and 30-position rebound-damping adjustability; 317mm (12.5 in.) travel
Front brake: Single disc with twin-piston caliper
Rear Brake: Single disc
DIMENSION
Ground clearance: 345mm (13.6 in.)
Seat height: 947mm (37.3 in.)
Wheelbase: 1458mm (57.4 in.)
Dry weight: 87.5 kg (193 lb)
Fuel capacity: 7.5 liters
OTHER

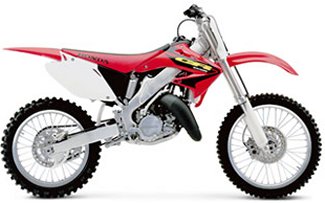

2003 CR125R
2004 CR125R
ENGINE
Engine Type: 125cc liquid-cooled single-cylinder two-stroke with RC valve
Bore and Stroke: 54.0mm x 54.5mm
Compression Ratio: 9.1:1
Fuel Intake: Four-petal crankcase reed-valve
Fuel Delivery: 38mm Mikuni TMX-x with throttle position sensor
Ignition: Digital ignition with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/52T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 46mm inverted Kayaba cartridge fork with 18-position rebound- and 20-position compression-damping adjustability; 12.0-inch travel
Rear Suspension: Pro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns); 12.5-inch travel
Front Brake: Single 240mm disc with twin-piston caliper
Rear Brake: Single 240mm disc
Front Tire: 80/100-21
Rear Tire: 100/90-19
DIMENSION
Rake: 29.53 degrees
Trail: 101.3mm (3.99 inches)
Wheelbase: 57.48 inches
Seat Height: 37.3 inches
Ground Clearance: 13.7 inches
Dry Weight: 197.0 pounds
Fuel Capacity: 2.0 gallons
OTHER
Colors: Red

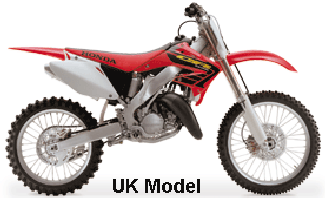

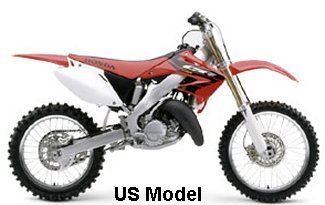

2004 CR125R2004 CR125R
2005 CR125R
ENGINE
Engine Type: 125cc liquid-cooled single-cylinder two-stroke with RC valve
Bore and Stroke: 54.0mm x 54.5mm
Compression Ratio: 8.6:1
Fuel Intake: Six-petal crankcase reed-valve
Fuel Delivery: 38.0mm Mikuni TMX with throttle position sensor (TPS)
Ignition: Digital ignition with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/52T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 46.0mm inverted Kayaba cartridge fork with 18-position rebound and 20-position compression-damping adjustability; 12.0-inch travel
Rear Suspension: Pro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns); 12.5-inch travel
Front Brake: Single 240.0mm disc with twin-piston caliper
Rear Brake: Single 240.0mm disc
Front Tire: 80/100-21
Rear Tire: 100/90-19
DIMENSION
Rake: 25.75 degrees
Trail: 100.0mm (3.94 inches)
Wheelbase: 57.9 inches
Seat Height: 37.3 inches
Ground Clearance: 13.8 inches
Dry Weight: 192.9 pounds
Fuel Capacity: 2.0 gallons
OTHER
Colors: Red

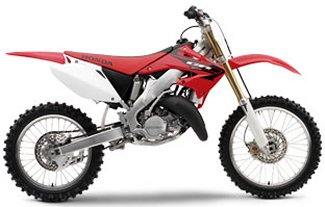

2005 CR125R
2006 CR125R
OVERVIEW
The CR125R shares a lot with its CR250 big brother: multiple championships, state-of-the-art tech and, best of all, the knowledge that it has no equals when it comes to 125cc two-strokes. Could it be the mind-boggling power? The super-light weight? The tack-sharp handling? Or maybe all of the above? Why not throw your leg over one -- and then decide for yourself.
ENGINE
Engine Type: 125cc liquid-cooled single-cylinder two-stroke with RC valve
Bore and Stroke: 54.0mm x 54.5mm
Compression Ratio: 8.6:1
Fuel Delivery: Six-petal crankcase reed-valve
Fuel Delivery: 38.0mm Mikuni TMX with throttle position sensor (TPS)
Ignition: Digital ignition with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/52T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 46.0mm inverted Kayaba cartridge fork with 18-position rebound and 20-position compression-damping adjustability; 12.0-inch travel
Rear Suspension: Pro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns); 12.5-inch travel
Front Brake: Single 240.0mm disc with twin-piston caliper
Rear Brake: Single 240.0mm disc
Front Tire: 80/100-21
Rear Tire: 100/90-19
DIMENSION
Rake: 25.75 degrees
Trail: 100.0mm (3.94 inches)
Wheelbase: 57.9 inches
Seat Height: 37.3 inches
Ground Clearance: 13.8 inches
Dry Weight: 197 pounds
Fuel Capacity: 2.0 gallons
OTHER
Colors: Red
Model ID: CR125R

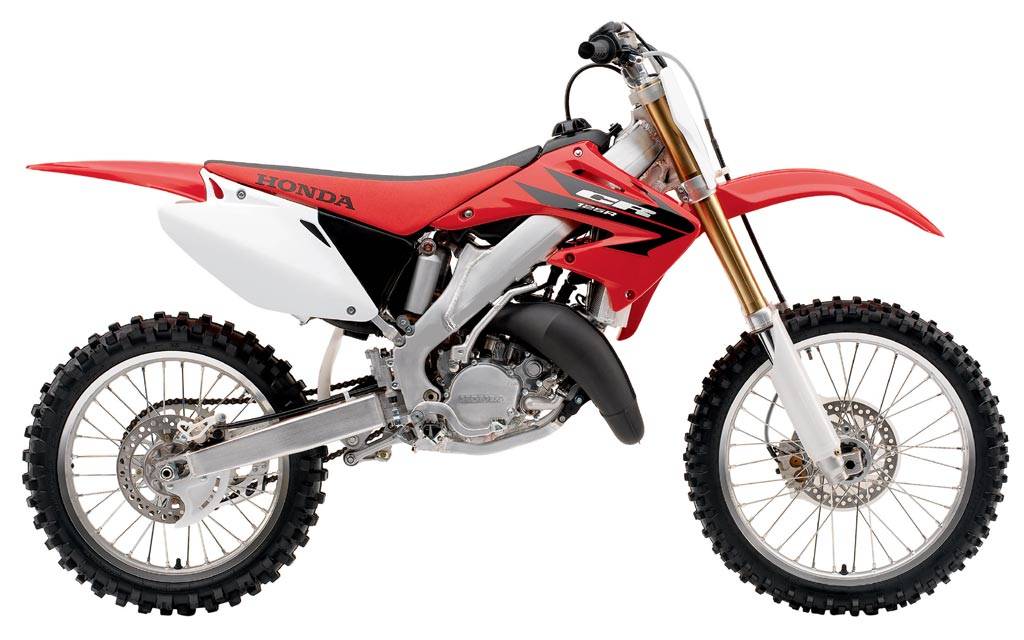

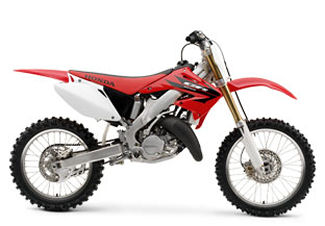

2006 CR125R Click image to enlarge

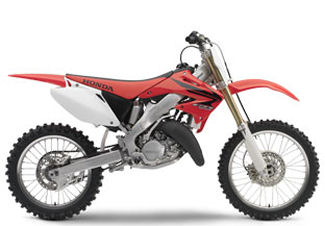

2007 CR125R
OVERVIEW
The CR125R shares a lot with its CR250 big brother: multiple championships, state-of-the-art tech and, best of all, the knowledge that it has no equals when it comes to 125cc two-strokes. Could it be the mind-boggling power? The super-light weight? The tack-sharp handling? Or maybe all of the above? Why not throw your leg over one -- and then decide for yourself.
ENGINE
Engine Type: 125cc liquid-cooled single-cylinder two-stroke with RC valve
Bore and Stroke: 54.0mm x 54.5mm
Compression Ratio: 8.6:1
Fuel Delivery: Six-petal crankcase reed-valve
Fuel Delivery: 38.0mm Mikuni TMX with throttle position sensor (TPS)
Ignition: Digital ignition with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/52T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 46.0mm inverted Kayaba cartridge fork with 18-position rebound and 20-position compression-damping adjustability; 12.0-inch travel
Rear Suspension: Pro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns); 12.5-inch travel
Front Brake: Single 240.0mm disc with twin-piston caliper
