1974 CG125
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- It was not sold in the USA or Canada.
- The tank design is like the 1974 CB125 model .

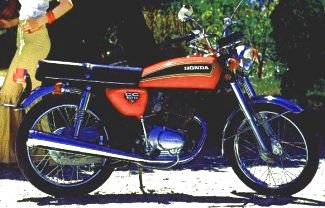

1974 CG125
2004 CG125
- ENGINE
- Engine Type: Air-cooled 4-stroke OHV single cylinder
- Engine Displacement: 124cc
- Bore & Stroke: 56.5 x 49.5mm
- Compression Ratio: 9.5:1
- Fuel Delivery: 22mm piston-valve type carburetor
- Max. Power Output: 11 bhp at 9000 rpm
- Max. Torque: 9.8Nm at 7000 rpm
- Ignition: Capacitor Discharge - CDI
- Starter: Electric
- DRIVETRAIN
- Transmission: 5-speed constant mesh
- Final Drive: Roller chain
- Front Wheel: 18 x 1.60 steel rim/wire spoke
- Rear Wheel: 18 x 1.85 steel rim/wire spoke
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm telescopic fork, 102mm axle travel
- Rear Suspension: Dual dampers with 5-step adjustable spring preload, 80mm axle travel
- Front Brakes: 240mm hydraulic disc with single-piston caliper and sintered metal pads
- Rear Brake: 130mm leading/trailing drum
- Front Tire: 2.75-18 (42P)
- Rear Tire: 90/90-18 (57P)
- DIMENSION
- Length x Width x Height: 1982 x 736 x 1067mm
- Wheelbase: 1297mm
- Seat Height: 781mm
- Ground Clearance: 173mm
- Fuel Capacity: 13.5 litres (including 2.3-litre reserve)
- Dry Weight: 114kg
- OTHER

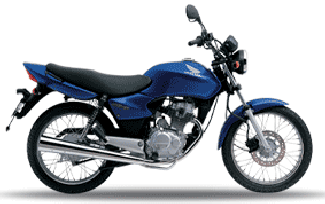

2004 CG125

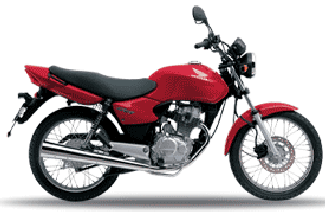

2004 CG125

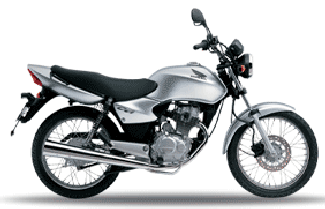

2004 CG125
2007 CG125
- ENGINE
- Engine Type: Air-cooled 4-stroke OHV single cylinder
- Engine Displacement: 124cc
- Bore & Stroke: 56.5 x 49.5mm
- Compression Ratio: 9.5:1
- Carburation: 22mm piston-valve type carburetor
- Max. Power Output: 11 bhp at 9,000 rpm
- Max. Torque: 9.8Nm at 7,000 rpm
- Ignition: Capacitor Discharge - CDI
- Starter: Electric
- DRIVETRAIN
- Transmission: 5-speed constant mesh
- Final Drive: Roller chain
- Wheels Front: 18 x 1.60 steel rim/wire spoke
- Wheels Rear: 18 x 1.85 steel rim/wire spoke
- CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 31mm telescopic fork, 102mm axle travel
- Suspension Rear: Dual dampers with 5-step adjustable spring preload, 80mm axle travel
- Brakes Front: 240mm hydraulic disc with single-piston caliper and sintered metal pads
- Brakes Rear: 130mm leading/trailing drum
- Tires Front: 2.75-18 (42P)
- Tires Rear: 90/90-18 (57P)
- DIMENSION
- Length x Width x Height: 1,982 x 736 x 1,067mm
- Wheelbase: 1,297mm
- Seat Height: 781mm
- Ground Clearance: 173mm
- Fuel Capacity: 13.5 litres (including 2.3-litre reserve)
- Dry Weight: 114kg
- OTHER

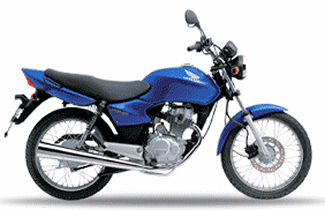

2007 CG125

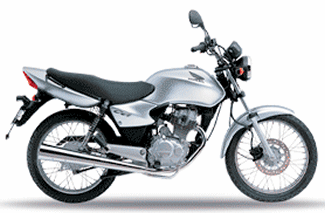

2007 CG125

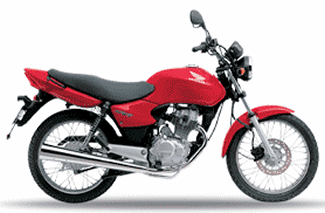

2007 CG125
