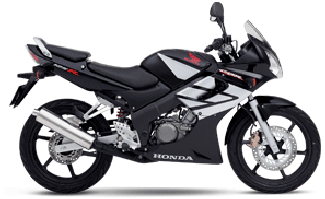

2004 CBR125R
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 2-valve SOHC single
- Engine Displacement: 124.7cc
- Bore & Stroke: 58 x 47.2mm
- Compression Ratio: 11 :1
- Fuel Delivery: VK-type carburetor
- Max. Power Output: 13 bhp at 10,000 rpm
- Max. Torque: 10.1Nm at 8000 rpm
- Ignition: Capacitor Discharge (CDI)
- Starter: Electric
- DRIVETRAIN
- Transmission: 6 speed
- Final Drive: O-ring sealed chain
- Front Wheel: U-section 6-spoke cast aluminum
- Rear Wheel: U-section 6-spoke cast aluminum
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm telescopic fork, 109mm axle travel
- Rear Suspension: Monoshock damper, 120mm axle travel
- Front Brakes: 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads
- Rear Brake: s: 220 x 4mm hydraulic disc with single-piston caliper and sintered metal pads
- Front Tire: 80/90 17M/C 44P
- Rear Tire: 100/80 17M/C 52P
- DIMENSION
- Length x Width x Height: 1920 x 675 x 1070mm
- Wheelbase: 1294mm
- Seat Height: 776mm
- Ground Clearance: 172mm
- Fuel Capacity: 10 litres
- Dry Weight: 125kg
- OTHER

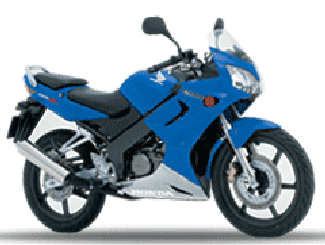

2004 CBR125R

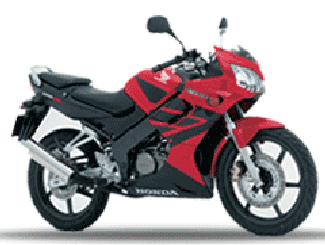

2004 CBR125R
2004 CBR125R
2011 CBR125R
- ENGINE
- Engine Type: Liquid-cooled single-cylinder four-stroke
- Displacement: 125 cc
- Bore and Stroke: 58 mm x 47.2 mm
- Compression Ratio: 11:01
- Valve Train: Chain-driven SOHC; 2 valves per cylinder
- Fuel Delivery: PGM-FI fuel injection
- DRIVETRAIN
- Transmission: Six-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31 mm telescopic fork; 120 mm (4.7 in.) travel
- Rear Suspension: Single shock; 126 mm (5 in.) travel
- Tires: 100/80 - 17 front; 130/70 - 17 rear
- Brakes: Front 276 mm disc with dual-piston caliper; rear 220 mm disc with single-piston caliper
- DIMENSION
- Ground Clearance: N/A
- Seat Height: 793 mm (31.2 in.)
- Wheelbase: 1,313 mm (51.7 in.)
- Curb Weight: 136.9 kg (302 lb) including required fluids and full tank of gas - ready to ride
- Fuel Capacity: 13 litres
- OTHER
- Colour:
- Asteroid Black Metallic
- Terra Silver Metallic
- Warranty: 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
- MSRP: $3,499

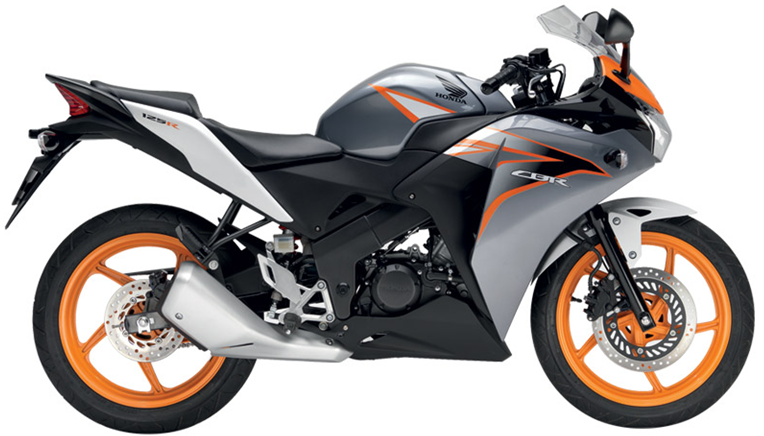

2011 CBR125R
Click image to enlarge

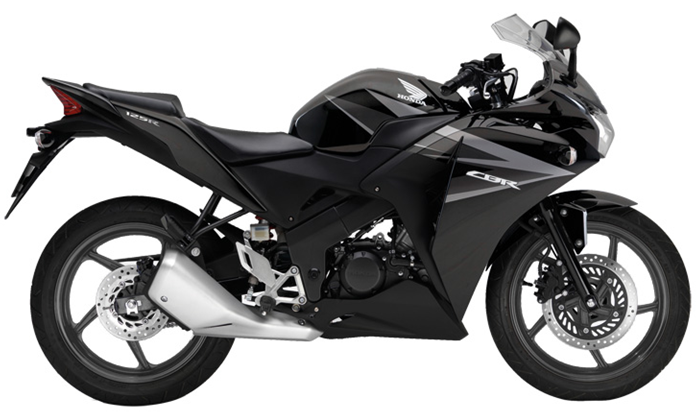

2011 CBR125R
Click image to enlarge
2012 CBR125R
- ENGINE
- Engine Type: Liquid-cooled 4-stroke single cylinder
- Engine Displacement: 124.7cc
- Bore and Stroke: 58 x 47.2mm
- Compression Ratio: 11:1
- Valve Train: Chain-driven SOHC, 2 valves per cylinder
- Fuel Delivery: PGM-FI electronic fuel injection
- Ignition: Computer-controlled digital transistorised with electronic advance
- Max. Power Output: 9.8kW / 10,000min-1 (95/1/EC)
- Max. Torque: 10.41Nm / 8000min-1 (95/1/EC)
- Starter: Electric
- DRIVETRAIN
- Transmission: 6-speed
- Clutch: Wet, multiplate with coil springs
- Clutch Operation: Mechanical; cable-actuated
- Final Drive: O-ring sealed chain
- Front Wheels: U-section 6-spoke cast aluminium
- Rear Wheels: U-section 6-spoke cast aluminium
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm telescopic fork, 120mm (4.7 in.) travel/stroke
- Rear Suspension: Monoshock damper (i.e., single shock), 126mm (5 in.) axle travel
- Front Brakes: One 276 x 4mm dual hydraulic disc with dual-piston caliper and sintered metal pads
- Rear Brakes: One 220 x 4mm hydraulic disc with single-piston caliper and sintered metal pads
- Front Tires: 100/80-17M/C
- Rear Tires: 130/70-17M/C
- DIMENSION
- Wheelbase: 1313mm (51.7 inches)
- Overall Length: 1946mm (76.6 inches)
- Overall Width: 704mm (27.7 inches)
- Overall Height: 1089mm (42.9 inches)
- Seat Height: 793mm (31.2 inches)
- Ground Clearance: 185mm (7.3 inches)
- Weight: 136.9 kg (301 lb)
- Fuel Capacity: 13 Litres (3.4 GalUS) (including LCD-indicated reserve)
- Battery Capacity: 12VAh
- Headlights 55/60W (H4 valve)
- OTHER
- Fuel Consumption: 2.4 L/100km (41.6km/l) (117.5mpg-Imp) (97.8 mpgUS)
- Colors:
- Asteroid Black Metallic

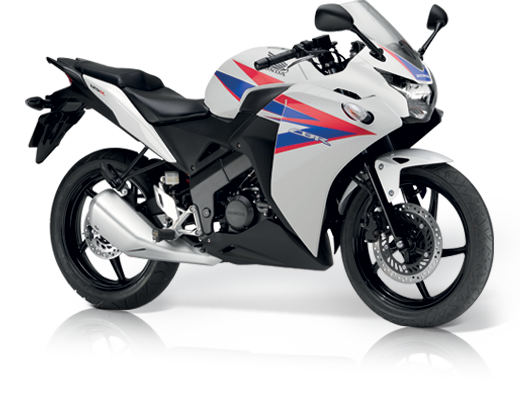

- White with red/blue decal

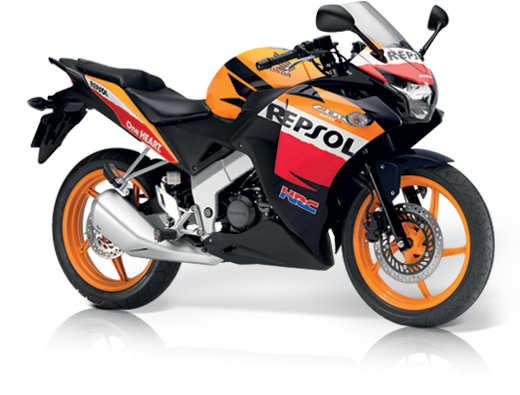

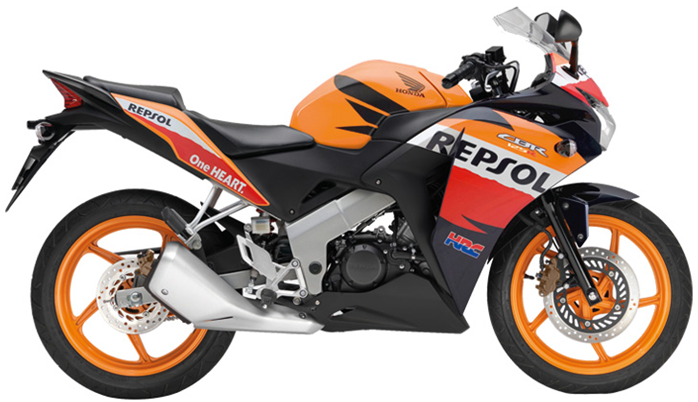

- Repsol (optional)
- MSRP: $3,499

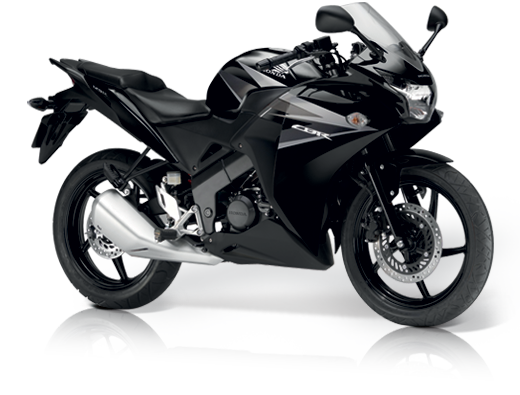

2012 CBR125R
2012 CBR125R
Click image to enlarge
2012 CBR125R
