Honda CBF125 Motorcycles

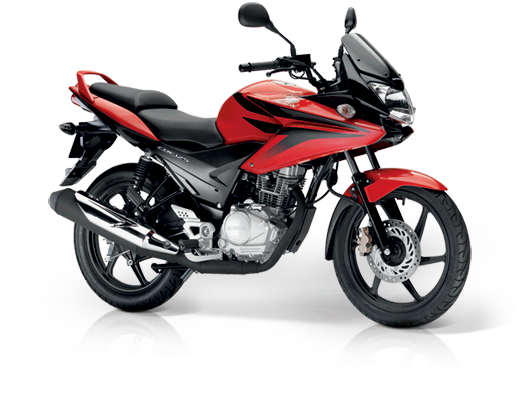

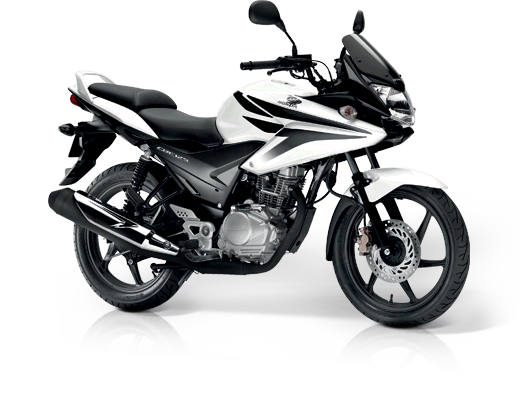

2012 Honda CBF125

ENGINE
- Engine Type: Air-cooled 4-stroke 2-valve OHC single
- Engine Displacement: 124.7cc
- Bore and Stroke: 52.4 x 57.8mm
- Compression Ratio: 9.2:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Max. Power Output: 8.3kW/8,000min-1
- Max. Torque: 11.2Nm/6,250min-1
- Ignition: Computer controlled fully transistorised with electronic advance
- Starter: Electric
DRIVETRAIN
- Transmission: 5-speed
- Final Drive: 2.63
- Front Wheels: U-cross-section 6-spoke cast aluminium 17M/C x MT1.85
- Rear Wheels: U-cross-section 6-spoke cast aluminium 17M/C x MT2.15
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 30mm telescopic fork, 115mm axle travel
- Rear Suspension: Conventional twin shock, double tube damper with 3-step adjustable spring preload, 87mm axle travel
- Front Brakes: 240mm hydraulic disc with 2-pod caliper and resin mould pads
- Rear Brakes: 130mm leading/trailing drum
- Front Tires: 80/100-17M/C (46P)
- Rear Tires: 100/90-17M/C (55P)
DIMENSION
- Wheelbase: 1270mm (50 inches)
- Overall Length: 1955mm (77 inches)
- Overall Width: 760mm (30 inches)
- Overall Height: 1110mm (43.7 inches)
- Seat Height: 792mm (31.2 inches)
- Ground Clearance: 173mm (6.8 inches)
- Curb Weight: 128 kg (282 lb)
- Fuel Capacity: 13 Litres (3.4 GalUS)
