Honda CB125SS
- ENGINE
- Engine type: Air cooled, twin cylinder, OHC, 2 valve per cylinder
- Displacement: 124cc
- Bore and Stroke: 44 X 41mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 2x Keihin 22mm slide type
- Max Power: 15 hp @ 11000 rpm
- Max Torque: 1.05 kg-m @ 9000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Oil-damped telescopic forks
- Rear Suspension: Swinging arm
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 2.50-18
- Rear Tire: 2.75-18
- DIMENSION
- Dry-Weight: 110 kg (242 lb)
- Fuel Capacity: 9 Litres (2.4 Gal.)
- OTHER

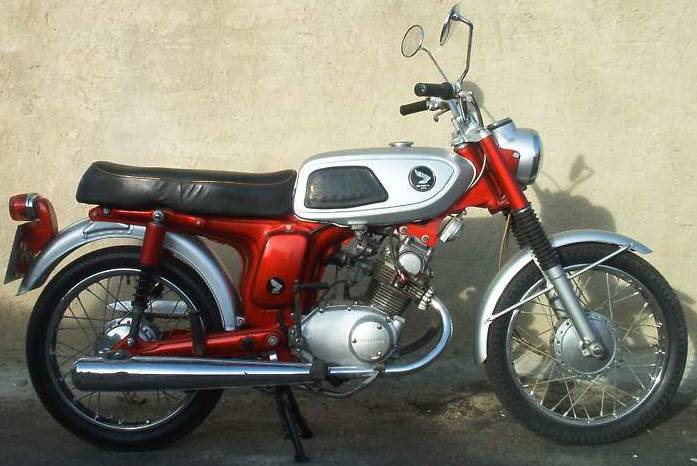

1970 CB125SS
Click image to enlarge
