Honda Benly Touring 125(C92, CA92, & CD125) Benly Super Sport (CB92, CS92) Motorcycles

Dream Car Giveaway

1959 Benly Touring 125 (C92 and CA92)

ENGINE
- Engine Type: 124cc OHC parallel twin
- Carburetor: Single
- Starter: both electric start and kick start
DRIVETRAIN
- Transmission: 4-speed
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Colors:
  - Scarlet Red
  - Blue
  - Black
- The headlight was square and the headlight shell housed the speedometer
- The chain was enclosed
- The C92 handlebars were mounted low and made with pressed steel and the turn signals were secured to the handlebars
- The CA92 handlebars were mounted high and were made of tubular chrome without signal lights
- The serial number began C92-100001 and CA92-100001.

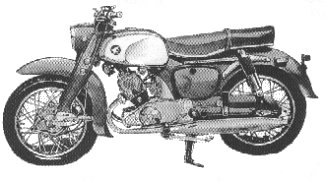

Honda CA92 Benly Touring

1959-64 CB92 Benly Super Sport 125

ENGINE
- Engine Type: 124cc OHC parallel twin
- Carburetor: Single
DRIVETRAIN
- Transmission: 4-speed
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- U.S. Colors:
  - Silver with Red (and a Black seat)
  - Silver with Blue (with a Red seat)
- Colors in other countries like Germany:
  1. blue with red with red seat
  2. silver with red with black seat
  3. silver with black with black seat
- The gas tank, side covers, and front fender were silver
- The front forks, frame, and rear fender were red or blue
- A small windshield was mounted to the square headlight
- The early models had alloy gas tanks, fenders, and side covers
- The serial number began CB92-010001
- Click for large brochure page from Germany

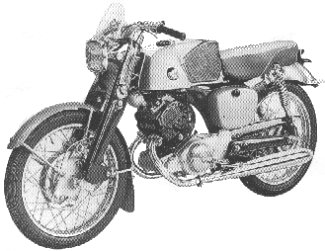

CB92 Benly Super Sport 125

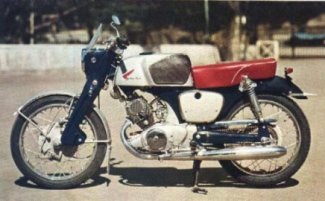

CB92 Benly Super Sport 125

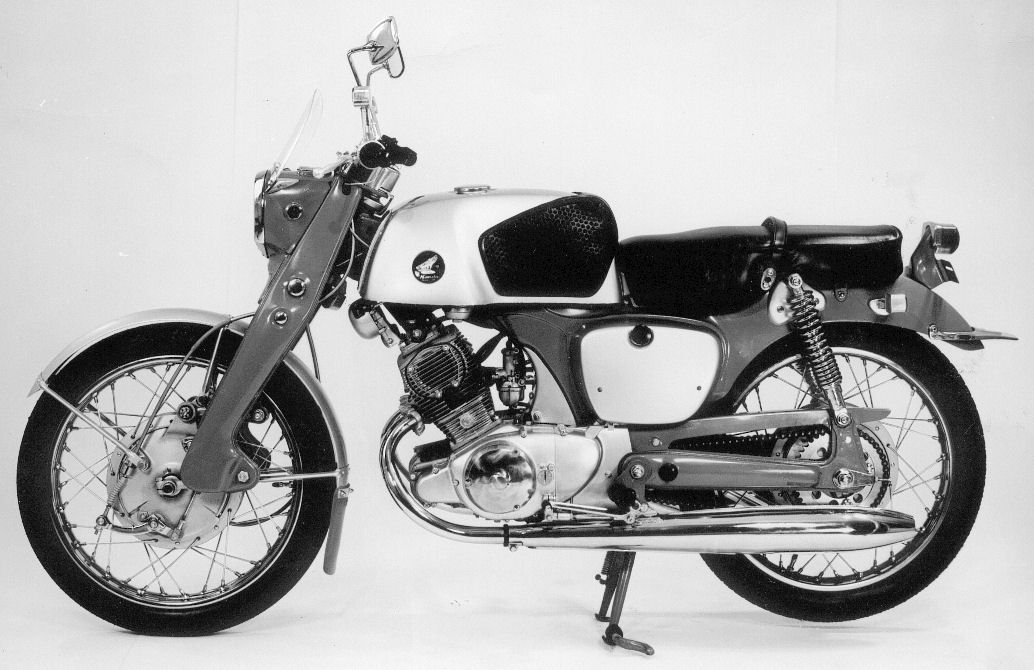

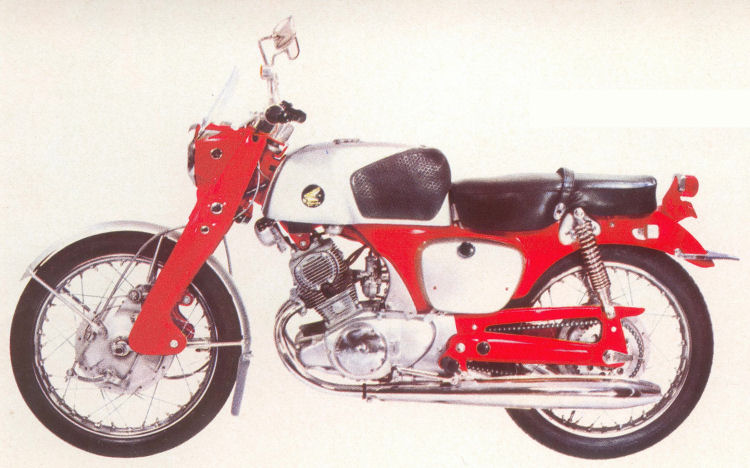

CB92 — CB92 Press photo submitted
by Erich Mayer, Germany
Click image to enlarge

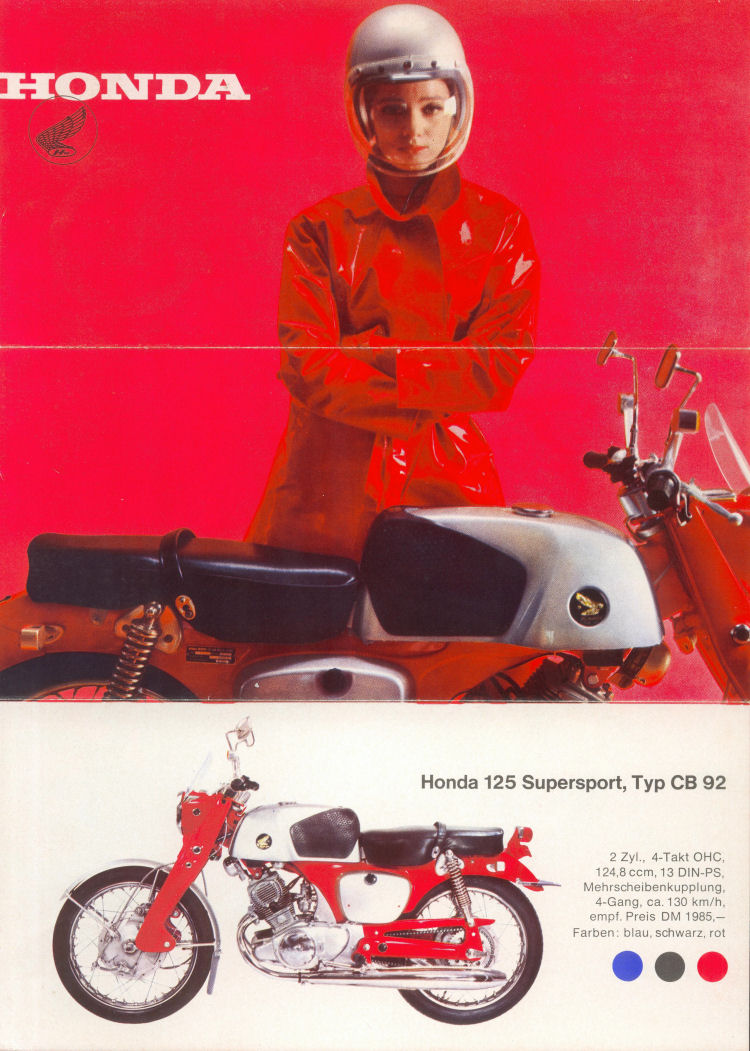

CB92 — CB92 Brochure photo submitted
by Erich Mayer, Germany
Click image to enlarge

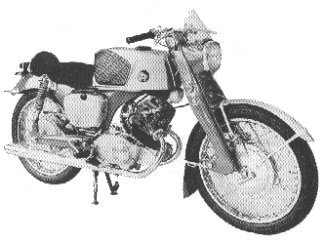

1961-62 CB92R Benly S.S. Racer 125

ENGINE
- Engine Type: 124cc OHC parallel twin
- Carburetor: Single
DRIVETRAIN
- Transmission: 4-speed
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Color: one color Silver with Red with a black seat
- It had a solo racing seat
- The exhaust pipes were chrome megaphones
- The tachometer replaced the speedometer in the headlight housing
- As a modified racing version, the horsepower was increased over the CB92
- The serial number began CB92R-200001

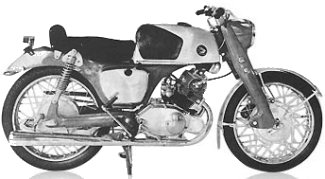

1961 CB92R Benly S.S. Racer 125

1961 CB92R Benly S.S. Racer 125

1959-64 CS92 Benly 125

ENGINE
- Engine Type: 124cc OHC parallel twin
- Carburetor: Single
DRIVETRAIN
- Transmission: 4-speed
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Colors:
  - Silver with Red (and a Black seat)
  - Silver with Blue (with a Red seat)
- The gas tank, side covers, and front fender were silver
- The front forks, frame, and rear fender were red or blue
- The headlight was square
- The exhaust was upswept much like the scramblers
- The early models had alloy gas tanks, fenders, and side covers
- The serial number began CS92-010001

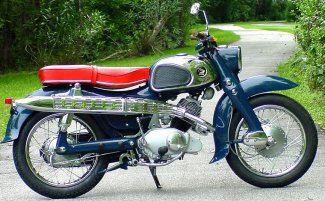

CS92 Benly 125

Touring CD125

ENGINE
- N/A
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- It was almost identical to the CA125 Benly Touring.

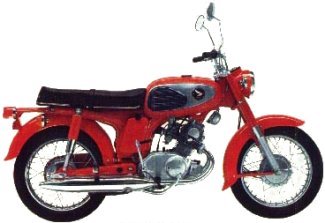

Honda Touring CD125

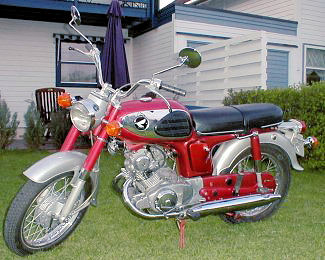

1967 Honda Touring CD125

2002 Honda Benly CD125 T

ENGINE
- Engine: Air-cooled Four-stroke twin cylinder OHC
- Displacement: 124cc (7.57 cu. in)
- Bore & stroke: 33mm x 41mm
- Compression: 9.4:1
- Fuel system: Carburetor
- Power: 11 hp (8.0 kW) @ 9000 rpm
- Torque: 9.8 Nm (1.0 kgf-m) (7.2 ft.lb) @ 6500 rpm
DRIVETRAIN
- Transmission: 5-speed
CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Mechanical expanding
- Rear Brakes: Mechanical expanding
DIMENSION
- Dry weight: 133 kg (293 lb)
- Seat height: 730mm (28.7 in.)
- Wheelbase: 1280mm (50.4 in.)
- Length: 1980mm (78 in.)
- Height: 1050mm (41.3 in.)
- Width: 780mm (30.7 in.)
- Ground clearance: 140mm (5.5 in.)
- Fuel capacity: 10.0 liters (2.6 Gal.)
OTHER
- Color: one color: black

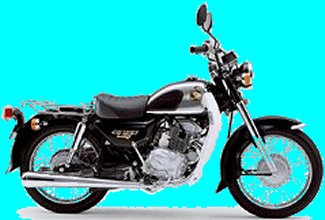

Honda CD125T Benly
