1981 XR100'81
- ENGINE
- Engine Type: OHC single cylinder
- Displacement: 99cc
- DRIVETRAIN
- Transmission: 5-speed
- Clutch: Manual
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: one color: Tahitian Red
- The side cover panel was black
- The "100" side cover logo was white
- The seat was black with a red "XR" logo
- The serial number began JH2HE0304BK000016.

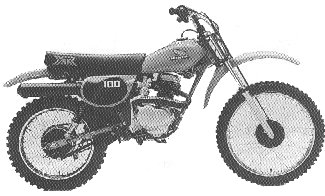

1981 XR100
1982 XR100'82
- ENGINE
- Engine Type: OHC single cylinder
- Displacement: 99cc
- DRIVETRAIN
- Transmission: 5-speed
- Clutch: Manual
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: one color: Tahitian Red
- The side cover panel was white
- The "XR" side cover graphic was red
- The seat was black with a white "100" logo
- The serial number began JH2HE0302CK100004.

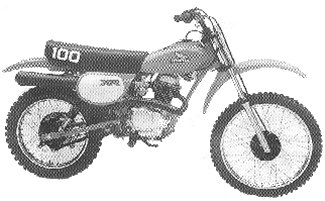

1982 XR100
1983 Honda XR100'83
- ENGINE
- Engine Type: single cylinder OHC
- Displacement: 99cc
- DRIVETRAIN
- Transmission: 5-speed
- Clutch: manual
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- One color was available: Flash Red
- The "100" side cover logo was white
- The seat was black with a white "XR" logo
- The side cover panels were yellow
- The shock springs were black
- Engine Color: black
- The serial number began JH2HD0501DK200001.

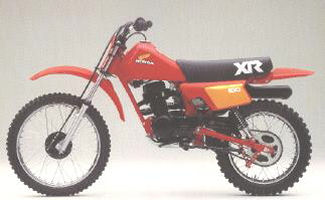

1983 Honda XR100
1984 XR100'84
- ENGINE
- Engine: 99cc OHC four-stroke, 2-valve, single cylinder
- DRIVETRAIN
- Transmission: Five-speed with a manual clutch
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Leading axle front fork
- Rear Suspension: Laid-down rear shocks
- DIMENSION
- Wheelbase: 1225mm (48.2 in.)
- Dry weight: 74 kg (163.1 lb)
- Seat height: 800mm (31.5 in.)
- OTHER
- Color: Flash Red
- The "100" side cover graphic was red
- The seat was blue with a white "XR" graphic
- The shock springs were red
- The serial number began JH2HE0306EK300001.

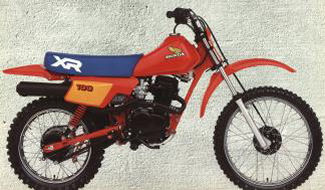

1984 XR100

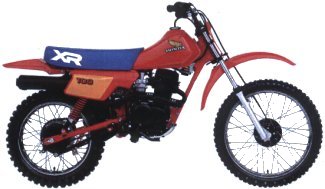

1984 XR100
1985 XR100R'85
- ENGINE
- Engine Type: OHC single cylinder
- Displacement: 99cc
- DRIVETRAIN
- Transmission: 5-speed
- Clutch: Manual
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Flash Red
- The gas tank wing decal was red, white, and blue
- The "100R" tank decal was white and blue
- The side cover panel was yellow
- The seat was blue
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE0300FK400001.

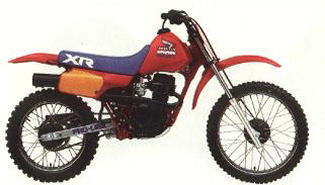

1985 XR100
1986 XR100R'86
- ENGINE
- Engine Type: OHC single cylinder
- Displacement: 99cc
- DRIVETRAIN
- Transmission: 5-speed
- Clutch: Manual
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Flash Red
- The "XR HONDA" tank decal was white and red
- The side cover panel was yellow
- The seat was blue
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE0305GK500001.

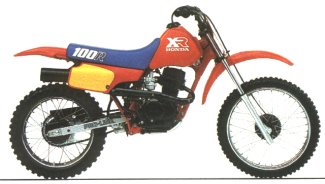

1986 XR100R
1987 XR100R'87
- ENGINE
- Engine Type: OHC single cylinder
- Displacement: 99cc
- DRIVETRAIN
- Transmission: 5-speed
- Clutch: Manual
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: one color combination: Flash Red with Shasta White
- The gas tank and side cover panels were red
- The "XR HONDA" tank decal was white and red
- The seat was blue
- The bike had a plastic fuel tank and Pro-Link suspension
- The fenders, side covers, and frame were white
- The serial number began JH2HE030XHK600001.

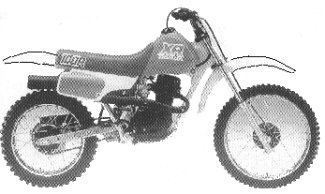

1987 XR100R
1988 XR100R'88
- ENGINE
- Engine Type: OHC single cylinder
- Displacement: 99cc
- DRIVETRAIN
- Transmission: 5-speed
- Clutch: Manual
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: one color combination: Flash Red with Shasta White
- The gas tank, rear fenders, and fork boots were red
- The front fender, plastic handguards, and frame were white
- The side covers were red with white panels
- The seat was blue
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE0309JK700001.

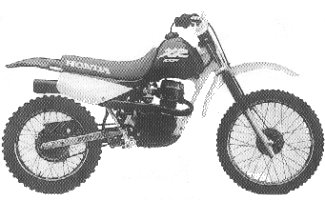

1988 XR100R
1989 XR100R'89
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- It again came in one color combination: Flash Red with Shasta White
- The front fender was red as well as the rear fender
- The tank sported a new style "wing" logo
- The seat was red and had "XR" logo on it
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*KK800001.

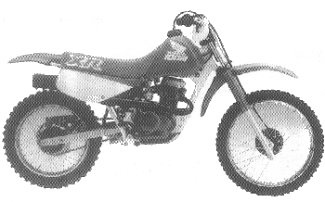

1989 XR100R
1990 XR100R'90
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: the same color combination: Flash Red with Shasta White
- The tank, seat, and fork boots were red
- The fenders, frame and handguards were white
- The "100R" logo on the tank was blue and so was the side cover panel
- The "PRO-LINK" swingarm decal had a red outline
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*LK900001.

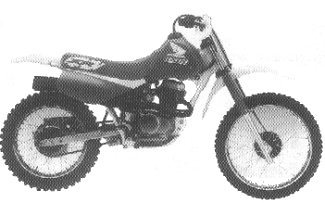

1990 XR100R
1991 XR100R'91
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- It now came in Shasta White with Rainbow Blue
- The seat was red
- The fork boots and side cover panels were blue
- The "XR" logo on the tank was red and blue
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*MK000001.
1991 XR100R
1992 XR100R'92
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Shasta White with Rainbow Blue
- The wing on the fuel tank was deleted this year
- The "100R" logo on the seat was red with a white outline
- The ignition now used CD instead of points
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*NK100001.

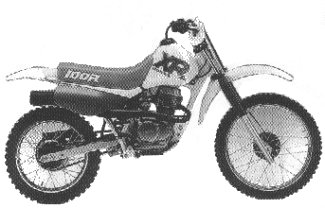

1992 XR100R
1993 XR100R'93
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- It again came in Shasta White with Rainbow Blue
- It was almost unchanged from 1992 except for a redesign of the gas tank and seat logos
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*PK200001.

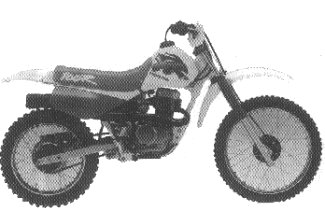

1993 XR100R
1994 XR100R'94
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Shasta White with Rainbow Blue
- The gas tank logo had another redesign so that the "XR" was blue outlined in red
- The "HONDA" on the tank was also red
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*RK300001.

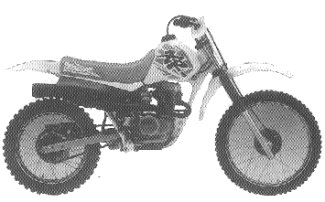

1994 XR100R
1995 XR100R'95
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Shasta White with Violet
- The gas tank logo was redesigned so that the "XR" was red outlined in purple
- The "HONDA" was purple
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*SK400001.

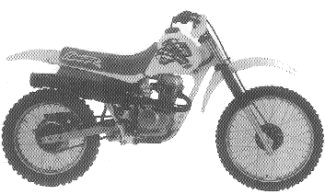

1995 XR100R
1996 XR100R'96
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Shasta White with Violet
- The gas tank logo was redesigned so that the "XR" was white with an outline of red on a purple background
- The "HONDA" was white
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*TK500001.
1996 XR100R
1997 XR100R'97
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Shasta White
- The gas tank logo was redesigned
- The number plates were white
- The fork boots were black
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*VK600001.

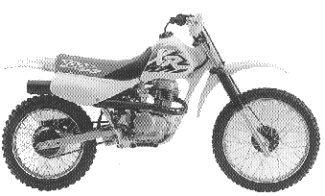

1997 XR100R
1998 XR100R'98
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- The fuel tank logo was redesigned to include a yellow Honda wing logo
- The "100R" logo on the seat was black
- The gas tank capacity was reduced to 1.6 US gallons
- The bike had a plastic fuel tank and Pro-Link suspension
- The serial number began JH2HE030*WK700001.

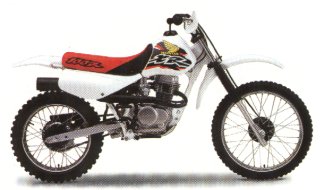

1998 XR100R
2002 XR100R'02
- ENGINE
- Engine: Air cooled, single cylinder four stroke
- Displacement: 99cc
- Bore and Stroke: 53mm x 45mm
- Compression Ratio: 9.4:1
- Valve system: SOHC 2-valve
- Fuel Delivery: Single, 20mm
- Ignition: CDI
- Starting system: Kick
- DRIVETRAIN
- Transmission: Close-ratio, 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 27 mm fork, 150 mm travel
- Rear Suspension: Pro-Link single shock 140mm travel
- Front Tire: 2.50-19
- Rear Tire: 3.00-16
- Front brake: Mechanical drum
- Rear Brake: Mechanical drum
- DIMENSION
- Seat height: 775mm (30.5 in.)
- Wheelbase: 1265mm (49.8 in.)
- Dry weight: 75 kg (165 lb)
- Fuel capacity: 5.6 liters
- OTHER

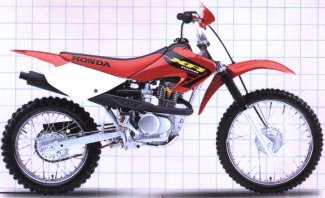

2002 XR100R
2003 XR100'03
- ENGINE
- Engine: 99cc air-cooled single-cylinder four-stroke
- Bore and Stroke: 53.0 x 45.0 mm
- Compression Ratio: 9.4:1
- Ignition: CDI
- DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Chain 14T/50T
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 27mm leading-axle fork; 150mm (5.9 in.) travel
- Rear Suspension: Pro-Link single-shock; 140mm (5.5 in.) travel
- Front Tire: 2.50-19
- Rear Tire: 3.00-16
- DIMENSION
- Ground clearance: 254mm (10.0 in.)
- Seat height: 775mm (30.5 in.)
- Wheelbase: 1265mm (49.8 in.)
- Dry weight: 75 kg (165 lb)
- Fuel capacity: 5.7 liters (including 1.1 liters reserve)
- OTHER

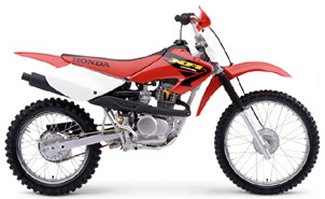

2003 XR100R
