2007 SCV100 LEAD
- ENGINE
- Engine Type: Forced air-cooled 4-stroke SOHC single
- Engine Displacement: 102.1cm3
- Bore & Stroke: 50 x 52mm
- Compression Ratio: 9:1
- Carburation: 18mm VK-type carburetor
- Max. Power Output: 5.2kW at 7,500 rpm
- Max. Torque: 7.50Nm at 5,500 rpm
- Ignition: Capacitor Discharge (CDI)
- Starter: Electric/Primary kick
- DRIVETRAIN
- Transmission: Centrifugal; automatic
- Final Drive: V-Matic belt drive
- Wheels Front: ComCast steel
- Wheels Rear: ComCast steel
- CHASSIS / SUSPENSION / BRAKES
- Suspension Front: Oil-damped leading-link, 80mm axle travel
- Suspension Rear: Single-damper unit swingarm, 71mm axle travel
- Brakes Front: 130mm leading/trailing drum
- Brakes Rear: 130mm leading/trailing drum
- Tires Front: 90-10 53J
- Tires Rear: 100-10 53J
- DIMENSION
- Length x Width x Height: 1,825 x 710 x 1,110mm
- Wheelbase: 1,235mm
- Seat Height: 765mm
- Ground Clearance: 150mm
- Fuel Capacity: 6 litres
- Dry Weight: 102kg
- OTHER

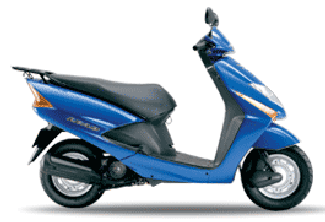

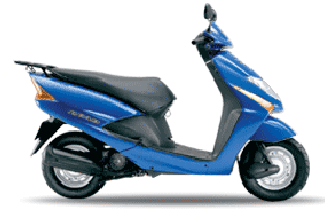

2007 SCV100 Lead

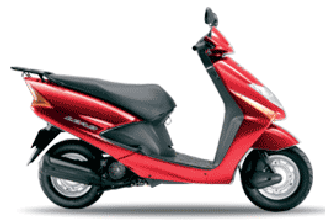

2007 SCV100 Lead

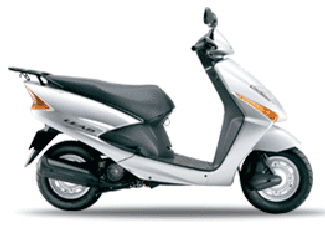

2007 SCV100 Lead
