2004 CRF100F
ENGINE
Engine Type: 99cc air-cooled single-cylinder four-stroke
Bore and Stroke: 53.0mm x 45.0mm
Compression Ratio: 9.4:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 22.0mm piston-valve
Ignition: CDI
DRIVETRAIN
Transmission: Five-speed
Final Drive: #428 chain; 14T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension: Pro-Link Showa single shock; 5.8-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-19
Rear Tire: 3.00-16
DIMENSION
Rake: 28.50 degrees
Trail: 99.0mm (3.9 inches)
Wheelbase: 49.2 inches
Seat Height: 30.9 inches
Ground Clearance: 10.0 inches
Dry Weight: 165.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Warranty: 6 months

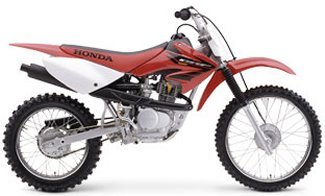

2004 Honda CRF100
2004 Honda CRF100
2005 CRF100F
ENGINE
Engine Type: 99cc air-cooled single-cylinder four-stroke
Bore and Stroke: 53.0mm x 45.0mm
Compression Ratio: 9.4:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 22.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #428 chain; 14T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension: Pro-Link Showa single shock; 5.8-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-19
Rear Tire: 3.00-16
DIMENSION
Rake: 28.50 degrees
Trail: 99.0mm (3.9 inches)
Wheelbase: 49.2 inches
Seat Height: 30.9 inches
Ground Clearance: 10.0 inches
Dry Weight: 165.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Warranty: 6 months

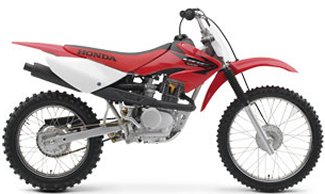

2005 Honda CRF100F
2006 CRF100F
ENGINE
Engine Type: 99cc air-cooled single-cylinder four-stroke
Bore and Stroke: 53.0mm x 45.0mm
Compression Ratio: 9.4:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 22.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #428 chain; 14T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension: Pro-Link Showa single shock; 5.8-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-19
Rear Tire: 3.00-16
DIMENSION
Rake: 28.50 degrees
Trail: 99.0mm (3.9 inches)
Wheelbase: 49.2 inches
Seat Height: 30.9 inches
Ground Clearance: 10.0 inches
Dry Weight: 165.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF100F

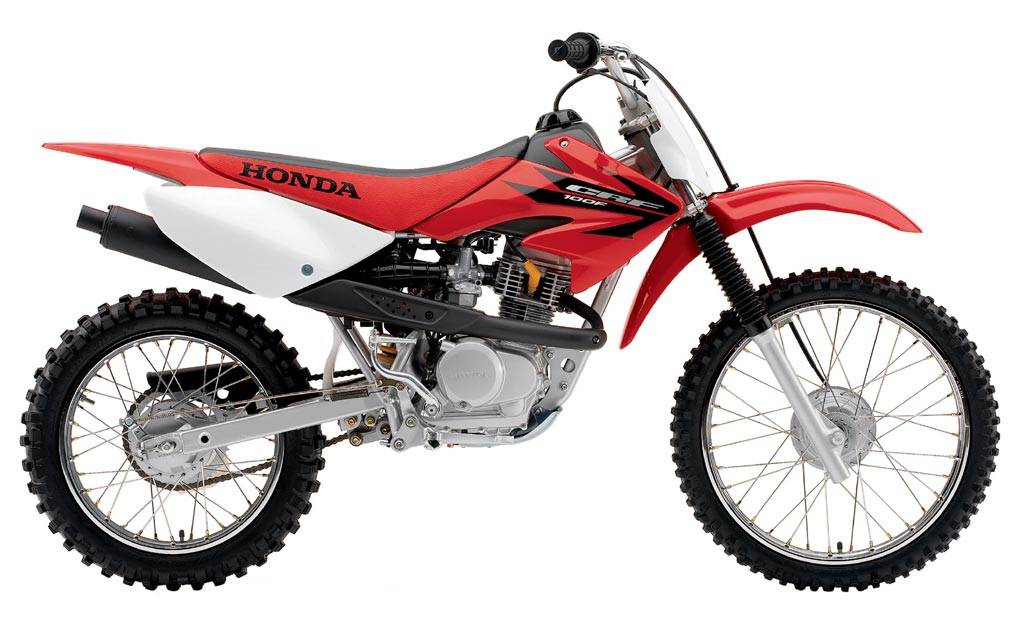

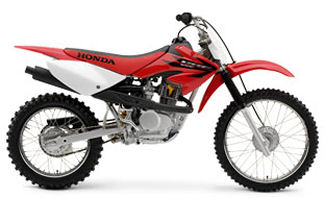

2006 CRF100F Click image to enlarge
2007 CRF100F
OVERVIEW
Meet one of the most versatile and popular off-road machines Honda has ever made. With its bulletproof four-stroke engine, smooth five-speed transmission and easy-to-use power, the CRF100F is big enough for most adults to play around on, yet boasts a seat low enough for younger riders, too. Which leaves only one question: Who gets to ride first?
ENGINE
Engine Type: 99cc air-cooled single-cylinder four-stroke
Bore and Stroke: 53.0mm x 45.0mm
Compression Ratio: 9.4:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 22.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #428 chain; 14T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension: Pro-Link Showa single shock; 5.8-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-19
Rear Tire: 3.00-16
DIMENSION
Rake: 28.50 degrees
Trail: 99.0mm (3.9 inches)
Wheelbase: 49.2 inches
Seat Height: 30.9 inches
Ground Clearance: 10.0 inches
Dry Weight: 165.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF100F

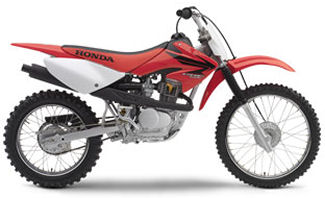

2007 CRF100F
2008 CRF100F
OVERVIEW
The only thing greater than the CRF100F's versatility is its popularity as one of the most beloved off-road bikes Honda has ever created. Lightweight, easy to handle and stone-reliable, the CRF100F boasts a bulletproof four-stroke engine, smooth five-speed transmission, and just enough size for adults to have fun on -- and a seat height just low enough that younger riders can too. Quite simply, it's probably one of the greatest off-road teaching tools ever invented.
ENGINE
Engine Type: 99cc air-cooled single-cylinder four-stroke
Bore and Stroke: 53.0mm x 45.0mm
Compression Ratio: 9.4:1
Valve Train: SOHC; two-valve
Fuel Delivery: 22mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #428 chain; 14T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension: Pro-Link Showa single shock; 5.8-inch travel
Front BrakeDrum
Rear Brake: Drum
Front Tire: 2.50-19
Rear Tire: 3.00-16
DIMENSION
Rake: 28.50 degrees
Trail: 99.0mm (3.9 inches)
Wheelbase: 49.2 inches
Seat Height: 30.9 inches
Ground Clearance: 10.0 inches
Curb Weight: TBD
Fuel Capacity: 1.3 gallons, including 0.3-gallon reserve
OTHER
Emissions: Meets current CARB and EPA standards.
Colors: Red
Model ID: CRF100F
Warranty: 6 months Coverage of defects in materials and workmanship

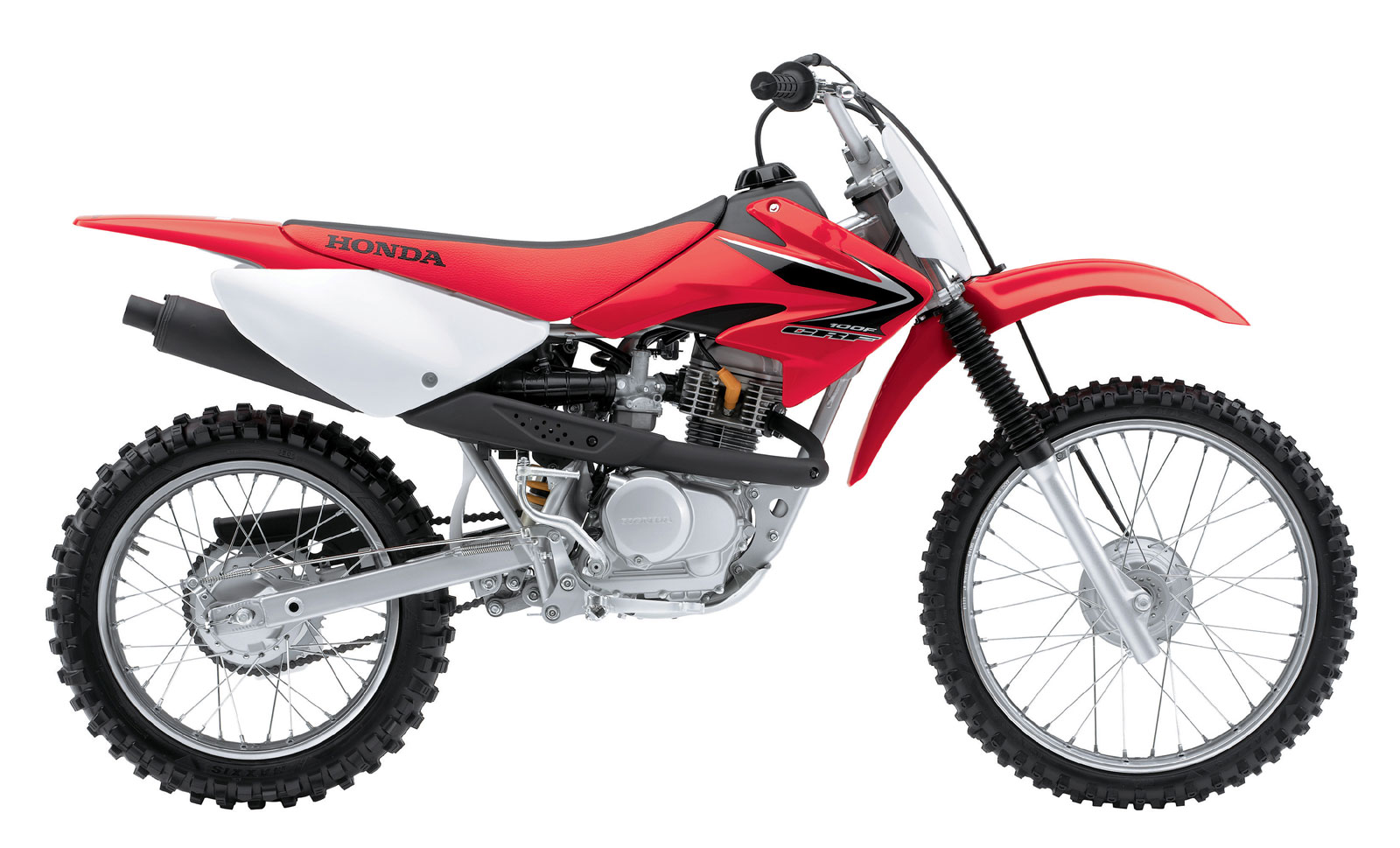

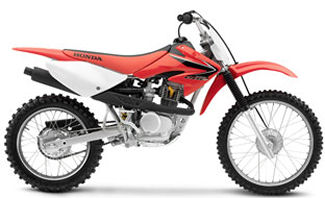

2008 CRF100F Click image to enlarge
2009 CRF100F
ENGINE
Engine Size: 99cc
Engine Detail: air-cooled single-cylinder four-stroke
Bore Stroke: 53.0mm x 45.0mm
Compression Ratio: 9.4:1
Fuel System: 22mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #428 chain; 14T/50T
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 27.0mm leading-axle Showa fork; 5.2-inch travel
Suspension Rear: Pro-Link Showa single shock; 5.8-inch travel
Brakes Front: Drum
Brakes Rear: Drum
Tire Front: 2.50-19
Tire Rear: 3.00-16
DIMENSION
Wheelbase: 49.2 in.
Seat Height: 30.9 in.
Curb Weight: 174 lbs.
Fuel Capacity: 1.3 gal.
OTHER
Colors: Red
Price: $2449
Warranty: 6 Months

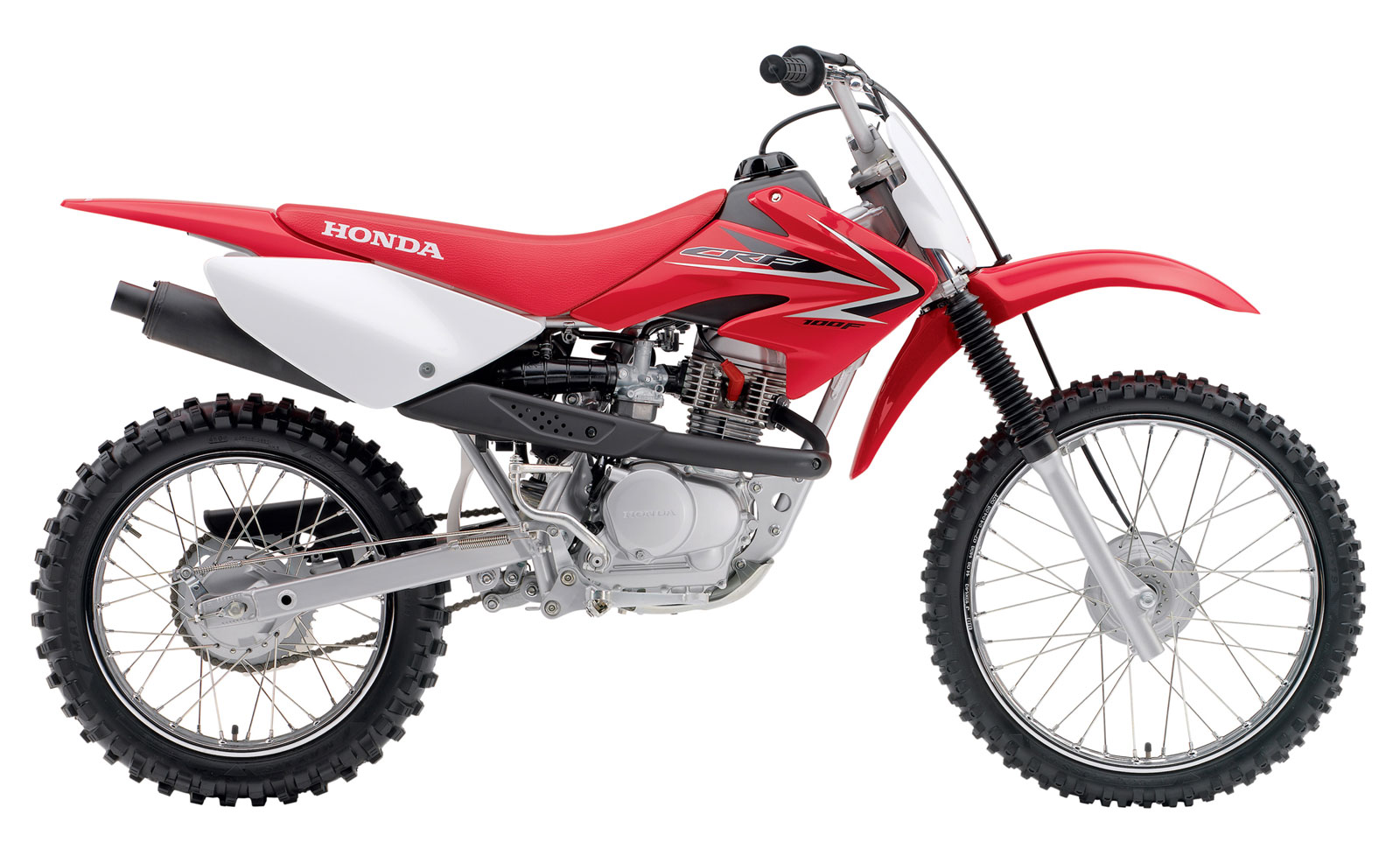

2009 CRF100F Click image to enlarge
2010 CRF100F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 99 cc
Bore and Stroke: 53 mm x 45 mm
Compression Ratio: 9.4:1
Valve Train: SOHC, 2-valve
Fuel Delivery: Single 20 mm piston-valve carb
DRIVETRAIN
Transmission: Five-speed with manual clutch
Final Drive: #428 chain; 14T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27 mm leading-axle Showa fork; 132 mm (5.2 in.) travel
Rear Suspension: Pro-Link Showa single shock; 148 mm (5.8 in.) travel
Tires: 70/100 - 19 front; 90/100 - 16 rear
Brakes: Front drum; rear drum
DIMENSION
Ground Clearance: 252 mm (9.9 in.)
Seat Height: 785 mm (30.9 in.)
Wheelbase: 1,250 mm (49.2 in.)
Curb Weight: 77 kg (170 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 5 litres, including 0.7-litre reserve
OTHER
Color: Extreme Red
MSRP: $2,999
Warranty: 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus

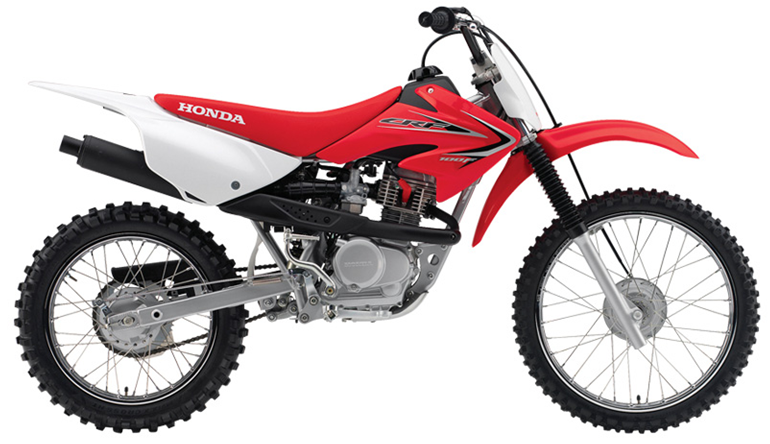

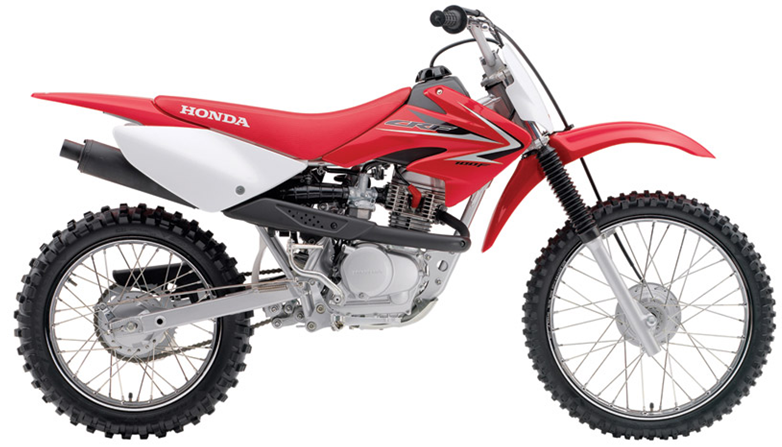

2010 CRF100F Click image to enlarge
2011 CRF100F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 99 cc
Bore and Stroke: 53 mm x 45 mm
Compression Ratio: 9.4:1
Valve Train: SOHC, 2 valves
Fuel Delivery:
Canada: Single 20 mm piston-valve carb
USA: 22mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Five-speed with manual clutch
Final Drive: #428 chain, 14T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27 mm leading-axle Showa fork; 132 mm (5.2 in.) travel
Rear Suspension: Pro-Link Showa single shock; 148 mm (5.8 in.) travel
Front Brake: Drum
Rear Brake: Drum
Front Tire:
Canada: 70/100 - 19
USA: 2.50-19
Rear Tire:
Canada: 90/100 - 16
USA: 3.00-16
DIMENSION
Rake: 28.50 degrees
Trail: 99.0mm (3.9 inches)
Wheelbase: 1,250 mm (49.2 in.)
Ground Clearance: 252 mm (9.9 in.)
Seat Height: 785 mm (30.9 in.)
Curb Weight: 77 kg (170 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 5 litres (1.3 GalUS), including 0.7-litre (0.3 Gal) reserve
OTHER
Emissions: Meets current CARB and EPA standards.
Color: Extreme Red
Model Id: CRF100F
Warranty: 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP: $2,999

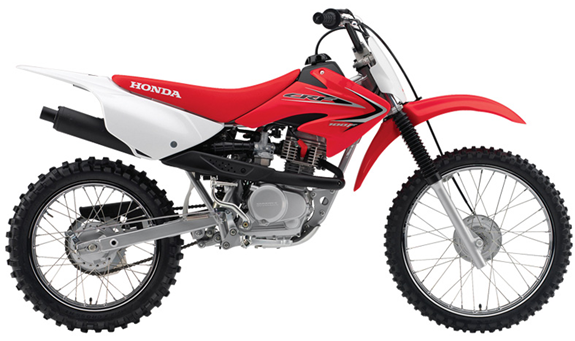

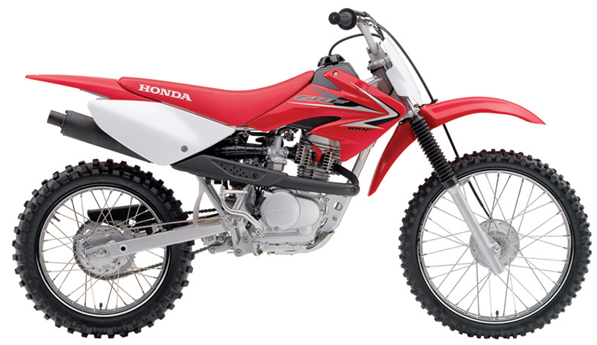

2011 CRF100F Click image to enlarge
2012 CRF100F
ENGINE
Engine Type: Air-cooled 4-stroke OHC single
Engine Displacement: 99.2cc
Bore and Stroke: 53 x 45mm
Compression Ratio: 9.4:1
Valve Train: SOHC; two-valve
Fuel Delivery: 22mm piston-valve carburator
Ignition: Capacitor Discharge (CDI)
Starter: Primary kick
DRIVETRAIN
Transmission: 5-speed
Final Drive: 428 roller chain
Front sprocket: 14T
Rear sprocket: 50T
Front Wheels: Steel rim/wire spoke
Rear Wheels: Steel rim/wire spoke
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27mm leading-axle fork, 150mm (5.2 inch) axle travel
Rear Suspension: Pro-Link, 148mm (5.8 inch) axle travel
Front Brakes: Leading/trailing drum
Rear Brakes: Leading/trailing drum
Front Tires:
UK: 70/100 19M/C 42M
N.America: 2.50-19
Rear Tires:
UK: 90/100 16M/C 51M
N. America: 3.00-16
DIMENSION
Rake: 28.50 degrees
Trail: 99.0mm (3.9 inches)
Wheelbase: 1250 mm (49.2 inches)
Overall Length: 1853mm (73 inches)
Overall Width: 786mm (30.9 inches)
Overall Height: 1046mm (41.2 inches)
Seat Height: 775mm (30.5 inches)
Ground Clearance: 252mm (9.9 inches)
Weight: 75 kg (165 lb)
Fuel Capacity: 5.5 Litres (1.45 GalUS) (including 1.1-Litre reserve)
OTHER
Emissions: Meets current CARB and EPA standards.
Colors: Red
Model Id: CRF100F
Warranty: 6 months

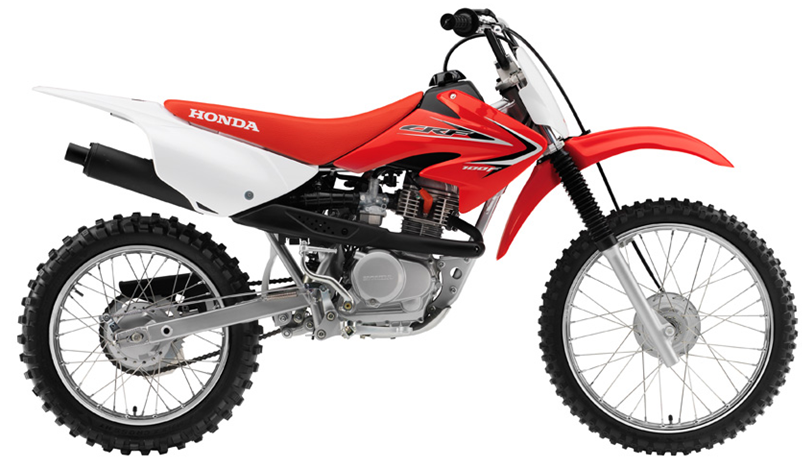

2012 CRF100F

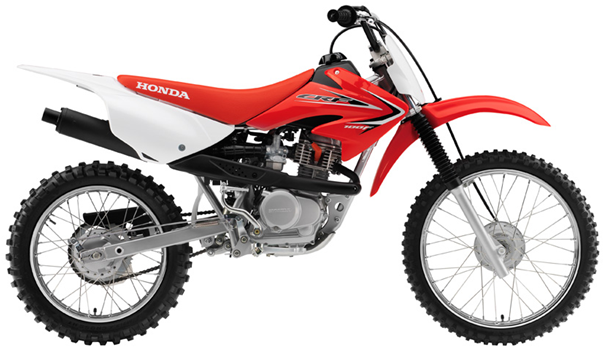

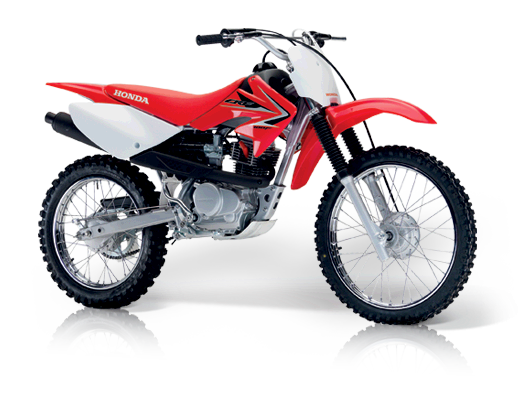

2012 CRF100F Click image to enlarge
