2005 Activa
- ENGINE
- Engine Type: 4-stroke, Single cylinder, air cooled, OHC
- Engine Displacement: 102cc
- Max. Power: 7 Bhp @ 7000 rpm
- Max. Torque: 0-8 Kg-m @ 5500 rpm
- Ignition: Electric start or kick
- Battery: 12V, 5Ah
- DRIVETRAIN
- Transmission: V-matic belt drive
- CHASSIS / SUSPENSION / BRAKES
- Frame: High rigidity Under Bone type
- Front Suspension: Bottom Link with spring loaded hydraulic damper
- Rear Suspension: Unit swing with spring loaded hydraulic damper
- Front Tire: 3.50 - 10, 4 PR
- Rear Tire: 3.50 - 10, 4 PR
- Front Brake: Drum, 130 mm dia
- Rear Brake: Drum, 130 mm dia
- DIMENSION
- Overall length: 1765mm
- Width: 715mm
- Height: 1130mm
- Wheelbase: 1235 mm
- Seat Height: 760 mm
- Ground Clearance: 145 smm
- Fuel Tank Capacity: 6 litres
- OTHER
- Headlamp: 35W
- Colors:
- Metallic Black
- Precious Gold Metallic
- Strand Silver
- Strings Red Metallic
- Geny Gray Metallic
- Azure Blue Metallic

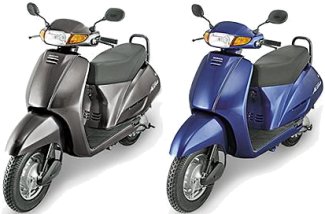

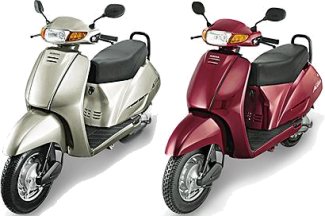

2005 Honda Activa
