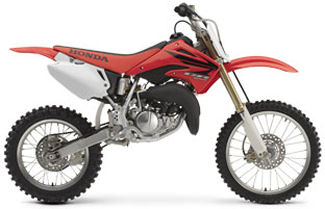

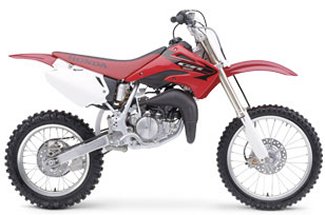

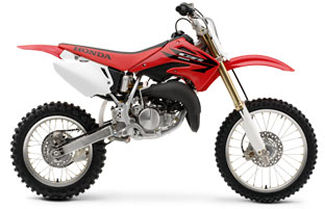

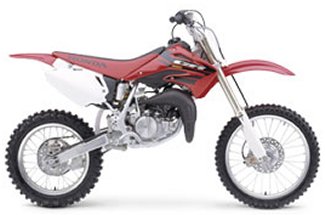

Honda CR85RB Expert Motorcycles

2004 CR85R Expert

ENGINE
- Engine Type: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and Stroke: 47.5mm x 47.8mm
- Compression Ratio: 8.4:1
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: Reed-valve
- Fuel Delivery: 28mm piston-valve
- Ignition: CD with electronic advance
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #420 chain x 126; 15T/56T
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
- Rear Suspension: Pro-Link fully adjustable Showa single-shock; 11.4-inch travel
- Front Brake: Single disc
- Rear Brake: Single disc
- Front Tire: 70/100-19
- Rear Tire: 90/100-16
DIMENSION
- Rake: 27.48 degrees
- Trail: 99.0mm (3.9 inches)
- Wheelbase: 50.7 inches
- Seat Height: 34.5 inches
- Ground Clearance: 14.4 inches
- Dry Weight: 145.0 pounds
- Fuel Capacity: 1.4 gallons
OTHER
- Colors: Red
- Model ID: CR85RB

ENGINE
- Engine Type: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and Stroke: 47.5mm x 47.8mm
- Compression Ratio: 8.4:1
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: Reed-valve
- Fuel Delivery: Fuel Delivery: 28mm flat slide
- Ignition: CD with electronic advance
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #420 chain; 15T/55T
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
- Rear Suspension: Pro-Link fully adjustable Showa single-shock; 11.5-inch travel
- Front Brake: Single disc
- Rear Brake: Single disc
- Front Tire: 70/100-19
- Rear Tire: 90/100-16
DIMENSION
- Rake: 27.25 degrees
- Trail: 92.3mm (3.63 inches)
- Wheelbase: 49.1 inches
- Seat Height: 34.0 inches
- Ground Clearance: 13.9 inches
- Dry Weight: 145.0 pounds
- Fuel Capacity: 1.35 gallons
OTHER
- Colors: Red
- Model ID: CR85RB

ENGINE
- Engine Type: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and Stroke: 47.5mm x 47.8mm
- Compression Ratio: 8.4:1
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: Reed-valve
- Fuel Delivery: Fuel Delivery: 28mm flat slide
- Ignition: CD with electronic advance
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #420 chain; 15T/55T
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
- Rear Suspension: Pro-Link fully adjustable Showa single-shock; 11.5-inch travel
- Front Brake: Single disc
- Rear Brake: Single disc
- Front Tire: 70/100-19
- Rear Tire: 90/100-16
DIMENSION
- Rake: 27.25 degrees
- Trail: 92.3mm (3.63 inches)
- Wheelbase: 50.7 inches
- Seat Height: 34.0 inches
- Ground Clearance: 13.9 inches
- Dry Weight: 145.0 pounds
- Fuel Capacity: 1.35 gallons
OTHER
- Colors: Red
- Model ID: CR85RB

OVERVIEW
- Overview: The CR85R Expert boasts the same engineering and specs as the CR85R, but features bigger wheels, a higher seat and longer swingarm -- the perfect step-up for your taller young racer.
ENGINE
- Engine Type: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and Stroke: 47.5mm x 47.8mm
- Compression Ratio: 8.4:1
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: Reed-valve
- Fuel Delivery: Fuel Delivery: 28mm flat slide
- Ignition: CD with electronic advance
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #420 chain; 15T/55T
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
- Rear Suspension: Pro-Link fully adjustable Showa single-shock; 11.5-inch travel
- Front Brake: Single disc
- Rear Brake: Single disc
- Front Tire: 70/100-19
- Rear Tire: 90/100-16
DIMENSION
- Rake: 27.25 degrees
- Trail: 92.3mm (3.63 inches)
- Wheelbase: 50.7 inches
- Seat Height: 34.0 inches
- Ground Clearance: 13.9 inches
- Dry Weight: 145.0 pounds
- Fuel Capacity: 1.35 gallons
OTHER
- Colors: Red
- Model ID: CR85RB
