Honda CR85R Motorcycles

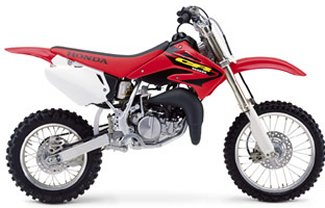

2003 Honda CR85R

ENGINE
- Engine: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and stroke:47.5 x 47.8 mm
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: 28mm piston-valve
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final drive: #420 chain; 15T/50T
CHASSIS / SUSPENSION / BRAKES
- Front suspension: 37mm inverted Showa fork with fully adjustale compression and rebound damping, 274mm (10.8 in.) travel
- Rear suspension: Pro-Link Showa single-shock with spring-preload adjustability and fully adjustable compression rebound damping; 271mm (10.7 in.) travel
- Front brake: Single disc
- Rear brake: Single disc
DIMENSION
- Ground clearance: 320mm (12.6 in.)
- Seat height: 833mm (32.8 in.)
- Wheelbase: 1247mm (49.1 in.)
- Dry weight: 65.3 kg (144 lb)
- Fuel capacity: 5.3 liters
- N/A
OTHER
- Colors: Red
- Model ID: CR85R

ENGINE
- Engine Type: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and Stroke: 47.5mm x 47.8mm
- Compression Ratio: 8.4:1
- Fuel Delivery: Reed-valve
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: 28mm piston-valve
- Ignition: CD with electronic advance
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #420 chain; 15T/50T
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
- Rear Suspension: Pro-Link fully adjustable Showa single-shock; 10.7-inch travel
- Front Brake: Single disc
- Rear Brake: Single disc
- Front Tire: 70/100-17
- Rear Tire: 90/100-14
DIMENSION
- Rake: 26.43 degrees
- Trail: 75.0mm (2.95 inches)
- Wheelbase: 49.1 inches
- Seat Height: 32.8 inches
- Ground Clearance: 12.6 inches
- Dry Weight: 144.0 pounds
- Fuel Capacity: 1.4 gallons
OTHER
- Colors: Red
- Model ID: CR85R

ENGINE
- Engine Type: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and Stroke: 47.5mm x 47.8mm
- Compression Ratio: 8.4:1
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: Reed-valve
- Fuel Delivery: Fuel Delivery: 28mm flat slide
- Ignition: CD with electronic advance
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #420 chain; 15T/49T
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
- Rear Suspension: Pro-Link fully adjustable Showa single-shock; 10.8-inch travel
- Front Brake: Single disc
- Rear Brake: Single disc
- Front Tire: 70/100-17
- Rear Tire: 90/100-14
DIMENSION
- Rake: 26.51 degrees
- Trail: 76.7mm (3.02 inches)
- Wheelbase: 49.1 inches
- Seat Height: 32.4 inches
- Ground Clearance: 12.2 inches
- Dry Weight: 144.0 pounds
- Fuel Capacity: 1.35 gallons
OTHER
- Colors: Red
- Model ID: CR85R

ENGINE
- Engine Type: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and Stroke: 47.5mm x 47.8mm
- Compression Ratio: 8.4:1
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: Reed-valve
- Fuel Delivery: Fuel Delivery: 28mm flat slide
- Ignition: CD with electronic advance
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #420 chain; 15T/49T
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
- Rear Suspension: Pro-Link fully adjustable Showa single-shock; 10.8-inch travel
- Front Brake: Single disc
- Rear Brake: Single disc
- Front Tire: 70/100-17
- Rear Tire: 90/100-14
DIMENSION
- Rake: 26.51 degrees
- Trail: 76.7mm (3.02 inches)
- Wheelbase: 49.1 inches
- Seat Height: 32.4 inches
- Ground Clearance: 12.2 inches
- Dry Weight: 144.0 pounds
- Fuel Capacity: 1.35 gallons
OTHER
- Colors: Red
- Model ID: CR85R

OVERVIEW
- Overview: Are you serious about winning? Then start racing on the bike that utterly dominates the competition: the CR85R. Built with all the attention to detail and advanced engineering as its bigger CR/CRF siblings, no other bike at the gate even compares.
ENGINE
- Engine Type: 84.7cc liquid-cooled single-cylinder two-stroke
- Bore and Stroke: 47.5mm x 47.8mm
- Compression Ratio: 8.4:1
- Spark plug: BR10EG
- Plug gap: .024
- Fuel Delivery: Reed-valve
- Fuel Delivery: Fuel Delivery: 28mm flat slide
- Ignition: CD with electronic advance
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #420 chain; 15T/49T
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
- Rear Suspension: Pro-Link fully adjustable Showa single-shock; 10.8-inch travel
- Front Brake: Single disc
- Rear Brake: Single disc
- Front Tire: 70/100-17
- Rear Tire: 90/100-14
DIMENSION
- Rake: 26.51 degrees
- Trail: 76.7mm (3.02 inches)
- Wheelbase: 49.1 inches
- Seat Height: 32.4 inches
- Ground Clearance: 12.2 inches
- Dry Weight: 144.0 pounds
- Fuel Capacity: 1.35 gallons
OTHER
- Colors: Red
- Model ID: CR85R
