2004 CRF80F
ENGINE
Engine Type: 80cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.5mm x 45.0mm
Compression Ratio: 9.7:1
Spark plug: CR7HSA
Plug gap: .028
Valve Train: : SOHC; two-valve
Fuel Delivery: 20.0mm piston-valve
Ignition: CDI
DRIVETRAIN
Transmission: Five-speed
Final Drive: #420 chain x 110
Front sprocket: 14T
Rear sprocket: 46T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.5-inch travel
Rear Suspension: Pro-Link Showa single-shock; 4.3-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-16
Rear Tire: 3.60-14
DIMENSION
Rake: 28.02 degrees
Trail: 74.0mm (2.9 inches)
Wheelbase: 47.6 inches
Seat Height: 28.9 inches
Ground Clearance: 8.6 inches
Dry Weight: 154.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF80F
Warranty: 6 months

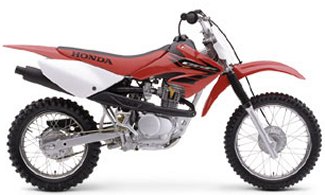

2004 Honda CRF80F
2005 CRF80F
ENGINE
Engine Type: 80cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.5mm x 45.0mm
Compression Ratio: 9.7:1
Spark plug: CR7HSA
Plug gap: .028
Valve Train: : SOHC; two-valve
Fuel Delivery: 20.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #420 chain x 110
Front sprocket: 14T
Rear sprocket: 46T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.5-inch travel
Rear Suspension: Single-shock; 3.5-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-16
Rear Tire: 3.60-14
DIMENSION
Rake: 28.02 degrees
Trail: 74.0mm (2.9 inches)
Wheelbase: 47.6 inches
Seat Height: 28.9 inches
Ground Clearance: 8.6 inches
Dry Weight: 154.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF80F
Warranty: 6 months
2005 Honda CRF80F
2006 CRF80F
ENGINE
Engine Type: 80cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.5mm x 45.0mm
Compression Ratio: 9.7:1
Spark plug: CR7HSA
Plug gap: .028
Valve Train: : SOHC; two-valve
Fuel Delivery: 20.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #420 chain x 110
Front sprocket: 14T
Rear sprocket: 46T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.5-inch travel
Rear Suspension: Single-shock; 4.3-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-16
Rear Tire: 3.60-14
DIMENSION
Rake: 28.02 degrees
Trail: 74.0mm (2.9 inches)
Wheelbase: 47.6 inches
Seat Height: 28.9 inches
Ground Clearance: 8.6 inches
Dry Weight: 154.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF80F
2006 CRF80F
2007 CRF80F
OVERVIEW
What's great about the CRF line-up is that there's a model for each step along a young rider's learning curve. Take the CRF80F. Loaded with big-bike performance features, like a manual clutch and five-speed gearbox, it's the perfect machine for the rider who's ready to move up to a serious off-road bike, but perhaps still too small for a CRF100F.
ENGINE
Engine Type: 80cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.5mm x 45.0mm
Compression Ratio: 9.7:1
Spark plug: CR7HSA
Plug gap: .028
Valve Train: : SOHC; two-valve
Fuel Delivery: 20.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #420 chain x 110
Front sprocket: 14T
Rear sprocket: 46T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.5-inch travel
Rear Suspension: Single-shock; 4.3-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-16
Rear Tire: 3.60-14
DIMENSION
Rake: 28.02 degrees
Trail: 74.0mm (2.9 inches)
Wheelbase: 47.6 inches
Seat Height: 28.9 inches
Ground Clearance: 8.6 inches
Dry Weight: 154.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF80F
2007 CRF80F
2008 CRF80F
OVERVIEW
Is your youngster ready to move up to the next level, where big-bike features -- like five-speed shifting with a manual clutch -- will help take them up to the next step of the off-road learning curve? Then check out the CRF80F, loaded with plenty of power, performance, and Honda's legendary four-stroke reliability, making it the perfect tool for the young rider who's ready to hone his or her off-road skills to a finer edge.
ENGINE
Engine Type: 80cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.5mm x 45.0mm
Compression Ratio: 9.7:1
Spark plug: CR7HSA
Plug gap: .028
Valve Train: : SOHC; two-valve
Fuel Delivery: 20mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #420 chain x 110
Front sprocket: 14T
Rear sprocket: 46T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm leading-axle Showa fork; 5.5-inch travel
Rear Suspension: Single-shock; 4.3-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-16
Rear Tire: 3.60-14
DIMENSION
Rake: 28.02 degrees
Trail: 74mm (2.9 inches)
Wheelbase: 47.6 inches
Seat Height: 28.9 inches
Ground Clearance: 8.6 inches
Curb Weight: N/A
Fuel Capacity: 1.3 gallons, including 0.3-gallon reserve
OTHER
Emissions: Meets current CARB and EPA standards.
Colors: Red
Model ID: CRF80F
6 months warranty: Coverage of defects in materials and workmanship

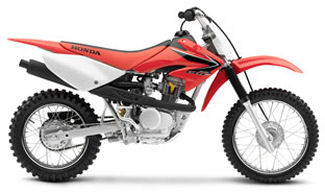

2008 CRF80F
2009 CRF80F
ENGINE
Engine Size: 80cc
Engine Detail: air-cooled single-cylinder four-stroke
Bore Stroke: 47.5mm x 45.0mm
Compression Ratio: 9.7:1
Fuel System: 20mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Five-speed
Final Drive: #420 chain; 14T/46T
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 27.0mm leading-axle Showa fork; 5.5-inch travel
Suspension Rear: Single-shock; 4.3-inch travel
Brakes Front: Drum
Brakes Rear: Drum
Tire Front: 2.50-16
Tire Rear: 3.60-14
N/A
DIMENSION
Wheelbase: 47.6 in.
Seat Height: 28.9 in.
Curb Weight: 163 lbs.
Fuel Capacity: 1.3 gal.
OTHER
Colors: Red
Price: $2099
Warranty: 6 Months

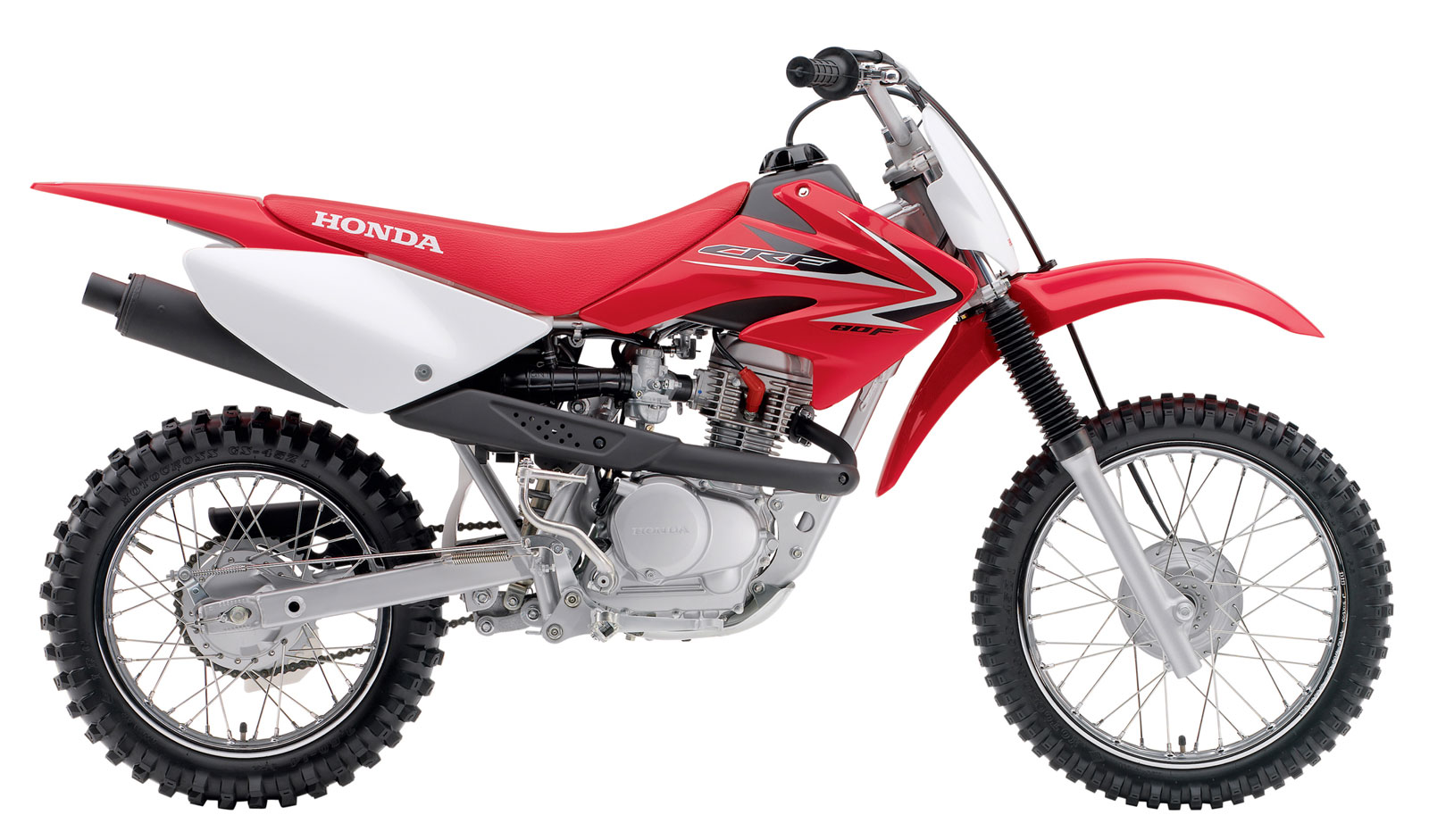

2009 CRF80F
2010 CRF80F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 80 cc
Bore and Stroke: 47.5 mm x 45 mm
Compression Ratio: 9.7:1
Valve Train: SOHC, 2-valve
Fuel Delivery: Single 18 mm piston-valve carb
DRIVETRAIN
Transmission: Five-speed with manual clutch
Final Drive: #420 chain; 14T/46T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27 mm leading-axle Showa fork; 123 mm (5 in.) travel
Rear Suspension: Pro-Link Showa single shock; 110 mm (4.3 in.) travel
Tires: 2.50 - 16 front; 3.60 - 14 rear
Brakes: Front drum; rear drum
DIMENSION
Ground Clearance: 218 mm (8.6 in.)
Seat Height: 734 mm (28.9 in.)
Wheelbase: 1,209 mm (47.6 in.)
Curb Weight: 75 kg (165 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 5 litres, including 0.7-litre reserve
OTHER
Color: Extreme Red
MSRP: $2,749
Warranty: 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus

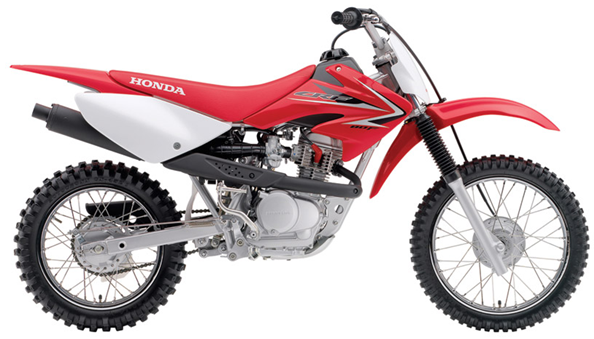

2010 CRF80F Click image to enlarge
2011 CRF80F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 80 cc
Bore and Stroke: 47.5 mm x 45 mm
Compression Ratio: 9.7:1
Valve Train: SOHC, 2 valves
Fuel Delivery:
Canada: Single 18 mm piston-valve carburetor
USA: Single 20mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Five-speed with manual clutch
Final Drive: #420 chain, 14T/46T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27 mm leading-axle Showa fork; 123 mm (5 in.) travel
Rear Suspension: Pro-Link Showa single shock; 110 mm (4.3 in.) travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-16
Rear Tires: 3.60-14
DIMENSION
Rake: 28.02 degrees
Trail: 74mm (2.9 inches)
Ground Clearance: 218 mm (8.6 in.)
Seat Height: 734 mm (28.9 in.)
Wheelbase: 1,209 mm (47.6 in.)
Curb Weight: 75 kg (165 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 5 litres (1.3 GalUS), including 0.7-litre (0.3 Gal) reserve
OTHER
Emissions: Meets current CARB and EPA standards.
Colour: Extreme Red
Warranty: 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP: $2,749
Model Id: CRF80F

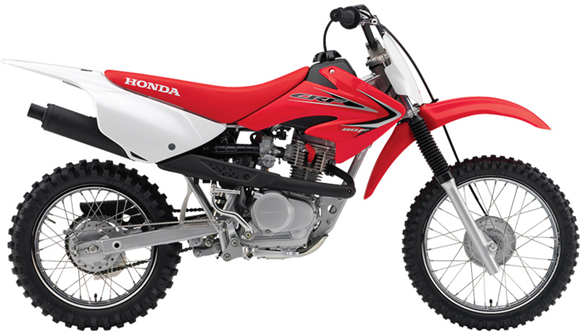

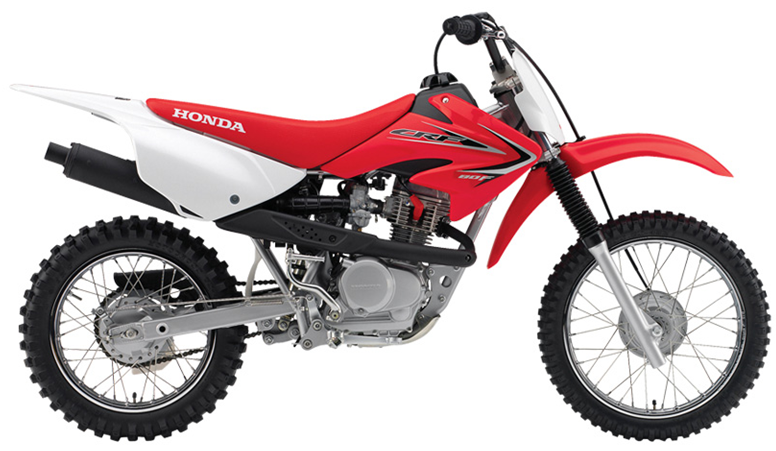

2011 CRF80F Click image to enlarge
2012 CRF80F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 80 cc
Bore and Stroke: 47.5 mm x 45 mm
Compression Ratio: 9.7:1
Valve Train: SOHC, 2 valves
Fuel Delivery:
Canada: Single 18 mm piston-valve carburetor
US: 20mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Five-speed with manual clutch
Final Drive: #420 chain
Front sprocket: 14T
Rear sprocket: 46T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27 mm leading-axle Showa fork; 123 mm (5 in.) travel
Rear Suspension: Pro-Link Showa single shock; 110 mm (4.3 in.) travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-16
Rear Tire: 3.60-14
DIMENSION
Rake: 28.02 degrees (Caster Angles)
Trail: 74mm (2.9 inches)
Wheelbase: 1,209 mm (47.6 in.)
Ground Clearance: 218 mm (8.6 in.)
Seat Height: 734 mm (28.9 in.)
Curb Weight: 75 kg (165 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 5 litres (1.3 GalUS), including 0.7-litre (0.3 Gal) reserve
OTHER
Emissions: Meets current CARB and EPA standards.
Color: Extreme Red
Model Id: CRF80F
MSRP: $2,799
Warranty: 6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus

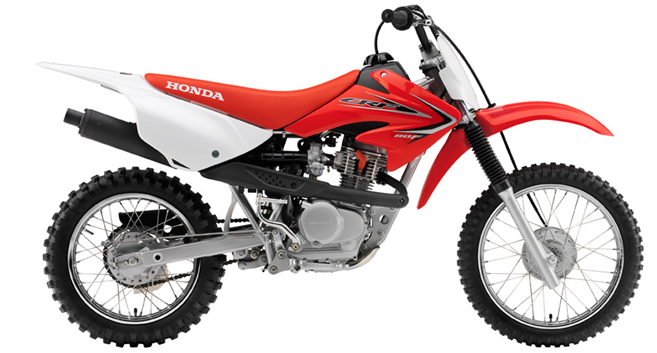

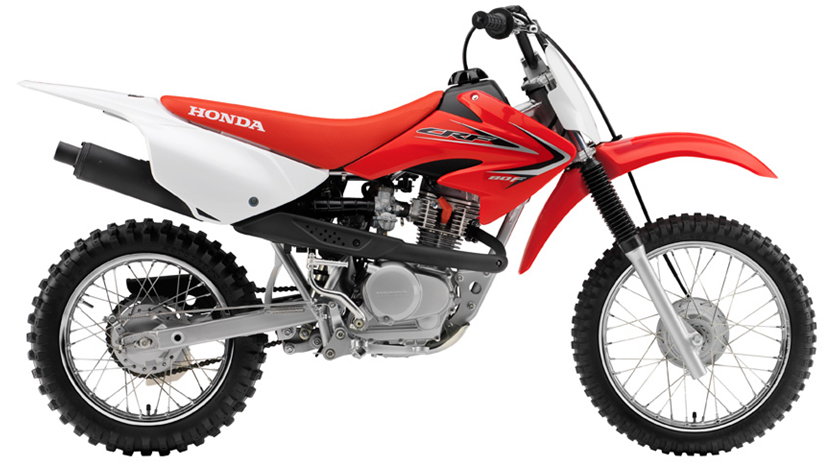

2012 CRF80F Click image to enlarge
