1980 CR80R'80 Elsinore
- ENGINE
- Engine: 80cc 2-stroke reed valve, air-cooled single cylinder
- Spark plug: B9ES
- Plug gap: .028
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 108
- Front sproket: 14 T
- Rear sprocket: 47 T
- CHASSIS / SUSPENSION / BRAKES
- It also had twin rear shocks
- DIMENSION
- OTHER
- Available color: Tahitian Red
- Engine color: red
- Seat: black with a red "CR80R" logo
- Tubular swingarm: red
- Fuel tank was steel
- Serial number began: HE02-5000020.

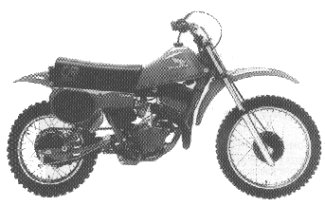

1980 Honda CR80R
1981 CR80R'81 Elsinore
- ENGINE
- Engine type: 80cc 2-stroke reed valve, air-cooled single cylinder
- Spark plug: B9ES
- Plug gap: .028
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 114
- Front sproket: 14 T
- Rear sprocket: 47 T
- CHASSIS / SUSPENSION / BRAKES
- It also had twin rear shocks.
- DIMENSION
- OTHER
- Color: Tahitian Red.
- The engine color was red.
- The fuel tank stripe was white.
- The seat was black with a white "80R" logo.
- The box-section swingarm was silver.
- The fuel tank was steel.
- The serial number began JH2HE0201BK100009.

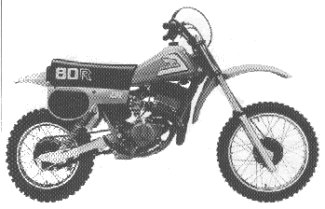

1981 Honda CR80R
1982 CR80R'82
- ENGINE
- Engine type: 80cc 2-stroke reed valve, air-cooled single cylinder
- Spark plug: B9ES
- Plug gap: .028
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 112
- Front sproket: 14 T
- Rear sprocket: 47 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- The rear suspension was Pro-link.
- DIMENSION
- OTHER
- The bike was no longer called Elsinore but it was still available in Tahitian Red.
- The engine color was black.
- The number plate panels were black.
- The fuel tank was plastic, not steel.
- The seat was black with a white "80R" logo.
- The serial number began JH2HE0201CK200015.

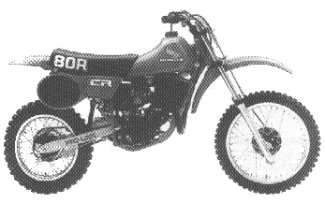

1982 Honda CR80R
1983 CR80R'83
- ENGINE
- Engine type: 79cc 2-stroke reed valve, liquid-cooled single cylinder
- Spark plug: B9ES
- Plug gap: .028
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 112
- Front sproket: 14 T
- Rear sprocket: 47 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Flash Red.
- The engine color was black.
- The number plate panels were black.
- The fuel tank was plastic, not steel.
- The seat was blue with a white "CR" logo.
- The swingarm decal was black.
- The serial number began JH2HE0400DK000001.

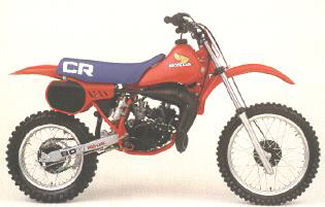

1983 Honda CR80R
1984 CR80R'84
- ENGINE
- Engine type: 80cc 2-stroke reed valve, liquid-cooled single cylinder
- Spark plug: BR9ES
- Plug gap: .028
- An ATACTM exhaust valve was added.
- Power: 21 hp
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 114
- Front sproket: 14 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Suspension: Pro-LinkTM rear suspension
- DIMENSION
- Wheelbase: 1230mm (48.4 in.)
- Dry weight: 62 kg (136.6 lb)
- Seat height: 805mm (31.7 in.)
- Front wheel travel: 240mm (9.4 in.)
- Rear wheel travel: 255mm (10 in.)
- OTHER
- Color: Flash Red.
- The engine color was black.
- The number plate panels were black and shaped a little differently.
- The fuel tank was plastic.
- The seat (now thinner) was blue with a white "CR" logo.
- The swingarm decal "80R" was red and white.
- The serial number began JH2HE040XEK100009.

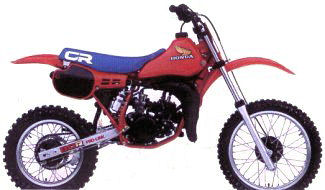

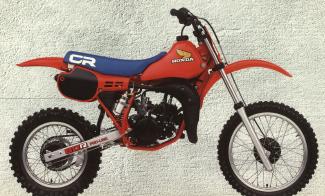

1984 Honda CR80R
1984 Honda CR80R
1985 CR80R'85
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder
- An ATACTM exhaust valve was added.
- Spark plug: BR9ES
- Plug gap: .028
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 114
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Flash Red.
- The fuel tank wing decal was red, white, and blue.
- The fuel tank decal "80" was red and blue.
- The engine color was black.
- The number plate panels were black.
- The seat was blue with a white "CR" logo.
- The "PRO-Link" swingarm decal was solid blue.
- The serial number began JH2HE040XFK200001.

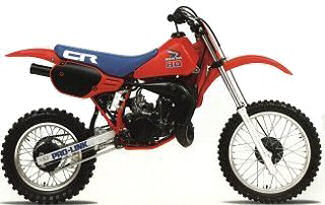

1985 Honda CR80R
1986 CR80R'86
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- The ATACTM exhaust valve was deleted.
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 114
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Disc
- Rear brakes: drum
- DIMENSION
- OTHER
- Color: Flash Red.
- The "80" fuel tank decal was red, outlined in white.
- The engine color was black.
- The number plate panels were black.
- The seat was blue with a white outline "CR" logo.
- The "PRO-Link" swingarm decal was blue.
- The serial number began JH2HE0404GK300001.

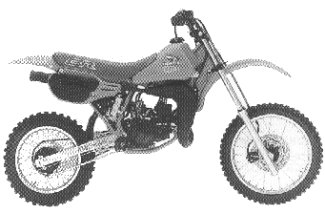

1986 Honda CR80R
1987 CR80R'87
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- The ATACTM exhaust valve was deleted.
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 114
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Disc
- Rear brakes: drum
- DIMENSION
- OTHER
- Color: Flash Red.
- The "80" fuel tank decal was white.
- The engine color was black.
- The number plate panels were black.
- The seat was blue with a solid white "CR" logo.
- The "PRO-Link" swingarm decal was blue.
- The serial number began JH2HE0409HK400001.

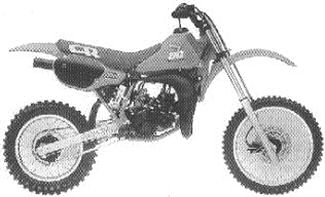

1987 Honda CR80R
1988 CR80R'88
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 114
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: drum
- DIMENSION
- OTHER
- Colork: Fighting Red.
- The "CR 80" fuel tank decal was white.
- The engine color was black.
- The number plate panels were white.
- The seat was red with a white "HONDA" logo.
- The "PRO-Link" swingarm decal was blue.
- The serial number began JH2HE0408JK500001.

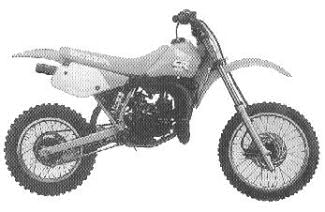

1988 Honda CR80R'88
1989 CR80R'89
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 114
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: drum
- DIMENSION
- OTHER
- Color: Fighting Red.
- The "HONDA 80R" and new style wing decal was white.
- The engine color was black.
- The number plate panels were white.
- The seat was red with a white "CR" logo.
- The "PRO-Link" swingarm decal was blue.
- The serial number began JH2HE0408JK500001.

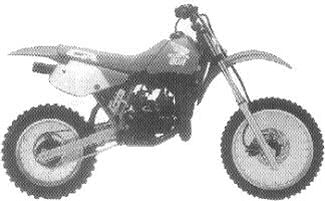

1989 Honda CR80R
1991 CR80R'91
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 116
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: drum
- DIMENSION
- OTHER
- Color: Flash Red with Ross White.
- The "CR" tank logo was white, yellow, and orange.
- The frame was Ross White.
- The engine color was black.
- The number plate panels were white.
- The seat was red with a white graphic.
- The "80R" swingarm graphic was red.
- The serial number began JH2HE040*MK800001.

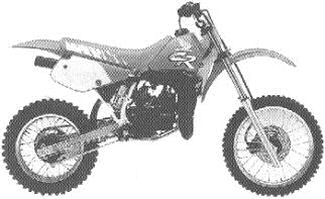

1991 Honda CR80R
1992 CR80R'92
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 116
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: Single disc
- DIMENSION
- OTHER
- Color: Nuclear Red with Shasta White.
- The fuel tank was white with a red "CR" logo with blue outline.
- The fuel tank wing logo was deleted.
- The frame was Ross White.
- The engine color was black.
- The number plate panels were red.
- The seat was red with a white "HONDA" logo.
- The "80R" swingarm graphic was blue.
- The serial number began JH2HE040*NK900001.

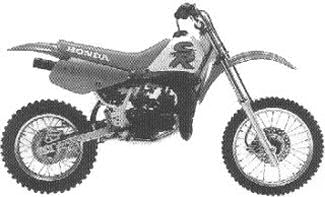

1992 Honda CR80R
1993 CR80R'93
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 116
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: Single disc
- DIMENSION
- OTHER
- Color: Nuclear Red with Shasta White.
- The fuel tank was white with a blue "CR" logo with white outline.
- The red color is a deeper red.
- The frame was Ross White.
- The engine color was black.
- The number plate panels were red.
- The seat was red with a white "HONDA" logo.
- The "80R" swingarm graphic was blue.
- The bike now came with a removable triangular side stand.
- The serial number began JH2HE040*PK000001.

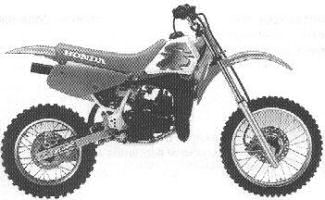

1993 Honda CR80R'93
1994 CR80R'94
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 116
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: Single disc
- The rear tire is a Dunlop K695.
- DIMENSION
- OTHER
- Color: Nuclear Red with Shasta White.
- The fuel tank was white with a fluorescent yellow "CR" logo with purple outline.
- The red color is a deeper red.
- The frame was Ross White.
- The engine color was black.
- The number plate panels were red.
- The seat was red with a white "HONDA" logo.
- The "80R" swingarm graphic was a purple outline.
- The bike now came with a removable triangular side stand.
- The serial number began JH2HE040*RK100001.

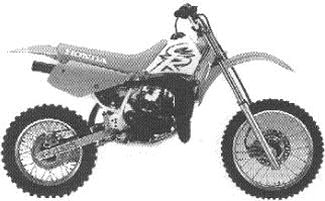

1994 Honda CR80R

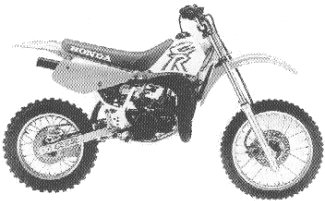

1995 CR80R'95
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 116
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: Single disc
- The rear tire is a Dunlop K695.
- DIMENSION
- OTHER
- Color: Nuclear Red with Shasta White.
- The fuel tank was white with a fluorescent yellow "CR" logo with purple outline.
- The engine color was black.
- The number plate panels were red.
- The seat was red with a white "HONDA" logo.
- The "80R" swingarm graphic was fluorescent.
- The bike now came with a removable triangular side stand.
- The serial number began JH2HE040*RK100001.
1995 Honda CR80R
1996 CR80R'96
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 116
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: Single disc
- The rear tire is a Dunlop K695.
- DIMENSION
- OTHER
- The bike was sold in 1996 which came in one color: Nuclear Red with Ross White.
- It had the distinctive "Team Honda" Red, White, and Black colors.
- The "CR" logos were fluorescent yellow.
- The bike now came with a removable triangular side stand.
- The Serial number began JH2HE040*TK300001.

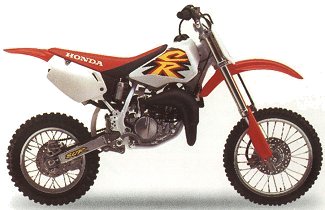

1996 CR80R
1997 CR80R'97
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 116
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: Single disc
- The rear tire is a Dunlop K695.
- DIMENSION
- OTHER
- The bike was sold in 1997 which came in one color: Nuclear Red.
- The fuel tank logo was redesigned to include a yellow "HONDA" wing logo.
- The front fork leg protectors were white.
- The "CR" logo on the seat was black.
- The front fender was red while the rear fender was white.
- The bike now came with a removable triangular side stand.
- The Serial number began JH2HE040*VK400001.

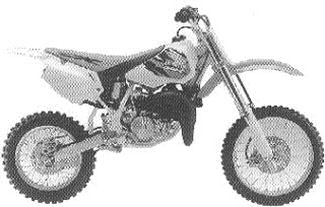

1997 CR80R
1998 CR80R'98
- ENGINE
- Engine type: 83cc 2-stroke reed valve, liquid-cooled single cylinder.
- Cylinder: Nikasil®
- Spark plug: BR10EG
- Plug gap: .024
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #420 x 116
- Front sproket: 15 T
- Rear sprocket: 49 T
- Wheel rims: aluminum alloy.
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single Disk
- Rear brakes: Single disc
- The front brake master cylinder and lever are the same as the 1998 CR125R and CR250R.
- The rear tire is a Dunlop K695.
- DIMENSION
- OTHER
- The bike was sold in 1998 which came in one color: Nuclear Red with Ross White.
- The fuel tank logo was redesigned again.
- The front fork leg protectors were white.
- The "CR" logo on the seat was white.
- Both the front fender and rear were red.
- The bike now came with a removable triangular side stand.
- The Serial number began JH2HE040*WK500001.
1998 CR80R
