Honda Elite 80 / CH80 Motorcycles

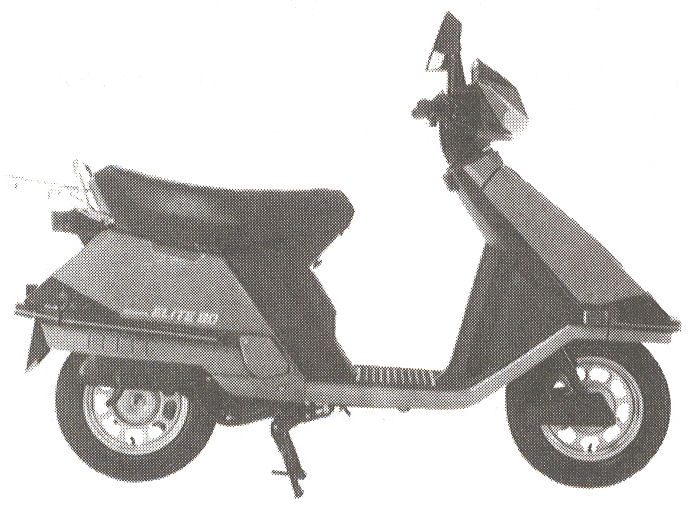

1985 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: JH2HF030*FS000001 ~
- Engine: HF03E-2000001 ~
- Colors:
  - Cortina White
  - Luminous Red
- Elite "80" Logo: Solid Gray

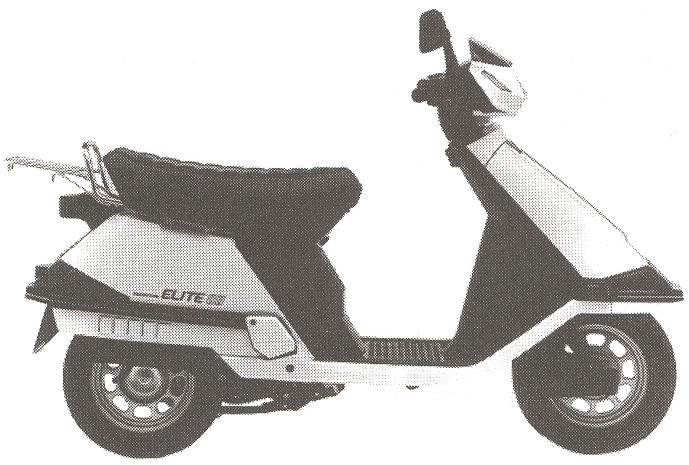

1986 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Dual-Shock Bottom Link front suspension
- VIN: JH2HF030*GS100001 ~
- Engine: HF03E-2100001 ~
- Colors:
  - Shasta White
  - Luminous Red
- Elite "80" Logo: Outlined in Black

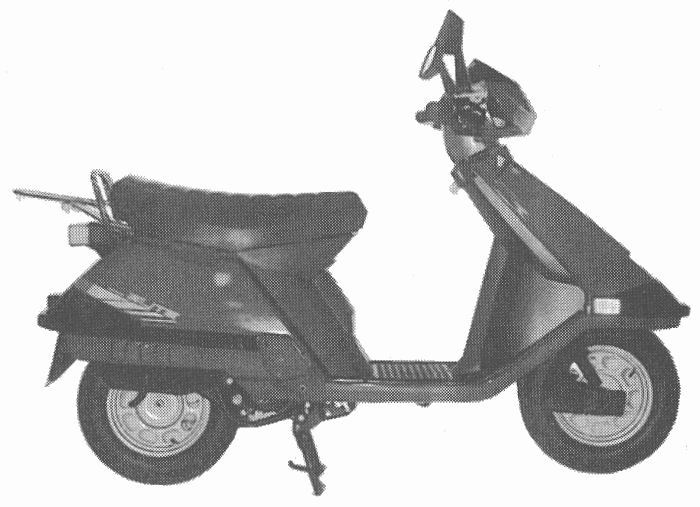

1987 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Dual-Shock Bottom Link front suspension
- VIN: JH2HF030*HS000001 ~
- Engine: HF03E-2200001 ~
- Colors:
  - Capri Blue
  - Luminous Red
- Elite Logo: "HONDA ELITE" (No "80" logo)
- Silver stripes added to rear fender

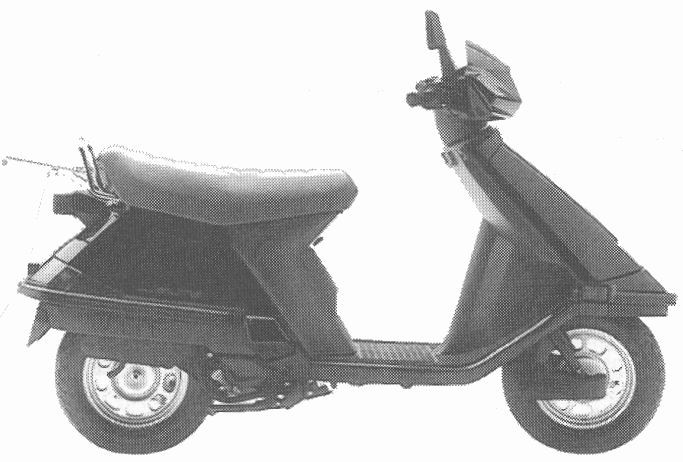

1988 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: JH2HF030*JS000001 ~
- Engine: HF03E-2300001 ~
- Colors:
  - Black
  - Luminous Red
- Elite Logo: "HONDA ELITE" (No "80" logo)
- Silver stripes removed from rear fender

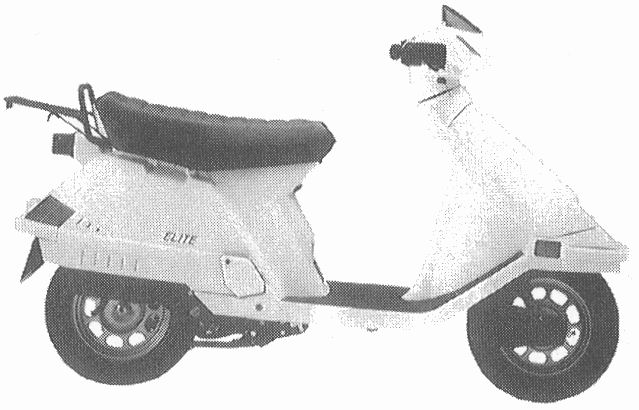

1989 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*KD400001 ~
- Engine: HF03E-2400001 ~
- Colors:
  - Ross White
  - Nassau Blue Metallic
- Elite Logo: "HONDA ELITE" (No "80" logo)
- Monochrome paint

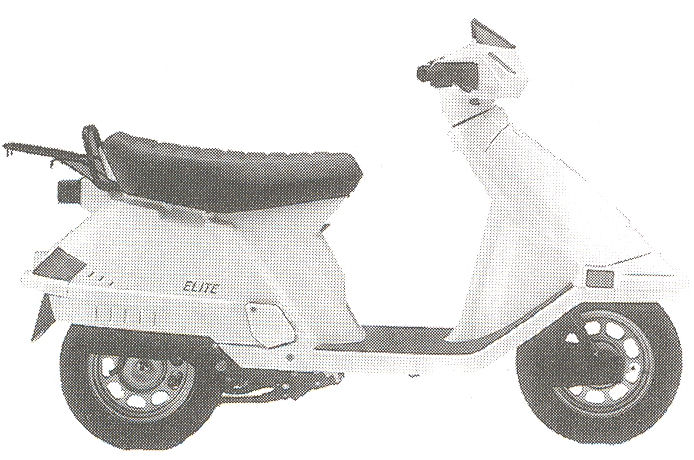

1990 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*LD500001 ~
- Engine: HF03E-2500001 ~
- Colors:
  - Ross White
  - Nassau Blue Metallic
- Elite Logo: "HONDA ELITE" (No "80" logo)
- Monochrome paint

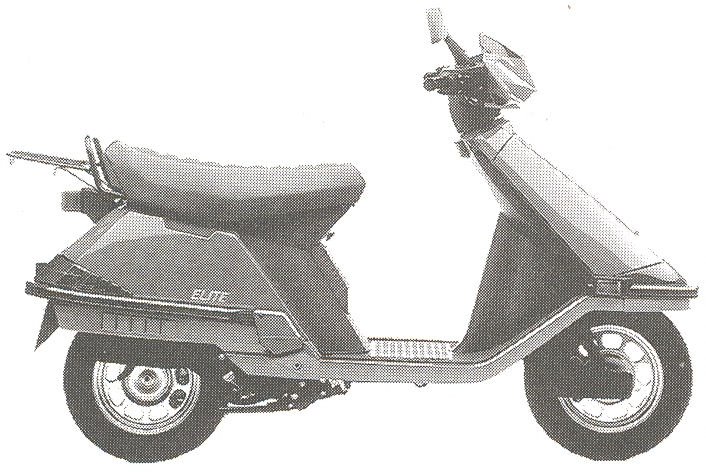

1991 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*MD600001 ~
- Engine: HF03E-2600001 ~
- Colors:
  - Monza Red
- Elite Logo: "HONDA ELITE" (No "80" logo)
- Non-Monochrome red paint

1992 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*ND700001 ~
- Engine: HF03E-2700001 ~
- Colors:
  - Monza Red
- Elite Logo: "HONDA ELITE" (No "80" logo)
- Non-Monochrome red paint

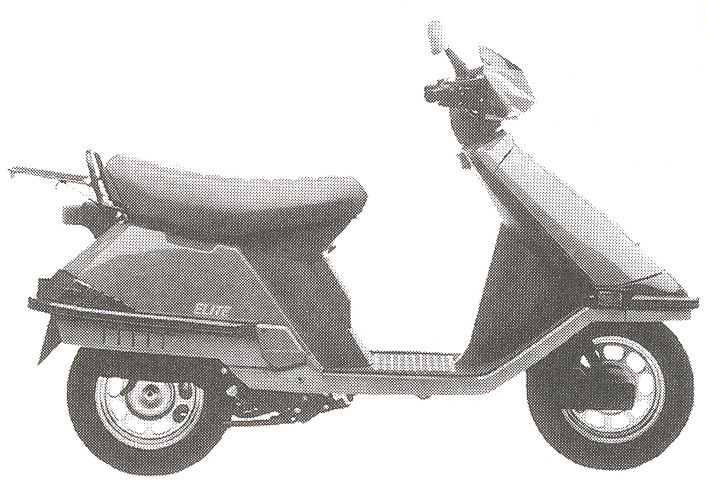

1993 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*PD800001 ~
- Engine: HF03E-2700601 ~
- Colors:
  - Monza Red
- Elite Logo: "HONDA ELITE" (No "80" logo)
- Non-Monochrome red paint

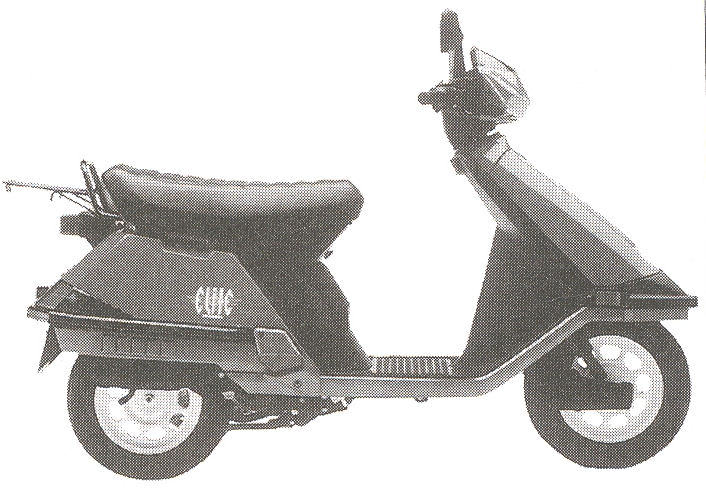

1994 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*RD800001 ~
- Engine: HF03E-2800001 ~
- Colors:
  - Monza Red
  - Gloss Black
- Elite Logo: is larger ("80" logo removed)

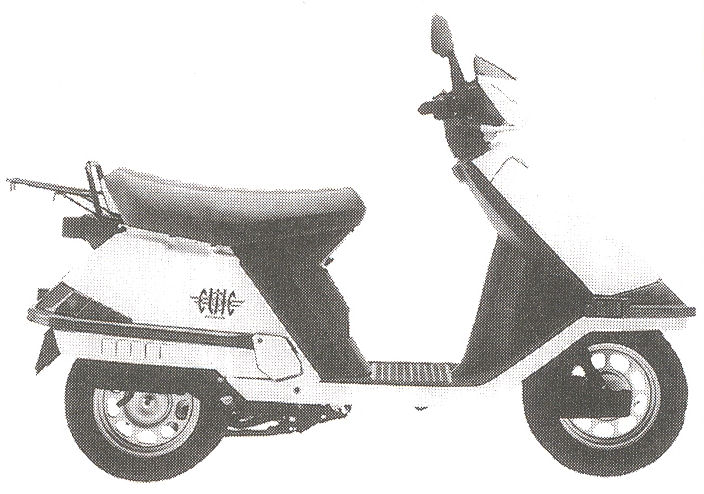

1995 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*SD000001 ~
- Engine: HF03E-2807095 ~
- Colors:
  - Shasta White
  - Gloss Black
- Elite Logo: unchanged

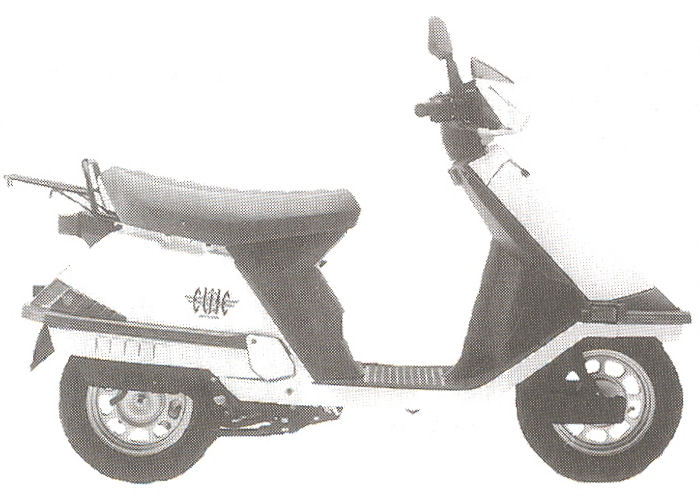

1996 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*TD000001 ~
- Engine: HF03E-2810215 ~
- Colors:
  - Shasta White
  - Gloss Black
- Elite Logo: unchanged

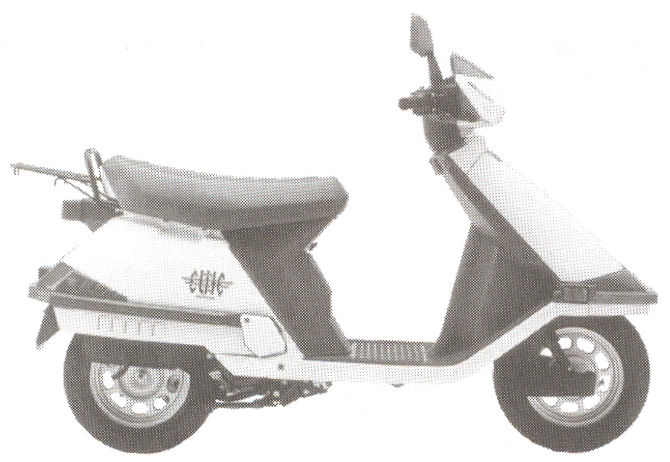

1997 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*VD000001 ~
- Engine: HF03E-2812605 ~
- Colors:
  - Shasta White
  - Black
- Elite Logo: unchanged

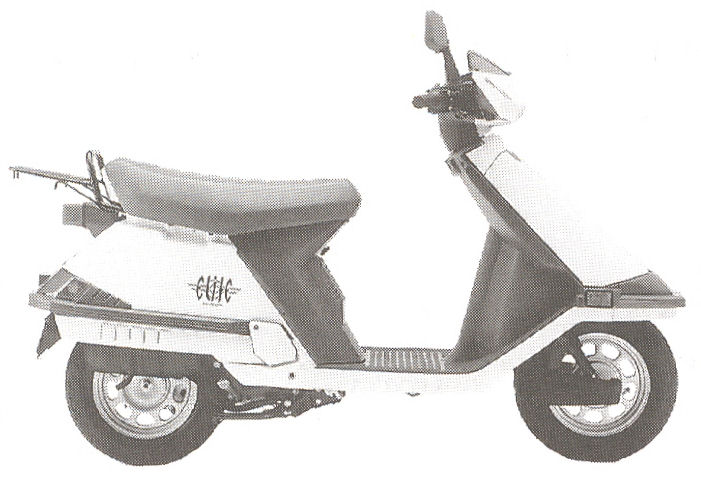

1998 Honda Elite 80 (CH80)

ENGINE
- Engine Type: 4-stroke
- Displacement: 80cc
- Cylinder: Single
- Cooling: Air-cooled
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- Dual-Shock Bottom Link front suspension
DIMENSION
- N/A
OTHER
- VIN: 3H1HF030*wD000001 ~
- Engine: HF03E-2814398 ~
- Colors:
  - Shasta White
  - Black
- Elite Logo: unchanged

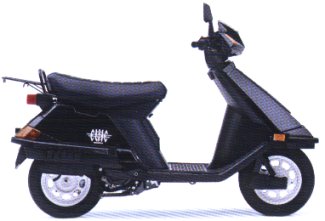

2002 Elite (CH80)

ENGINE
- Engine: 80cc air-cooled single-cylinder four-stroke
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- Transmission: Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- Seat height: 29.7 inches (754 mm)
- Wheelbase: 46.1 inches (1171 mm)
- Dry weight: 172 pounds (78 kg)
- Fuel capacity: 1.3 gallons (5 liters)
OTHER
- Color:
  - black
  - red

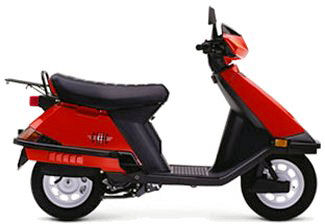

2003 Elite (CH80)

ENGINE
- Engine Type: 80cc air-cooled single-cylinder four-stroke
- Fuel Delivery: 16.0mm CV with automatic choke
- Ignition: CDI
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- Transmission: Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.0-inch travel
- Rear Suspension: Unit swingarm; 3.1-inch travel
- Front Brake: Drum
- Rear Brake: Drum
- Front Tire: 3.5 x 10.0
- Rear Tire: 3.5 x 10.0
DIMENSION
- Wheelbase: 46.1 inches
- Seat Height: 29.7 inches
- Dry Weight: 172.0 pounds
- Fuel Capacity: 1.3 gallons
OTHER
- Colors:
  - Black
  - Red
- Model ID: CH80
- Warranty: 1 year

2004 Elite 80 (CH80)

ENGINE
- Engine Type: 80cc air-cooled single-cylinder four-stroke
- Fuel Delivery: 16.0mm CV with automatic choke
- Ignition: CDI
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- Transmission: Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.0-inch travel
- Rear Suspension: Unit swingarm; 3.1-inch travel
- Front Brake: Drum
- Rear Brake: Drum
- Front Tire: 3.5 x 10.0
- Rear Tire: 3.5 x 10.0
DIMENSION
- Wheelbase: 46.1 inches
- Seat Height: 29.7 inches
- Dry Weight: 172.0 pounds
- Fuel Capacity: 1.3 gallons
OTHER
- Colors:
  - Black
  - Red
- Model ID: CH80
- Warranty: 1 year

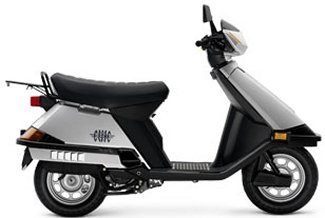

2005 Elite 80 (CH80)

ENGINE
- Engine Type: 80cc air-cooled single-cylinder four-stroke
- Fuel Delivery: 16.0mm CV with automatic choke
- Ignition: CDI
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- Transmission: Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.0-inch travel
- Rear Suspension: Unit swingarm; 3.1-inch travel
- Front Brake: Drum
- Rear Brake: Drum
- Front Tire: 3.5 x 10.0
- Rear Tire: 3.5 x 10.0
DIMENSION
- Wheelbase: 46.1 inches
- Seat Height: 29.7 inches
- Dry Weight: 172.0 pounds
- Fuel Capacity: 1.3 gallons
OTHER
- Colors:
  - Red
  - Silver
- Model ID: CH80
- Warranty: 1 year

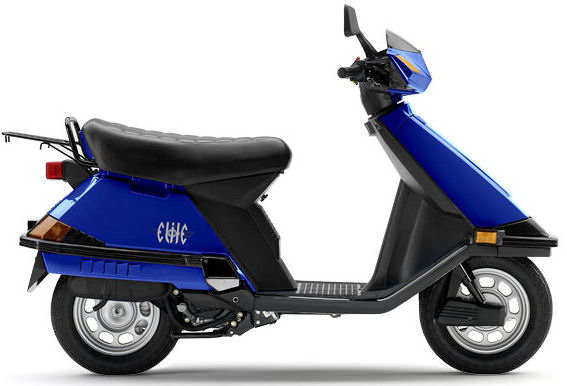

2006 Elite (CH80)

ENGINE
- Engine Type: 80cc air-cooled single-cylinder four-stroke
- Fuel Delivery: 16.0mm CV with automatic choke
- Ignition: CDI
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- Transmission: Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.0-inch travel
- Rear Suspension: Unit swingarm; 3.1-inch travel
- Front Brake: Drum
- Rear Brake: Drum
- Front Tire: 3.5 x 10.0
- Rear Tire: 3.5 x 10.0
DIMENSION
- Wheelbase: 46.1 inches
- Seat Height: 29.7 inches
- Dry Weight: 172.0 pounds
- Fuel Capacity: 1.3 gallons
OTHER
- Colors:
  - Pearl Blue
  - Red
- Model ID: CH80

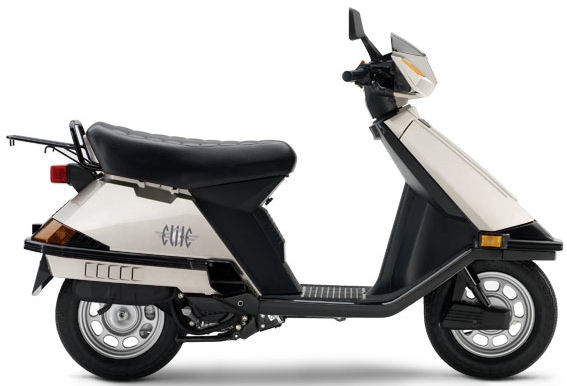

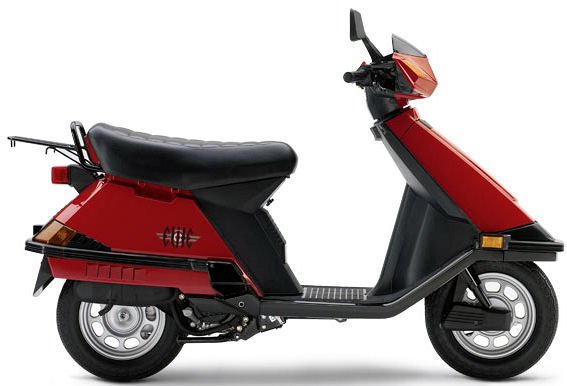

2007 Elite (CH80)

OVERVIEW
- Overview: With traffic choking up the streets and higher prices at the gas pump, it's never made more sense to find a smarter way to get around town. Enter the pure genius of the Elite 80. With its gas-sipping, 80cc four-stroke engine and fully automatic transmission, it's as hassle-free as it is fuel-efficient -- and its user-friendly controls and comfortable seating make you feel right at home right away. Think about it. Bet you feel smarter already.
ENGINE
- Engine Type: 80cc air-cooled single-cylinder four-stroke
- Fuel Delivery: 16.0mm CV with automatic choke
- Ignition: CDI
- Spark plug: CR7HS
- Plug gap: .028
DRIVETRAIN
- Transmission: Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.0-inch travel
- Rear Suspension: Unit swingarm; 3.1-inch travel
- Front Brake: Drum
- Rear Brake: Drum
- Front Tire: 3.5 x 10.0
- Rear Tire: 3.5 x 10.0
DIMENSION
- Wheelbase: 46.1 inches
- Seat Height: 29.7 inches
- Dry Weight: 172.0 pounds
- Fuel Capacity: 1.3 gallons
OTHER
- Emissions: Meets Current EPA standards. California version differs slightly due to emissions equipment.
- Colors:
  - Red
  - Metallic Gray
- Model ID: CH80
