Honda Aero 80 (NH80) Motorcycles

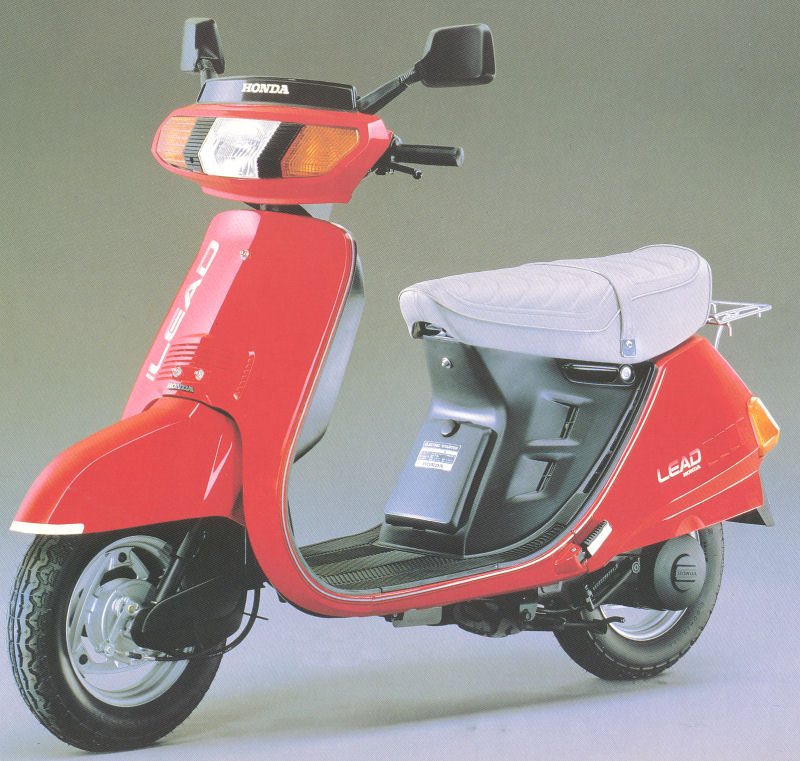

1983 Honda Aero 80 (LEAD) NH80

OVERVIEW
- "Honda's got a spanking new way to break into city riding without breaking the bank. It's our peppy super-looking NH80 scooter. It features a gas-miserly engine. Electric starting. Full front and rear suspension, And powerful front and rear brakes. So first-timers are bound to find it really first-class."
ENGINE
- Engine type: Two-stroke
- Displacement: 79cc
- Choke: automatic
- Ignition system: CDI
- Spark plug: BPR6HS
- Plug gap: .028
- Gasoline: Regular with oil injection
- Starter system: Electric and kick
DRIVETRAIN
- Transmission: Honda V-matic belt
- Clutch: Automatic
- Drive line: Belt
- Wheels: Pressed steel
CHASSIS / SUSPENSION / BRAKES
- Front suspension: Bottom link-type
- Rear suspension: Single shoick, swing-arm
- Brakes: Drum brakes front and rear with wet-resistant design
- Front tire size: 3.00-10
- Rear tire size: 3.50-10
DIMENSION
- Overall length: 1657mm (62.5 in.)
- Overall width: 665mm (26.2 in.)
- Fuel capacity: 5.3 liters (1.4 US gal.) (1.2 Imp. gal.)
OTHER
- Bodywork: lightweight to provide good wind and splash protection
- Storage compartment: latching
- Seat: deep-cushion
- Carrier: metal frame luggage carrier behind seat
- Automotive style instrument panel with speedometer and indicator lamps
- Handlebar lock incorporated in ignition switch

ENGINE
- Engine Type: Air-cooled two-stroke
- Displacement: 80cc
- Bore & Stroke: 48 x 44mm
- Compression ratio: 6.8:1
- Spark plug: BPR6HS
- Plug gap: .028
- Fuel Delivery: 16mm piston-valve type
- Ignition system: CDI
- Starter: Electric
DRIVETRAIN
- Transmission: Variable ratio V-matic^TM
- Drive: Belt
- Clutch: Automatic Centrifugal
- Drive line: Belt
- Wheels: Pressed steel
CHASSIS / SUSPENSION / BRAKES
- Brakes: Front and Rear Drum
- Front Suspension: Bottom-Link type
- Rear Suspension: Single Shock
- Tire Size: 3.50-10 (front and rear)
DIMENSION
- Wheelbase: 1170mm (46.1 in.)
- Dry weight: 75 kg (165.3 lb)
- Overall Length: 1685mm (66.3 in.)
- Overall Width: 665mm (26.2 in.)
- Seat height: 730mm (28.7 in.)
- Fuel capacity: 5.3 liters (1.5 US Gal.) (1.2 Imp. Gal.)
OTHER
- Accessory: Rear carrier
- Colors:
  - Candy Ruby Red
  - Moonlit Silver Metallic

ENGINE
- Engine type: Air-cooled, Two-Stroke
- Displacement: 79.6cc
- Bore & Stroke: 48 x 44mm
- Compression ratio: 6.8:1
- Spark plug: BPR6HSA
- Plug gap: .028
- Fuel Delivery: 16mm, piston-valve type
- Ignition system: CDI
- Starting system: Electric
DRIVETRAIN
- Transmission: Variable Ratio V-Matic^TM
- Clutch: Centrifugal, automatic
- Drive line: Belt
- Wheels: Pressed steel
CHASSIS / SUSPENSION / BRAKES
- Brakes: Front and Rear Drum
- Front suspension: Trailing-link type
- Rear suspension: Single shock
- Tire size: 3.50-10 (front and rear)
DIMENSION
- Wheelbase: 1172mm (46.1 in.)
- Dry weight: 74 kg (163 lb.)
- Overall length: 1719mm (67.7 in.)
- Overall width: 665mm (26.2 in.)
- Seat height: 730mm (28.7 in.)
- Fuel capacity: 4.8 liters (1.3 US gal)(1.1 Imp. gal)
OTHER
- Revised bodywork from 1984 model
- Color: Monza Red or Capri Blue or Parati Blue
- Not available in California
- V.I.N.: JH2HF0108FK2000001
- Engine: HF01E-2200001
- Production code: GN3
