1977 Honda XL75'77
- ENGINE
- Engine: 75cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N4C-1B -- 6 volt
- DRIVETRAIN
- Transmission: 4-speed with manual clutch
- Chain: #420 x 94
- Front sprocket: 14 T
- Rear sprocket: 36 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Tahitian Red
- Fuel tank stripe was yellow
- The "HONDA" decal on the tank was also yellow
- The "XL75" decal on the side covers was black outlined in yellow
- The frame and headlight shell were red
- The wheel hubs were silver
- Serial number began: XL75-1000005

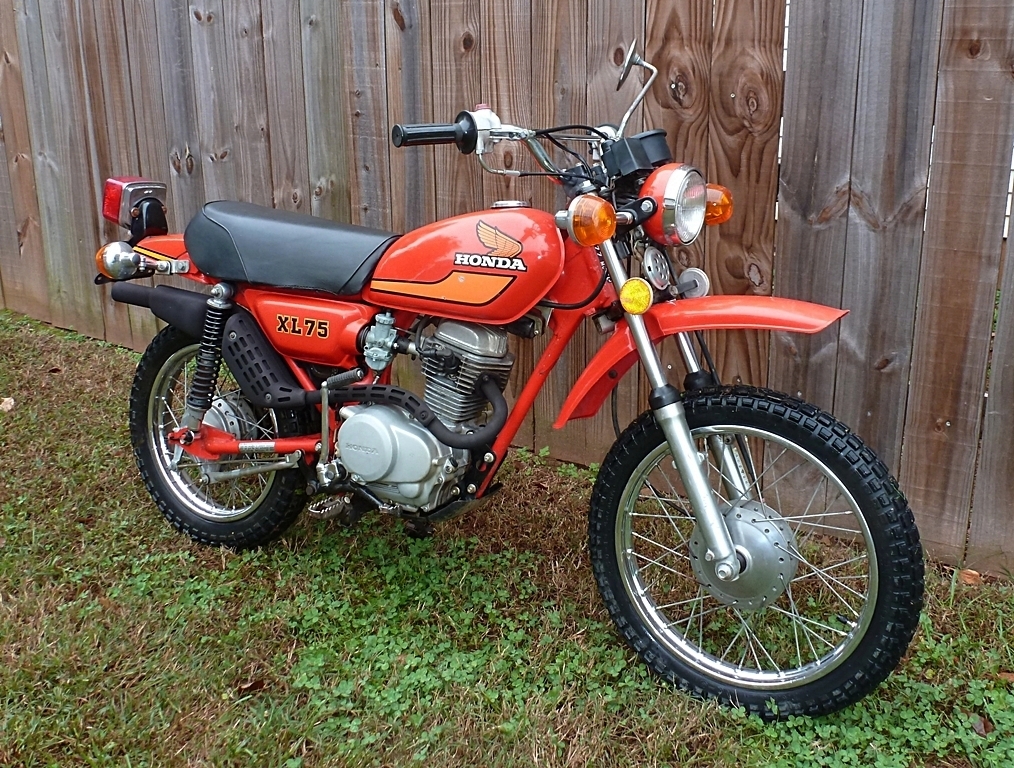

1977 Honda XL75
(owner) John Meininger
Click to enlarge

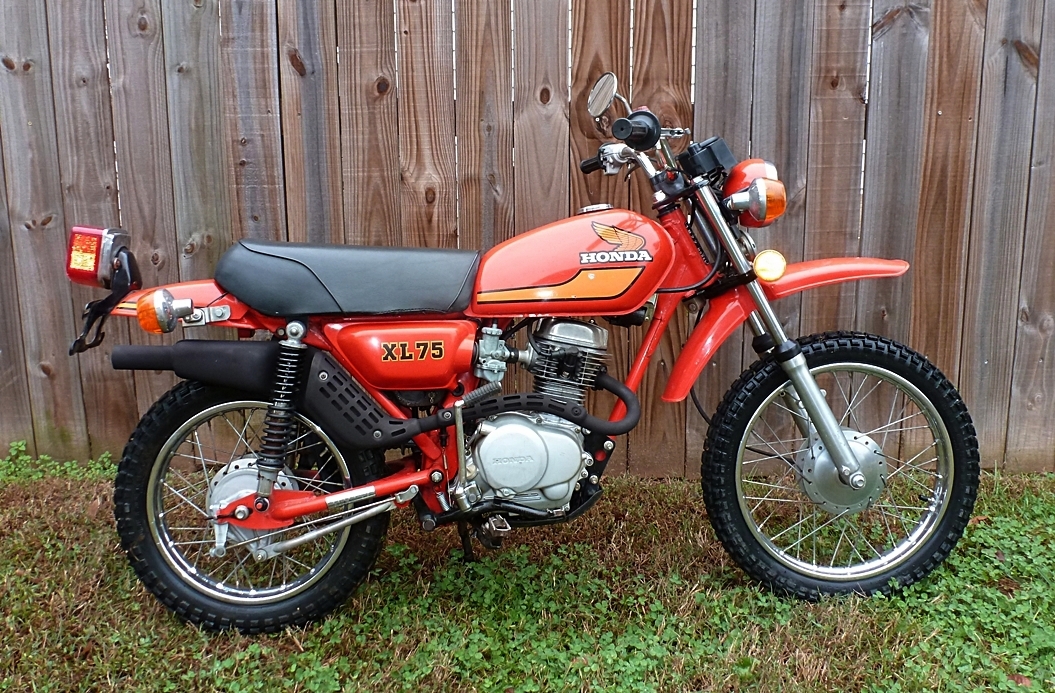

1977 Honda XL75
(owner) John Meininger
Click to enlarge
1978 Honda XL75'78
- ENGINE
- Engine: 75cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N4C-1B -- 6 volt
- DRIVETRAIN
- Transmission: 4-speed with manual clutch
- Chain: #420 x 94
- Front sprocket: 14 T
- Rear sprocket: 36 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Tahitian Red
- Fuel tank stripe was orange and yellow
- "XL75" decal on the side covers was yellow and white
- Frame and headlight shell were black
- Wheel hubs were black
- Serial number began XL75-1100005

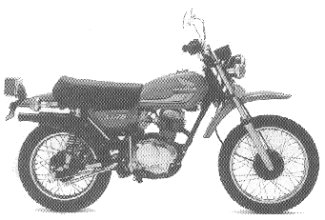

1978 Honda XL75
1979 Honda XL75'79
- ENGINE
- Engine: 75cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N4C-1B -- 6 volt
- DRIVETRAIN
- Transmission: 4-speed with manual clutch
- Chain: #420 x 94
- Front sprocket: 14 T
- Rear sprocket: 36 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Available color: Tahitian Red
- Fuel tank stripe was black, silver, and yellow
- "HONDA" decal was black
- The "XL75" decal on the side covers was black and white
- Frame and headlight shell were black
- Wheel hubs were black
- Serial number began: XL75-1100005.

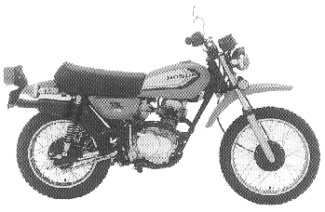

1979 Honda XL75
