1997 XR70R'97
- ENGINE
- Engine: 70cc
- Spark plug: CR6HSA
- Plug gap: .028
- DRIVETRAIN
- Chain: #420 x 86
- Front sprocket: 14 T
- Rear sprocket: 49 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- A new off road model (i.e., no headlight or mirrors, etc.)
- Available color: Shasta White
- Serial number began: JH2DE020*VK000001

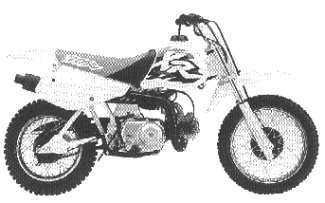

1997 Honda XR70
1998 XR70R'98
- ENGINE
- N/A
- Spark plug: CR6HSA
- Plug gap: .028
- DRIVETRAIN
- Chain: #420 x 86
- Front sprocket: 14 T
- Rear sprocket: 49 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Similar to the 1997 model except the fuel tank was redesigned to include a yellow "HONDA" wing logo
- Serial number began: JH2DE020*WK100001

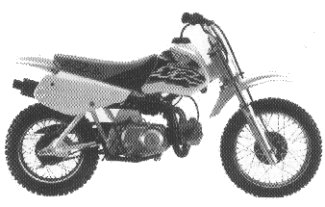

1998 Honda XR70R
2002 XR70R'02
- ENGINE
- Engine: Air cooled, single cylinder four stroke
- Displacement: 72cc
- Bore and stroke: 47mm x 41.4mm
- Compression ratio: 9.0:1
- Spark plug: CR6HSA
- Plug gap: .028
- Valve system: SOHC 2-valve
- Fuel Delivery: Single, 13mm
- Ignition: CDI
- Starting system: Kick
- DRIVETRAIN
- Transmission: 3-speed with auto clutch
- Final drive: Chain
- Chain: #420 x 86
- Front sprocket: 14 T
- Rear sprocket: 49 T
- CHASSIS / SUSPENSION / BRAKES
- Front suspension: 27 mm fork, 100 mm travel
- Rear suspension: Single shock 88mm travel
- Front tire: 2.50-14
- Rear tire: 3.00-12
- Front brake: Mechanical drum
- Rear brake: Mechanical drum
- DIMENSION
- Seat height: 655mm (25.8 in.)
- Wheelbase: 1067mm (42.0 in.)
- Dry weight: 58 kg (128 lb)
- Fuel capacity: 5.6 liters
- OTHER

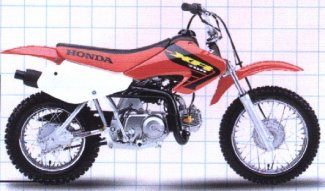

2002 Honda XR70R
2003 XR70'03
- ENGINE
- Engine: 72cc air-cooled single-cylinder four-stroke
- Bore and stroke: 47.5 x 41.4 mm
- Compression ratio: 9.0:1
- Spark plug: CR6HSA
- Plug gap: .028
- Ignition: CDI
- DRIVETRAIN
- Transmission: Three-speed with automatic clutch
- Chain: #420 x 86
- Front sprocket: 14 T or 15 T
- Rear sprocket: 49 T or 36 T
- CHASSIS / SUSPENSION / BRAKES
- Front suspension: 27mm telescopic fork; 99mm (3.9 in.) travel
- Rear suspension: Pro-Link Showa single-shock; 89mm (3.5 in.) travel
- Front tire 2.50-14
- Rear tire: 3.00-12
- DIMENSION
- Ground clearance: 163mm (6.4 in.)
- Seat height: 655mm (25.8 in.)
- Wheelbase: 1067mm (42.0 in.)
- Dry weight: 58 kg (128 lb)
- Fuel capacity: 5.7 liters (including 1.1 liters reserve)
- OTHER

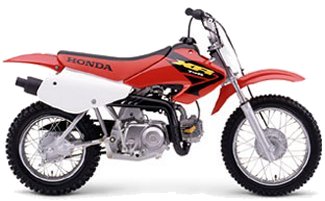

2003 Honda XR70R
