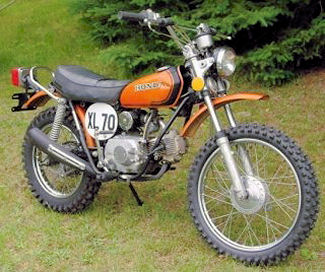

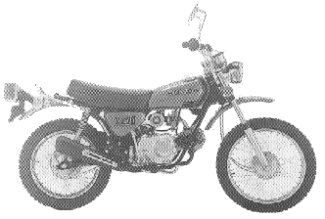

1974 Honda XL70K0
- ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N4C-1B -- 6 volt
- DRIVETRAIN
- Transmission: 4-speed with manual clutch
- Chain: #420 x 96
- Front sprocket: 13 T
- Rear sprocket: 44 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Candy Topaz Orange
- The "HONDA" and "XL70" decals were black
- Fuel tank stripes: black
- Shock springs: chrome
- Steel fenders: orange
- The serial number began: XL70-1000001
1974 Honda XL70K0
1974 Honda XL70K0
1974 Honda XL70K0

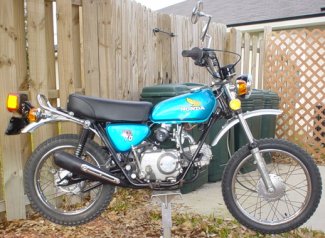

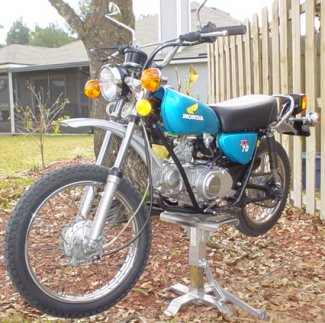

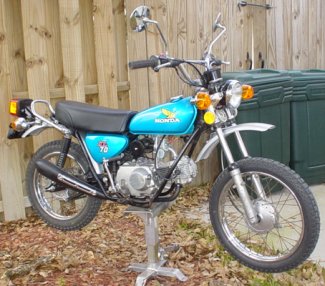

1975 Honda XL70K1
- ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N4C-1B -- 6 volt
- DRIVETRAIN
- Transmission: 4-speed with a manual clutch
- Chain: #420 x 96
- Front sprocket: 13 T
- Rear sprocket: 44 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Candy Riviera Blue with Silver
- "XL70" logo was red and white
- The shock springs were black
- The steel fenders were silver
- Serial number began: XL70-1100003
1975 Honda XL70K1
1975 Honda XL70K1
1975 Honda XL70K1

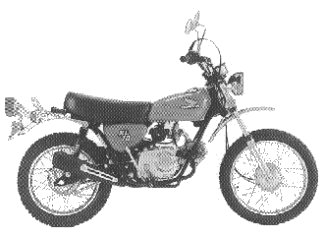

1976 Honda XL70'76
- ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N4C-1B -- 6 volt
- DRIVETRAIN
- Transmission: 4-speed with manual clutch
- Chain: #420 x 96
- Front sprocket: 13 T
- Rear sprocket: 44 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Mighty Green with Special Silver Metallic
- The "XL70" logo was yellow and white
- The steel fenders were silver
- The serial number began XL70-1200003
1976 Honda XL70
