Honda Scrambler CL70 Motorcycles

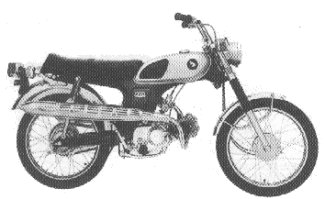

1969 Honda CL70 "Scrambler 70"

ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N5.5-1D-1 which is discontinued, modify 6N5.5-1D to fit
DRIVETRAIN
- Transmission: 4-speed with manual clutch
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Followed the pattern for all Scramblers: slightly raised handlebars, exhaust pipe upswept just above the crankcase and relatively horizontal
- Colors:
  - Candy Red with silver
  - Candy Blue with silver
- Frame and swingarm: painted the candy color
- Headlight bucket: silver
- Fuel tank: silver
- The badge was stamped into the tank and a rubber knee patch was attached to the rear sides of the tank
- The speedometer was housed in the headlight bucket
- The upper fork covers (i.e., fork ears) were chrome
- Serial number began CL70-100002

ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N5.5-1D-1 which is discontinued, modify 6N5.5-1D to fit
DRIVETRAIN
- Transmission: 4-speed transmission with manual clutch
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Similar to the previous year
- Colors:
  - Candy Sapphire Blue with Silver Metallic
  - Candy Topaz Orange with Silver Metallic
- Frame and swingarm were painted the candy color
- Headlight bucket: candy color
- Fuel tank was silver with stripes colored the same as the frame
- Tank emblem/badge was replaced with a decal
- No knee patch attached to the rear sides of the tank
- Speedometer was separate from the headlight bucket
- The upper fork covers (i.e., fork ears) were chrome
- The shock springs were covered
- Serial number began CL70-200002

ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N5.5-1D-1 which is discontinued, modify 6N5.5-1D to fit
DRIVETRAIN
- Transmission: 4-speed transmission with manual clutch
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Similar to the previous year
- Colors:
  - Candy Sapphire Blue with Silver Metallic
  - Candy Topaz Orange with Silver Metallic
  - Candy Red with Silver Metallic
- Frame, swingarm, headlight bucket, upper fork covers, and tank stripes were painted the candy color
- Fuel tank was silver with stripes colored the same as the frame
- Speedometer was separate from the headlight bucket
- Shock springs were covered
- Serial number began CL70-300002

ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N5.5-1D-1 which is discontinued, modify 6N5.5-1D to fit
DRIVETRAIN
- Transmission: 4-speed with manual clutch
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Similar to the 1971 model
- Colors:
  - Candy Sapphire Blue with Special Silver Metallic
  - Candy Ruby Red with Special Silver Metallic
- The frame and swingarm were painted the candy color
- The fuel tank was silver with black and red pinstripes
- The headlight bucket was black and the upper fork covers were chrome
- The speedometer was separate from the headlight bucket
- The shock springs were covered
- The exhaust pipe was angled a little higher this year and had a black heat shield
- The serial number began: CL70-1300001
