1970-71 Trail 70 (CT70HK0) (also called "Mini Trail 70")
- ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N2A-2C
- DRIVETRAIN
- Transmission: 4-speed with a manual clutch
- Chain: #420 x 86
- Front sprocket: 15 T
- Rear sprocket: 35 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- Candy Blue Green
- Candy Emerald Green
- Candy Topaz Orange
- Handlebars were easily folded down so that the bike could be transported in the trunk of a car
- The chrome exhaust pipe had a chrome heat shield
- Fuel tank: contained in the upper frame structure rather than a separate, removable unit
- Decal "TRAIL 70" was red and the stripe was black.
- The "HONDA" decal above the model name was white, while the side decals were black
- Speedometer was part of the headlight bucket
- Serial number began: CT70H-100001

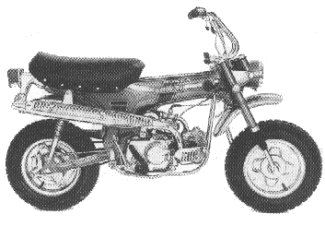

Honda CT70HK0
1972-73 Trail 70 (CT70HK1) (also called "Mini Trail 70")
- ENGINE
- Engine: 72cc OHC single cylinder
- Spark plug: C7HSA
- Plug gap: .028
- Battery: 6N5.5-1D Note the type of ends
- Battery: 6N2A-2C-3 Note the type of ends
- DRIVETRAIN
- Transmission: 4-speed with manual clutch
- Chain: #420 x 86
- Front sprocket: 15 T
- Rear sprocket: 35 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- Candy Ruby Red
- Candy Yellow Special
- The handlebars were easily folded down so that the bike could be transported in the trunk of a car
- The black exhaust pipe had a chrome and black heat shield
- The fuel tank was contained in the upper frame structure rather than a separate, removable unit
- The decal "TRAIL 70" was red and the stripe was black
- The "HONDA" decal above the model name was white, while the side decals were red and black
- The speedometer was separate from the headlight
- Serial number began: CT70H-2000001

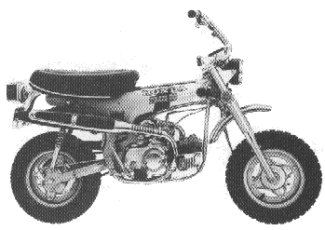

Honda CT70HK1

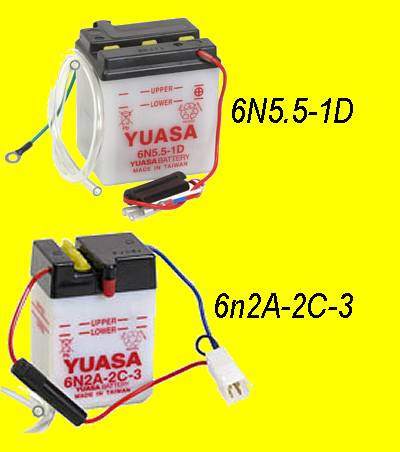

Honda CT70HK1 battery
