1969-71 Trail 70 (CT70K0)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with automatic clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Ruby Red
      • Candy Gold
      • Candy Sapphire Blue
    • Handlebars: easily folded down so that the bike could be transported in the trunk of a car
    • Chrome exhaust pipe: chrome heat shield
    • Fuel tank: contained in the upper frame structure rather than a separate, removable unit
    • Decal "TRAIL 70" was red and the stripe was black
    • "HONDA" decal above the model name was white, while the side decals were black
    • Speedometer was part of the headlight bucket
    • Serial number began: CT70-100001 for 1970 and CT70-200001 for 1971

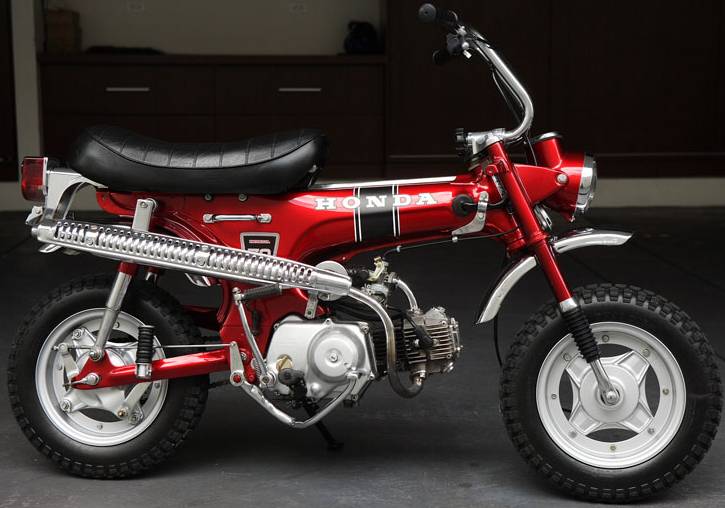

Honda CT70K0
Honda CT70K0

1972-73 Trail 70 (CT70K1) (also called "Mini Trail 70")

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with automatic clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Ruby Red
      • Candy Yellow Special
    • Handlebars were easily folded down so that the bike could be transported in the trunk of a car
    • The black exhaust pipe had a chrome and black heat shield
    • The fuel tank was contained in the upper frame structure rather than a separate, removable unit
    • The decal "TRAIL 70" was red and the stripe was black
    • The "HONDA" decal above the model name was white, while the side decals were red and black
    • The speedometer was separate from the headlight
    • Serial number began: CT70-2000001

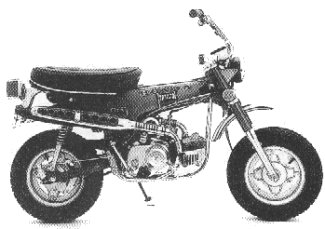

Honda CT70K1
Honda CT70K1

1973 Trail 70 (CT70K2)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Topaz Orange
      • Candy Riviera Blue
    • The upper fork and headlight bracket were chrome
    • The "HONDA" decal and the "CT70" decals were yellow
    • The "TRAIL 70" decal was white, outlined in orange.
    • Serial number began: CT70-2100001

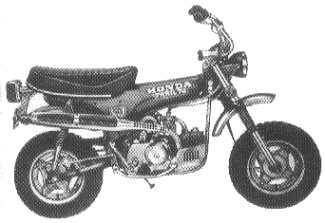

1973 Honda CT70K2
1973 Honda CT70K2

1974 Trail 70 (CT70K3)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch.
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Topaz Orange
      • Candy Riviera Blue
    • The "HONDA" decal was yellow and black
    • The "TRAIL 70" decal was green
    • The "CT70" side decals were silver and yellow
    • Serial number began CT70-2300001

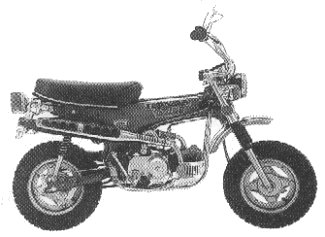

1974 Honda CT70K3
1974 Honda CT70K3

1975 Trail 70 (CT70K4)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Available one color: Mighty Green
    • The "TRAIL 70" decal was blue
    • Serial number began CT70-2400001

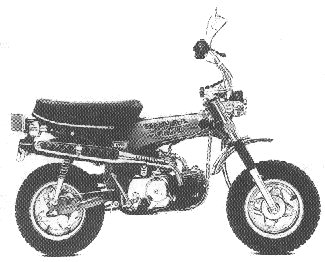

1975 Honda CT70K4
1975 Honda CT70K4

1976 Trail 70 (CT70'76)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Available one color: Tahitian Red
    • The "TRAIL 70" decal was yellow
    • The "HONDA" decal was blue
    • The serial number began: CT70-2500004

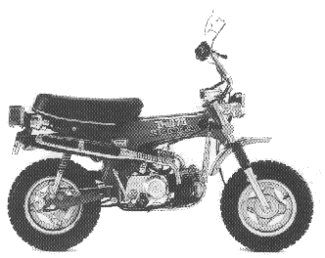

1976 Honda CT70
1976 Honda CT70

1977 Trail 70 (CT70'77)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Available one color: Shiny Orange
    • The "TRAIL 70" decal was white
    • The stripes were yellow and black
    • The upper fork and headlight bracket was Shiny Orange.
    • Serial number began: CT70-2600008

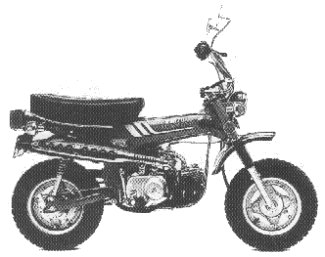

1977 Honda CT70
1977 Honda CT70

1978 Trail 70, also called "Mini-Trail 70", (CT70'78)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Available one color: Black
    • The "MINI-TRAIL 70" decal was white
    • The stripes were red and white
    • The "CT70" side decals were silver and red
    • The upper fork and headlight bracket was Black
    • Serial number began: CT70-2700005

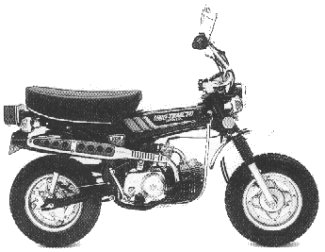

1978 Honda CT70
1978 Honda CT70

1979 Trail 70, also called "Mini-Trail 70", (CT70'79)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N5.5-1D -- 6 volt
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Available one color: Bright Yellow
    • The "MINI-TRAIL 70" decal was white
    • The "CT70" side decals were silver and red
    • The upper fork and headlight bracket was Bright Yellow
    • The steel fender was also yellow
    • The muffler heat shield was a solid black
    • The tank stripe was yellow, orange, and red
    • The frame downtubes and skidplate were deleted.
    • Serial number began: CT70-5000001

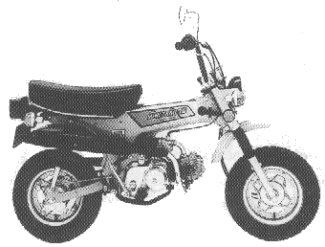

1979 Honda CT70
1979 Honda CT70

1980 Trail 70, also called "Mini-Trail 70", (CT70'80)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N4-2A-6 (alternate: 6N4-2A-8)
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Available one color: Tahitian Red
    • The "MINI-TRAIL 70" decal was replaced by a white "HONDA" decal
    • The stripe was yellow, orange, and red
    • The plastic front fender was red
    • The front fork had a new design
    • The ignition switch moved to the instrument panel
    • The muffler heat shield was a solid black
    • Serial number began CT70-5100001

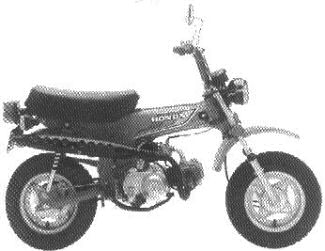

1980 Honda CT70
1980 Honda CT70

1981 Trail 70, also called "Mini-Trail 70", (CT70'81)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: C7HSA
    • Plug gap: .028
    • Battery: 6N4-2A-6 (alternate: 6N4-2A-8)
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Available one color: Tahitian Red
    • The "HONDA" tank decal was black
    • The stripe was white, blue, and black
    • The plastic front fender was red
    • The mirror housings is black
    • The muffler heat shield was a solid black
    • Serial number began JH2DD0101BS200002

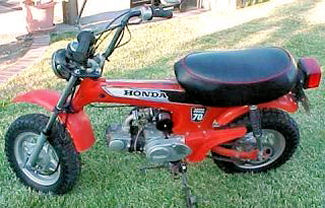

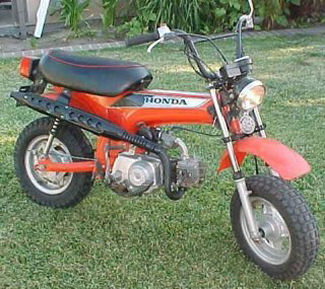

1981 Honda CT70
1981 Honda CT70
1981 Honda CT70
1981 Honda CT70

1982 Trail 70, also called "Mini-Trail 70", (CT70'82)

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: CR7HS
    • Plug gap: .028
    • Battery: 6N4-2A-6 (alternate: 6N4-2A-8)
  • DRIVETRAIN
    • Transmission: 3-speed with manual clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Available one color: Tahitian Red
    • The "HONDA" tank decal was red
    • The stripe was black
    • The plastic front fender was red
    • The mirror housings is black
    • The muffler heat shield was a solid black
    • Serial number began: JH2DD0101BS200002

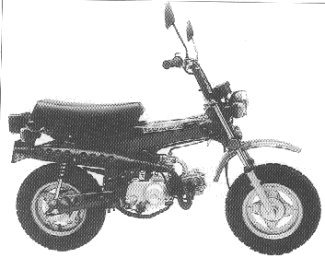

1982 Honda CT70
1982 Honda CT70

1984 Trail 70, also called "Mini-Trail 70", (CT70'84)

  • ENGINE
    • Engine: 72cc OHC four-stroke, 2-valve, single cylinder
    • Spark plug: CR7HS
    • Plug gap: .028
    • Battery: 6N4-2A-6 (alternate: 6N4-2A-8)
  • DRIVETRAIN
    • Transmission: Three-speed with automatic clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • Suspension: Hydraulic suspension front and rear
  • DIMENSION
    • Wheelbase: 1050mm (41.3 in.)
    • Dry weight: 69.5 kg (153.2 lb)
    • Seat height: 745mm (29.3 in.)
  • OTHER
    • Color: Tahitian Red
    • The "HONDA" tank decal was red
    • The stripe was black
    • The plastic front fender was red
    • The mirror housings is black
    • The muffler heat shield was a solid black
    • Serial number began JH2DD0101ES200002

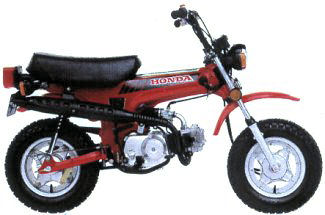

1984 Honda CT70
1984 Honda CT70

1991 CT70

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: CR6HSA
    • Plug gap: .024
    • Battery: YTX4L-BS -- 12 volt
  • DRIVETRAIN
    • Transmission: 3-speed with an automatic clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • This model had left the market for eight years or so and returned, with some modifications
    • The headlight nacelle also housed the speedometer
    • The tank stripes were yellow and silver while the wheels were white
    • The California model serial number began JH2DB011*MS000001 while the rest of the States models had serial numbers which began JH2DB010*MS000001

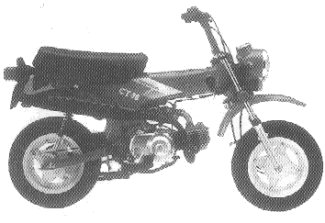

1991 Honda CT70
1991 Honda CT70

1992 CT70'92

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: CR6HSA
    • Plug gap: .024
    • Battery: YTX4L-BS -- 12 volt
  • DRIVETRAIN
    • Transmission: 3-speed with an automatic clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Basically the same as the 1991 model except the stripes were purple and blue-green.
    • The headlight nacelle also housed the speedometer
    • The wheels were white
    • The California model serial number began JH2DB011*NK100001 while the rest of the States models had serial numbers which began JH2DB010*NK100001

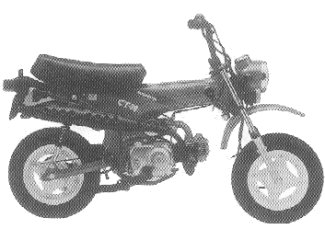

1992 Honda CT70
1992 Honda CT70

1993 CT70'93

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: CR6HSA
    • Plug gap: .024
    • Battery: YTX4L-BS -- 12 volt
  • DRIVETRAIN
    • Transmission: 3-speed with an automatic clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Visually the same as the 1992 model
    • The headlight nacelle also housed the speedometer
    • The wheels were white
    • The California model serial number began: JH2DB011*PK200001 while the rest of the States models had serial numbers which began JH2DB010*PK200001

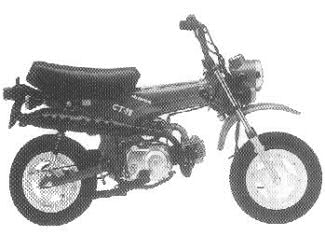

1993 Honda CT70
1993 Honda CT70

1994 CT70'94

  • ENGINE
    • Engine: 72cc OHC single cylinder
    • Spark plug: CR6HSA
    • Plug gap: .024
    • Battery: YTX4L-BS -- 12 volt
  • DRIVETRAIN
    • Transmission: 3-speed with an automatic clutch
    • Chain: #420 x 86
    • Front sproket: 15 T
    • Rear sprocket: 35 T
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Visually the same as the 1992 model
    • The headlight nacelle also housed the speedometer
    • The wheels were white
    • The California model serial number began JH2DB011*RK300001 while the rest of the States models had serial numbers which began JH2DB010*RK300001
1994 Honda CT70
1994 Honda CT70
