2004 CRF70F
ENGINE
Engine Type: 72cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.0mm x 41.4mm
Compression Ratio: 9.0:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 13.0mm piston-valve
Ignition: CDI
Spark plug: CR6HSA
Plug gap: .028
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 15T/36T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm telescopic fork; 3.2-inch travel
Rear Suspension: Single-shock; 3.5-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-14
Rear Tire: 3.00-12
DIMENSION
Rake: 27.03 degrees
Trail: 61.5mm (2.4 inches)
Wheelbase: 42.0 inches
Seat Height: 26.1 inches
Ground Clearance: 7.0 inches
Dry Weight: 128.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Warranty: 6 months

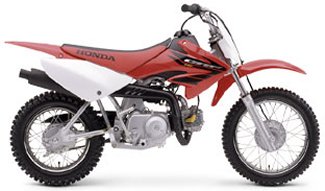

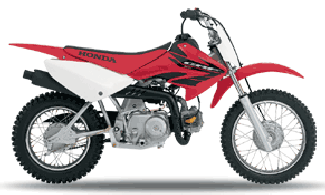

2004 Honda CRF70
2004 Honda CRF70
2005 CRF70F
ENGINE
Engine Type: 72cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.0mm x 41.4mm
Compression Ratio: 9.0:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 13.0mm piston-valve
Ignition: CD
Spark plug: CR6HSA
Plug gap: .028
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 15T/36T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm telescopic fork; 3.2-inch travel
Rear Suspension: Single-shock; 3.5-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-14
Rear Tire: 3.00-12
DIMENSION
Rake: 27.03 degrees
Trail: 61.5mm (2.4 inches)
Wheelbase: 42.0 inches
Seat Height: 26.1 inches
Ground Clearance: 7.0 inches
Dry Weight: 128.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF70F
Warranty: 6 months

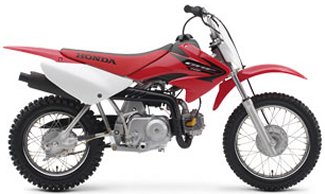

2005 Honda CRF70F
2006 CRF70F
ENGINE
Engine Type: 72cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.0mm x 41.4mm
Compression Ratio: 9.0:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 13.0mm piston-valve
Ignition: CD
Spark plug: CR6HSA
Plug gap: .028
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 15T/36T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm telescopic fork; 3.2-inch travel
Rear Suspension: Single-shock; 3.5-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-14
Rear Tire: 3.00-12
DIMENSION
Rake: 27.03 degrees
Trail: 61.5mm (2.4 inches)
Wheelbase: 42.0 inches
Seat Height: 26.1 inches
Ground Clearance: 7.0 inches
Dry Weight: 128.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF70F

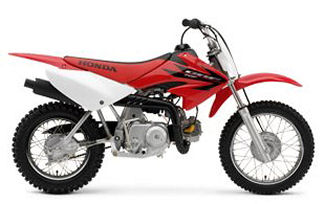

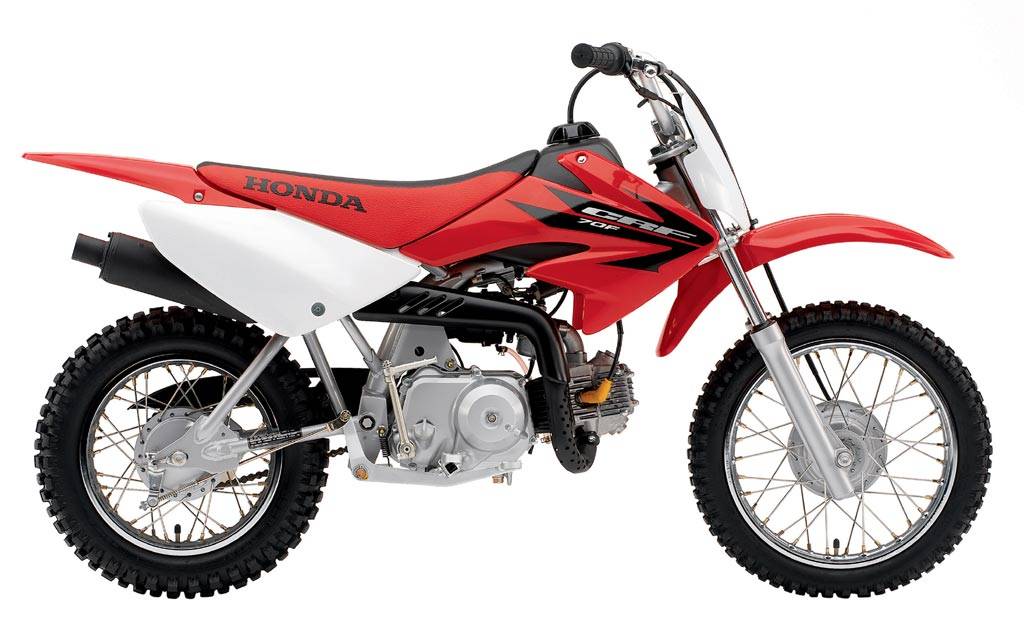

2006 Honda CRF70F Click image to enlarge
2007 CRF70F
ENGINE
Engine Type: 72cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.0mm x 41.4mm
Compression Ratio: 9.0:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 13.0mm piston-valve
Ignition: CD
Spark plug: CR6HSA
Plug gap: .028
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 15T/36T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm telescopic fork; 3.2-inch travel
Rear Suspension: Single-shock; 3.5-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-14
Rear Tire: 3.00-12
DIMENSION
Rake: 27.03 degrees
Trail: 61.5mm (2.4 inches)
Wheelbase: 42.0 inches
Seat Height: 26.1 inches
Ground Clearance: 7.0 inches
Dry Weight: 128.0 pounds
Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve
OTHER
Colors: Red
Model ID: CRF70F

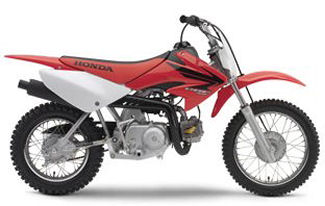

2007 Honda CRF70F
2008 CRF70F
OVERVIEW
Think of the CRF70F as the perfect stepping stone between its bigger siblings and the CRF50F. Your youngster a tad too big for the 50F, but not quite ready for the CRF80F or 100F? No worries. This bike features the same smooth three-speed semi-automatic transmission (no clutch to deal with) and novice-friendly four-stroke power as its little brother, only in a slightly bigger package. What could be more fun than that?
ENGINE
Engine: Type72cc air-cooled single-cylinder four-stroke
Bore and Stroke: 47.0mm x 41.4mm
Compression Ratio: 9.0:1
Valve Train: : SOHC; two-valve
Fuel Delivery: 13mm piston-valve carburator
Ignition: CD
Spark plug: CR6HSA
Plug gap: .028
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 15T/36T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27.0mm telescopic fork; 3.2-inch travel
Rear Suspension: Single-shock; 3.5-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-14
Rear Tire: 3.00-12
DIMENSION
Rake: 27.03 degrees
Trail: 61.5mm (2.4 inches)
Wheelbase: 42.0 inches
Seat Height: 26.1 inches
Ground Clearance: 7.0 inches
Curb Weight: N/A
Fuel Capacity: 1.3 gallons, including 0.3-gallon reserve
OTHER
Emissions: Meets current CARB and EPA standards.
Colors: Red
Model ID: CRF70F
6 months Warranty: Coverage of defects in materials and workmanship

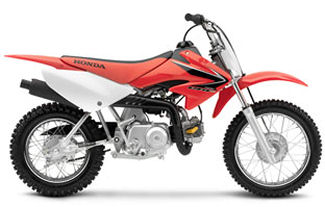

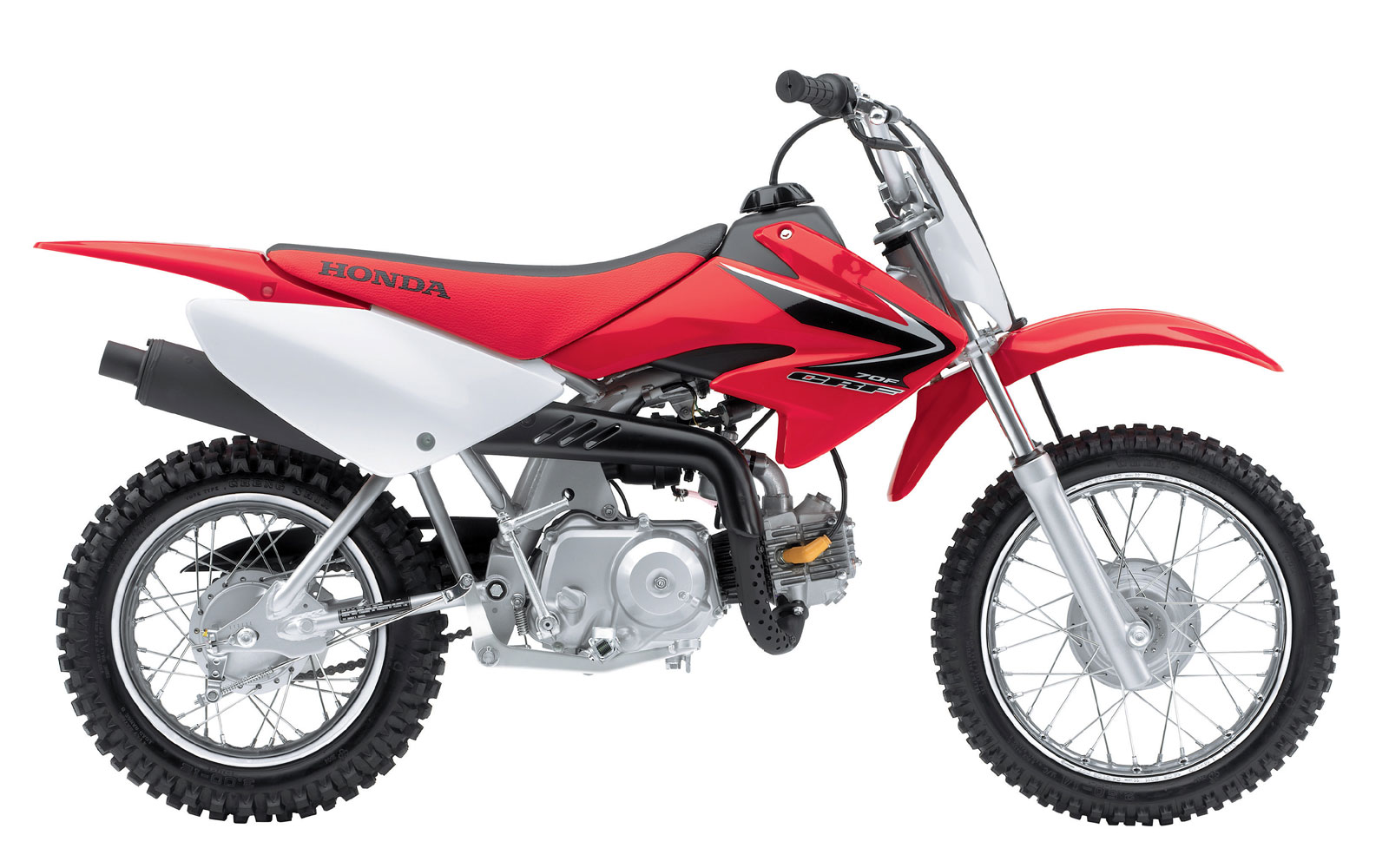

2008 Honda CRF70F Click image to enlarge
2009 CRF 70F
ENGINE
Engine Size: 72cc
Engine Detail: air-cooled single-cylinder four-stroke
Bore Stroke: 47.0mm x 41.4mm
Compression Ratio: 9.0:1
Fuel System: 13mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 15T/36T
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 27.0mm telescopic fork; 3.2-inch travel
Suspension Rear: Single-shock; 3.5-inch travel
Brakes Front: Drum
Brakes Rear: Drum
Tire Front: 2.50-14
Tire Rear: 3.00-12
DIMENSION
Wheelbase: 42 in.
Seat Height: 26.1 in.
Curb Weight: 139 lbs.
Fuel Capacity: 1.3 gal.
OTHER
Colors: Red
Price: $1699
Warranty: 6 Months

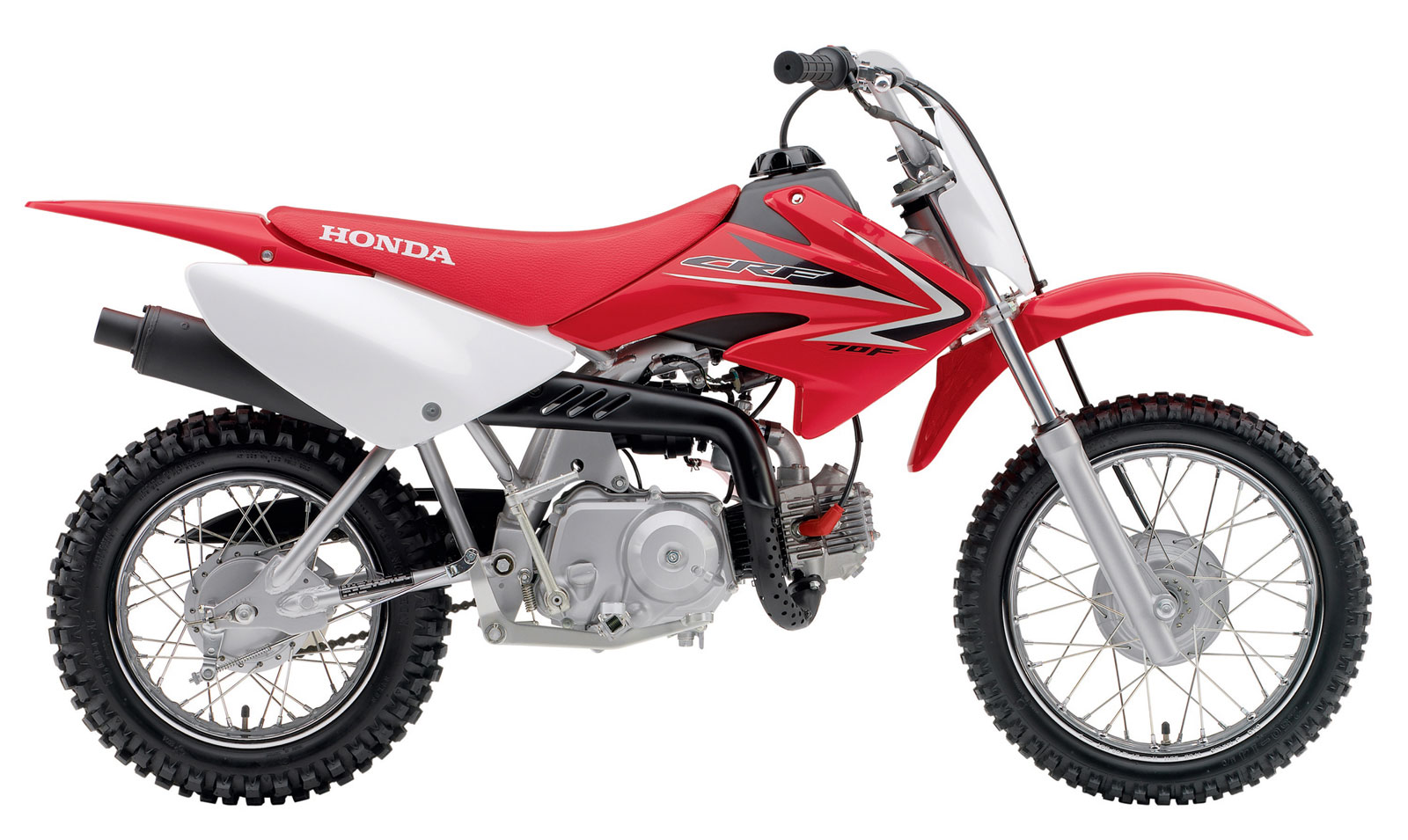

2009 CRF70F Click image to enlarge
2011 CRF70F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 72 cc
Bore and Stroke: 47 mm x 41.4 mm
Compression Ratio: 9.0:1
Valve Train: SOHC, 2 valves
Fuel Delivery: Single 13 mm piston-valve carb
Ignition: CD
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 15T/36T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27 mm telescopic fork; 90 mm (3.5 in.) travel
Rear Suspension: Single shock; 88 mm (3.5 in.) travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-14
Rear Tire: 3.00-12
DIMENSION
Rake: 27.03 degrees
Trail: 61.5mm (2.4 inches)
Ground Clearance: 178 mm (7 in.)
Seat Height: 655 mm (25.8 in.)
Wheelbase: 1,063 mm (41.9 in.)
Curb Weight: 64 kg (141 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 5 litres (1.3 GalUS), including 0.7-litre (0.3 Gal) reserve
OTHER
Colour: Extreme Red
Emissions: Meets current California Air Resource Board (CARB) and EPA off-road emissions standards.
Model Id: CRF70F
Warranty: 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP: $2,099

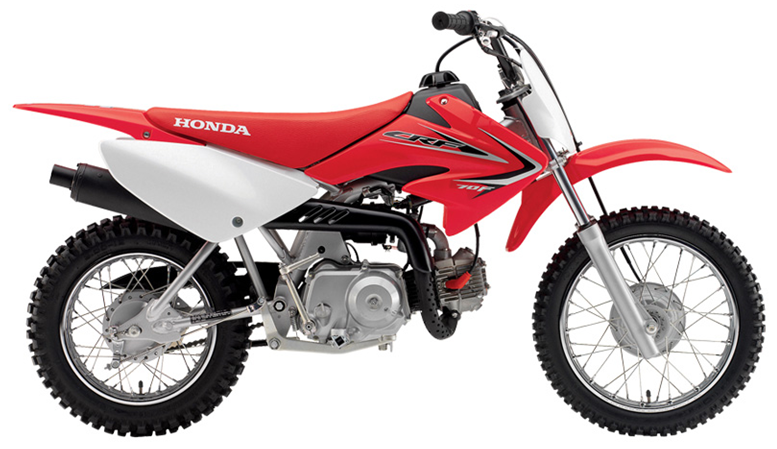

2011 CRF70F Click image to enlarge
2012 CRF70F
ENGINE
Engine Type: Air-cooled 4-stroke OHC single
Engine Displacement: 71.8cc
Bore and Stroke: 47 x 41.4mm
Compression Ratio: 9:1
Valve Train: SOHC; two-valve
Fuel Delivery: 13mm piston-valve carburator
Ignition: Capacitor Discharge (CDI)
Starter: Primary kick
DRIVETRAIN
Transmission: 3-speed with automatic clutch
Final Drive: 420 roller chain
Front sprocket: 15T
Rear sprocket: 36T
Front Wheels: Steel rim/wire spoke
Rear Wheels: Steel rim/wire spoke
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 27mm leading-axle telescopic fork, 100mm (3.2 inch) axle travel
Rear Suspension: Mono-shock swingarm, 90mm (3.5 inch) axle travel
Front Brakes: 95mm leading/trailing drum
Rear Brakes: 95mm leading/trailing drum
Front Tires: 2.50-14 4PR
Rear Tires: 3.00-12 4PR
DIMENSION
Rake: 27.03 degrees
Trail: 61.5mm (2.4 inches)
Wheelbase: 1063mm (41.85 inches)
Overall Length: 1569mm (61.8 inches)
Overall Width: 694mm (27.3 inches)
Overall Height: 885mm (34.8 inches)
Seat Height: 655mm (25.8 inches)
Ground Clearance: 178mm (7 inches)
Weight: 58 kg (128 lb)
Fuel Capacity: 5.5 Litres (1.45 GalUS) (including 1.1-Litre reserve)
OTHER
Emissions: Meets current California Air Resource Board (CARB) and EPA off-road emissions standards.
Color: Extreme Red
Model Id: CRF70F
Warranty: 6-months

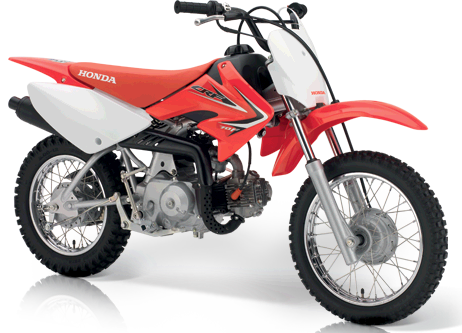

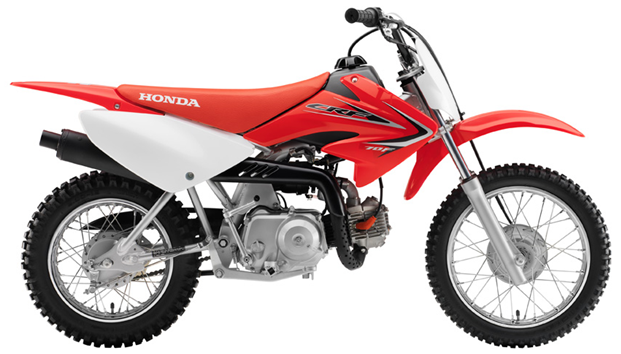

2012 CRF70F

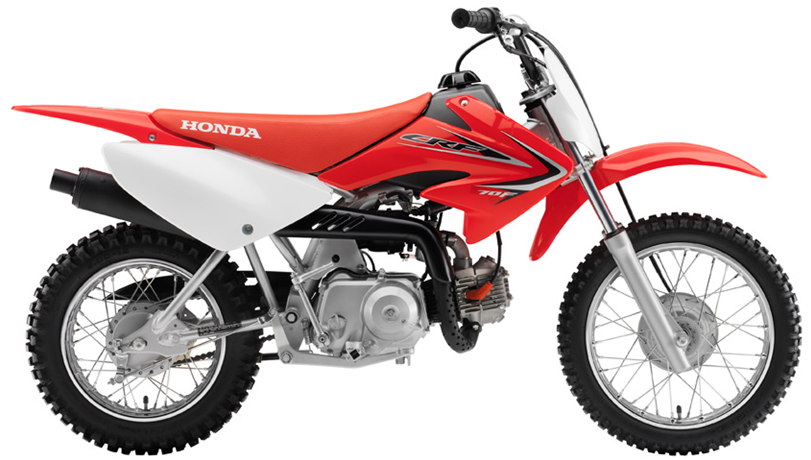

2012 CRF70F Click image to enlarge
