2002 XR50R
- ENGINE
- Engine: Air cooled, single cylinder four stroke
- Displacement: 49cc
- Bore and stroke: 39mm x 41.4mm
- Compression ratio: 10.0:1
- Spark plug: CR6HSA
- Plug gap: .028
- Valve system: SOHC 2-valve
- Fuel Delivery: Single, 13mm
- Ignition: CDI
- Starting system: Kick
- DRIVETRAIN
- Transmission: 3-speed, auto clutch
- Final drive: #420 x 78 Chain
- Front sprocket: 14 T
- Rear sprocket: 37 T
- CHASSIS / SUSPENSION / BRAKES
- Front suspension: 22 mm fork, 96 mm travel
- Rear suspension: Single shock 70mm travel
- Front tire: 2.50-10
- Rear tire: 2.50-10
- Front brake: Mechanical drum
- Rear brake: Mechanical drum
- DIMENSION
- Seat height: 550mm (21.7 in.)
- Wheelbase: 915mm (36.0 in.)
- Dry weight: 47 kg (104 lb)
- Fuel capacity: 3.0 liters
- OTHER

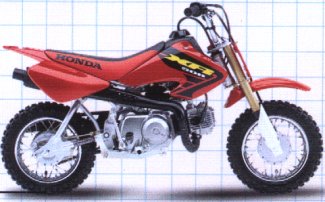

2002 Honda XR50R
2003 Honda XR50'03
- ENGINE
- Engine: 49cc air-cooled single-cylinder four-stroke
- Bore and stroke: 39.0 x 41.4 mm
- Compression ratio: 10.0:1
- Spark plug: CR6HSA
- Plug gap: .028
- Ignition: CDI
- DRIVETRAIN
- Transmission: Three-speed with automatic clutch
- Final drive: #420 x 78 Chain
- Front sprocket: 14 T
- Rear sprocket: 37 T
- CHASSIS / SUSPENSION / BRAKES
- Front suspension: Inverted telescopic fork; 97mm (3.8 in.) travel
- Rear suspension: Single hydraulic shock; 71mm (2.8 in.) travel
- Front tire 2.50-10
- Rear tire: 2.50-10
- DIMENSION
- Ground clearance: 150mm (5.9 in.)
- Seat height: 551mm (21.7 in.)
- Wheelbase: 914mm (36.0 in.)
- Dry weight: 47 kg (104 lb)
- Fuel capacity: 3.0 liters (including 0.75 liters reserve)
- OTHER

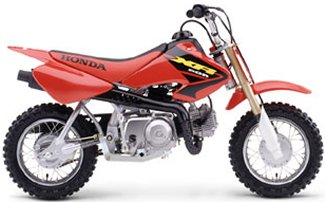

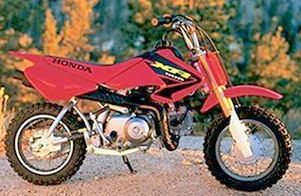

2003 Honda XR50R
2003 Honda XR50R
