Honda Vision 50 Motorcycles

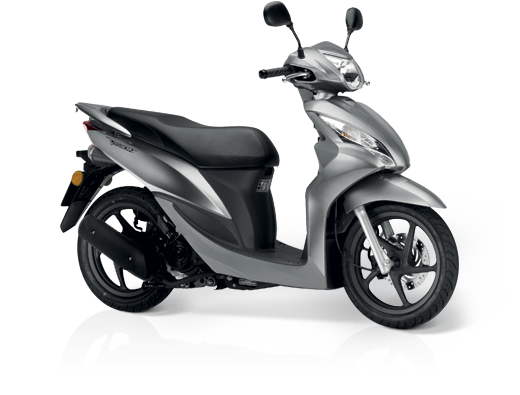

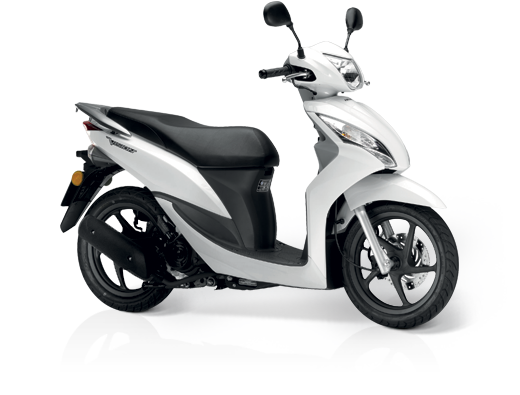

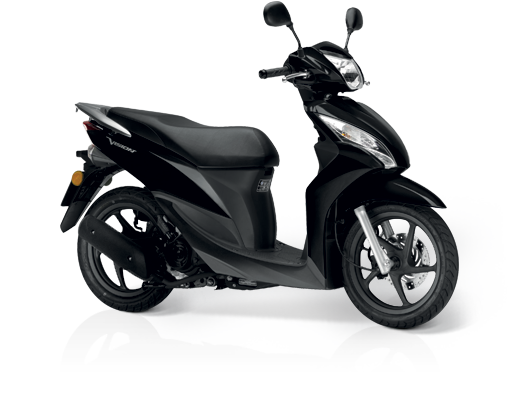

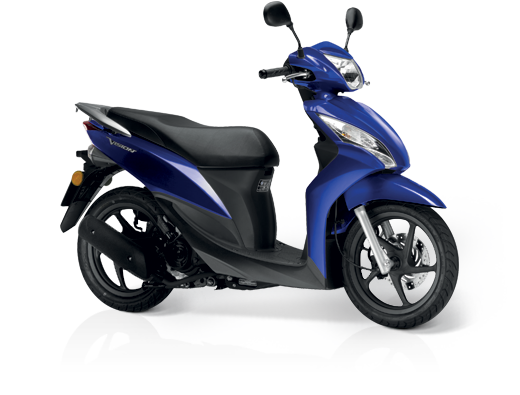

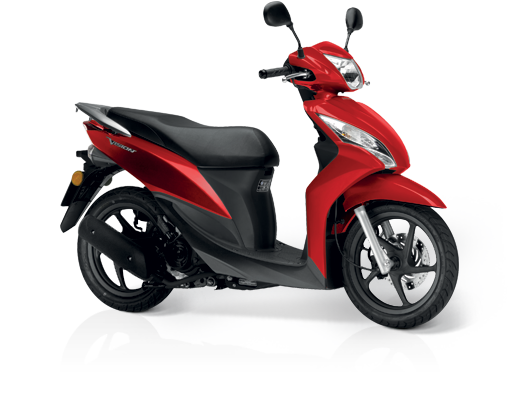

2012 Honda Vision 50

ENGINE
- Engine Type: Air-cooled 4-stroke OHC 2v single
- Engine Displacement: 49cc
- Bore and Stroke: 37.8 x 44mm
- Compression Ratio: 10:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Ignition System: Full-transistor battery ignition
- Max. Torque: 3.5Nm/6,750min-1 (95/1/EC)
- Max. Power Output: 2.5kW/7,000min-1 (95/1/EC)
- Starter: Electric
DRIVETRAIN
- Transmission Type: Continuously variable (V-Matic)
- Final Drive: V-Belt
- Front Wheels: Cast aluminium MT1.85
- Rear Wheels: Cast aluminium MT1.85
CHASSIS / SUSPENSION / BRAKES
- Frame type: Underbone; steel tube
- Front Suspension: Telescopic forks with hydraulic damping
- Rear Suspension: Unit swingarm
- Front Brakes: 220mm hydraulic disc
- Rear Brakes: 130mm drum
- Front Tires: 80/90
- Rear Tires: 90/90
DIMENSION
- Wheelbase: 1284mm (50.5 inches)
- Overall Length: 1882mm (74 inches)
- Overall Width:670mm (26.4 inches)
- Overall Height: 1117mm (44 inches)
- Seat Height: 785mm (30.9 inches)
- Ground Clearance: 144mm (5.7 inches)
- Curb Weight: 100 kg (220 lb)
  - Front: 40 kg (88 lb)
  - Rear: 60 kg (132 lb)
- Fuel Capacity: 5.5 Litres (1.45 GalUS)
OTHER
- Fuel Consumption: 1.9 L/100km (122.3 mpgUS) (32.3 miles/litre) (146.9 mpg-imp)
