1988 Honda Elite 50 E (SB50P)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Cooling: Air-cooled
- Lubrication: Oil injection
- Spark plug: BPR6HSA
- Plug gap: .028
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Telescopic fork front suspension
- DIMENSION
- OTHER
- Storage compartment under seat
- VIN: JH2AF171*JK000001 ~
- Engine: AF05E-2500001 ~
- Colors:
- Fighting Red
- Sherbet Pink

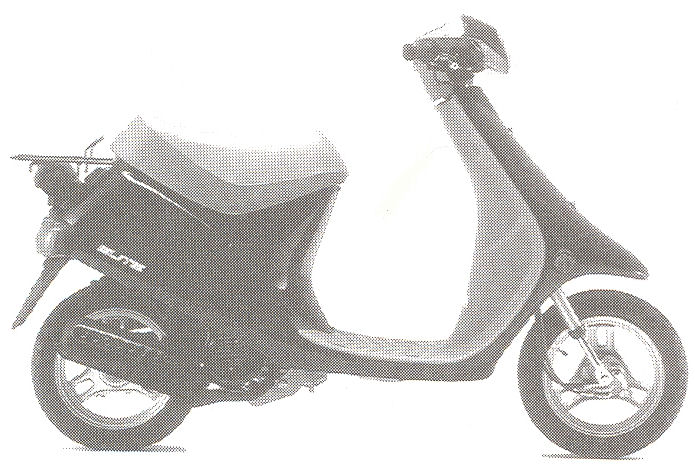

1988 Honda Elite 50E (SB50P)
Click image to enlarge
1989 Honda Elite 50 E (SB50P)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Cooling: Air-cooled
- Lubrication: Oil injection
- Spark plug: BPR6HSA
- Plug gap: .028
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Telescopic fork front suspension
- DIMENSION
- OTHER
- Storage compartment under seat
- VIN: JH2AF170*KK100001 ~
- Engine: AF05E-2600001 ~
- Colors:

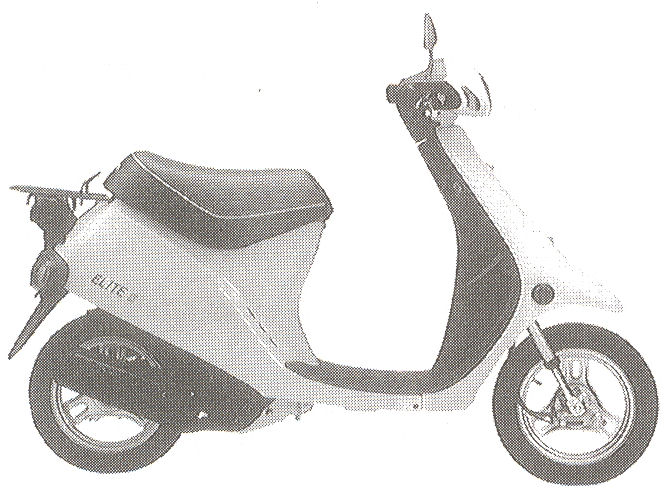

1989 Honda Elite 50E (SB50P)
Click image to enlarge
1990 Honda Elite 50 E (SB50P)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Cooling: Air-cooled
- Lubrication: Oil injection
- Spark plug: BPR6HSA
- Plug gap: .028
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Telescopic fork front suspension
- DIMENSION
- OTHER
- Storage compartment under seat
- VIN: JH2AF170*LK100001 ~
- Engine: AF05E-2700001 ~
- Colors:

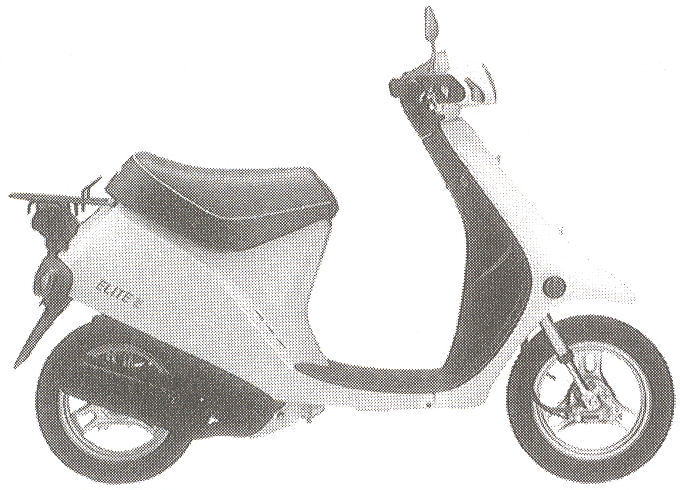

1990 Honda Elite 50E (SB50P)
Click image to enlarge
