2004 NSR50R
- ENGINE
- Engine Type: 49cc liquid-cooled two-stroke
- Bore and Stroke: 39.0mm x 41.4mm
- Compression Ratio: 7.2:1
- Spark plug: BR9ES
- Plug gap: .028
- Fuel Delivery: 20.0mm
- Ignition: CD
- DRIVETRAIN
- Transmission: Six-speed
- Clutch: Wet multi-plate
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic fork
- Rear Suspension: Swingarm with twin shocks
- Front Brake: Single hydraulic disc
- Rear Brake: Single hydraulic disc
- Front Tire: 100/90-12 48J
- Rear Tire: 120/80-12 54J
- DIMENSION
- Length: 62.2 inches
- Width: 23.2 inches
- Height: 36.8 inches
- Wheelbase: 42.7 inches
- Dry Weight: 161.0 pounds
- Fuel Capacity: 1.95 gallons
- OTHER
- Product Notice: Not street legal
- Colors: White
- Model ID: NRS50

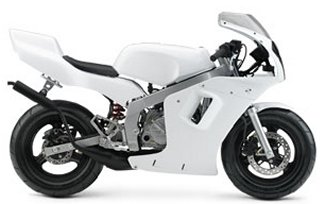

2004 Honda NSR50R
