2002 Honda Magna 50
- ENGINE
- Displacement: 49cc
- Type: Four-stroke OHC single cylinder
- Bore & Stroke: 39.0 x 41.4 mm
- Compression: 10.0:1
- Power: 2.8 kW (3.90 HP) @ 8000 rpm
- Torque: 3.70 Nm (2.7 ft.lb) @ 6000 rpm
- Fuel delivery: Carburetor
- DRIVETRAIN
- Transmission: 4-speed with a manual clutch
- CHASSIS / SUSPENSION / BRAKES
- Front brakes: Single disc
- Rear brakes: Drum
- DIMENSION
- Wheelbase: 1320 mm (52.0")
- Overall height: 945 mm (37.2")
- Overall length: 1960 mm (77.2")
- Overall width: 760 mm (29.9")
- Lowest seat height: 635 mm (25.0") adjustable
- Ground clearance: 165 mm (6.5")
- Weight: 87.0 kg (191.9 lb)
- Fuel capacity: 8.0 litres (2.11 Gal-US)

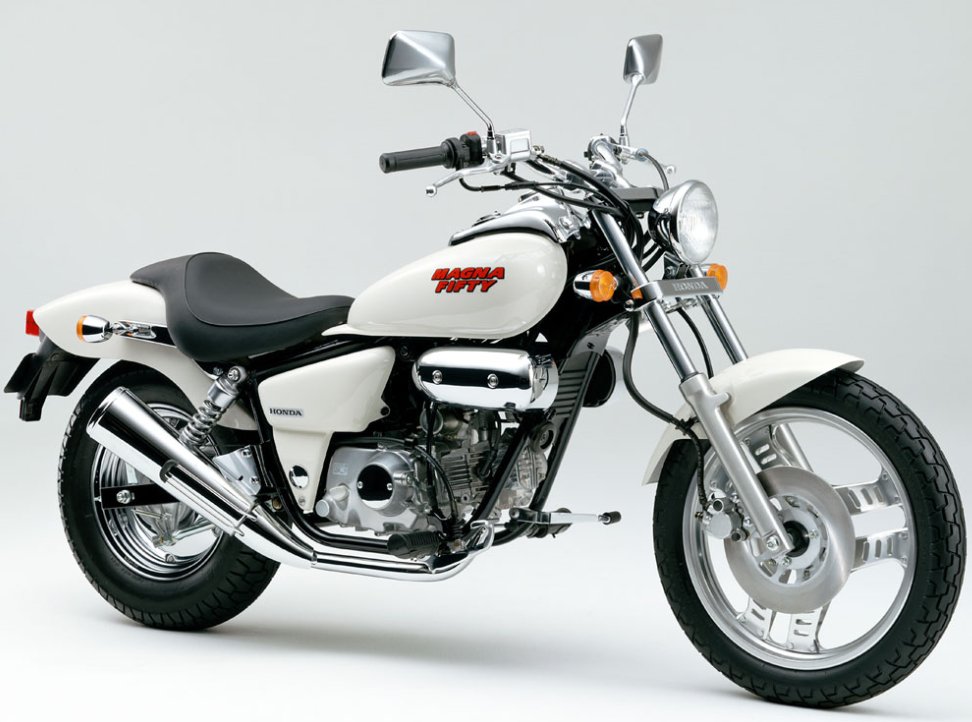

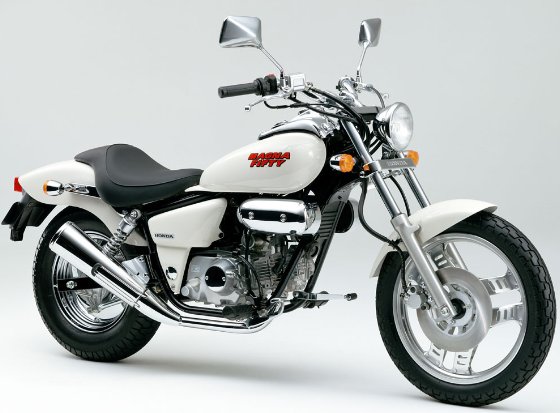

2002 Honda Magna 50
Click image to enlarge
