1987 Honda Elite 50 LX
- ENGINE
- Spark plug: BPR6HSA
- Plug gap: .028
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER

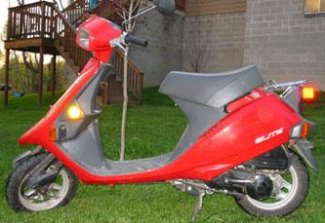

1987 Honda Elite 50 LX
1988 Honda Elite 50 LX (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BPR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Seat and lower panel are gray
- Storage compartment under the seat
- VIN: JH2AF160*JK000001 ~
- Engine: AF05E-3300001
- Available colors:
- Fighting Red
- Shasta White

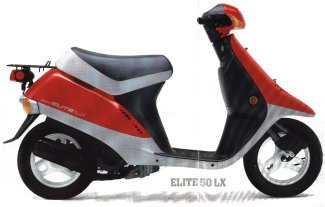

1988 Honda Elite 50 LX
1989 Honda Elite 50 LX (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BPR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- "Elite" logo changed
- VIN: JH2AF160*KK100001 ~
- Engine: AF05E-3400001 ~
- Available colors:
1989 Honda Elite LX 50
1990 Honda Elite 50 LX (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BPR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- No visible changes from 1989 model
- VIN: 3H1AF160*LK200001 ~
- Engine: AF05E-3500001 ~
- Available colors:

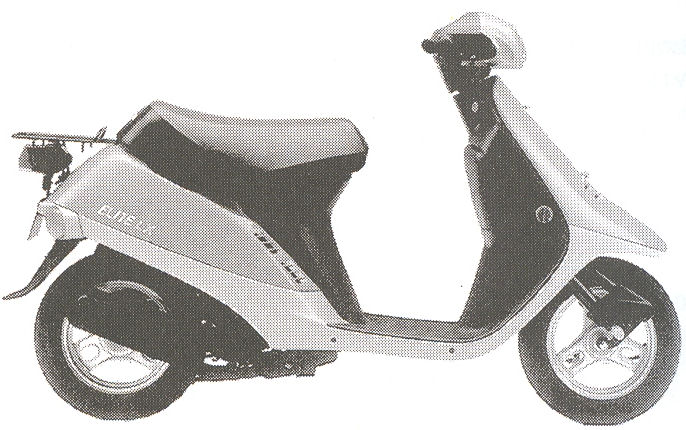

1990 Honda Elite LX 50
1992 Honda Elite 50 SR (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BPR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- VIN: 3H1AF160*ND300001 ~
- Engine: AF05E-3611001 ~
- Available color: Black
- Wheel color: Light Blue
- Striping: Light Blue
- SR logo: Purple

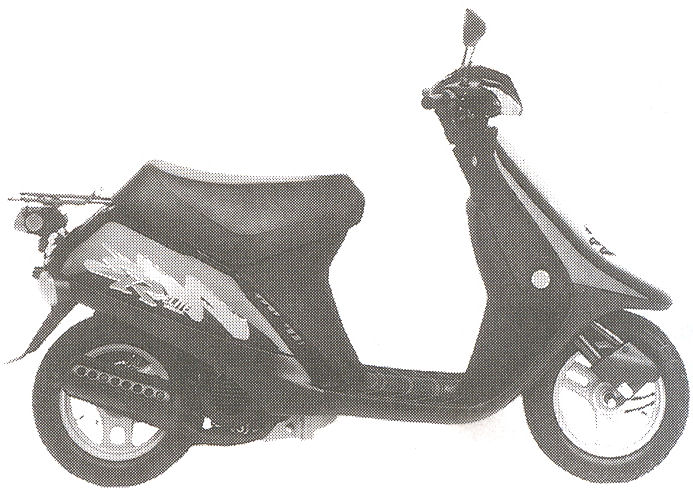

1992 Honda Elite SR 50
1993 Honda Elite 50 SR (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BPR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- No visible changes from 1992 model
- VIN: 3H1AF160*PD400001 ~
- Engine: AF05E-3711001 ~
- Available color: Black
- Wheel color: Light Blue (same as 1992)
- Striping: Light Blue (same as 1992)
- SR logo: Purple (same as 1992)

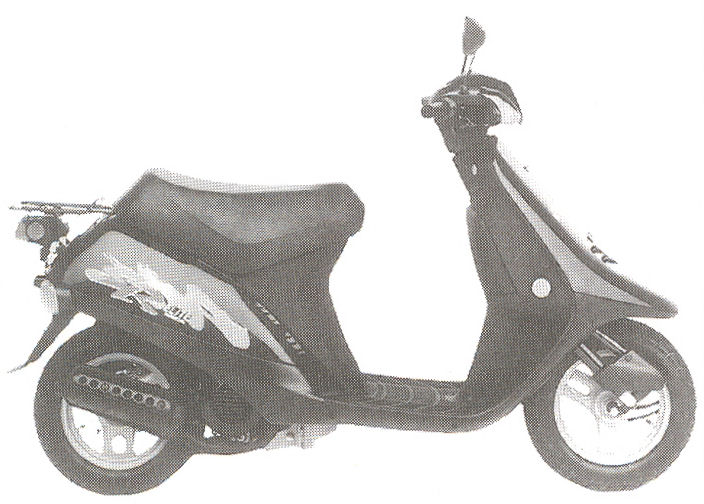

1993 Honda Elite SR 50
1994 Honda Elite 50 SR (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- VIN: 3H1AF160*RD500001 ~
- Engine: AF16E-2000001 ~
- Available color: Gloss Black
- Wheel color: Purple
- SR logo: Purple and Red on Black

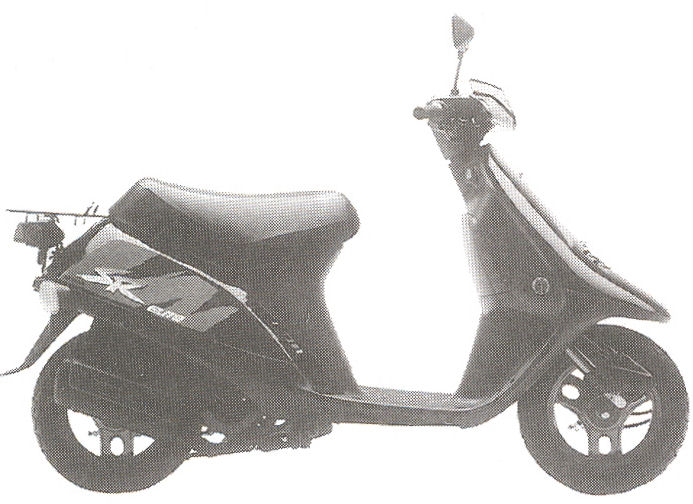

1994 Honda Elite SR 50
1995 Honda Elite 50 SR (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- VIN: 3H1AF160*SD600001 ~
- Engine: AF16E-2012625 ~
- Available color: Monza Red
- Wheel color: White
- SR logo: Black on Red

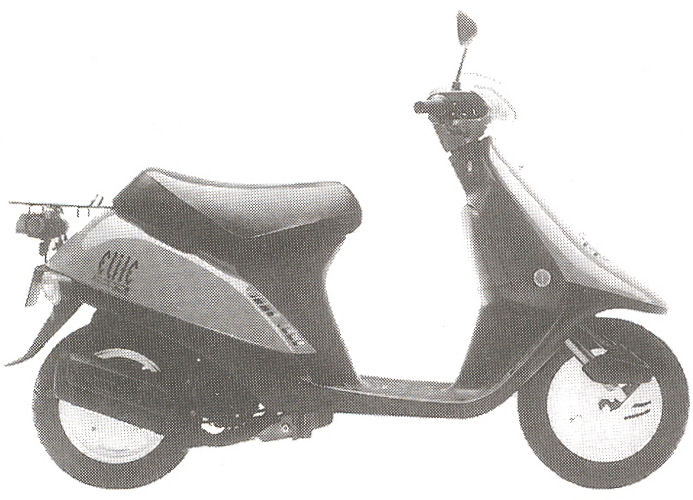

1995 Honda Elite SR 50
1996 Honda Elite 50 SR (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- VIN: 3H1AF160*TD700001 ~
- Engine: AF16E-2012626 ~
- Available color: Pearl Majestic Purple
- Wheel color: White
- SR logo: Black on Red

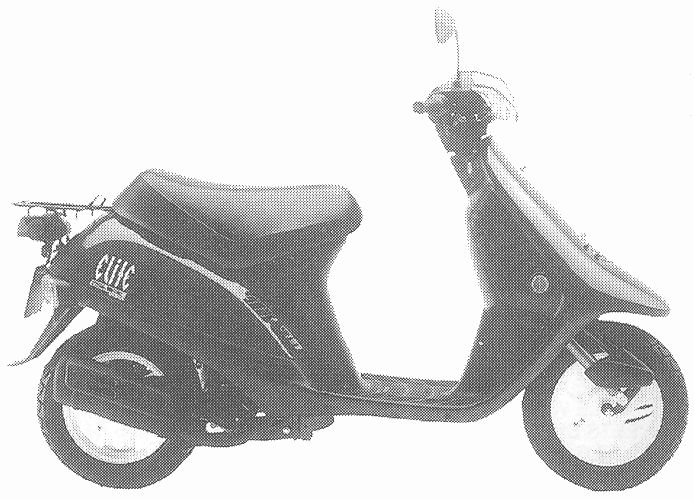

1996 Honda Elite 50 SR
1997 Honda Elite 50 SR (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- VIN: 3H1AF160*VD800001 ~
- Engine: AF16E-2025626 ~
- Available color: Pearl Mistique Purple
- Wheel color: White
- SR logo: Black on Red

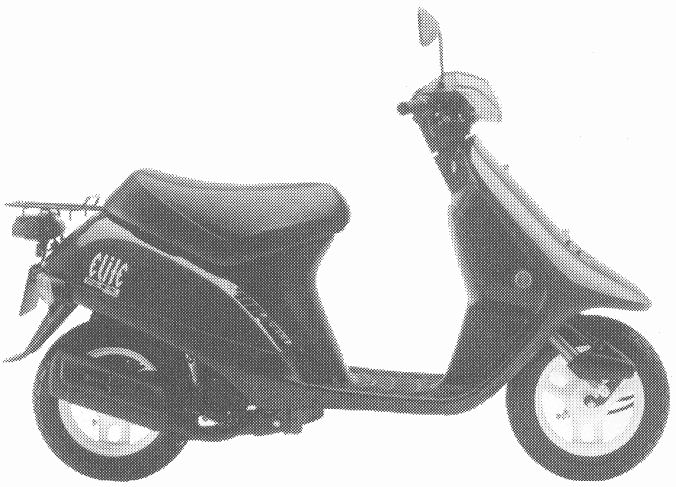

1997 Honda Elite SR 50
1998 Honda Elite 50 SR (SA50)
- ENGINE
- Displacement: 49cc
- Cylinder: Single
- Type: 2-stroke
- Spark plug: BR6HSA
- Plug gap: .028
- Cooling: Air-cooled
- Lubrication: Oil injection
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- Dual-shock, bottom link front suspension
- DIMENSION
- OTHER
- Storage compartment under the seat
- VIN: 3H1AF160*WD900001 ~
- Engine: AF16E-2028301 ~
- Available color: Pearl Mistique Purple
- Wheel color: White
- SR logo: Black on Red
1998 Honda Elite SR 50
