2004 CRF50F
ENGINE
Engine Type: 49cc air-cooled single-cylinder four-stroke
Bore and Stroke: 39.0mm x 41.4mm
Compression Ratio: 10.0:1
Spark plug: CR6HSA
Plug gap: .028
Valve Train: SOHC; two-valve
Fuel Delivery: 13.0mm piston-valve
Ignition: CDI
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 14T/37T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: Inverted telescopic fork; 89mm (3.5") travel
Rear Suspension: Single-shock; 71mm (2.8") travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-10
Rear Tire: 2.50-10
DIMENSION
Rake: 25.0 degrees
Trail: 32.0mm (1.3")
Wheelbase: 914mm (36.0")
Seat Height: 549mm (21.6")
Ground Clearance: 147mm (5.8")
Dry Weight: 47.3 kg (104.0 lb)
Fuel Capacity: 3 litres (0.8 US gal.), including 0.75 litre (0.2 US gal.) reserve
OTHER
Colors: Red
Warranty: 6 months

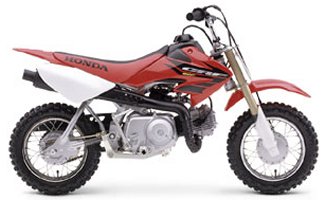

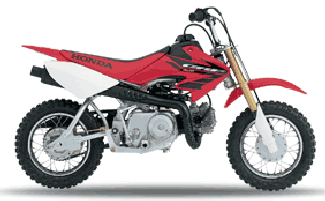

2004 Honda CRF50
2004 Honda CRF50
2005 CRF50F
ENGINE
Engine Type: 49cc air-cooled single-cylinder four-stroke
Bore and Stroke: 39.0mm x 41.4mm
Compression Ratio: 10.0:1
Spark plug: CR6HSA
Plug gap: .028
Valve Train: SOHC; two-valve
Fuel Delivery: 13.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 14T/37T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: Inverted telescopic fork; 89mm (3.5") travel
Rear Suspension: Single-shock; 71mm (2.8") travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-10
Rear Tire: 2.50-10
DIMENSION
Rake: 25.0 degrees
Trail: 32.0mm (1.3")
Wheelbase: 914mm (36.0")
Seat Height: 549mm (21.6")
Ground Clearance: 147mm (5.8")
Dry Weight: 47.3 kg (104.0 lb)
Fuel Capacity: 3 litres (0.8 US gal.), including 0.75 litre (0.2 US gal.) reserve
OTHER
Colors: Red
Warranty: 6 months

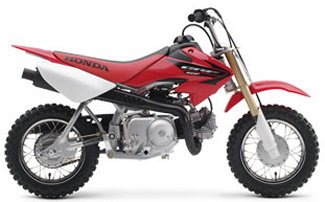

2005 Honda CRF50F
2006 CRF50F
ENGINE
Engine Type: 49cc air-cooled single-cylinder four-stroke
Bore and Stroke: 39.0mm x 41.4mm
Compression Ratio: 10.0:1
Spark plug: CR6HSA
Plug gap: .028
Valve Train: SOHC; two-valve
Fuel Delivery: 13.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 14T/37T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: Inverted telescopic fork; 3.5-inch travel
Rear Suspension: Single-shock; 2.8-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-10
Rear Tire: 2.50-10
DIMENSION
Rake: 25.0 degrees
Trail: 32.0mm (1.3 inches)
Wheelbase: 36.0 inches
Seat Height: 21.6 inches
Ground Clearance: 5.8 inches
Dry Weight: 104.0 pounds
Fuel Capacity: 0.8 gallons, including 0.2-gallon reserve
OTHER
Available Colors: Red
Model ID: CRF50F

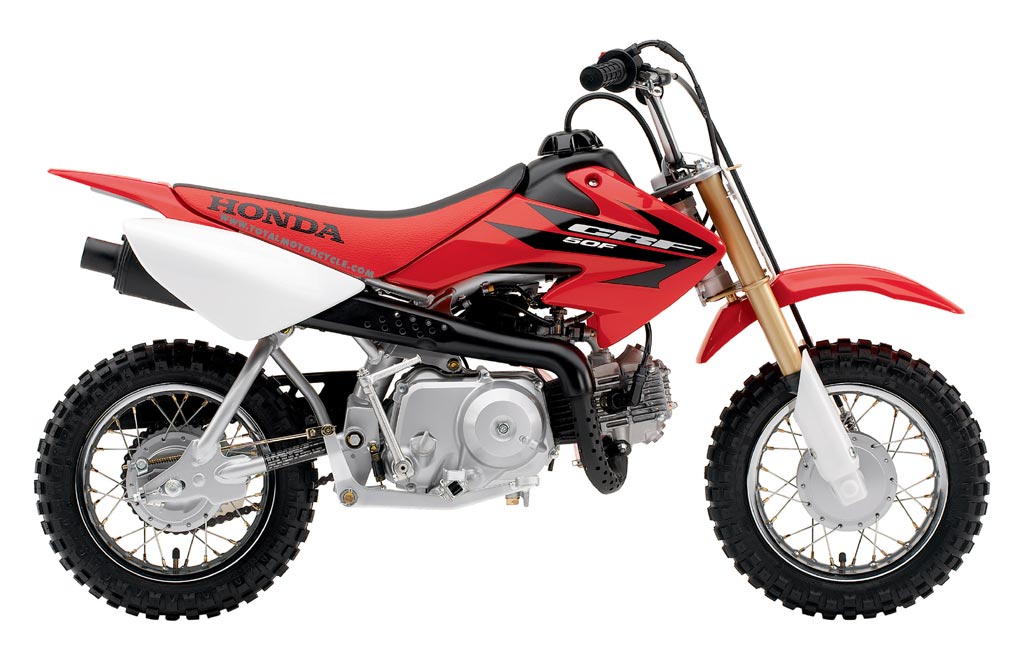

2006 Honda CRF50F Click image to enlarge
2007 CRF50F
ENGINE
Engine Type: 49cc air-cooled single-cylinder four-stroke
Bore and Stroke: 39.0mm x 41.4mm
Compression Ratio: 10.0:1
Spark plug: CR6HSA
Plug gap: .028
Valve Train: SOHC; two-valve
Fuel Delivery: 13.0mm piston-valve
Ignition: CD
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 14T/37T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: Inverted telescopic fork; 3.5-inch travel
Rear Suspension: Single-shock; 2.8-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-10
Rear Tire: 2.50-10
DIMENSION
Rake: 25.0 degrees
Trail: 32.0mm (1.3 inches)
Wheelbase: 36.0 inches
Seat Height: 21.6 inches
Ground Clearance: 5.8 inches
Dry Weight: 104.0 pounds
Fuel Capacity: 0.8 gallons, including 0.2-gallon reserve
OTHER
Available Colors: Red
Model ID: CRF50F

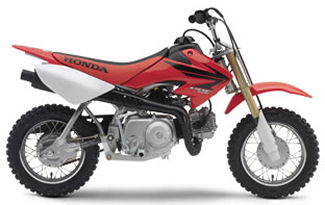

2007 Honda CRF50F
2008 CRF50F
OVERVIEW
There are first bikes, and then there's the CRF50F. This super-popular machine has launched countless careers, proof positive there's no better place for a young rider to start dirt-riding than on a Honda CRF50F. Rugged, reliable and beginner-friendly, with smooth four-stroke power, an automatic clutch and low seat height, this entry-level wonder is indeed the ultimate off-road starter kit.
ENGINE
Engine Type 49cc air-cooled single-cylinder four-stroke
Bore and Stroke 39.0mm x 41.4mm
Compression Ratio 10.0:1
Spark plug: CR6HSA
Plug gap: .028
Valve Train SOHC; two-valve
Induction 13mm piston-valve carburator
Ignition CD
DRIVETRAIN
Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T
CHASSIS / SUSPENSION / BRAKES
Front Suspension Inverted telescopic fork; 3.5-inch travel
Rear Suspension Single-shock; 2.8-inch travel
Front Brake Drum
Rear Brake Drum
Front Tire 2.50-10
Rear Tire 2.50-10
DIMENSION
Rake 25.0 degrees
Trail 32.0mm (1.3 inches)
Wheelbase 36.0 inches
Seat Height 21.6 inches
Ground Clearance 5.8 inches
Curb Weight TBD
Fuel Capacity 0.7 gallons, including 0.2-gallon reserve
OTHER
Emissions Meets current CARB and EPA standards.
Available Colors Red
Price: $1349
Model ID CRF50F
6 months Coverage of defects in materials and workmanship

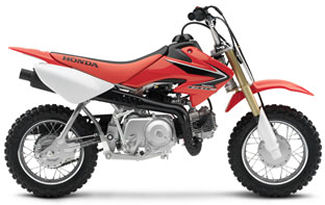

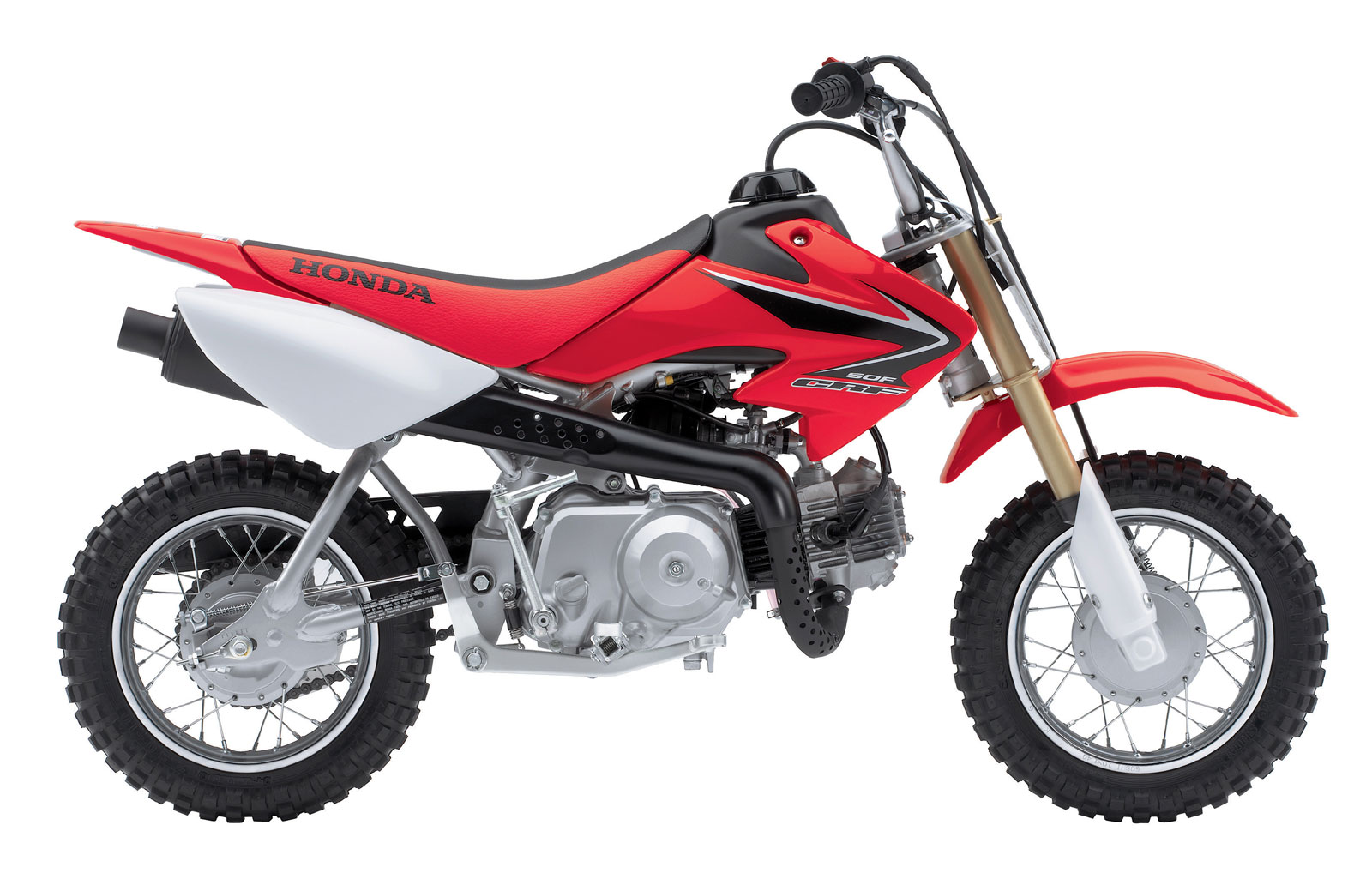

2008 Honda CRF50F Click image to enlarge
2009 CRF50F
ENGINE
Engine Size: 49cc
Engine Detail: air-cooled single-cylinder four-stroke
Bore Stroke: 39.0mm x 41.4mm
Compression Ratio: 10.0:1
Spark plug: CR6HSA
Plug gap: .028
Fuel System: 13mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 14T/37T
CHASSIS / SUSPENSION / BRAKES
Suspension Front: Inverted telescopic fork; 3.5-inch travel
Suspension Rear: Single-shock; 2.8-inch travel
Brakes Front: Drum
Brakes Rear: Drum
Tire Front: 2.50-10
Tire Rear: 2.50-10
DIMENSION
Wheelbase: 36 in.
Seat Height: 21.6 in.
Curb Weight: 110 lbs.
Fuel Capacity: 0.7 gal.
OTHER
Colors: Red
Warranty: 6 Months
Price: $1349

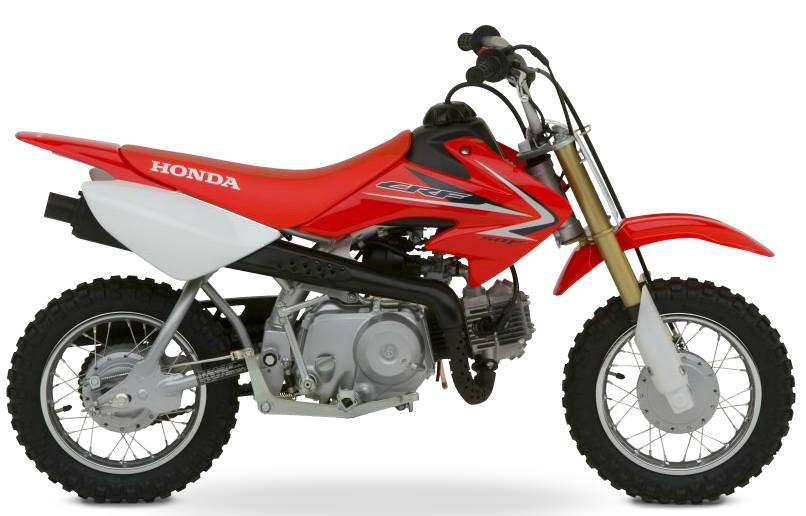

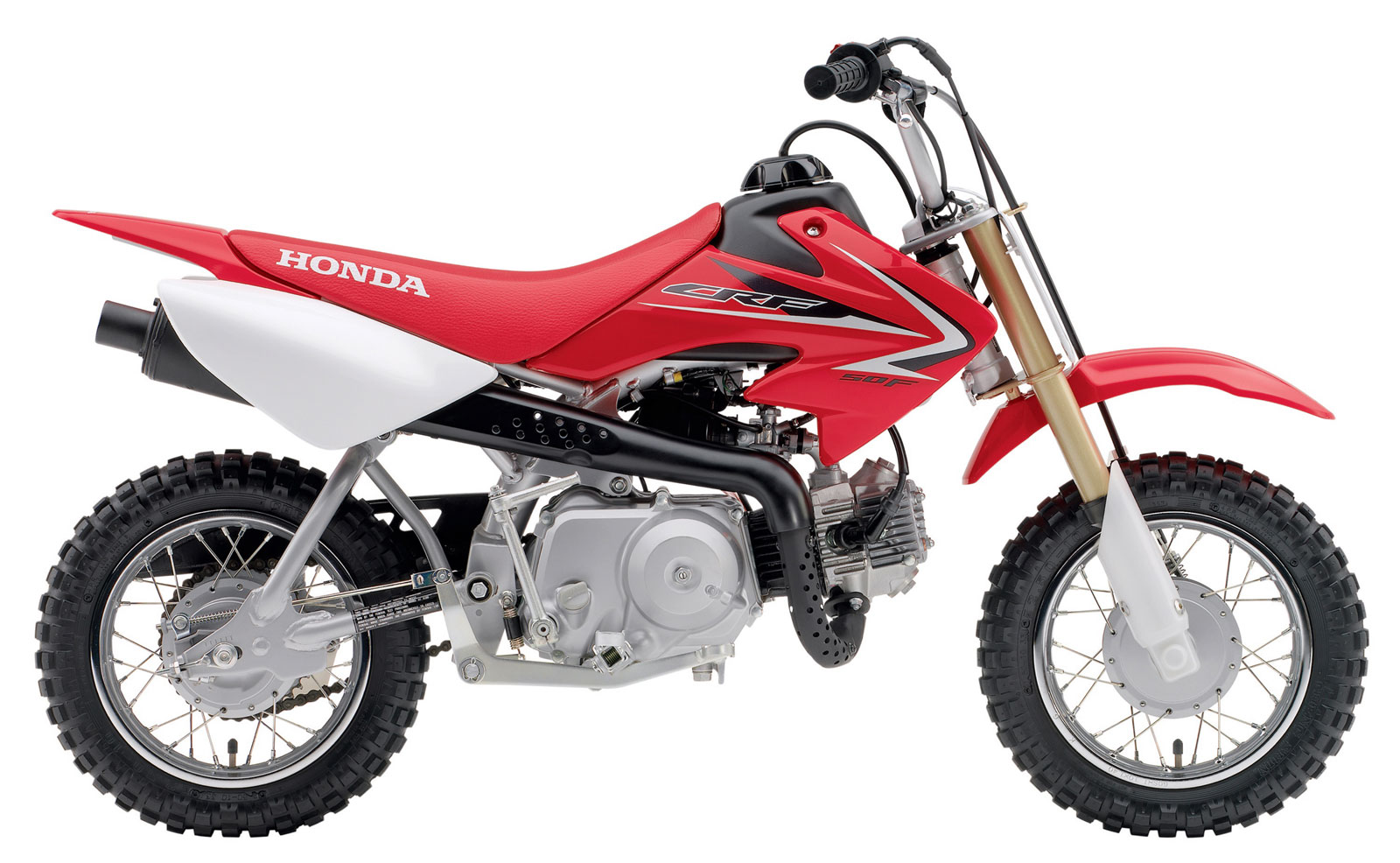

2009 CRF50F Click image to enlarge

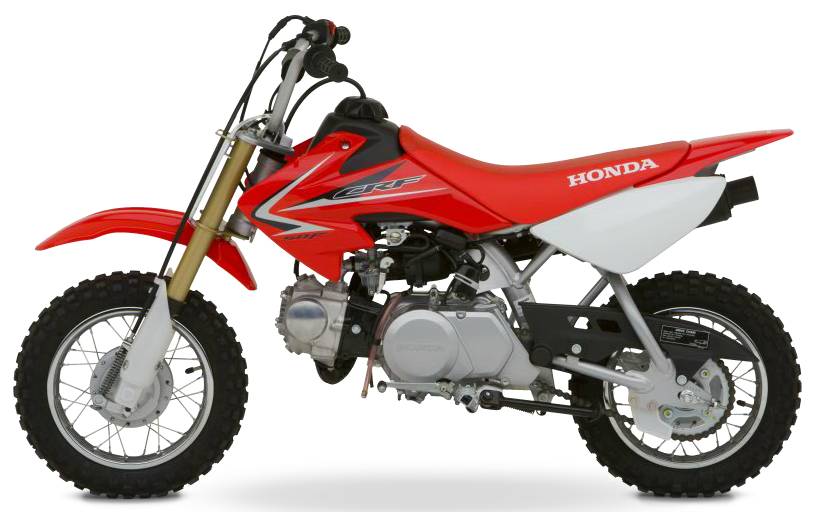

2009 CRF50F Click image to enlarge
2009 CRF50F Click image to enlarge
2011 CRF50F
ENGINE
Engine Type: 49cc air-cooled single-cylinder four-stroke
Bore And Stroke: 39.0mm x 41.4mm
Compression Ratio: 10.0:1
Spark plug: CR6HSA
Plug gap: .028
Valve Train: SOHC; two-valve
Fuel Delivery: 13mm piston-valve carburator
Ignition: CD
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 14T/37T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: Inverted telescopic fork; 3.5-inch travel
Rear Suspension: Single-shock; 2.8-inch travel
Front Brake: Drum
Rear Brake: Drum
Front Tire: 2.50-10
Rear Tire: 2.50-10
DIMENSION
Rake: 25.0 degrees
Trail: 32.0mm (1.3 inches)
Wheelbase: 36.0 inches
Seat Height: 21.6 inches
Ground Clearance: 5.8 inches
Curb Weight: 110 pounds
Fuel Capacity: 0.7 gallons, including 0.2-gallon reserve
OTHER
Model Id: CRF50F
Available Colors: Red
Emissions: Meets current CARB and EPA standards.
Note: Recommended for riders 13 years of age and older. Honda recommends that riders take a training course and read their owner's manual thoroughly.
FACTORY WARRANTY INFORMATION
Duration: 6 months
Description: Transferable limited warranty; extended warranty available with a Honda Protection Plan.

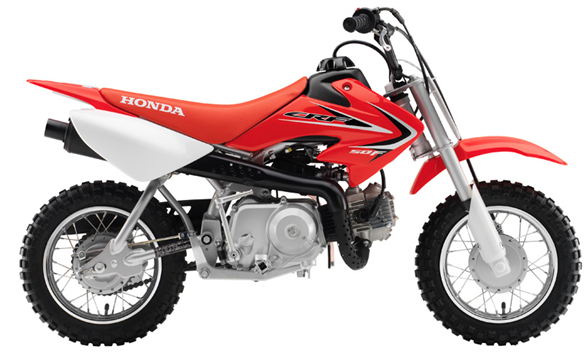

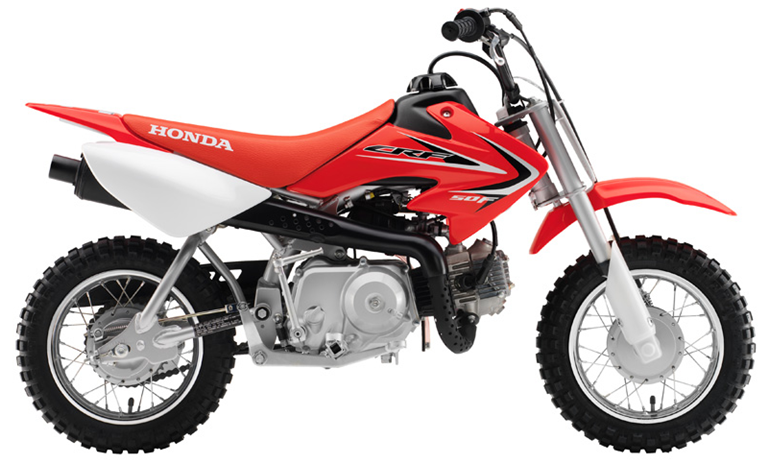

2011 CRF50F Click image to enlarge
2012 CRF50F
ENGINE
Engine Type: Air-cooled 4-stroke OHC single
Engine Displacement: 49.4cc
Bore And Stroke: 39.0mm x 41.4mm
Compression Ratio: 10.0:1
Spark plug: CR6HSA
Plug gap: .028
Valve Train: SOHC; two-valve
Fuel Delivery: 13mm piston-valve carburator (in some markets: 11mm)
Ignition: Capacitor Discharge (CDI)
Starter: Primary kick
DRIVETRAIN
Transmission: Three-speed with automatic clutch
Final Drive: #420 chain; 14T/37T
Front Wheels: Wire spoke
Rear Wheels: Wire spoke
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 21.7mm inverted telescopic fork, 96mm axle travel
Rear Suspension: Monoshock with cantilever-type swingarm, 70mm axle travel
Front Brakes: Leading/trailing drum
Rear Brakes: Leading/trailing drum
Rear Tires: 2.50 10 (33J)
Front Tires: 2.50 10 (33J)
DIMENSION
Rake: 25.0 degrees
Trail: 32.0mm (1.3 inches)
Wheelbase: 911mm (35.9 inches)
Overall Length: 1302mm (51.25 inches)
Overall Width: 581mm (22.9 inches)
Overall Height: 774mm (30.5 inches)
Seat Height: 550mm (21.65 inches)
Ground Clearance: 146mm (5.75 inches)
Dry Weight: 47 kg (103.4 lb)
Curb Weight: 50 kg (110 lb)
Fuel Capacity: 3 Litres (.79 GalUS) (including 0.8-Litre reserve)
OTHER
Model Id: CRF50F
Available Colors: Red
Emissions: Meets current CARB and EPA standards.
Note: Recommended for riders 13 years of age and older. Honda recommends that riders take a training course and read their owner's manual thoroughly.
FACTORY WARRANTY INFORMATION
Duration: 6 months
Description: Transferable limited warranty; extended warranty available with a Honda Protection Plan.
2012 CRF50F

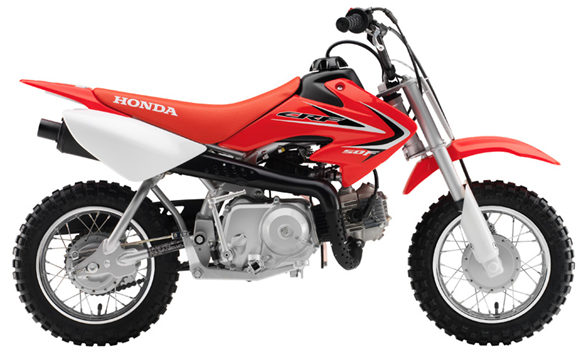

2012 CRF50F Click image to enlarge
