Chaly 50 (CF50)
- ENGINE
- Engine type: air cooled single cylinder 4 cycles
- Displacement: 49cc
- Bore & Stroke: 39.0mm × 41.4mm
- Compression ratio: 10.0:1
- Carburetor: VC 58
- Starting system: Kick system
- Ignition device type: CDI type magnetic ignition
- Lubricating system: Force splash combined use system
- DRIVETRAIN
- Clutch type: Wet multiple plate coil spring system
- Transmission type: Regular gearing three speed
- 1st gear ratio: 3.272:1
- 2nd gear ratio: 1.823:1
- 3rd gear ratio: 1.190:1
- CHASSIS / SUSPENSION / BRAKES
- Tire size: 3.50-10-2 PR (front and rear)
- Brake type: Mechanical cable type leading & trailing (front & rear)
- Front suspension: Telescopic system
- Rear suspension: Swing arm
- Frame type: Low floor backbone
- DIMENSION
- length: 1665 mm (65.5")
- width: 645 mm (25")
- height: 985 mm (39")
- Wheelbase: 1100 mm (43")
- Road clearance: 125 mm (5")
- Seat hight: 710 mm (28")
- Vehicle weight: 76 kg (167.2 lb)
- Dry weight: 72 kg (158.4 lb)
- Fuel consumption @ 30 km/h (17 mph): 0.87 l/100 km (260 mi/US gal)
- Minimum turning radius: 1600mm (63")
- Oil capacity: 0.7 liter
- Fuel tank capacity: 2.8 liter
- OTHER

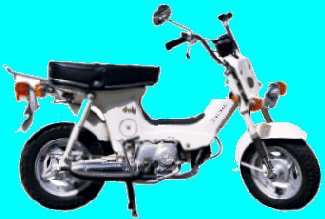

Honda Chaly 50 (CF50)

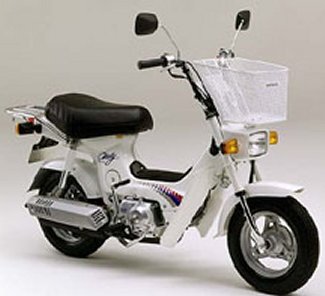

1972 Honda Chaly CF50

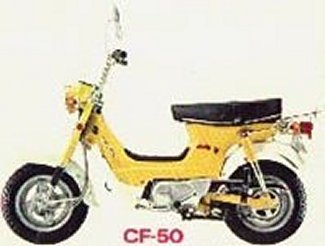

Honda Chaly CF50
